- Injection range 0,07 - 10 % [1:500 - 1:10] depending on your model
- Water flow range 10 l/h - 2,5 m3/h
- Operating water pressure 0,3 - 6 bar
- Concentrated additive injection 0,02 - 50 l/h / 0,1 - 125 l/h
- Stroke volume ~ 0,45 l
- Hose : Ø 6x9mm - Lg 1,80m
Specific features

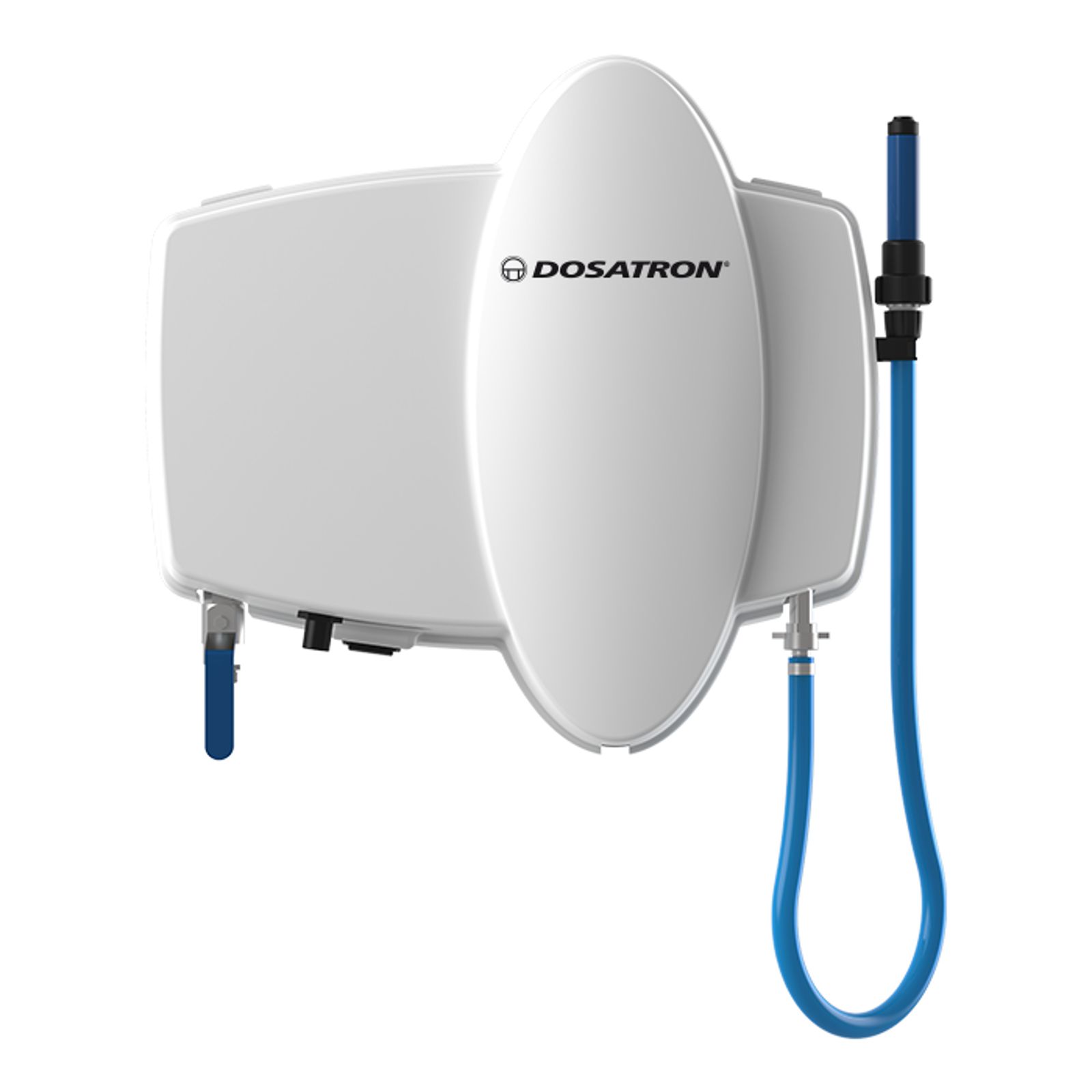

The Dosatron Hygiene Unit HU1 is suitable for the following washing and disinfection / decontamination applications:
- Floor surfaces / instrumentation: filling function, hand sprayer, bucket or soaking tank ...
- Medical equipment: in-line dosing of washboscopes, dialysis machines, water systems, etc.
- Collective kitchens: spray function (gun kit, rewinder, ...).
Dosatron's HU1 Hygiene Unit consists of :
- a Dosatron wtaer powered proportional dosing unit from the D25RE range,
- an ABS-wall case,
- a shut-off valve,
- an anti-pollution disconnector, BA type (Standard EN1717),
- a stainless steel support for 2 drums of 5 l or 1 drum of 10 l,
- a drum cap,
- a filling kit composed of hose (180cm) and anti-drop nozzle.
- Seals for additives up to pH 9
- Seals for alkaline additives
