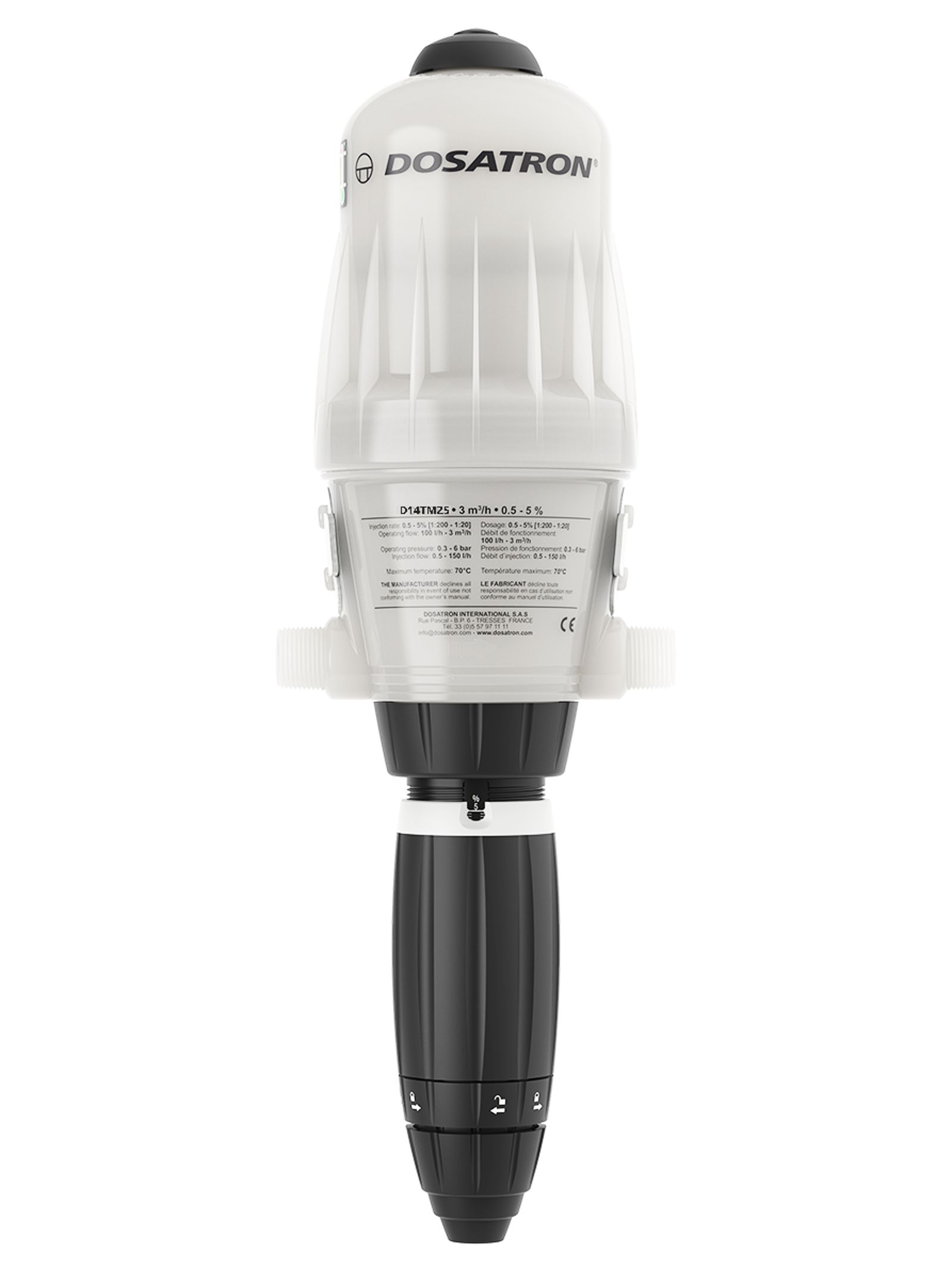

D14TMZ5: High-Temperature Dosing Technology

HOT-WATER Dosatron D14TMZ5-14 GPM is a precision water-powered unit that will operate with water temperatures up to 158 °F, for maximum cleaning effectiveness. Made of high-performance materials with a metal-free, re-enforced piston. High chemical compatibility. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:200 to 1:20 (0.5% to 5%). Installation is easy with an Industrial Plumbing Kit # IPK34-14GPM-WHA-HTEMP.

Specifications

• Connection Size: 3/4" NPT
• Maximum Temperature: 158 °F
• Unit Weight: 8 lbs
• Dimensions: 19 1/8" x 6 5/16"
• Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
• Pressure: 4.3 to 85 PSI
• Ratio Range: 1:200 to 1:20
• Percentage Range: 0.5 to 5%
• Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

Flange Kit for the Hot-Water Dosatron D14TMZ Series.
