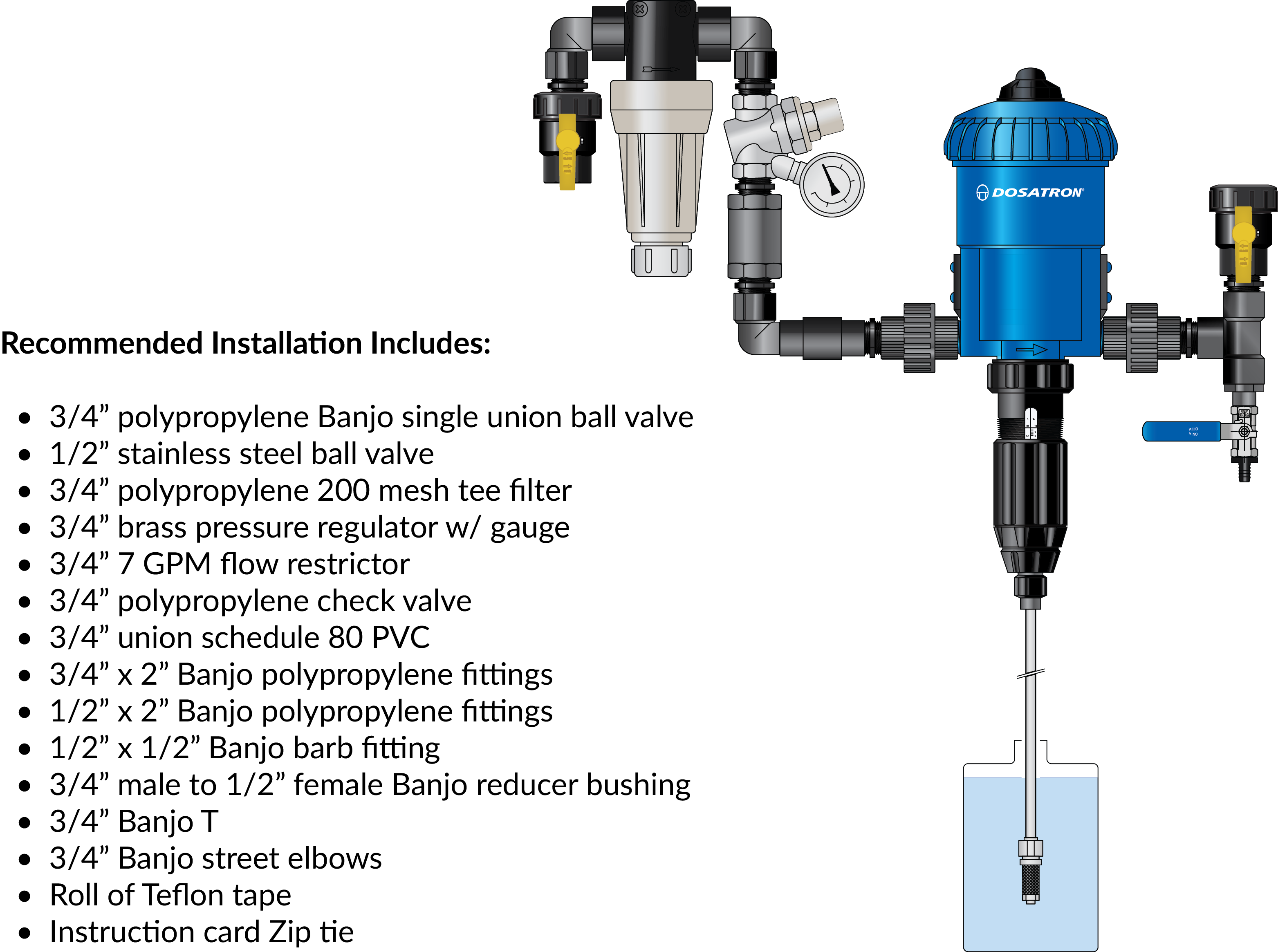

IPK34-7GPM D25RE10 Industrial Plumbing Kit. Recommended Installation
- Connection Size: 3/4" NPT
- Percentage Range: 3 to 10%
- Unit Weight: 4 lbs
- Ounces Per Gallon Range: 3.879 to 12.800
- Flow: 0.05 to 8.8 GPM
- Pressure: 4.3 to 57 PSI
- Dimensions: 14
- Ratio Range: 1:33 to 1:10
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.
D25 Series Bypass Installation
To load this content, approve your cookie preferences and allow the required cookies.

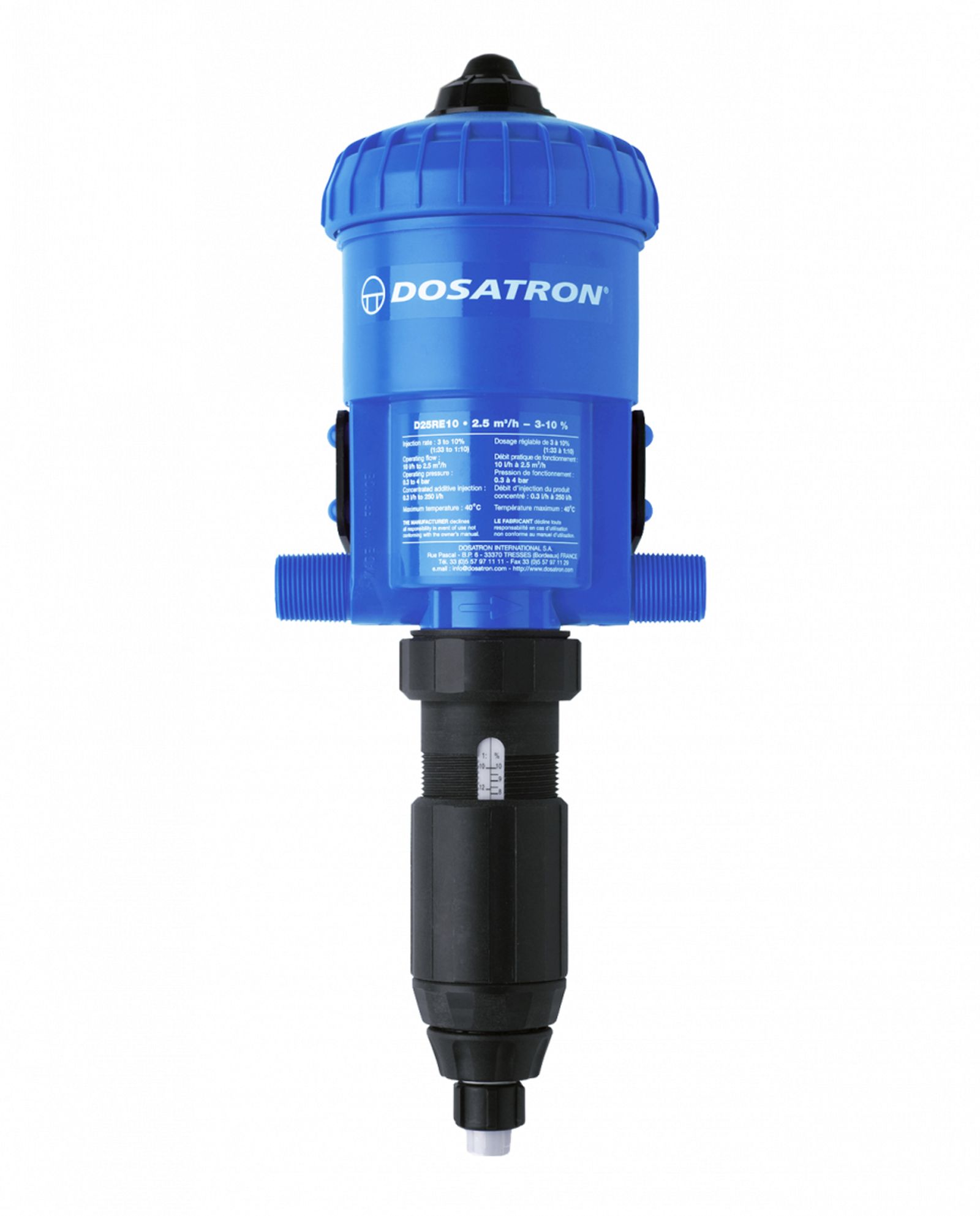

D25RE10 – 8.8 GPM
Water-Powered Dosatron D25RE10AFII injector with dosing seals for industrial applications. The water flow range is 0.05 to 8.8 GPM and a dilution range of 1:33 to 1:10 (3% to 10%). Easy to install with an Industrial Plumbing Kit # IPK34-7GPM.
Specifications
- Connection Size: 3/4" NPT
- Unit Weight: 4 lbs
- Dimensions: 14" x 6 1/4"
- Flow: 0.05 to 8.8 GPM (0.16 to 33.3 LPM)
- Pressure: 4.3 to 57 PSI
- Ratio Range: 1:33 to 1:10
- Percentage Range: 3 to 10%
- Ounces Per Gallon Range: 3.879 to 12.800
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

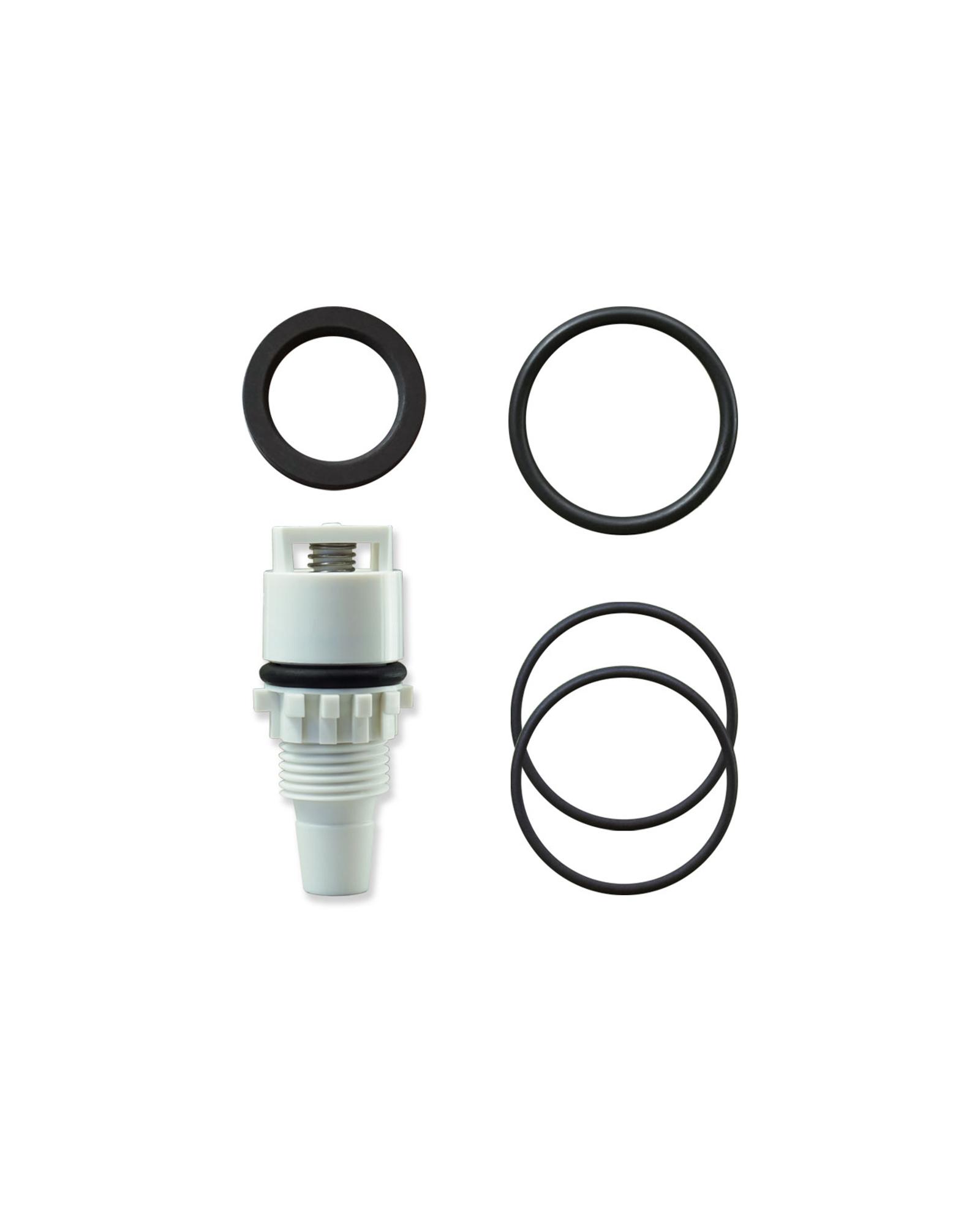

Seal Kit for the D25RE10
Injection seal kit for the D25RE10 - 8.8 GPM. Part #: PJ120.
Specifications
Kit Includes:
- Check valve assembly
- Injection stem o-ring
- Plunger seal
- Injection sleeve o-ring
