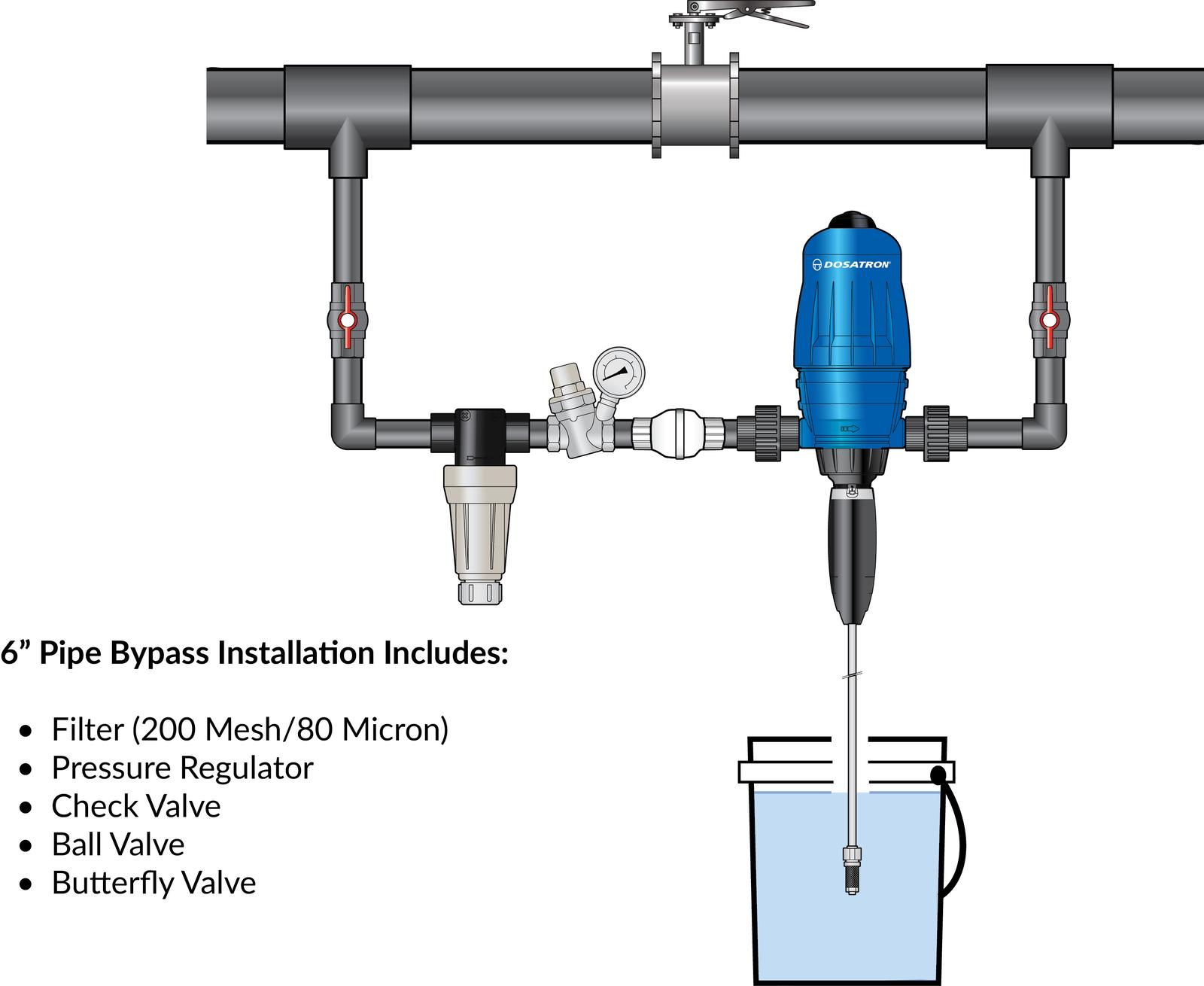

6" Pipe Bypass Installation. For field installations
- Connection Size: 3/4" NPT
- Percentage Range: 0.2 to 2%
- Unit Weight: 6 lbs
- Ounces Per Gallon Range: 0.256 to 2.560
- Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
- Pressure: 4.3 to 85 PSI
- Dimensions: 19 1/8" x 6 5/16"
- Ratio Range: 1:500 to 1:50
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.
D14MZ2 Specificaton Sheet
Open
D14MZ2 Interactive Schematics
Open
D14MZ2 Owner's Manual
Open
D14MZ2 Quick Start-Up guide
Open
D14MZ2 Injection Seal Kit Instructions
Open
D14MZ2 Mini Maintenance Kit
Open
D14MZ2 Rebuild Kit
Open
D14MZ2 Piston Flange Kit
Open
D14MZ2 Service Steps
Open
D14MZ2 Industrial Plumbing Kit Specification Sheet
Open
D14MZ2 Industrial Plumbing Kit Assembly Instructions
Open
D14MZ2 Industrial Plumbing Kit Assembly Instructions (With Mixing Chamber)
Open

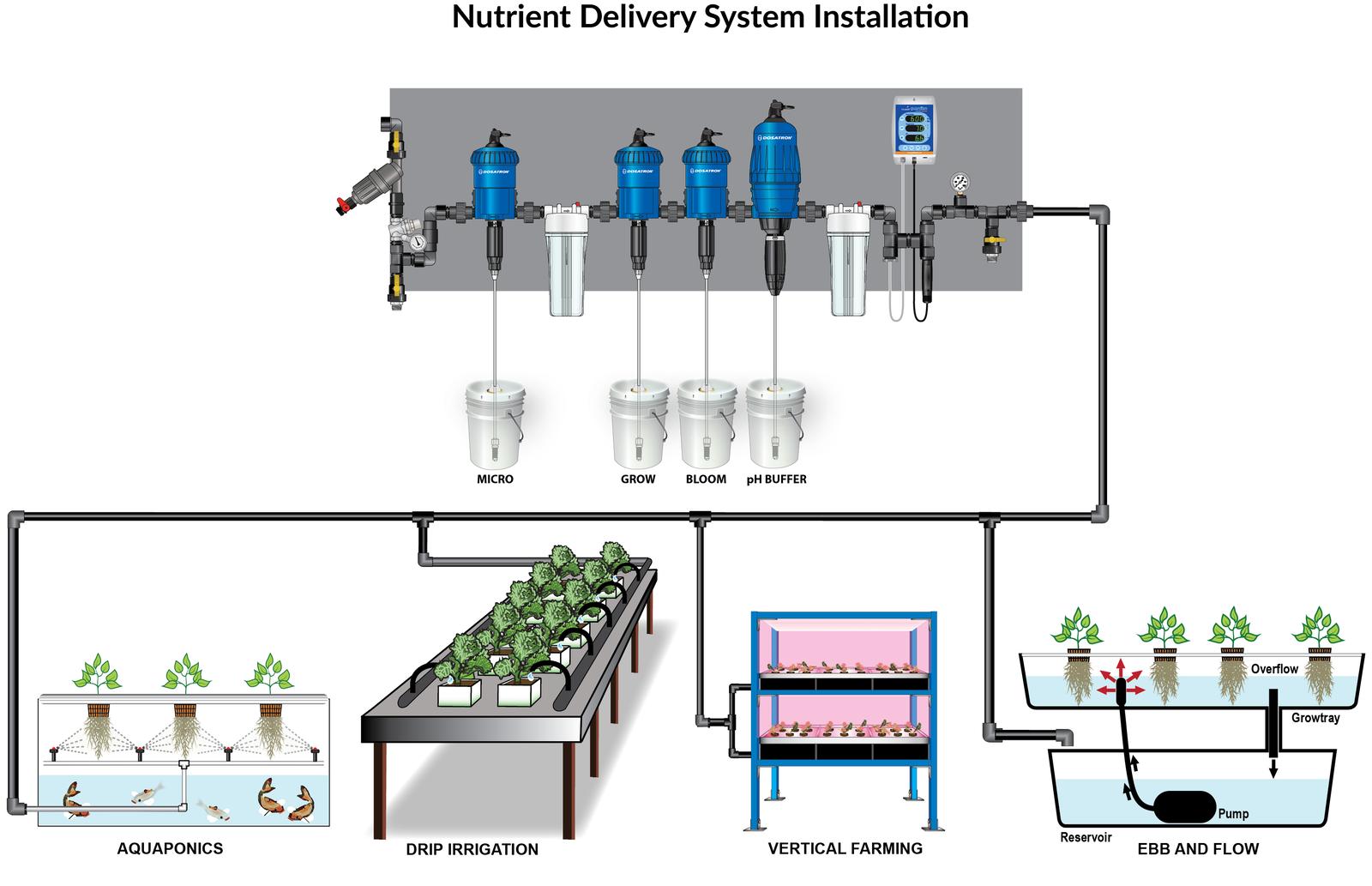

System composed of three main panel sections, arranged to fit your nutrition program. Nutrient Delivery System

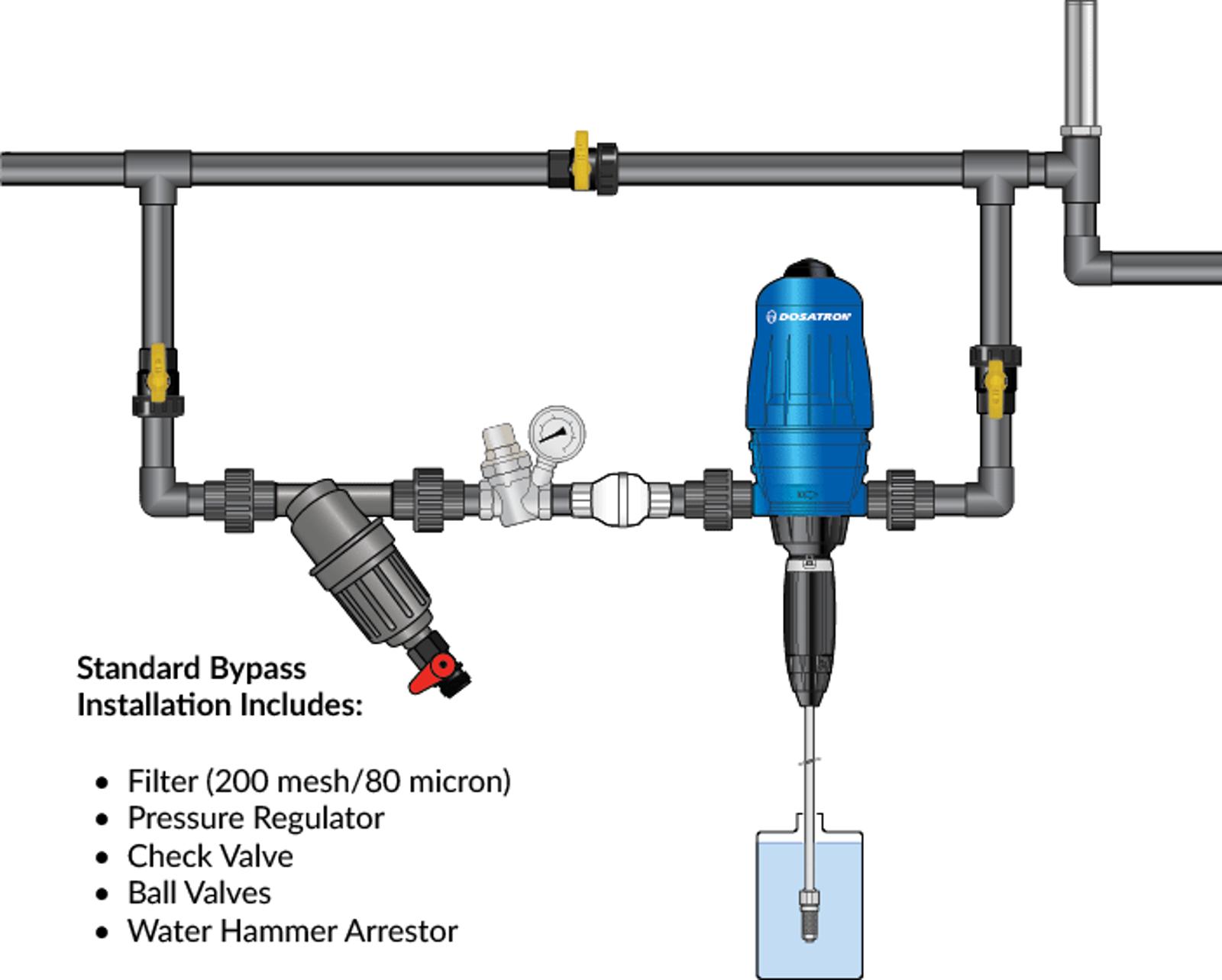

D14 – 14 GPM bypass installation. Suggested installation

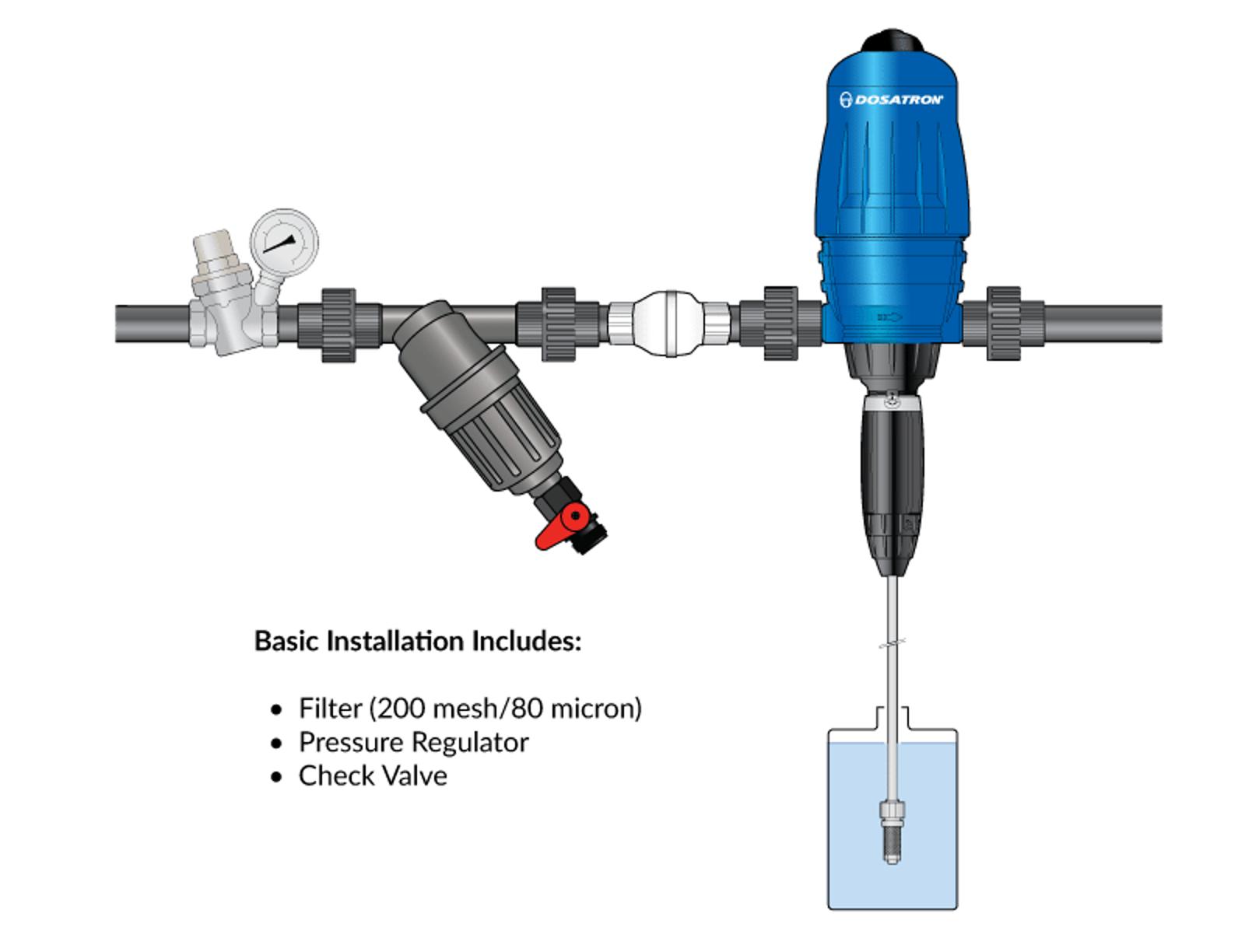

Basic installation D14 – 14 GPM. Basic installation

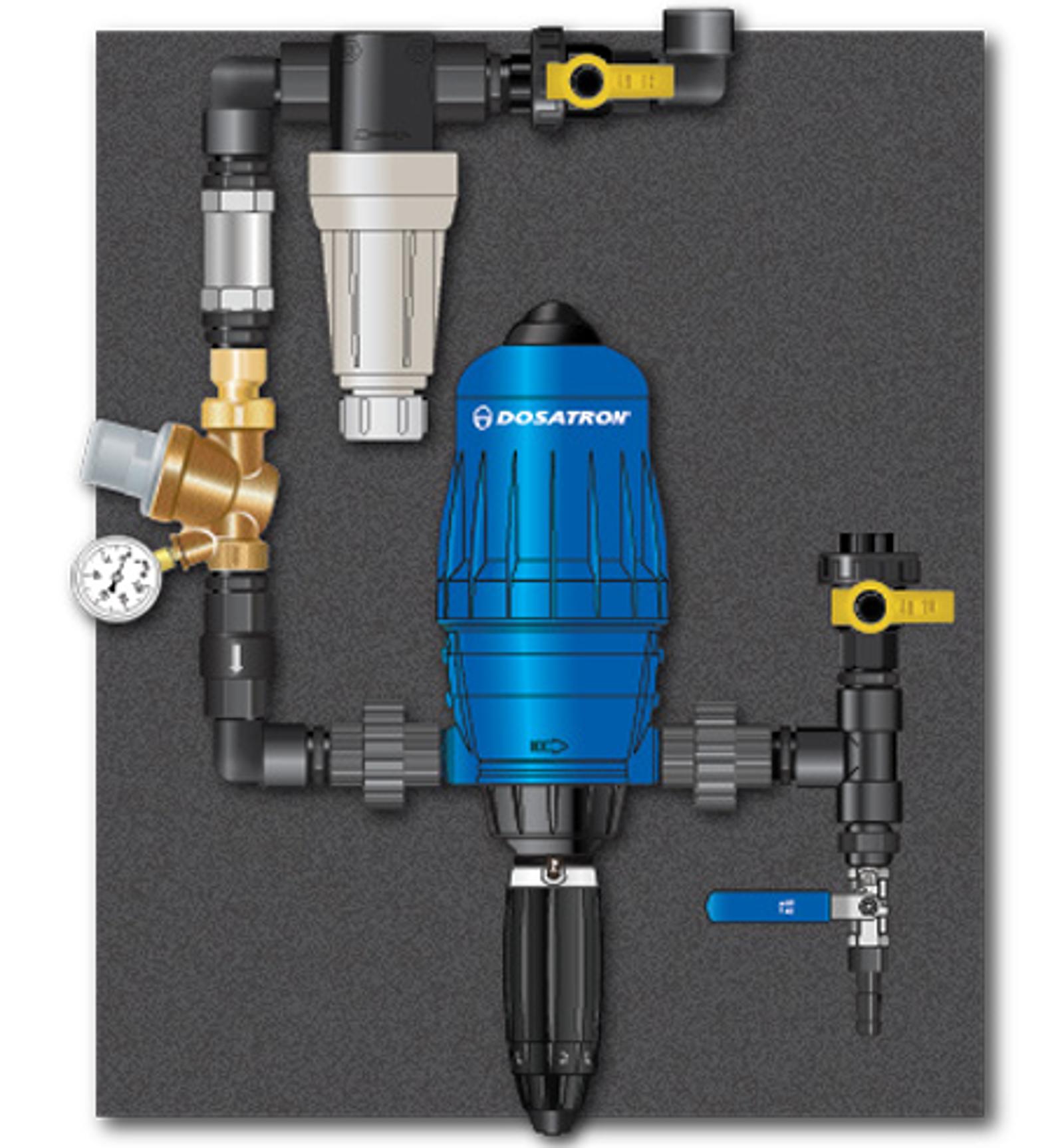

Single-unit panel system with D14MZ2. For food sanitation applications
(Part numbers: PS1A130-BLEND, PS1A131-BLEND, PS1A137-BLEND)

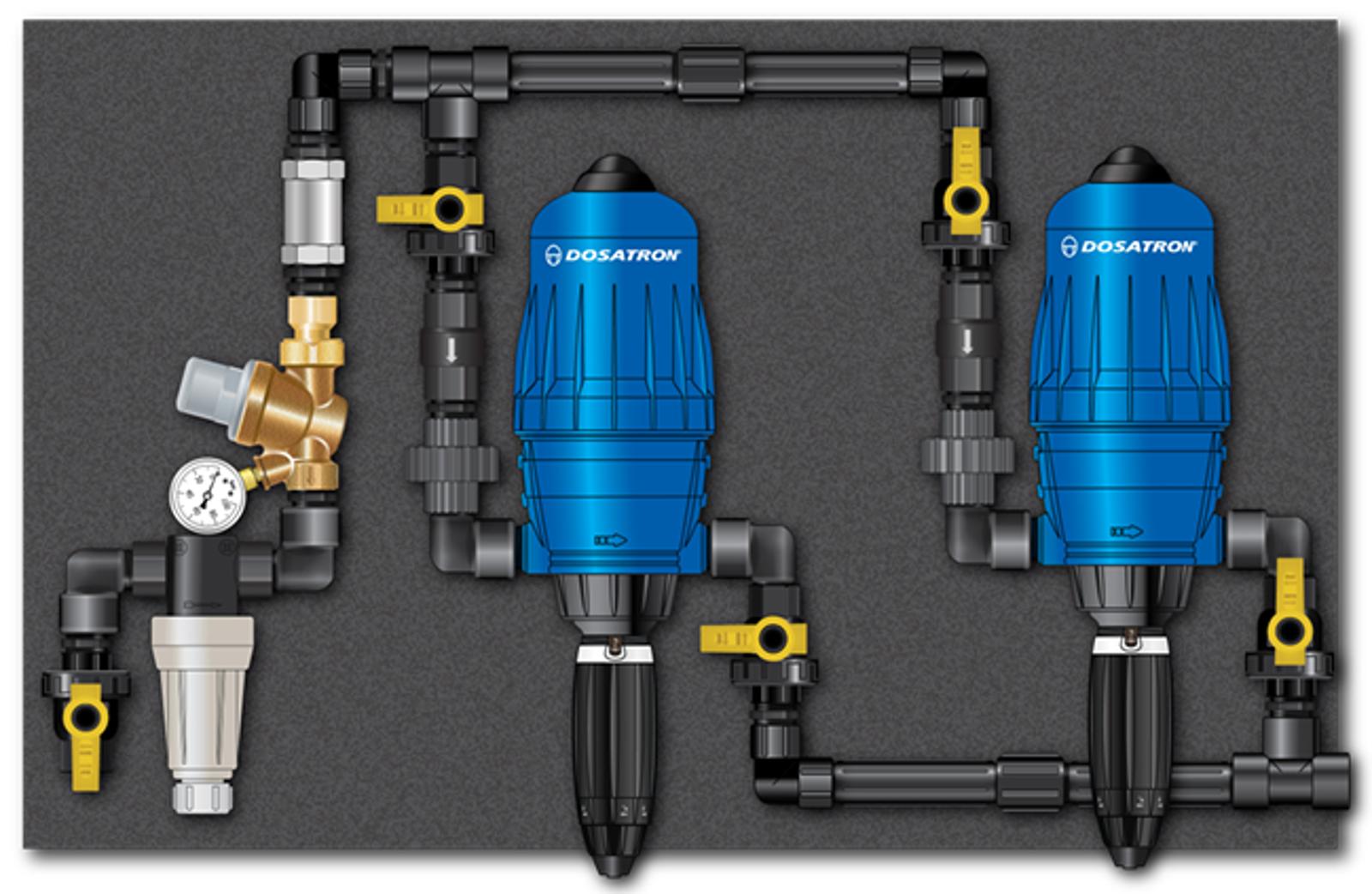

Fail safe unit panel system with two D14MZ2. For food sanitation applications.
(Part numbers: PS4G130-130-FAILSAFE,PS4G131-131-FAILSAFE, PS4G137-137-FAILSAFE)

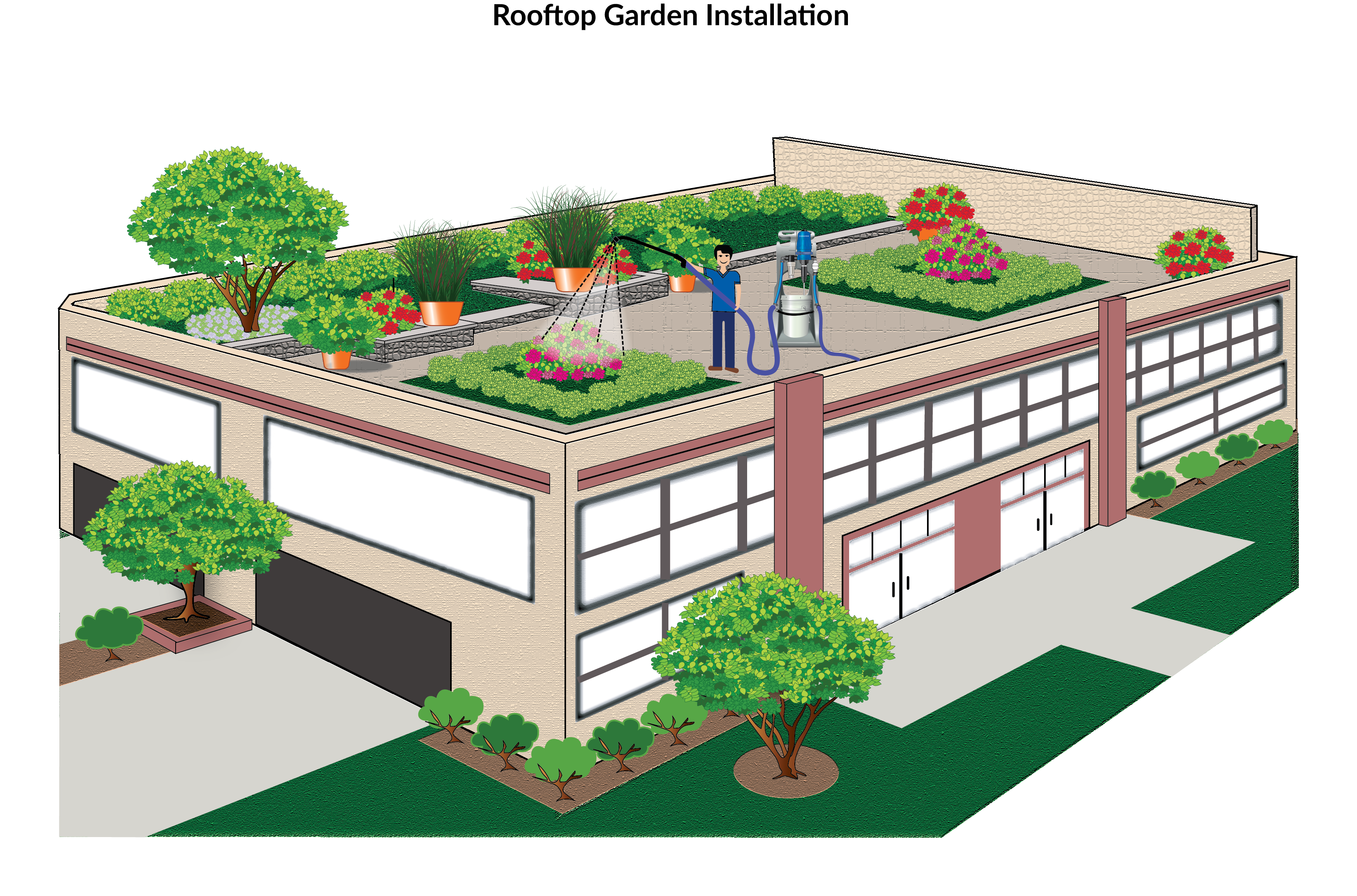

Make the most of your space. Rooftop Garden Installation
Grow more in less space. Indoor Vertical Farm

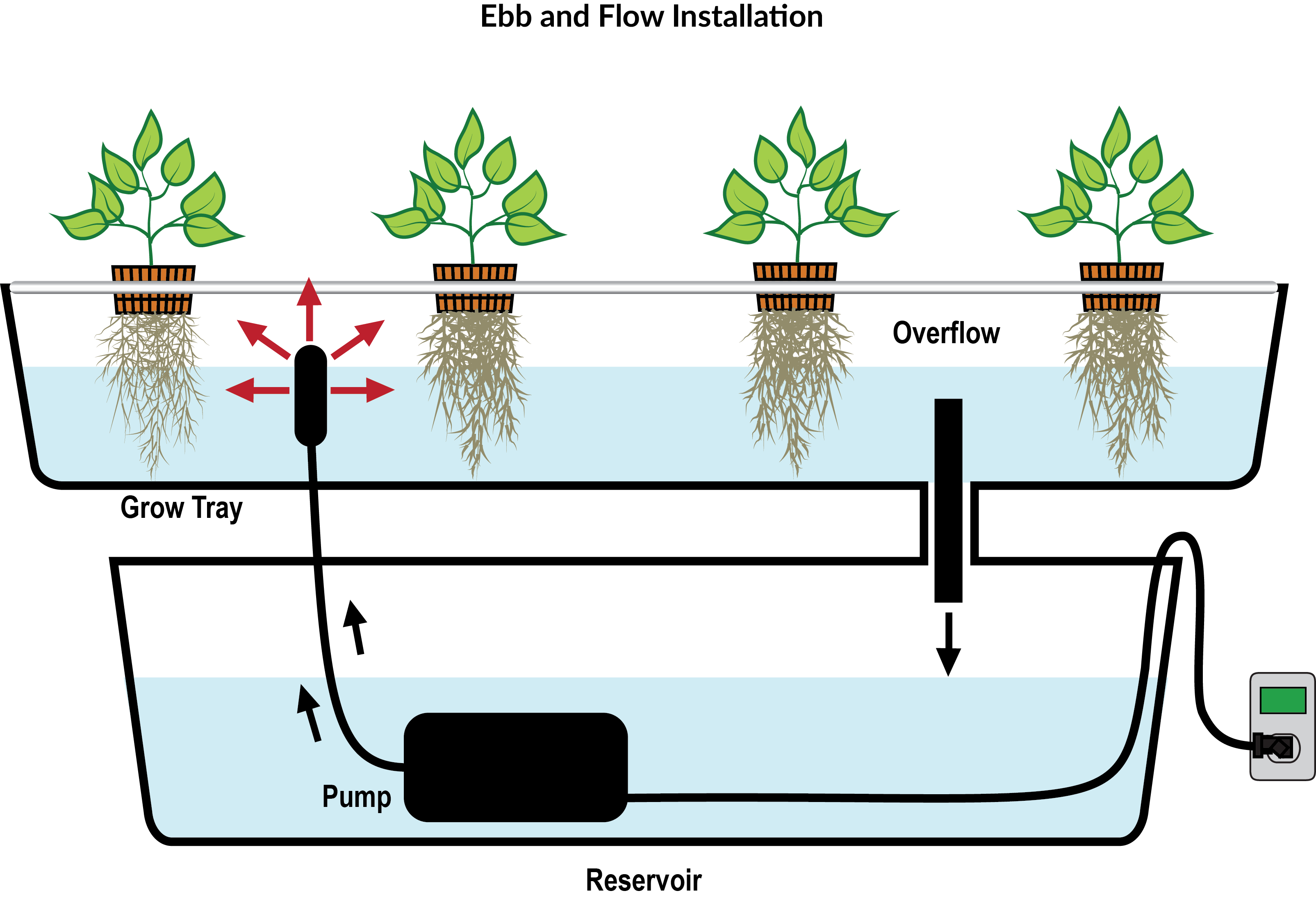

Easily and accurately fill your reservoirs with a blended solution. Ebb and Flow

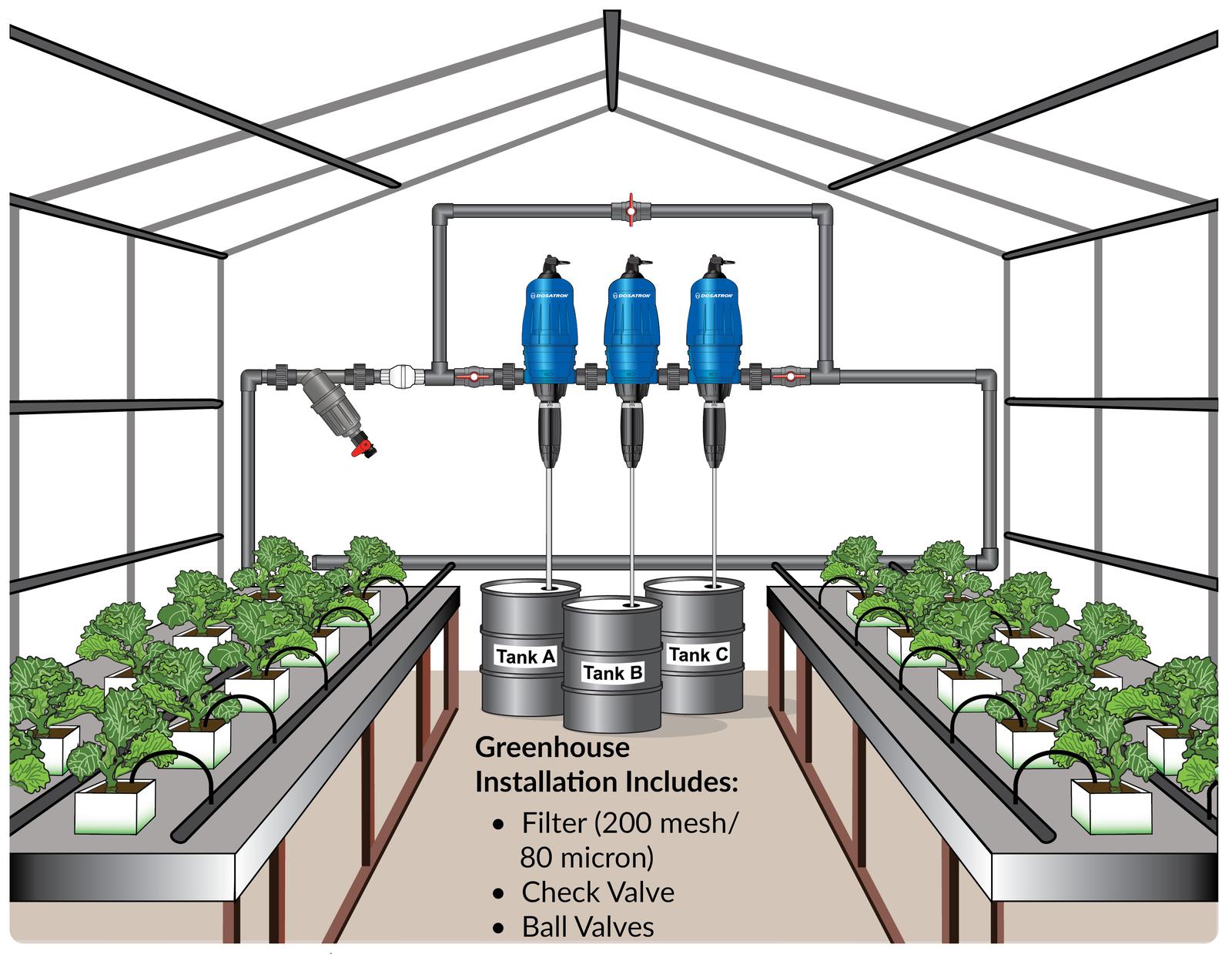

Dosatrons are the perfect fit for multi-nutrient feeding programs. Greenhouse Installation

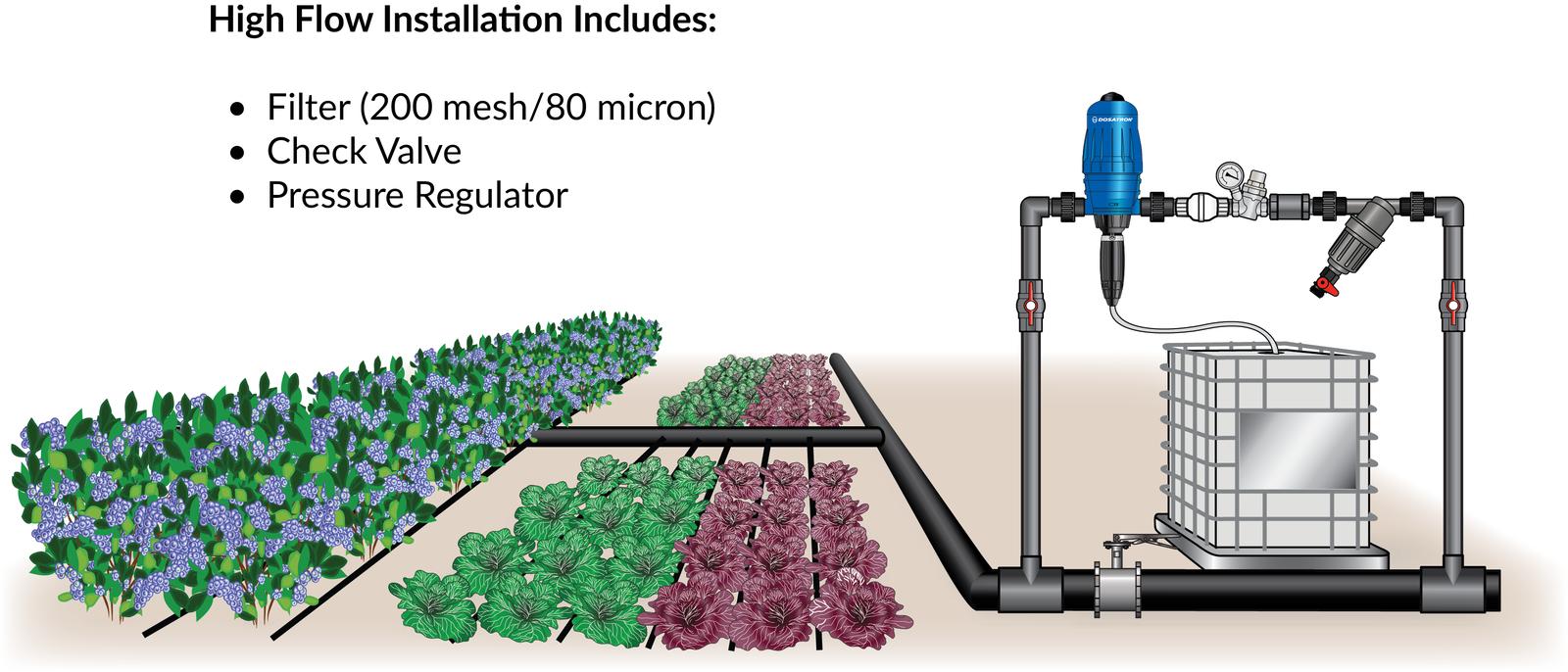

Agriculture field application. High Flow Installation

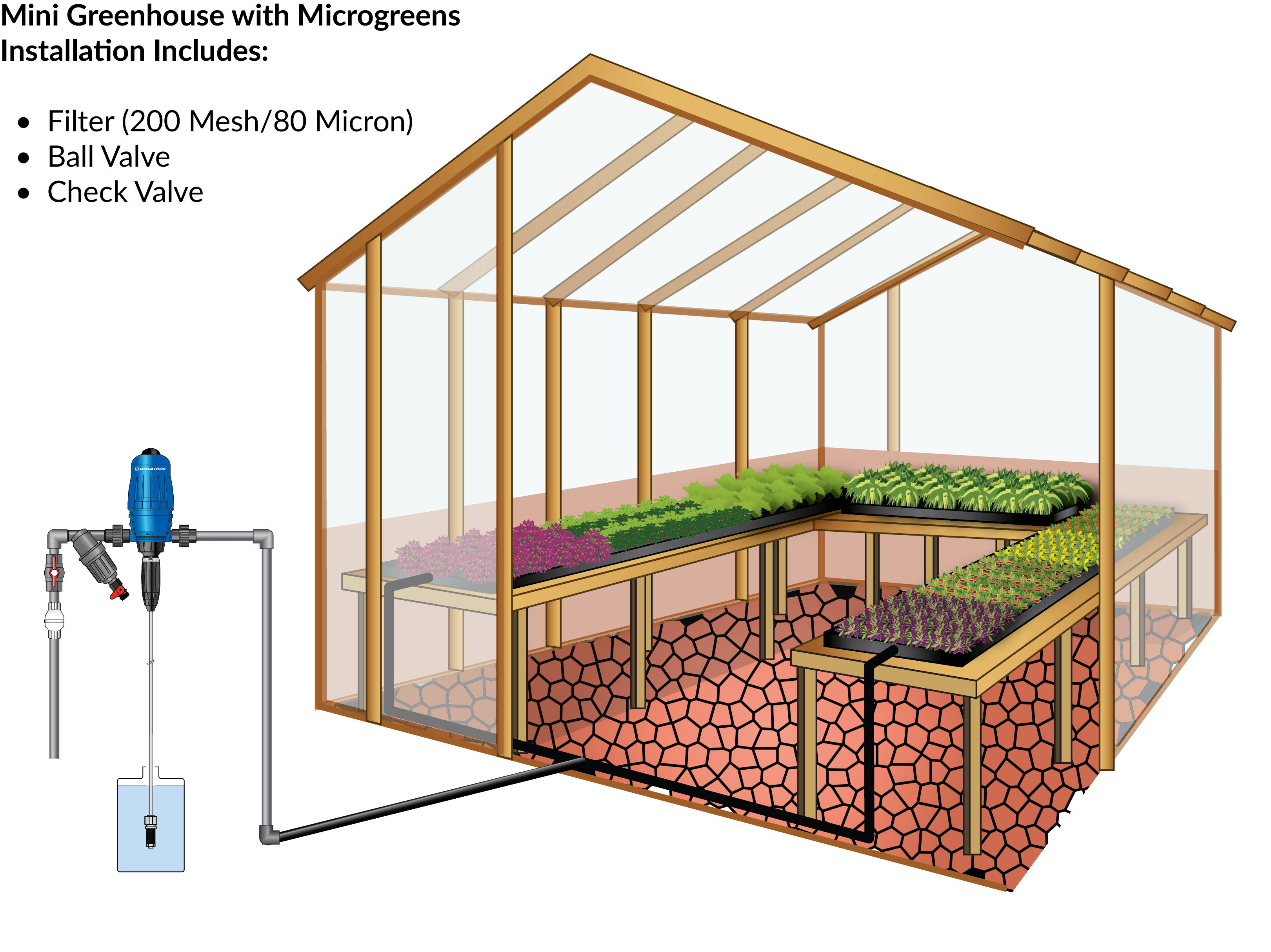

For flowers to micro-greens and everything in between. Mini Greenhouse

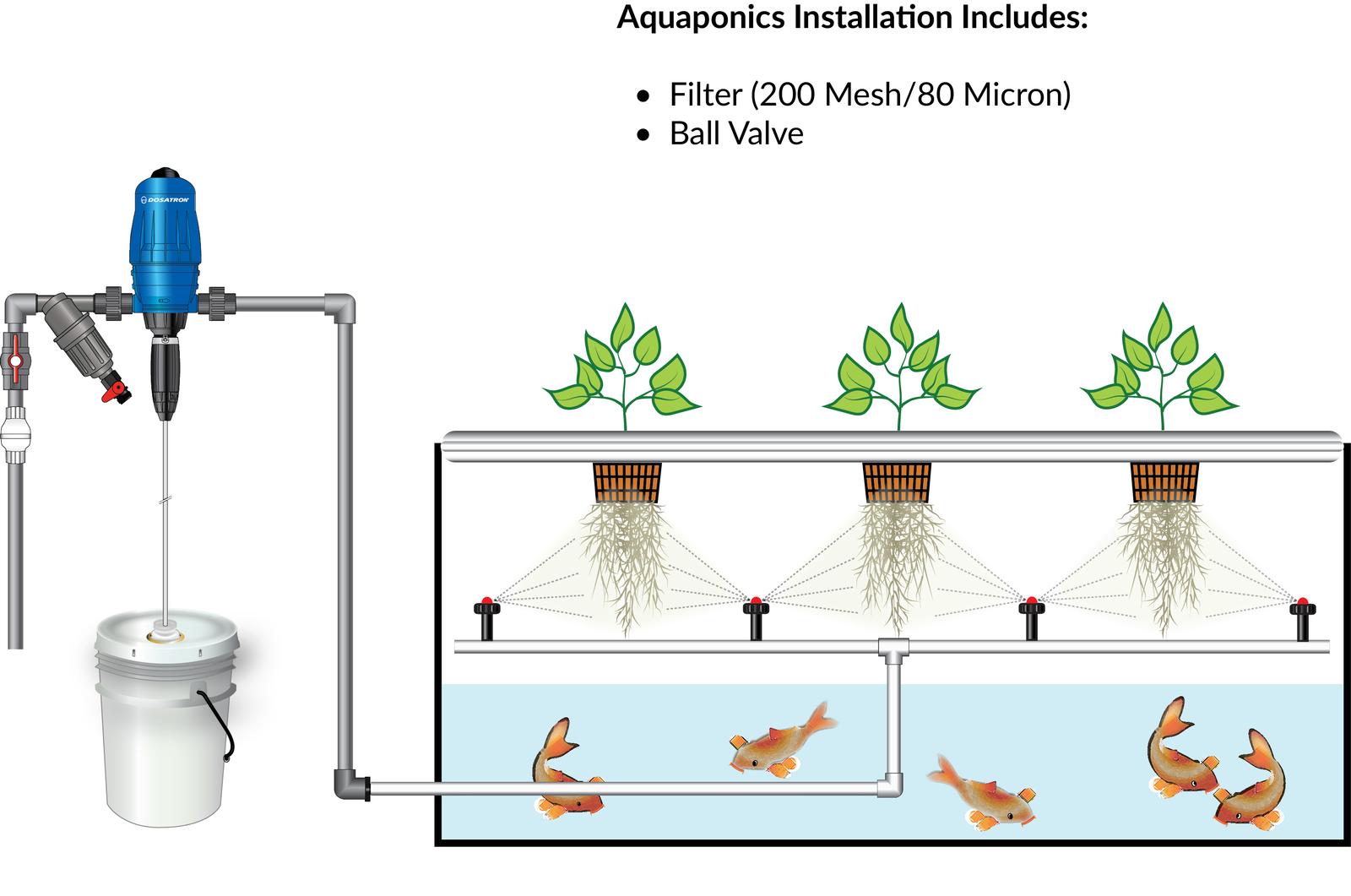

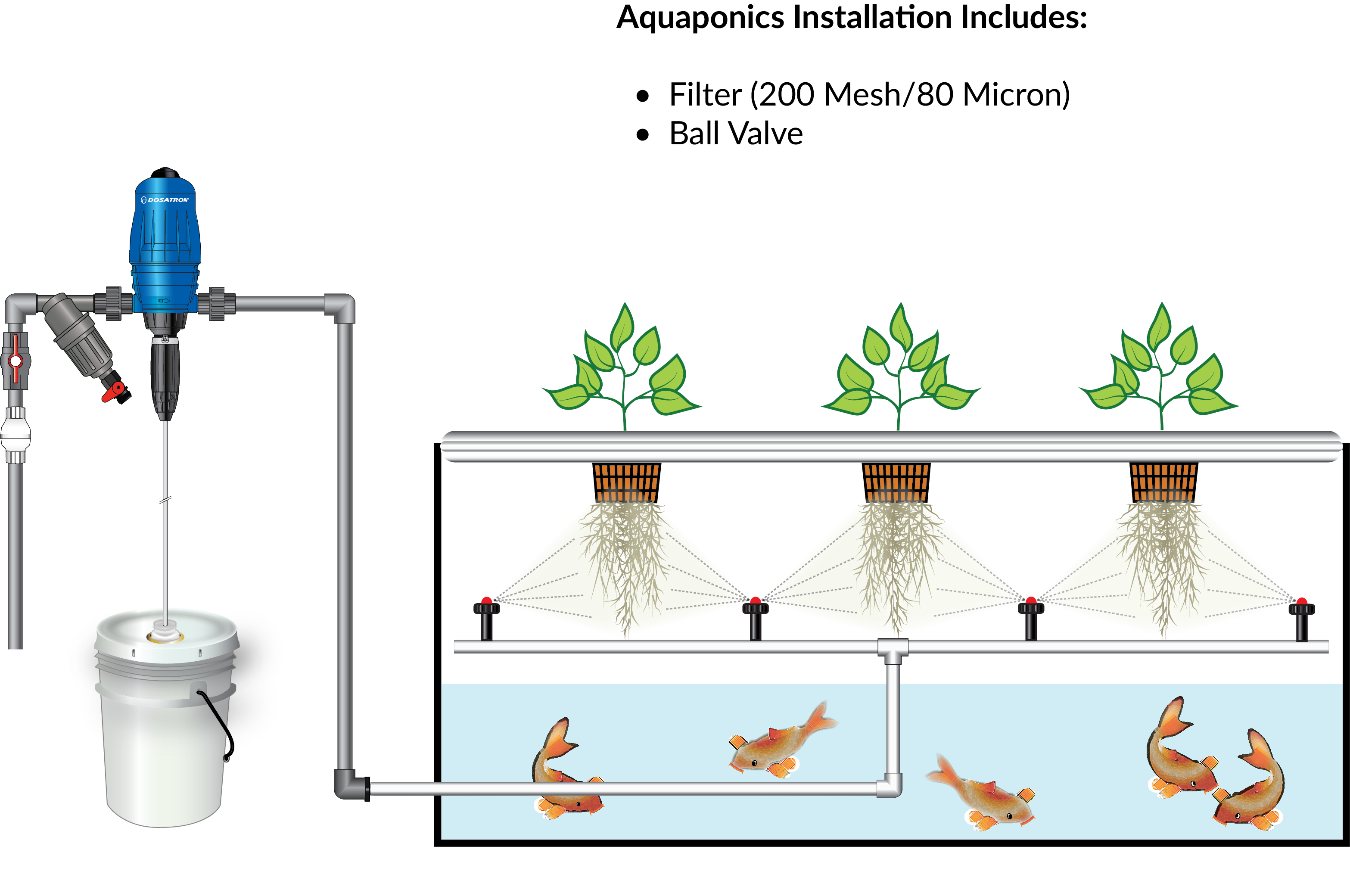

Dosatron is easy to adjust, allowing for the right amount of nutrient being dispensed. Aquaponics

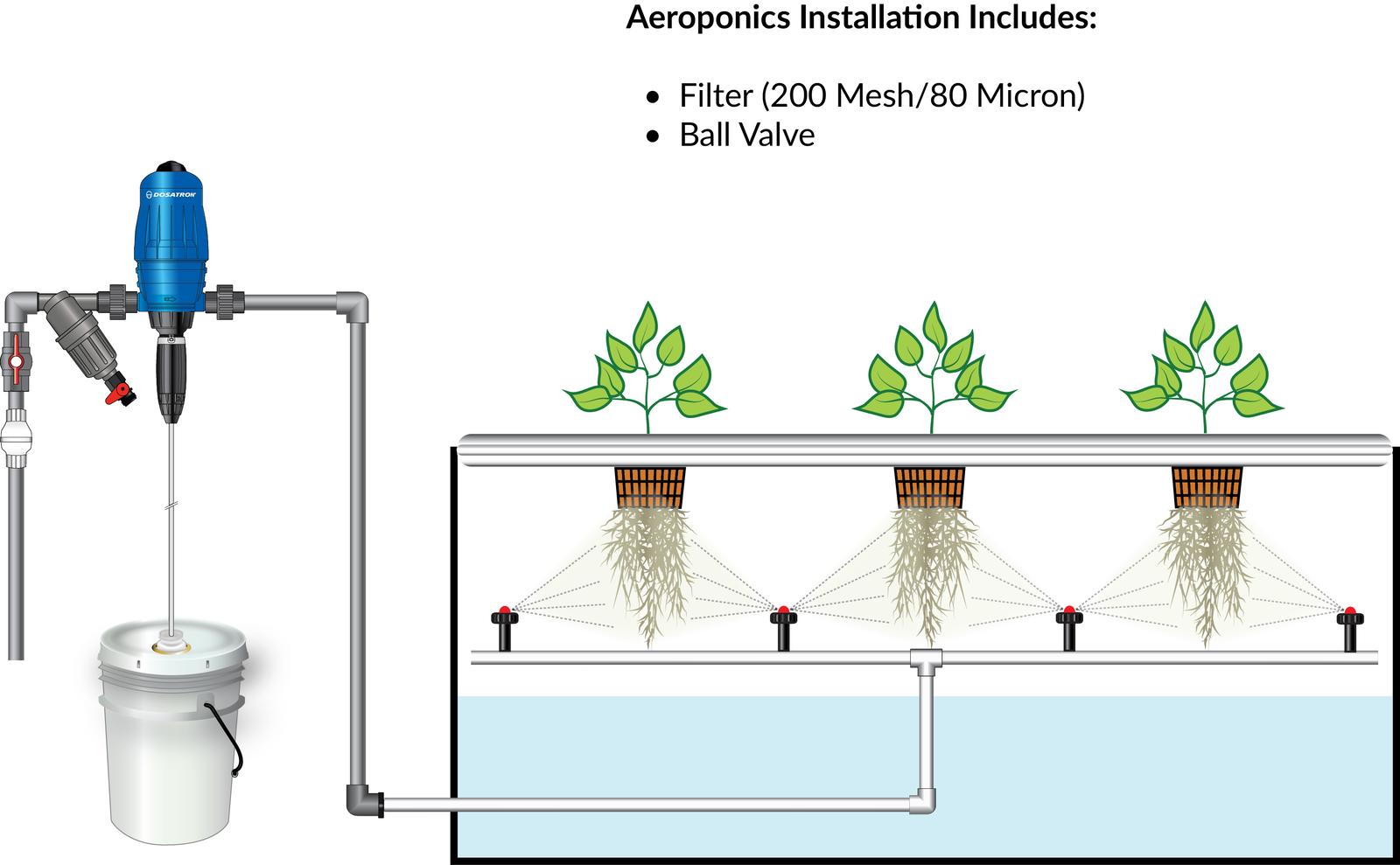

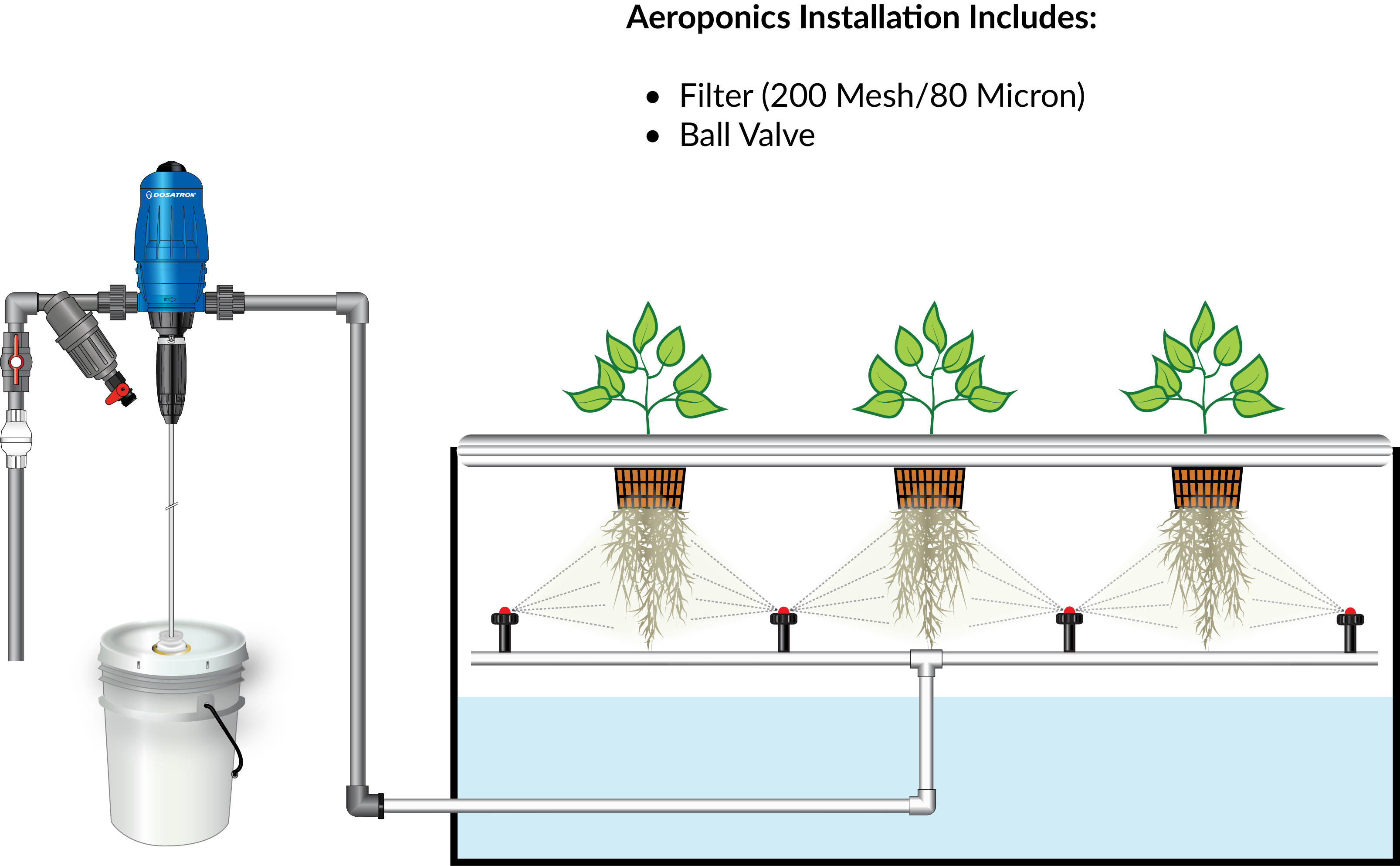

Dosatron provides your setup with the precise nutrient management required. Aeroponics

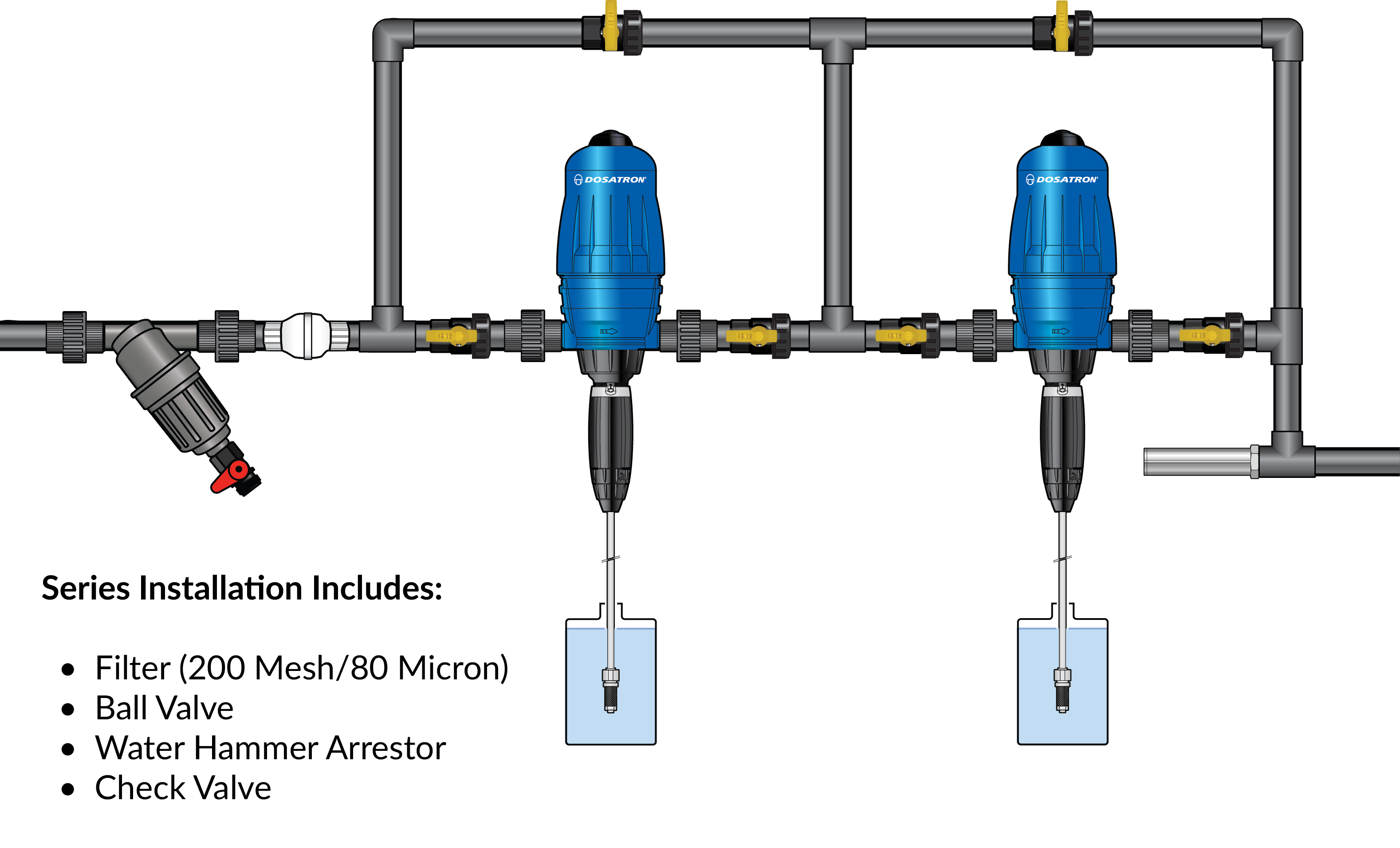

Dosatron D14 – 14 GPM series installation. Series Installation

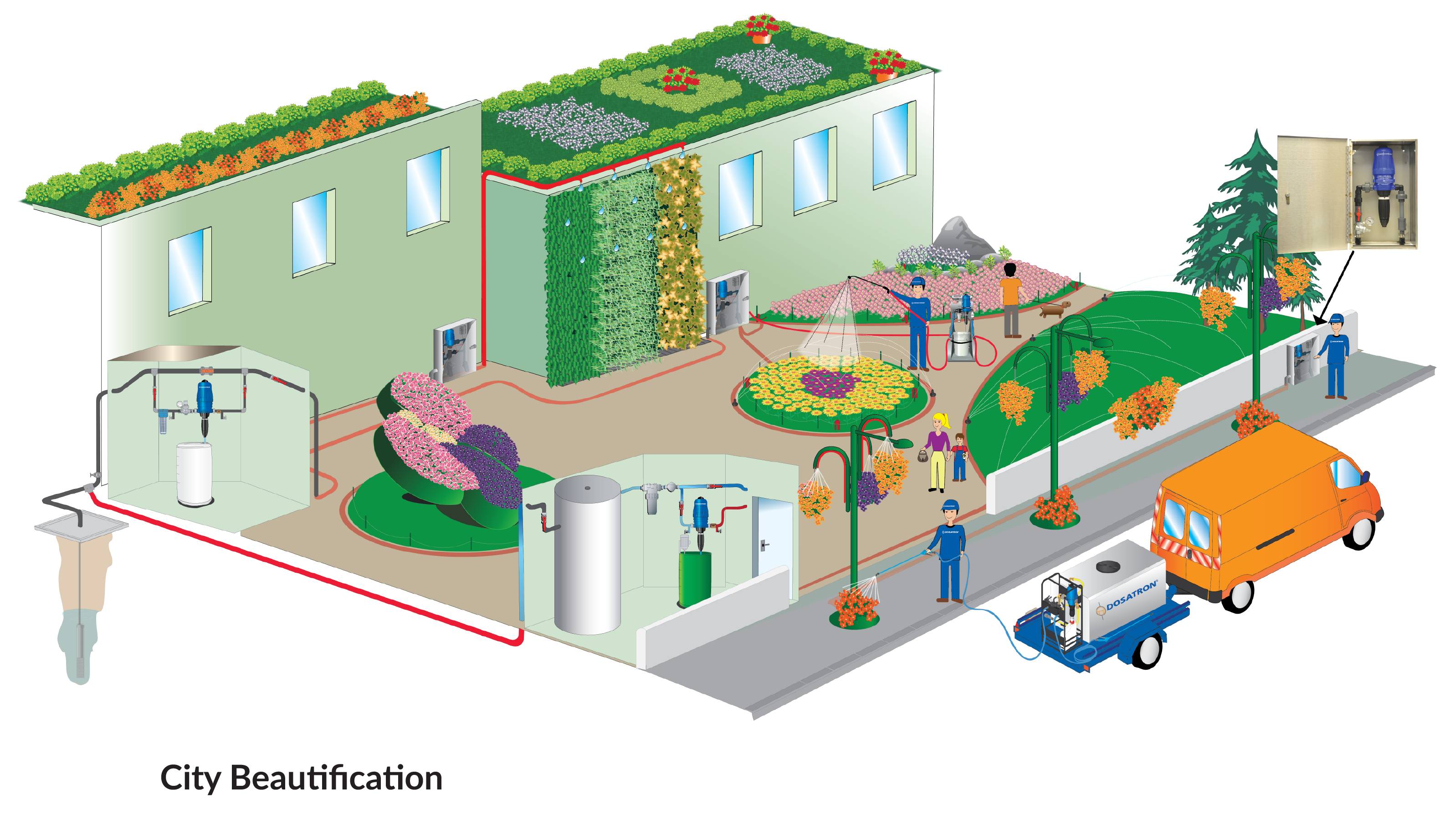

City Beautification. Dosatron installations for irrigation lines to fertilizing trucks.

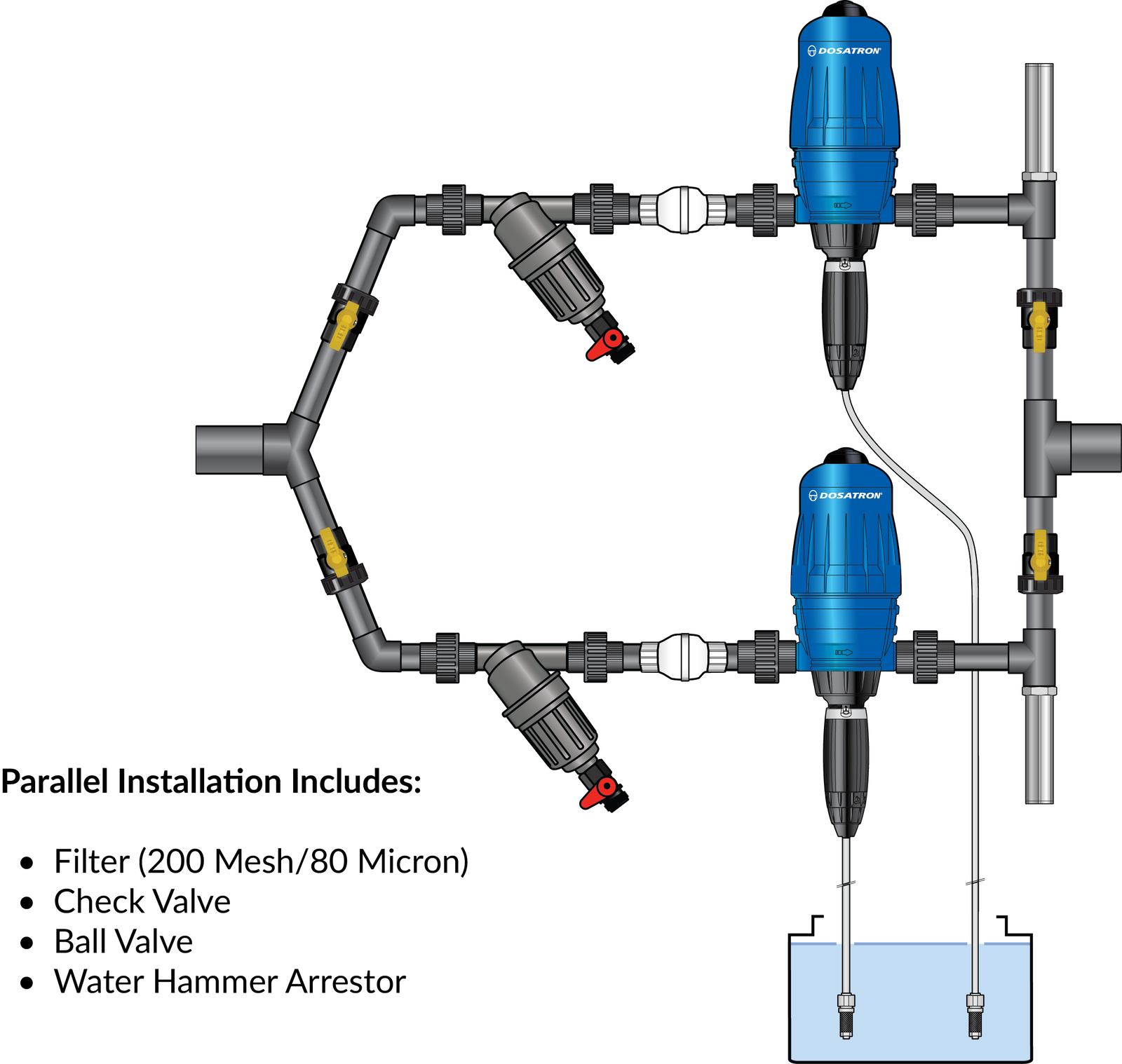

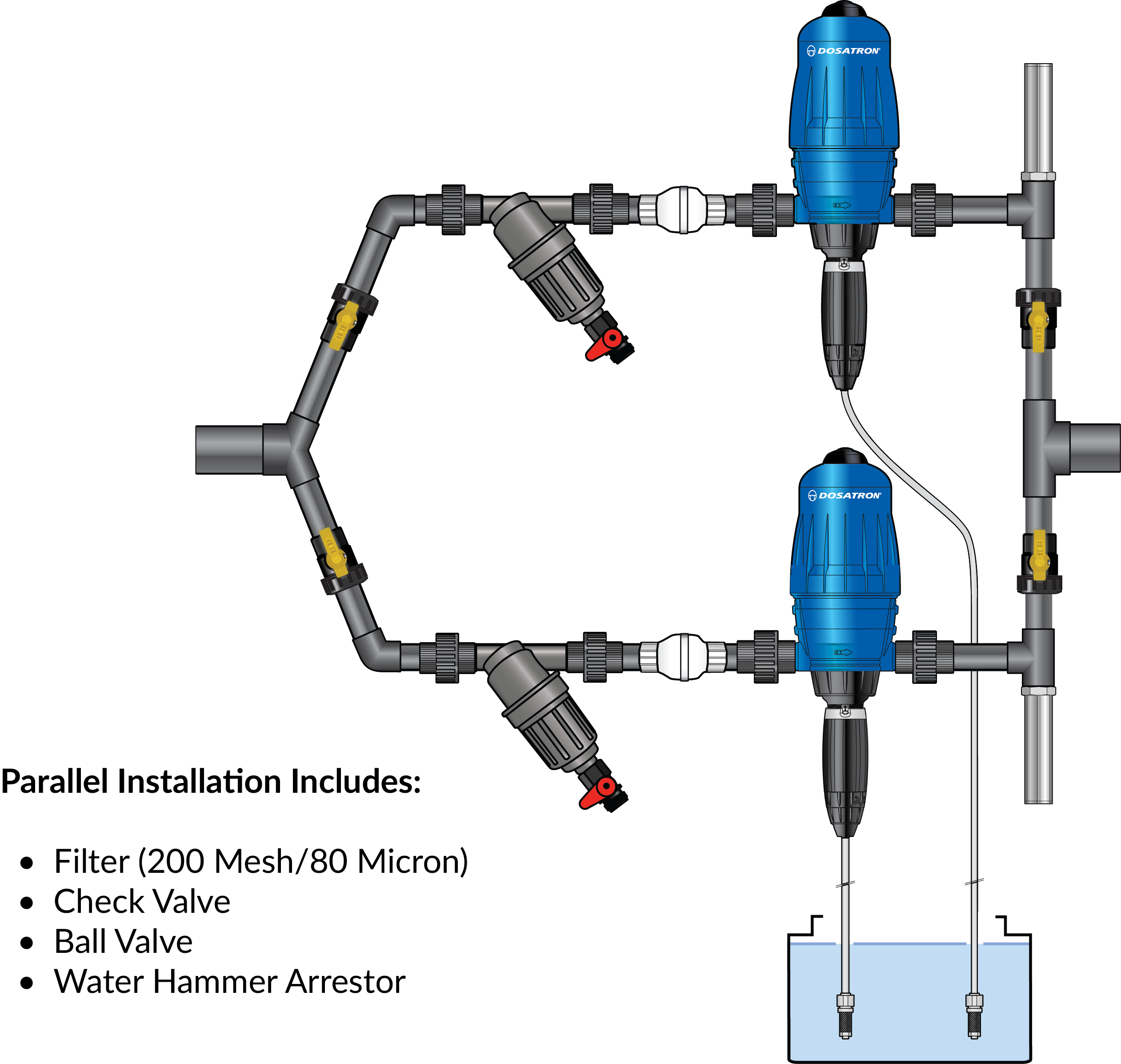

D14 – 14 GPM parallel installation. Parallel Installation

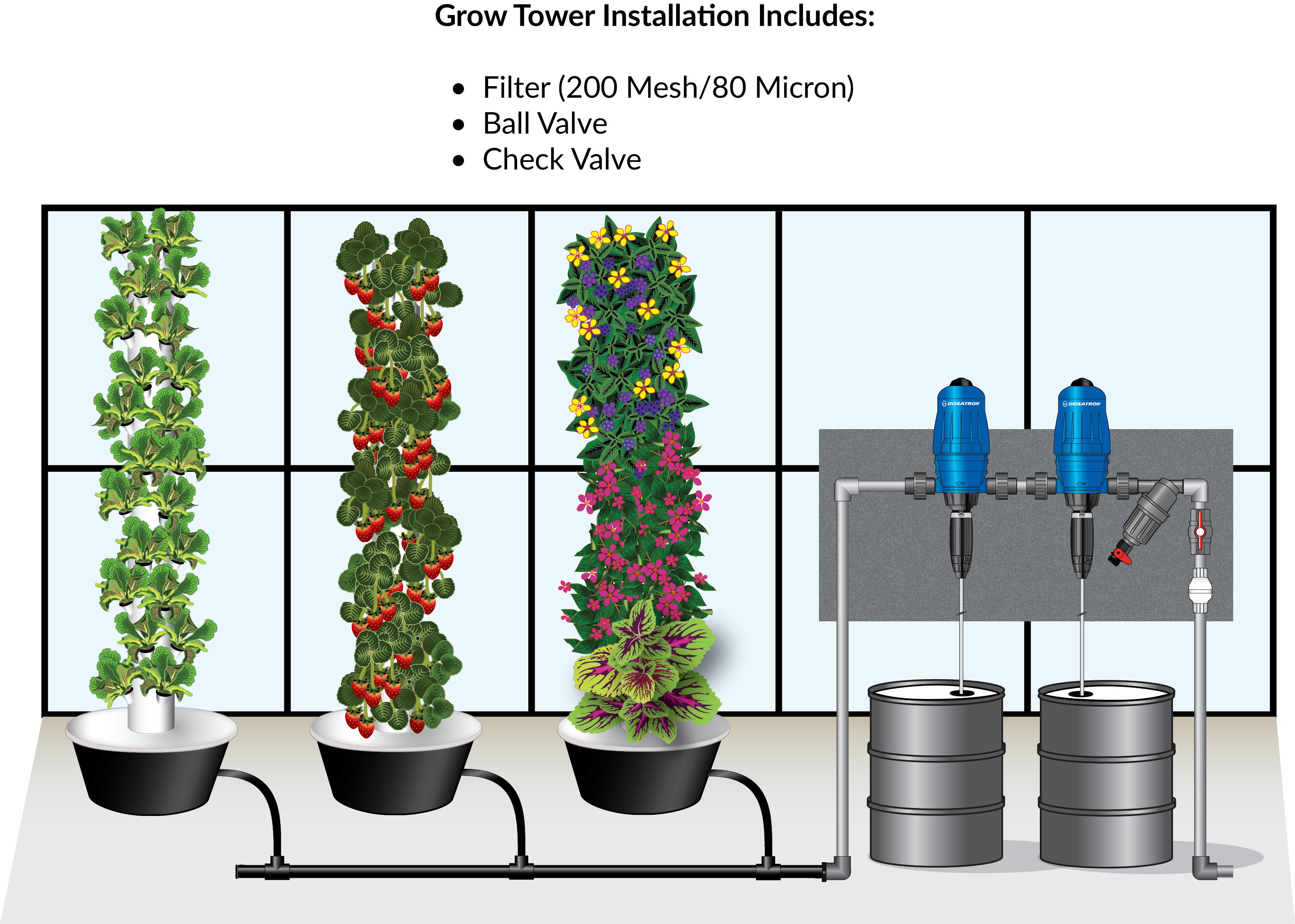

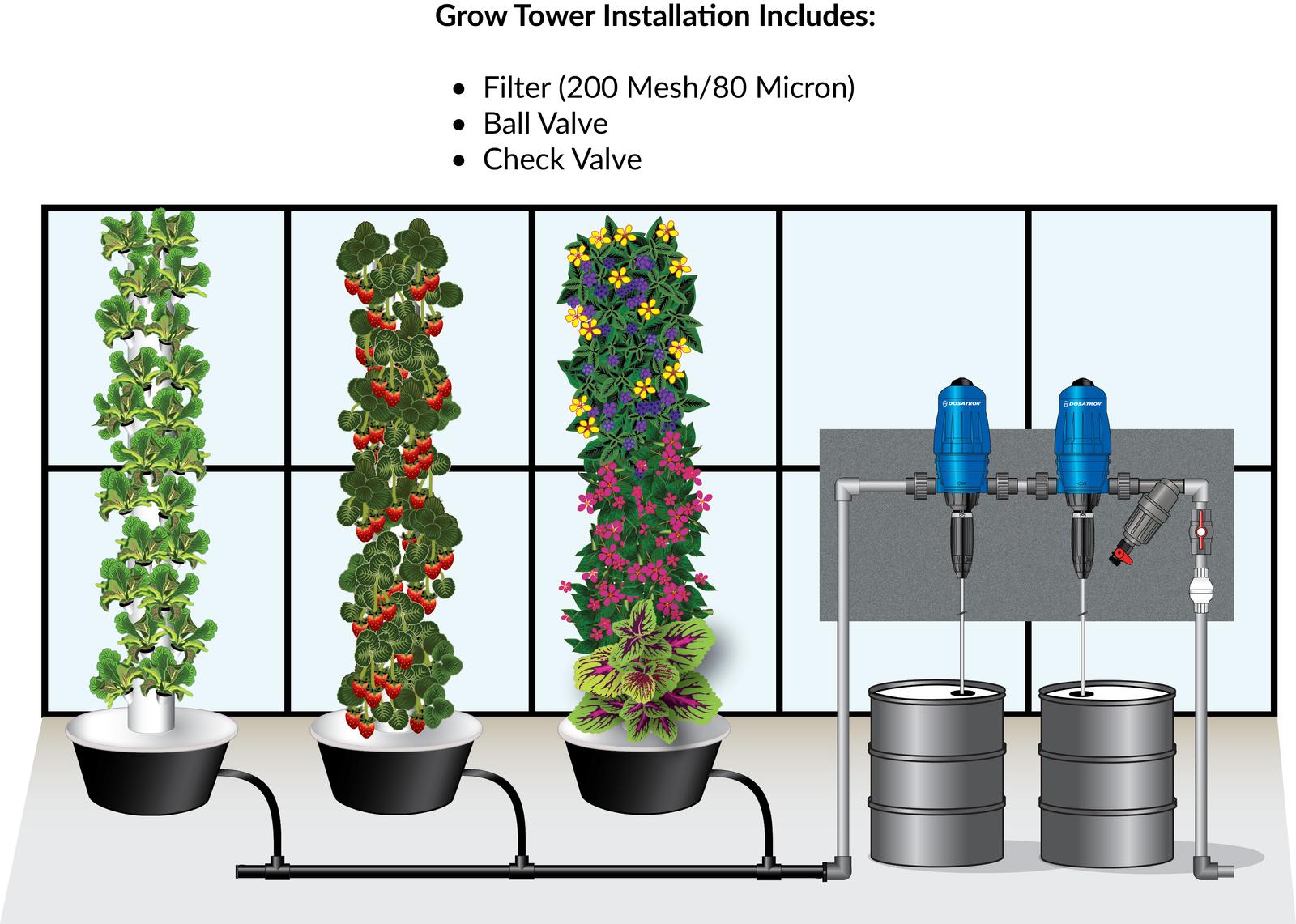

Set up your grow towers using an in-series Dosatron installation. Grow Towers

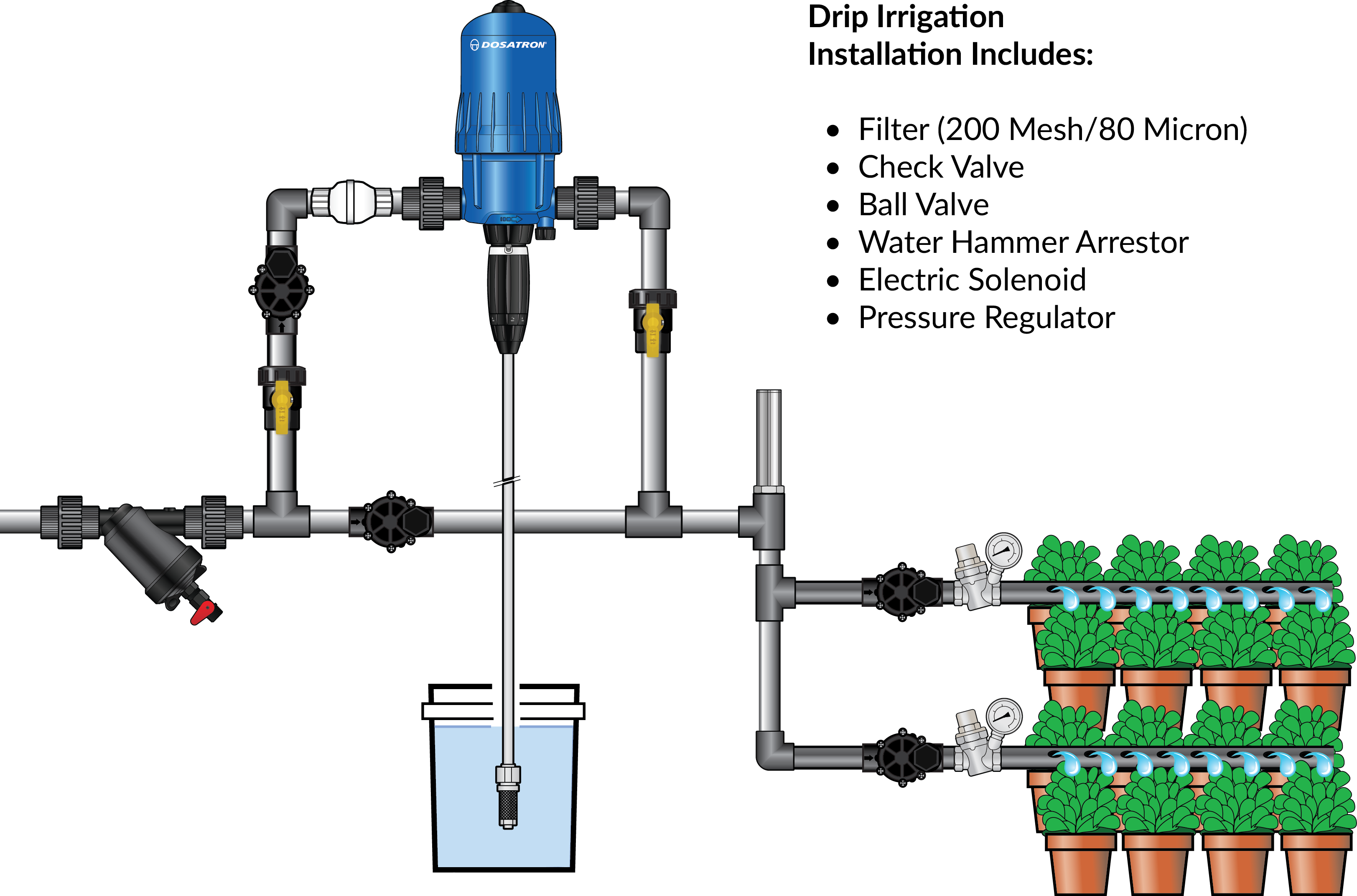

Dosatrons are designed to perform in both indoor and outdoor environments. Drip Irrigation

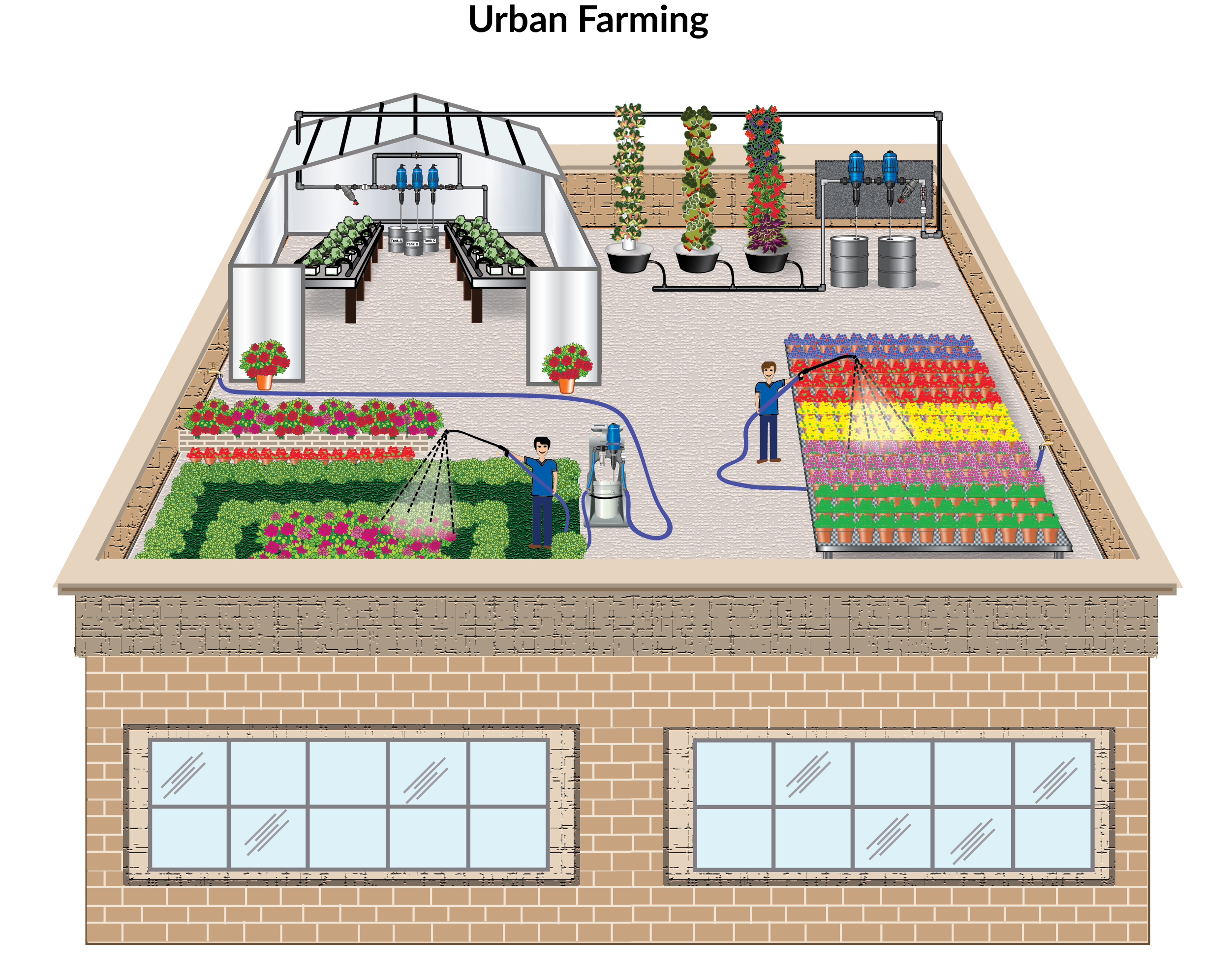

Urban Farming. The Li’l Bud-D 5-Gallon Cart is easy to maneuver in tight spaces.
D14 Spotlight
To load this content, approve your cookie preferences and allow the required cookies.
D14mz2 Mini Maintenance Kit
To load this content, approve your cookie preferences and allow the required cookies.
Dosatron D14MZ2 Service - Seal Kit
To load this content, approve your cookie preferences and allow the required cookies.
Dosatron D14MZ2 - Troubleshooting Video
To load this content, approve your cookie preferences and allow the required cookies.
D14 Series Bypass Switch Installation
To load this content, approve your cookie preferences and allow the required cookies.
D14 Piston Service Video
To load this content, approve your cookie preferences and allow the required cookies.
Water Hammer Arrestor Kit (3/4") - Dosatron
To load this content, approve your cookie preferences and allow the required cookies.

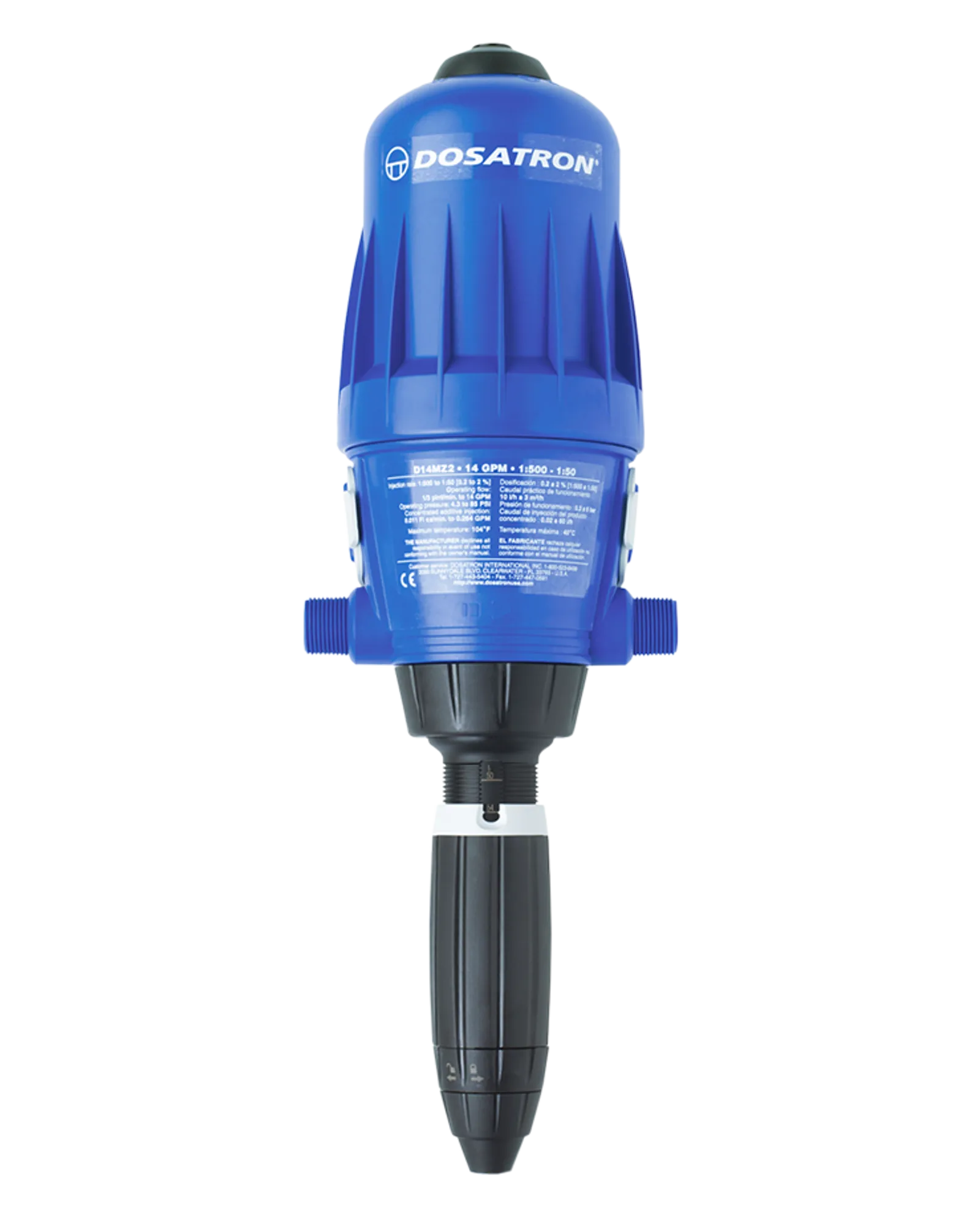

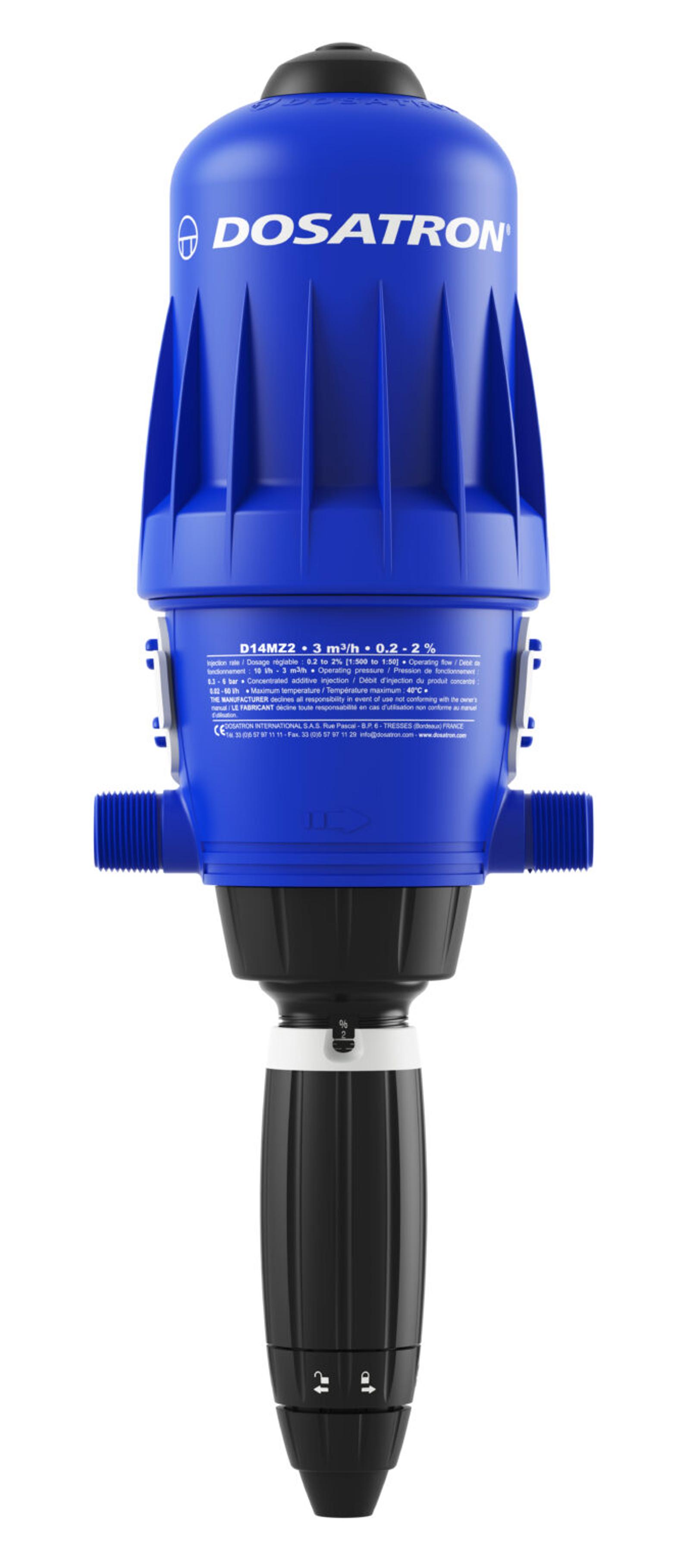

D14MZ2 – 14 GPM
Water-powered Dosatron D14MZ2 - 14 GPM is used in industries from irrigation to industrial. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:500 to 1:50 (0.2% to 2%). For Industrial applications installation is easy with an Industrial Plumbing Kit # IPK34-14GPM.
Specifications
- Connection Size: 3/4" NPT
- Unit Weight: 6 lbs
- Dimensions: 19 1/8" x 6 5/16"
- Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
- Pressure: 4.3 to 85 PSI
- Ratio Range: 1:500 to 1:50
- Percentage Range: 0.2 to 2%
- Ounces Per Gallon Range: 0.256 to 2.560
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide
Seal Kit for the D14MZ2
Injection seal kit for the Dosatron D14MZ2 - 14 GPM. Recommended for a yearly maintenance.
Specifications
Kit Includes:
- Injection sleeve o-ring
- Check valve assembly
- Injection stem o-ring
- Plunger seal
Mini Maintenance Kit for the D14MZ2
Mini maintenance kit for the Dosatron D14MZ2 - 14 GPM. Recommended for a regular maintenance.
Specifications
Kit Includes:
- Plunger seal
- Top guide
- Check valve cone
- Check valve spring
- Check valve cone o-ring
- Dosa-Lube (Silicone)
Piston Flange Kit for D14 Series
Piston Flange Rebuild kit for the Dosatron D14 Series, part #: PPDI034
Specifications
Features: PDI651 - Omega Spring, PDI649 - Connecting Rod, PDI648 - Push Rod Seal, PDI643 - Upper Flange, PDI644 - Lower Flange, instruction booklet
Rebuild Kit for the D14MZ2
Extend the life of your Dosatron D14MZ2 - 14 GPM and D14MZ2-HY with our Rebuild Kit.
Specifications
Features:
- Two Parts - Part 1: Piston Kit Contents - Part 2: Seal Kit Contents
- Complete, detailed instructions
