- Connection Size: 3/4" NPT
- Percentage Range: 0.2 to 2%
- Unit Weight: 6 lbs
- Ounces Per Gallon Range: 0.256 to 2.560
- Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
- Pressure: 4.3 to 85 PSI
- Dimensions: 19 1/8" x 6 5/16"
- Injection Range mL per gal: 7.5 to 75 mL/gal
Included Accessories: Mounting bracket, suction hose, weighted strainer, bypass, union, and quick start guide.
D14MZ2-HY Specification Sheet
Open
D14MZ2-HY Interactive Schematics
Open
D14 Owner's Manual
Open
D14 Quick Start-Up Guide
Open
Seal Kit Replacement Guide
Open
Mini-Maintenance Kit Replacement Guide
Open
Piston Flange Kit Replacement Guide
Open
D14MZ2VFBPHY Seal Kit Service Steps
Open
Nutrient Delivery System Brochure
Open
D14MZ2 SERVICE SEAL KIT VIDEO
D14MZ2 TROUBLESHOOTING VIDEO
STARTER KIT / PART #: HYKSTART VIDEO
MIXING CHAMBER KIT / PART #: HYKMC34 VIDEO
WATER HAMMER ARRESTOR KIT ASSEMBLY INSTRUCTIONS — NUTRIENT DELIVERY SYSTEM INSTALLATION VIDEO
INTRODUCING THE DOSATRON NUTRIENT DELIVERY SYSTEM VIDEO
NUTRIENT DELIVERY SYSTEM 3/4 MONITOR KIT INSTALLATION VIDEO
DOSATRON D14 SPOTLIGHT

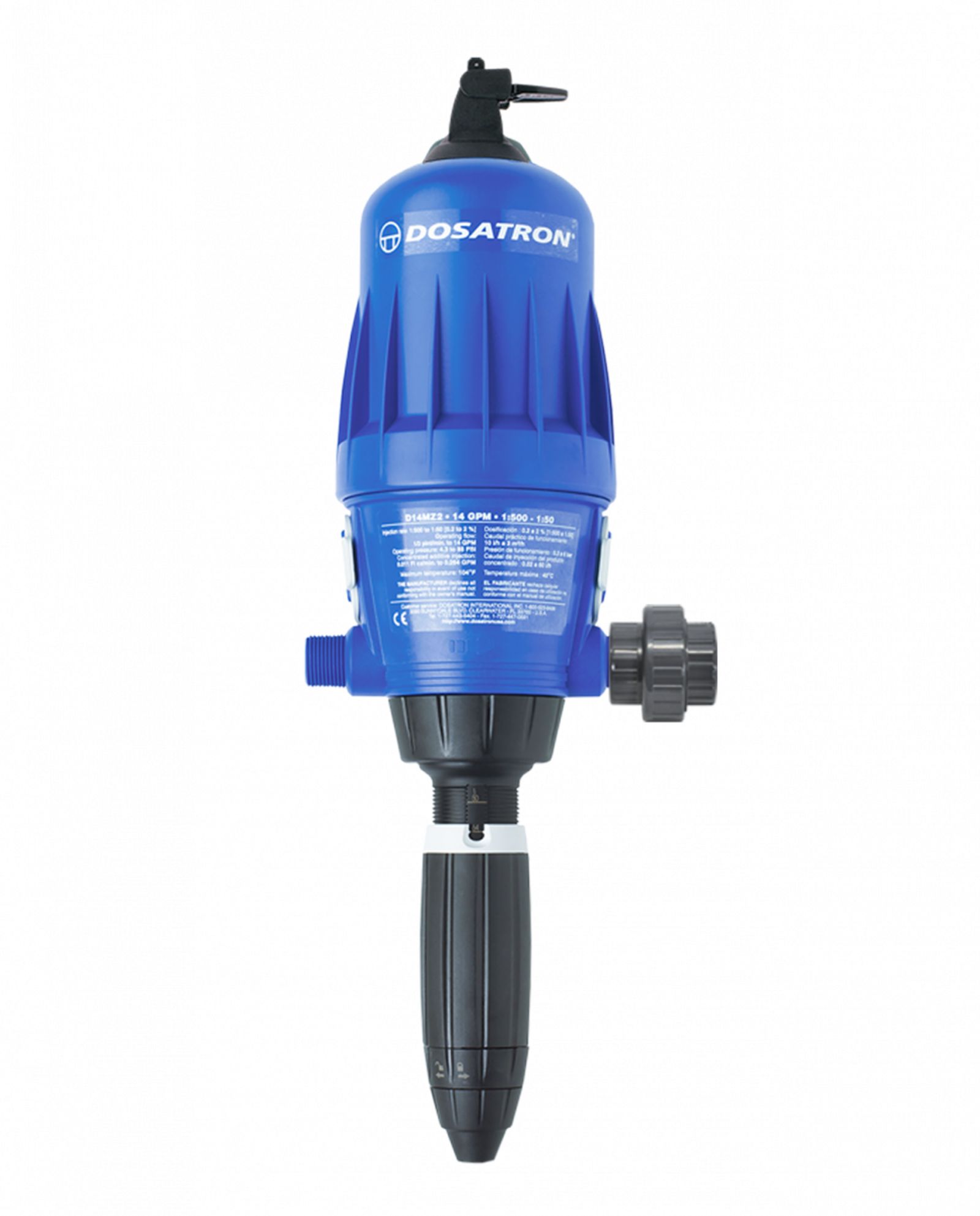

D14MZ2-HY – 14 GPM (HYDRO)
Water-powered Dosatron D14MZ2BPVFHY - 14 GPM with dosing seals for neutral or low pH chemistries, and dosing scale specifically designed for hydroponic applications. Includes an integrated by-pass to easily switch the nutrients on and off. Unit made to be installed in series as part of a hydroponic system with included union fitting.
Specifications
- Special: Doser for the Nutrient Delivery System
- Connection Size: 3/4" NPT
- Unit Weight: 6 lbs
- Dimensions: 19 1/8" x 6 5/16"
- Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
- Pressure: 4.3 to 85 PSI
- mL/gal: 7.5 to 75 mL
- Percentage (%): 0.2 to 2%
- Oz/gal: 0.256 to 2.560
- Included Accessories: Mounting bracket, suction hose, weighted strainer, bypass, union, and quick start guide.
Seal Kit for the D14MZ2
Injection seal kit for the Dosatron D14MZ2 - 14 GPM. Recommended for a yearly maintenance.
Specifications
Kit Includes:
- Injection sleeve o-ring
- Check valve assembly
- Injection stem o-ring
- Plunger seal

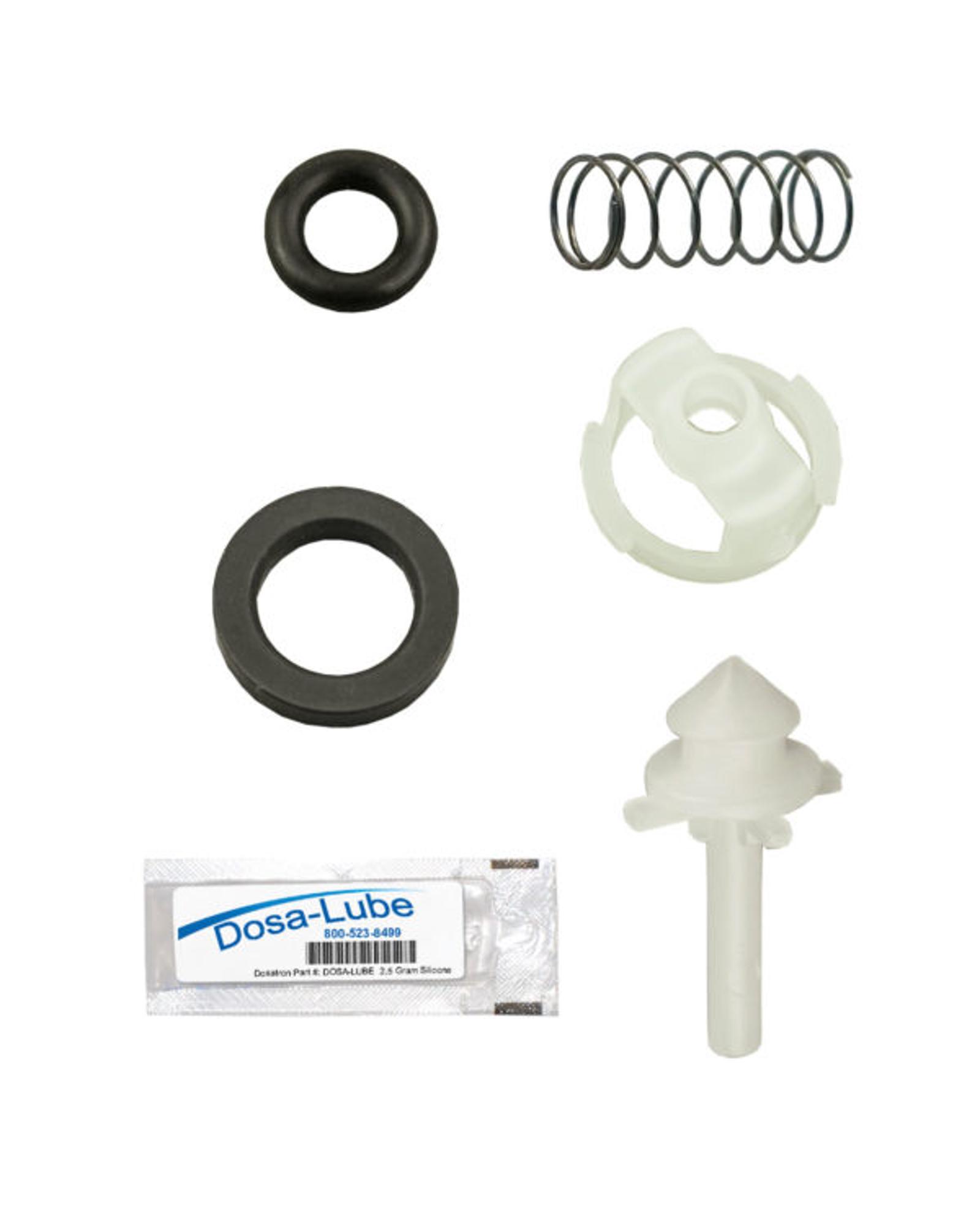

Mini Maintenance Kit for the D14MZ2
Mini maintenance kit for the Dosatron D14MZ2 - 14 GPM. Recommended for a regular maintenance.
Specifications
Kit Includes:
- Plunger seal
- Top guide
- Check valve cone
- Check valve spring
- Check valve cone o-ring
- Dosa-Lube (Silicone)
Piston Flange Kit for D14 Series
Piston Flange Rebuild kit for the Dosatron D14 Series, part #: PPDI034
Specifications
Features: PDI651 - Omega Spring, PDI649 - Connecting Rod, PDI648 - Push Rod Seal, PDI643 - Upper Flange, PDI644 - Lower Flange, instruction booklet

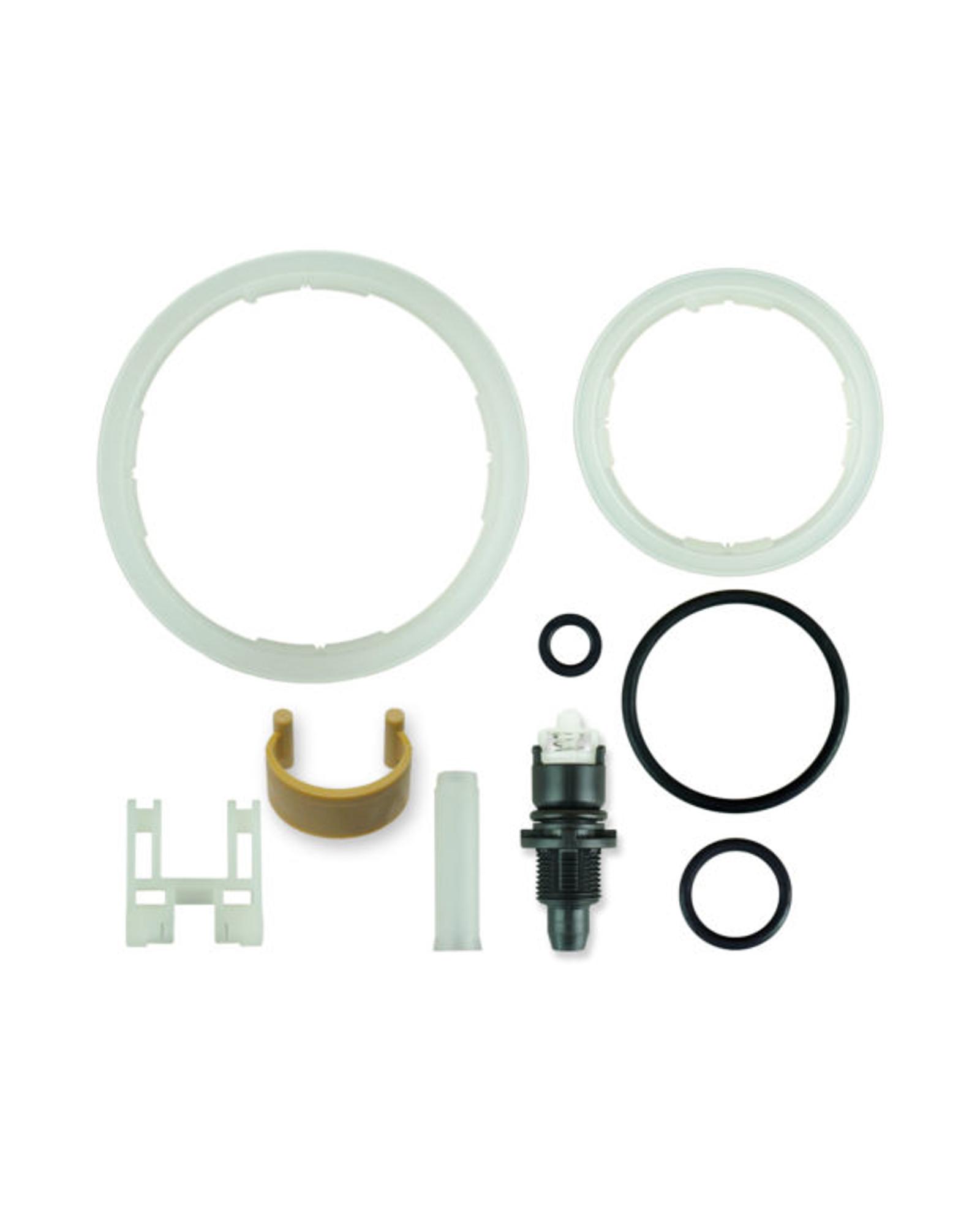

Rebuild Kit for the D14MZ2
Extend the life of your Dosatron D14MZ2 - 14 GPM and D14MZ2-HY with our Rebuild Kit.
Specifications
Features:
- Two Parts - Part 1: Piston Kit Contents - Part 2: Seal Kit Contents
- Complete, detailed instructions
