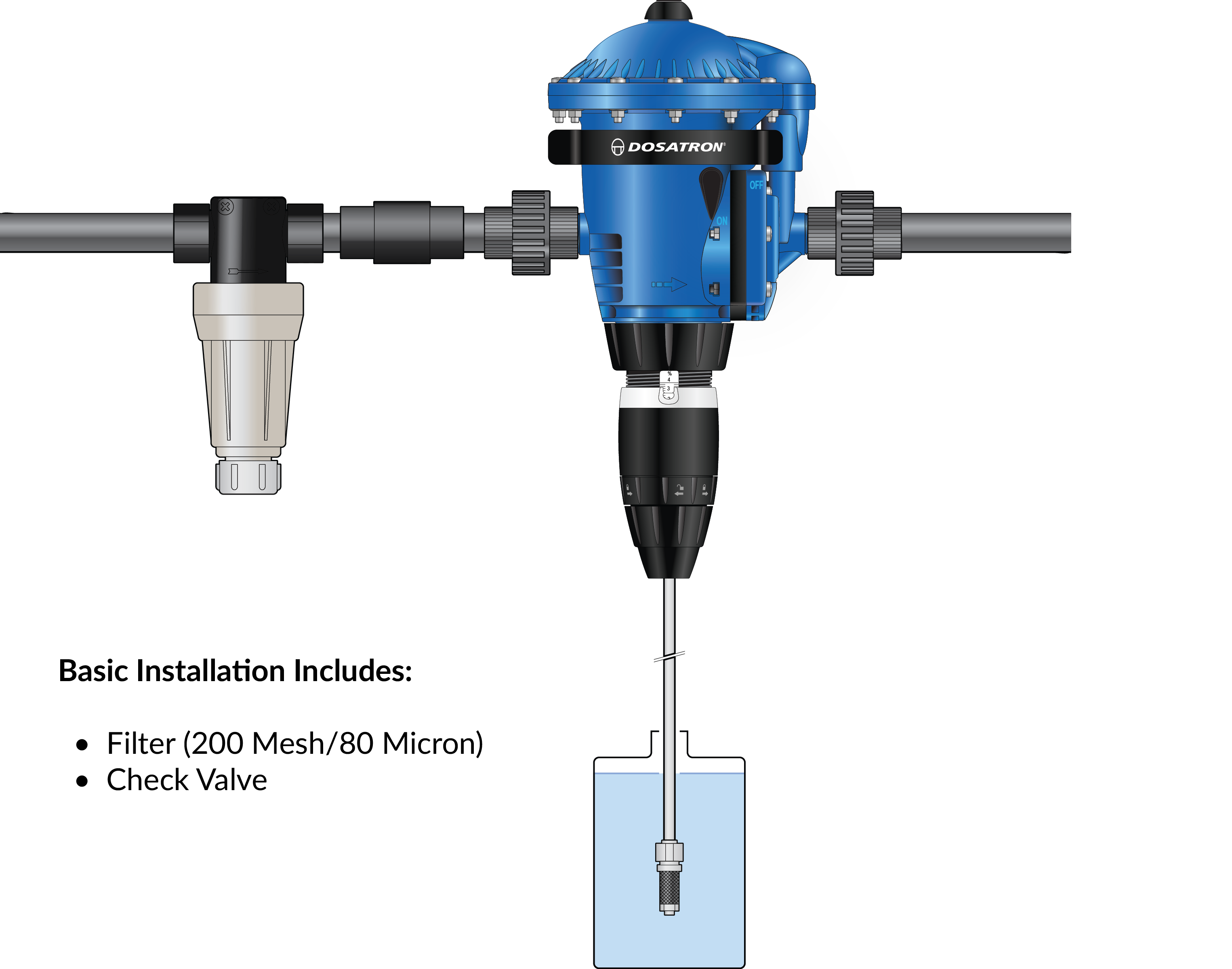

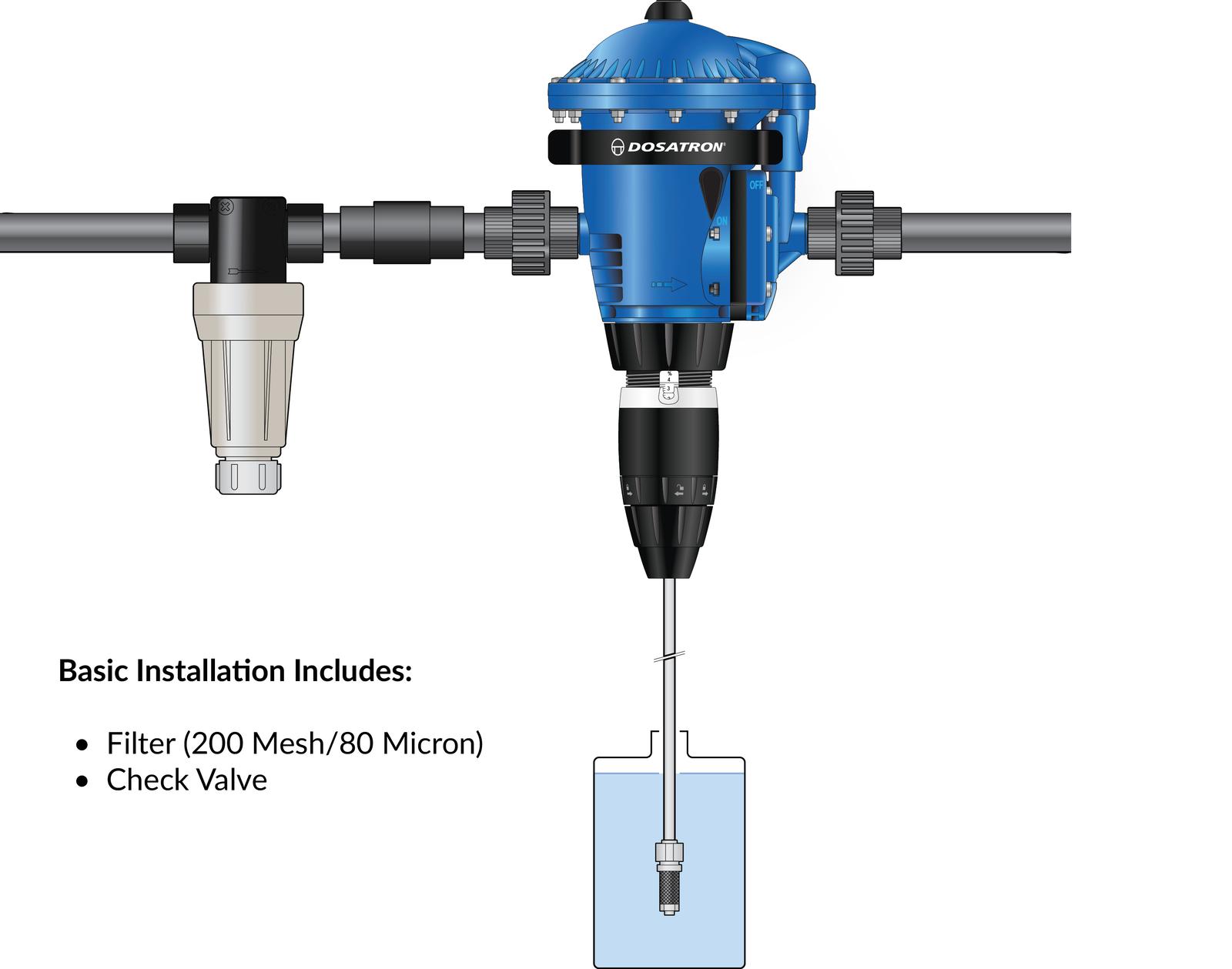

DM11RE3 – 11 GPM basic installation.Basic Installation
- Connection Size: 3/4" NPT
- Percentage Range: 0.8% to 3%
- Unit Weight: 5 lbs
- Ounces Per Gallon Range: 1.000 to 4.000
- Flow: 0.02 to 11 GPM (0.08 to 42 LPM)
- Pressure: 2.2 to 57 PSI
- Dimensions: 16" x 7"
- Ratio Range: 1:128 to 1:32
- Tank Size: 1:128 to 1:32
Included Accessories :Mounting bracket, suction hose, weighted strainer, and quick start guide.

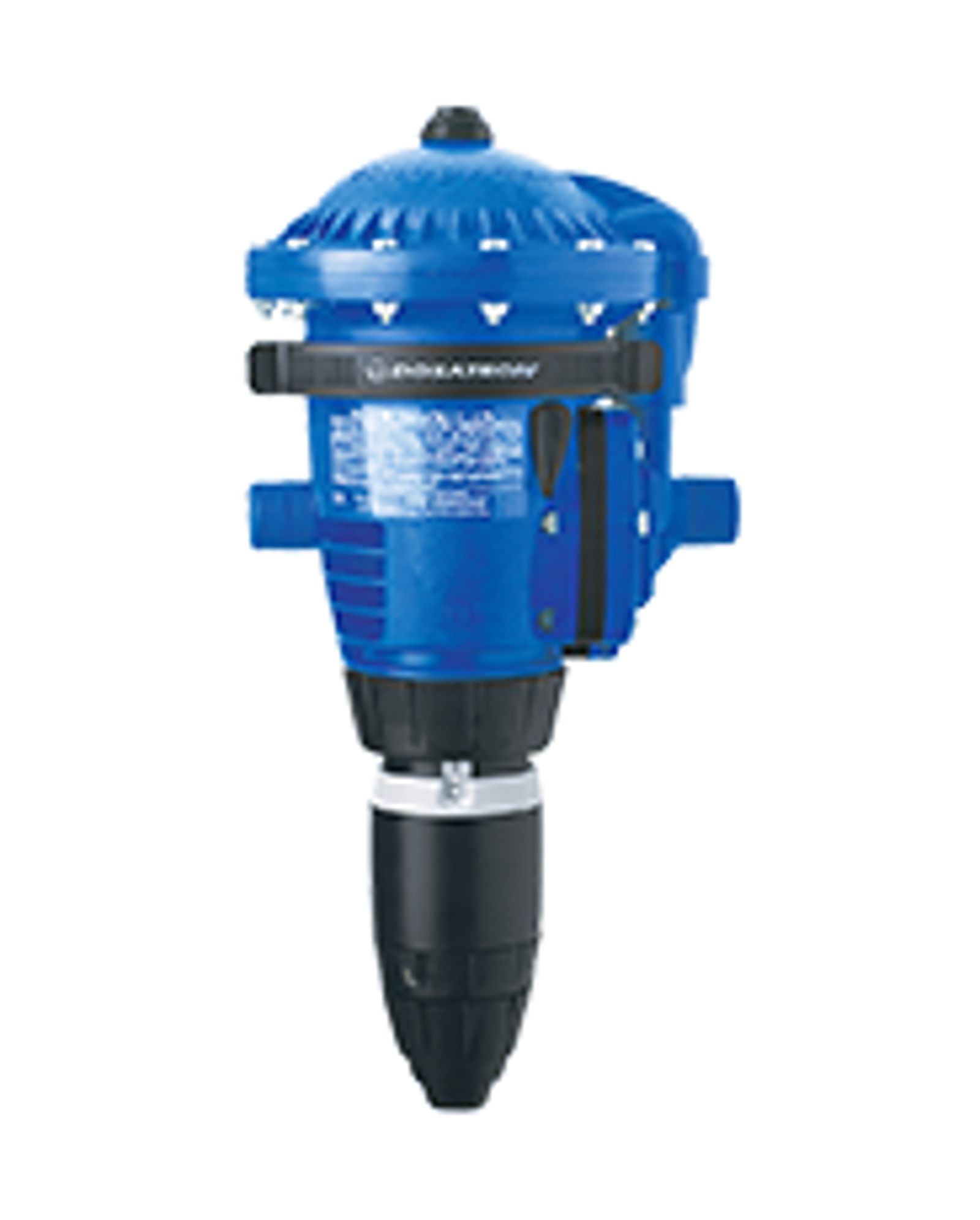

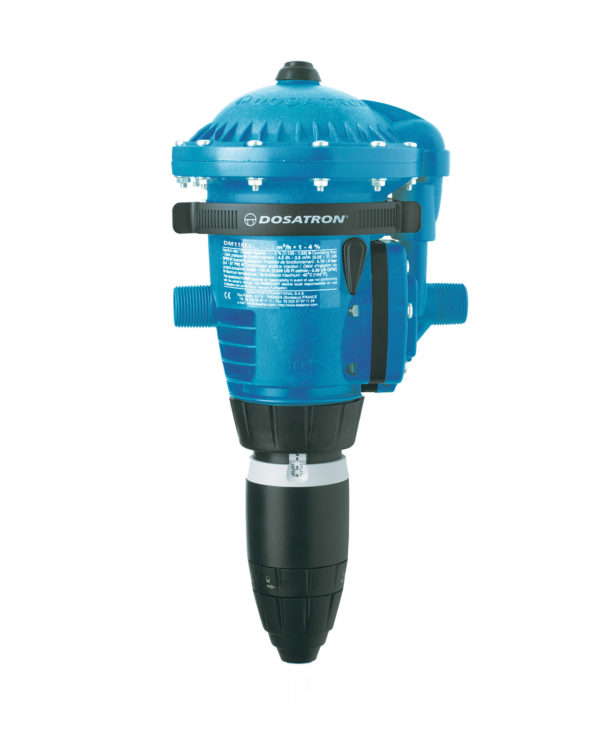

DM11RE3 – 11 GPM (LIVESTOCK)
The all-in-one DM11RE3VFII - 11 GPM medicator with dosing seals for the injection of acidic chemistries in livestock applications. It has a flow of 0.02 to 11 GPM and dilution rates of 1:128, 1%, 2%, and 3%. These allow you to move from vaccinating or medicating to line cleaning.
For a recommended yearly maintenance use Seal kit # PJDI154HTVF.
Specifications
- Connection Size: 3/4" NPT
- Dimensions: 16" x 7"
- Flow: 0.02 to 11 GPM (0.08 to 42 LPM)
- Pressure: 2.2 to 57 PSI
- Ratio Range: 1:128 to 1:32
- Percentage Range: 0.8% to 3%
- Ounces Per Gallon Range: 1.000 to 4.000
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

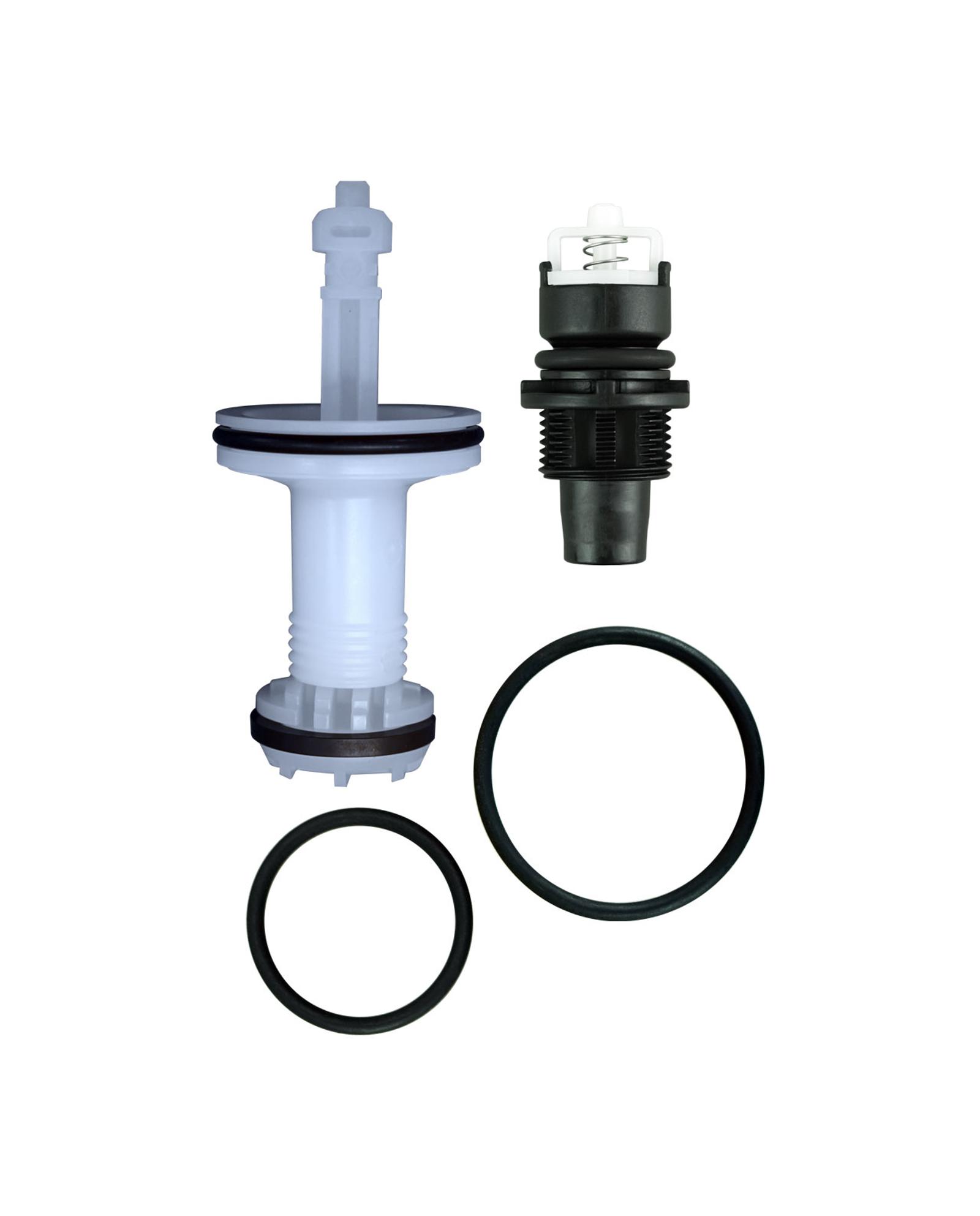

Seal Kit for the DM11RE3
Injection seal kit for the DM11RE3 - 11 GPM. Part #: PJDI154HTVF.
Specifications
Kit Includes:
- Plunger seal
- Check valve cone
- Check valve cone o-ring
- Plunger o-ring • Isolation body
