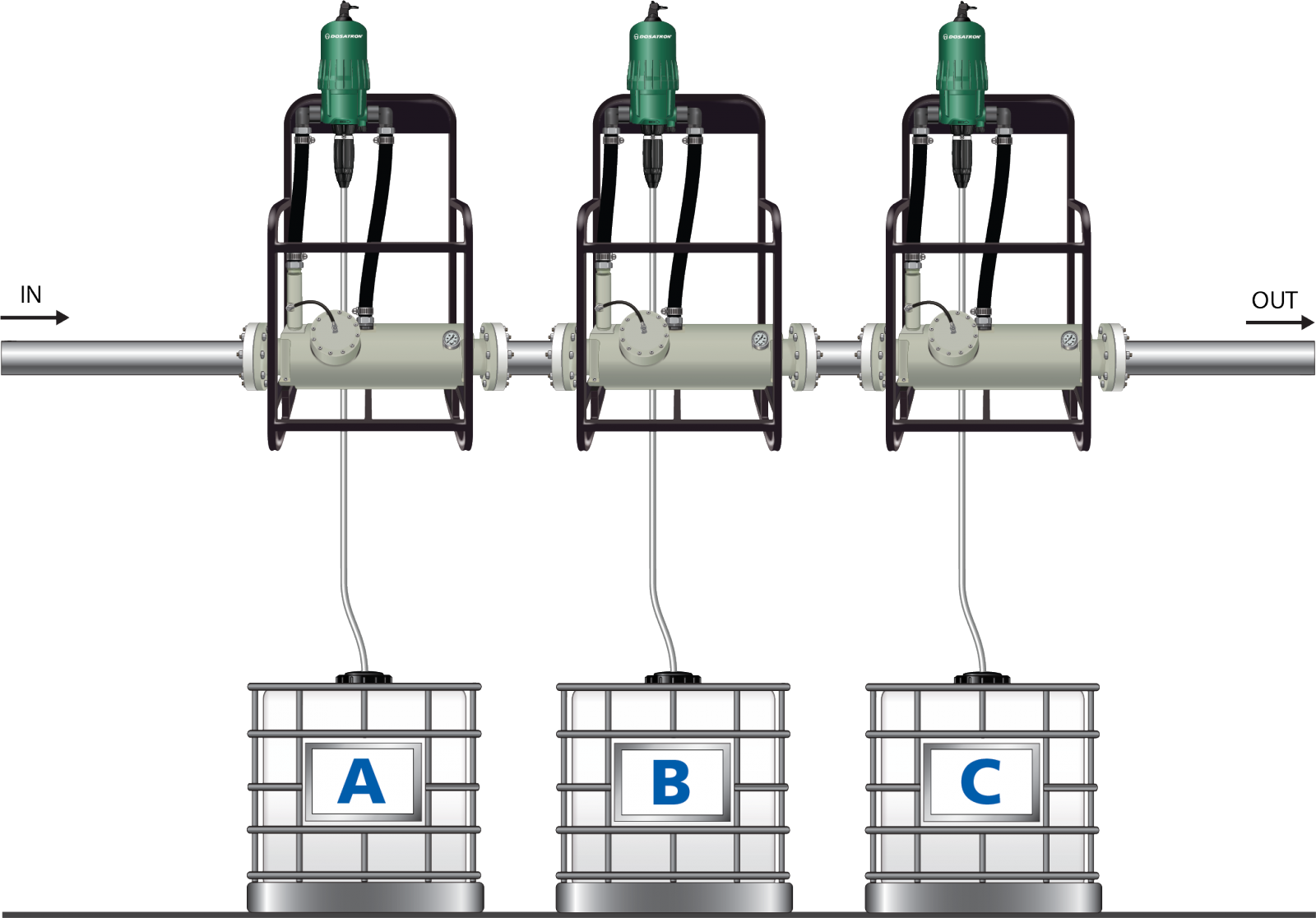

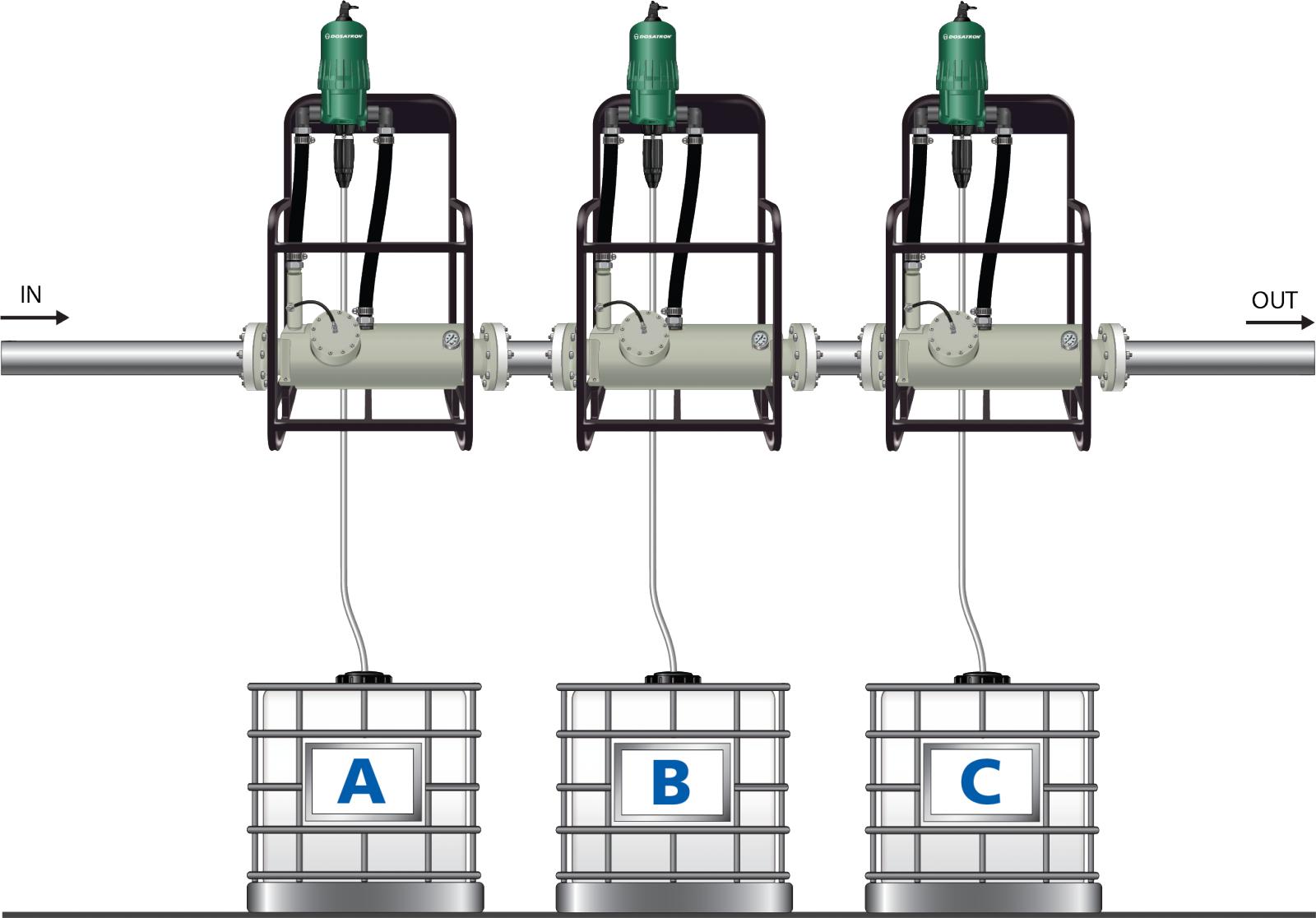

D400 in Series
Allows for simultaneous dosing of three different solutions at different dilution rates.
- Connection Size: 4" Flange
- Percentage Range: 0.1 to 0.5%
- Unit Weight: 95 lbs
- Flow: 110 to 400 GPM
- Pressure: 7.25 to 116 PSI
- Ratio Range: 1:1,000 to 1:200
- Cart Dimensions: 57" H x 31.5" W x 20.75" D
Key Specifications
Weight
95
lbs
Water Flow Range
110 - 400
GPM
Operating Pressure Range
7.25 - 116
PSI
Maximum Temperature
104
°F

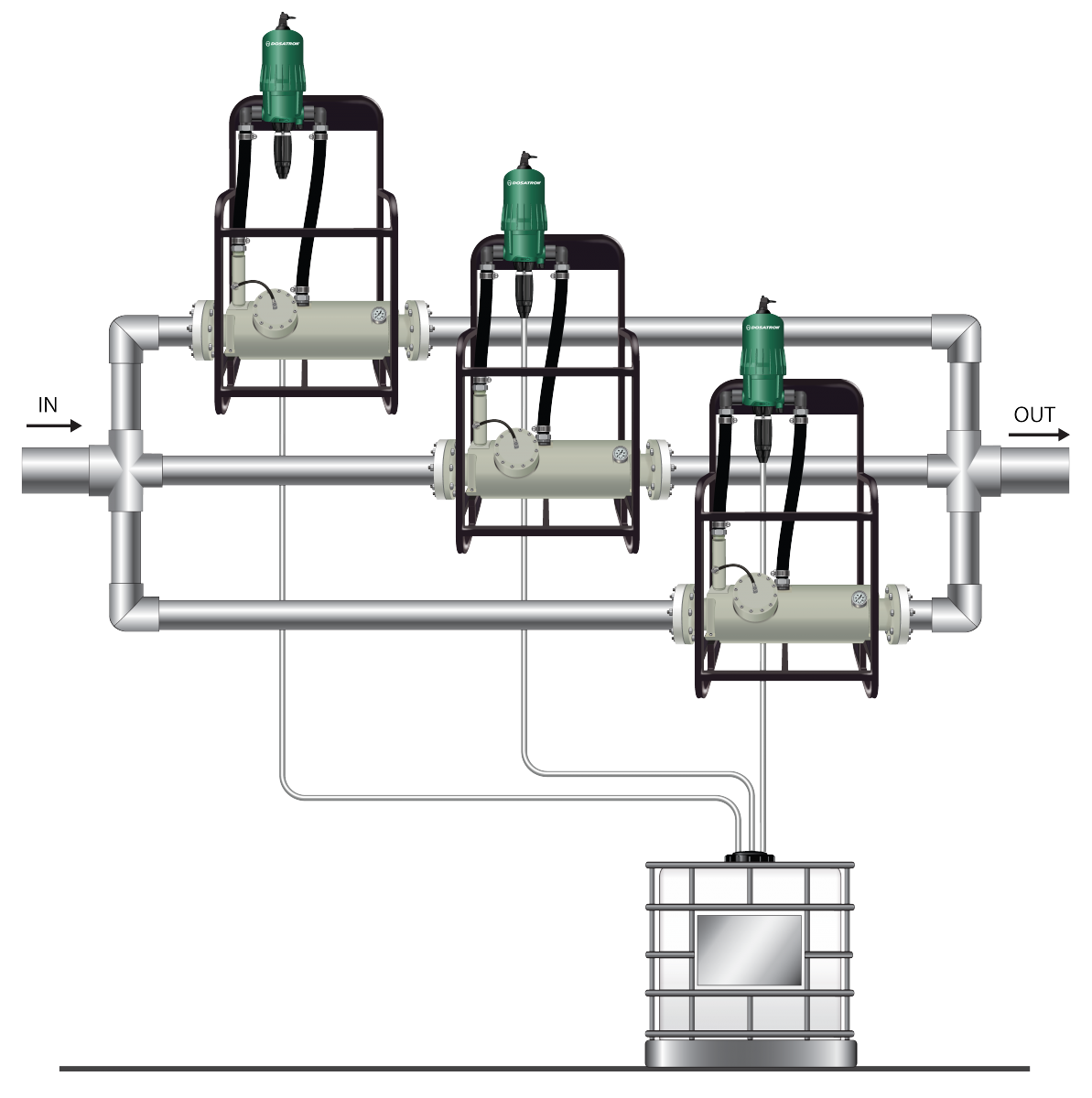

D400 Parallel Installation
Allows for water flow rates up to 1,200 GPM
