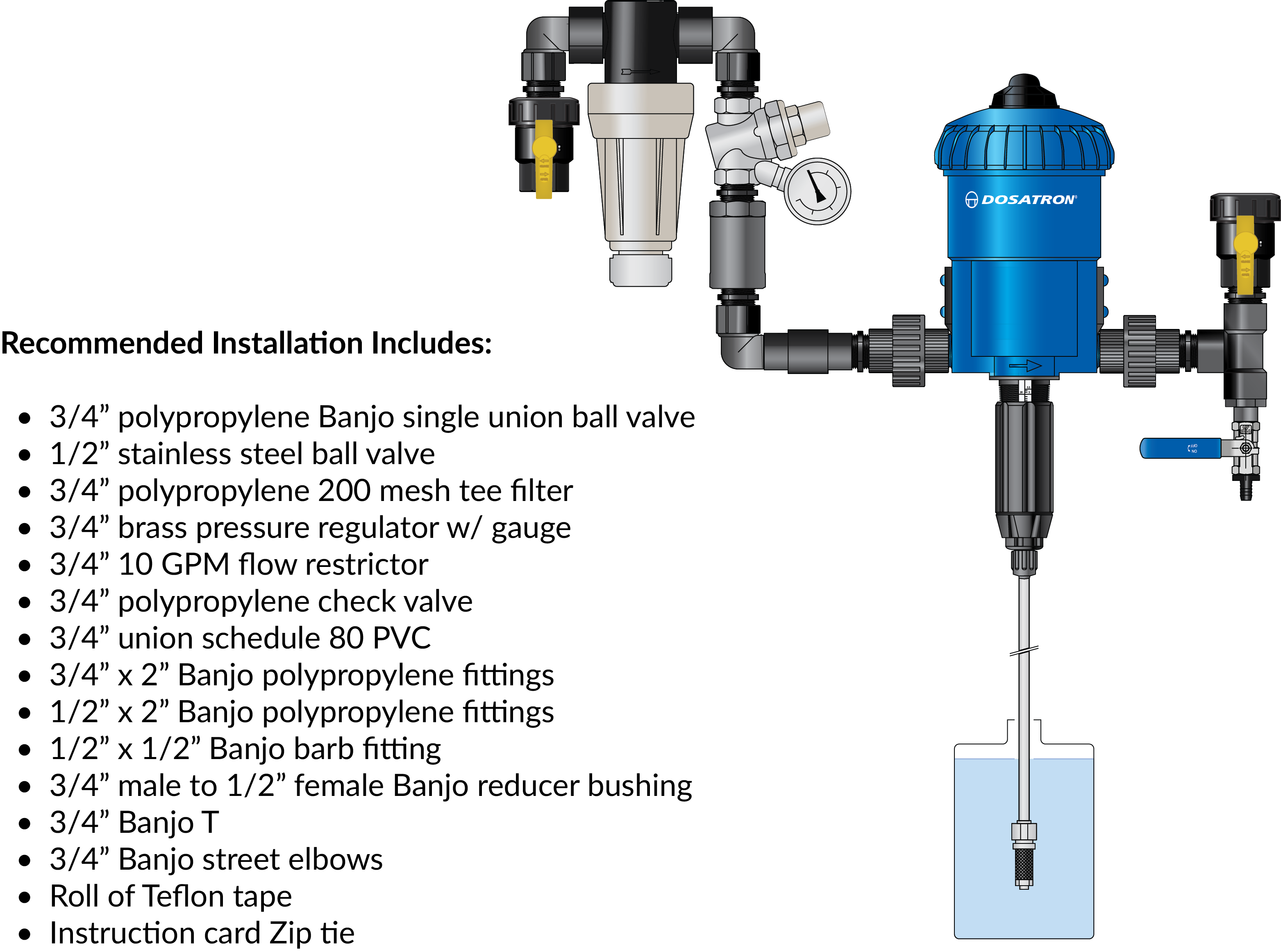

IPK34-10GPM D25 Industrial Plumbing Kit.
- Connection Size: 3/4" NPT
- Percentage Range: 1 to 5%
- Unit Weight: 4 lbs
- Ounces Per Gallon Range: 1.280 to 6.400
- Flow: 0.05 to 11 GPM (0.19 to 42 LPM)
- Pressure: 4.3 to 85 PSI
- Dimensions: 14" x 6 1/4"
- Ratio Range: 1:100 to 1:20
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.
D25RE5 Specifications
Open
D25RE5 Schematics
Open
D25RE5-IE Schematics
Open
D25RE5 Owners Manual
d25re5-ir-file-v1-23.pdf
D25 Quick Start Up
Open
D25 Injection Seal Kit Instructions
Open
D25 Industrial Plumbing Kit Instructions
Open
IPK34 Industrial Plumbing Kit
Open
IPK34-MC Industrial Plumbing Kit Instructions
Open

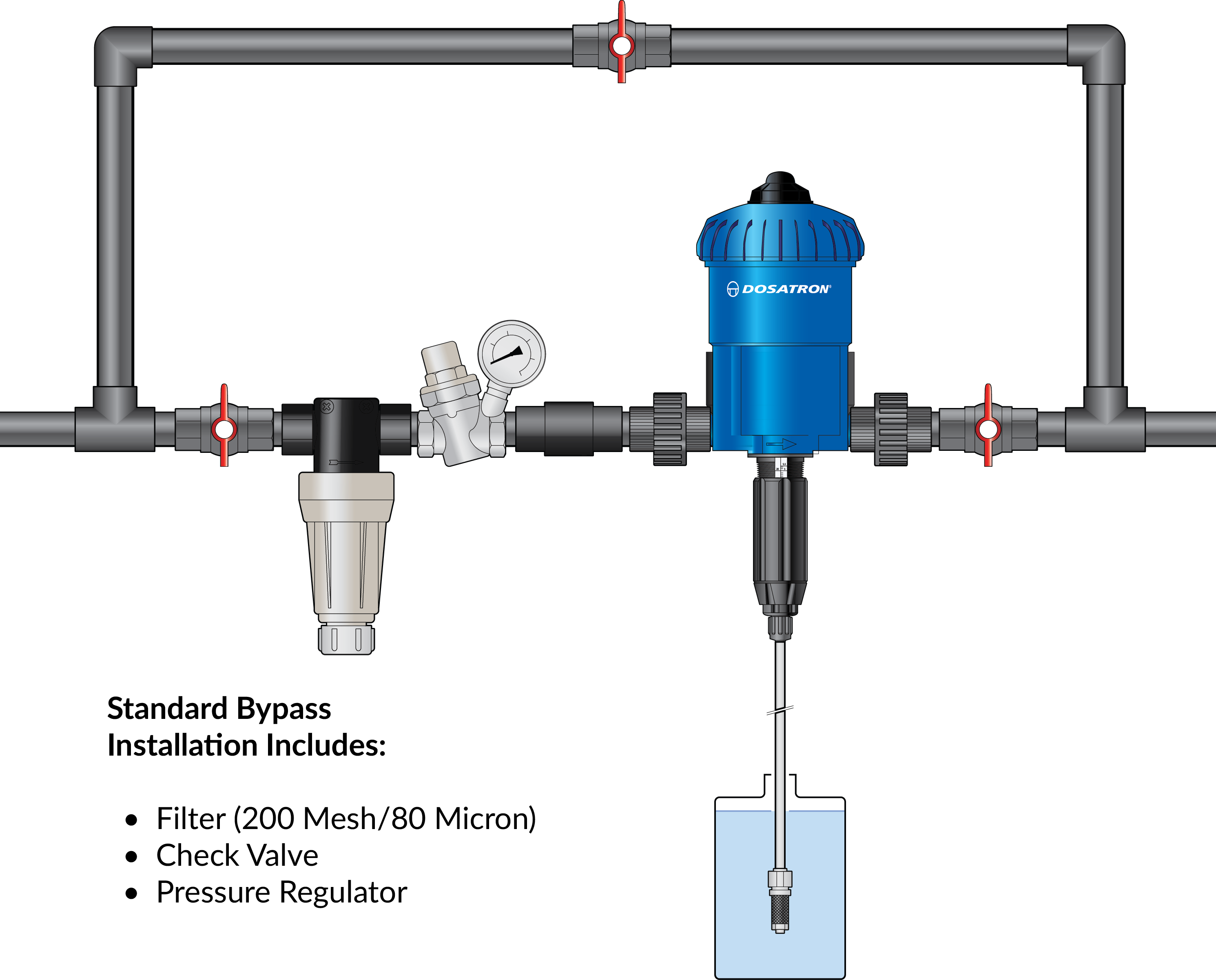

Suggested bypass installation D25 – 11 GPM.
D25 Series Bypass Installation
To load this content, approve your cookie preferences and allow the required cookies.
D25RE5 – 11 GPM

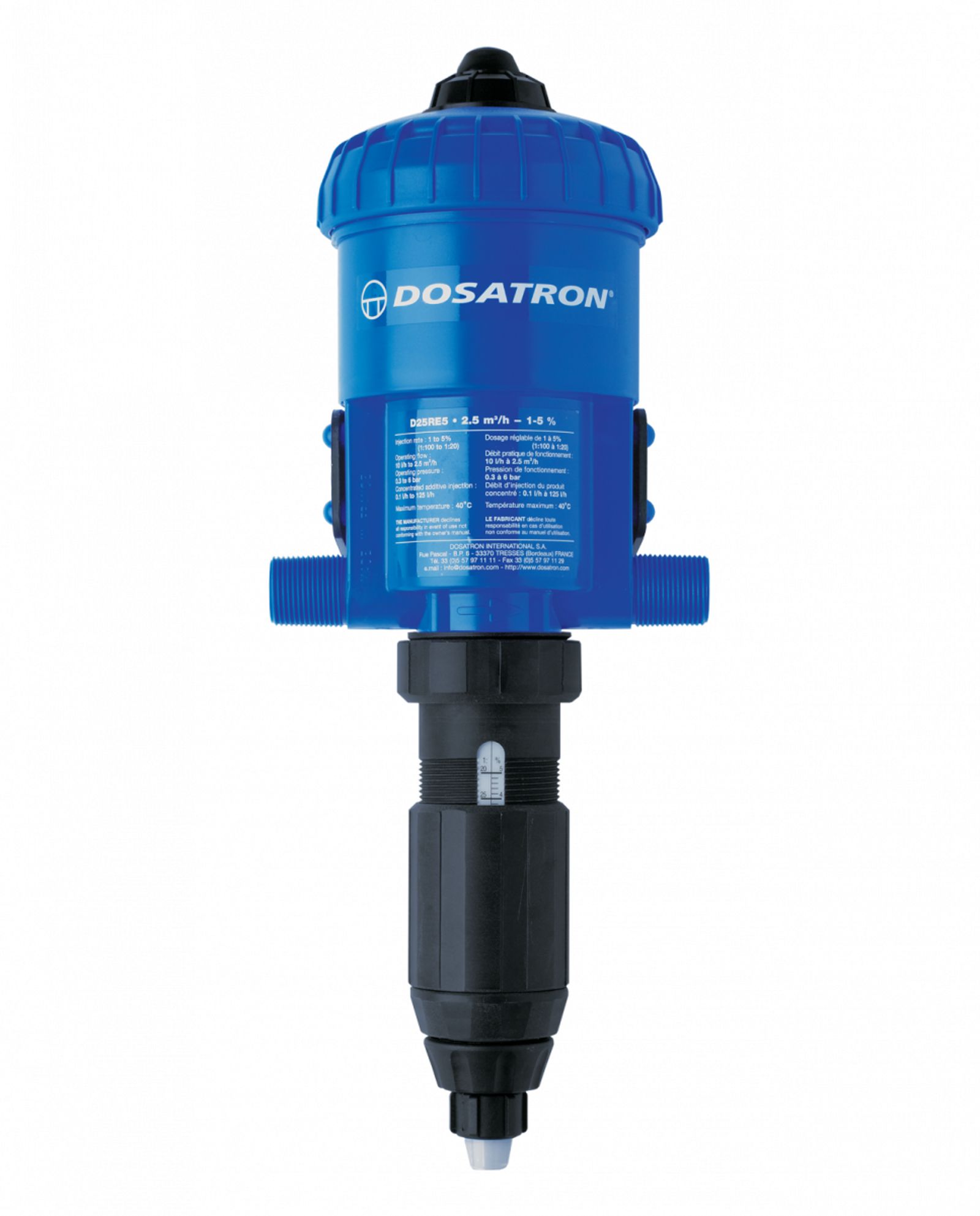

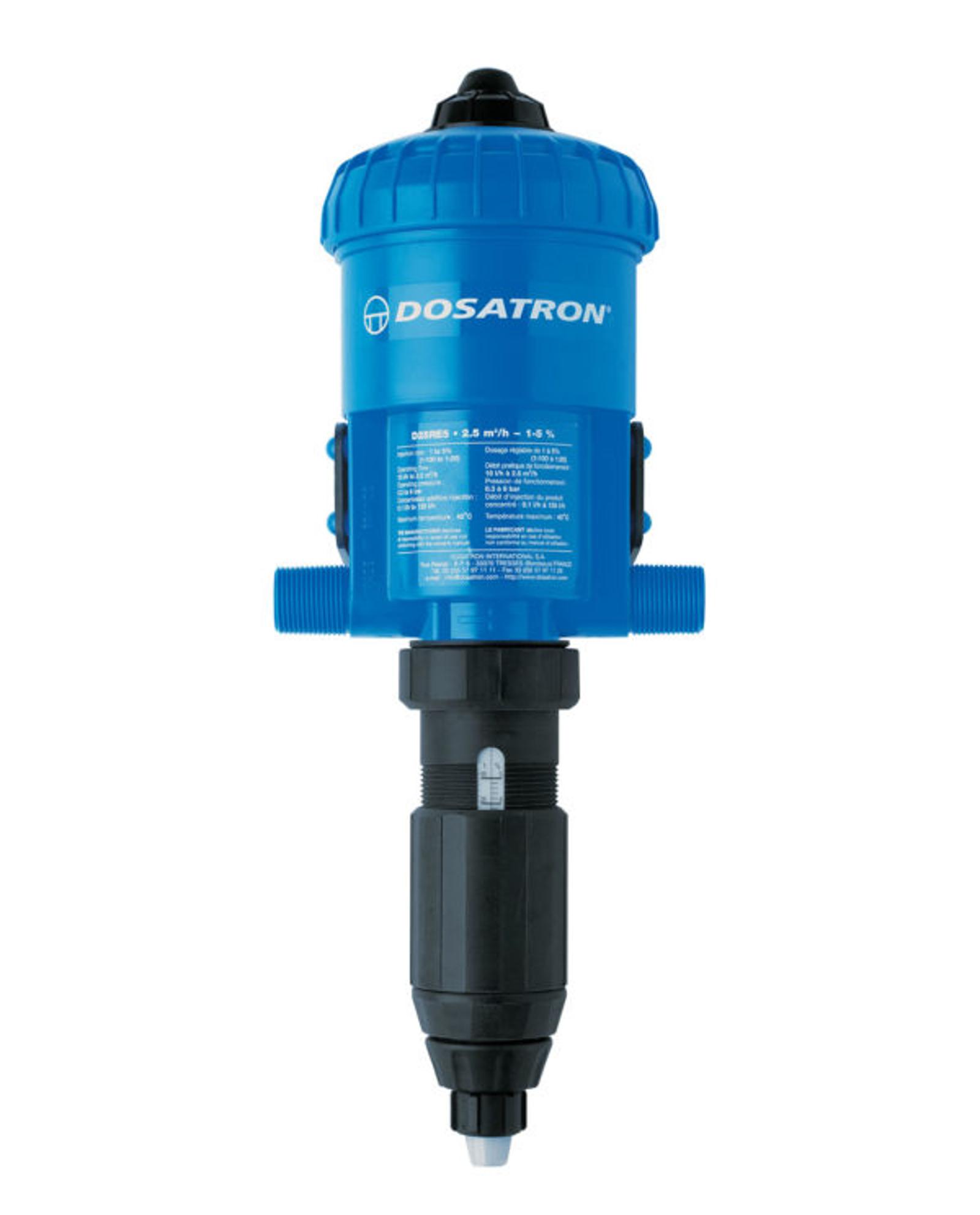

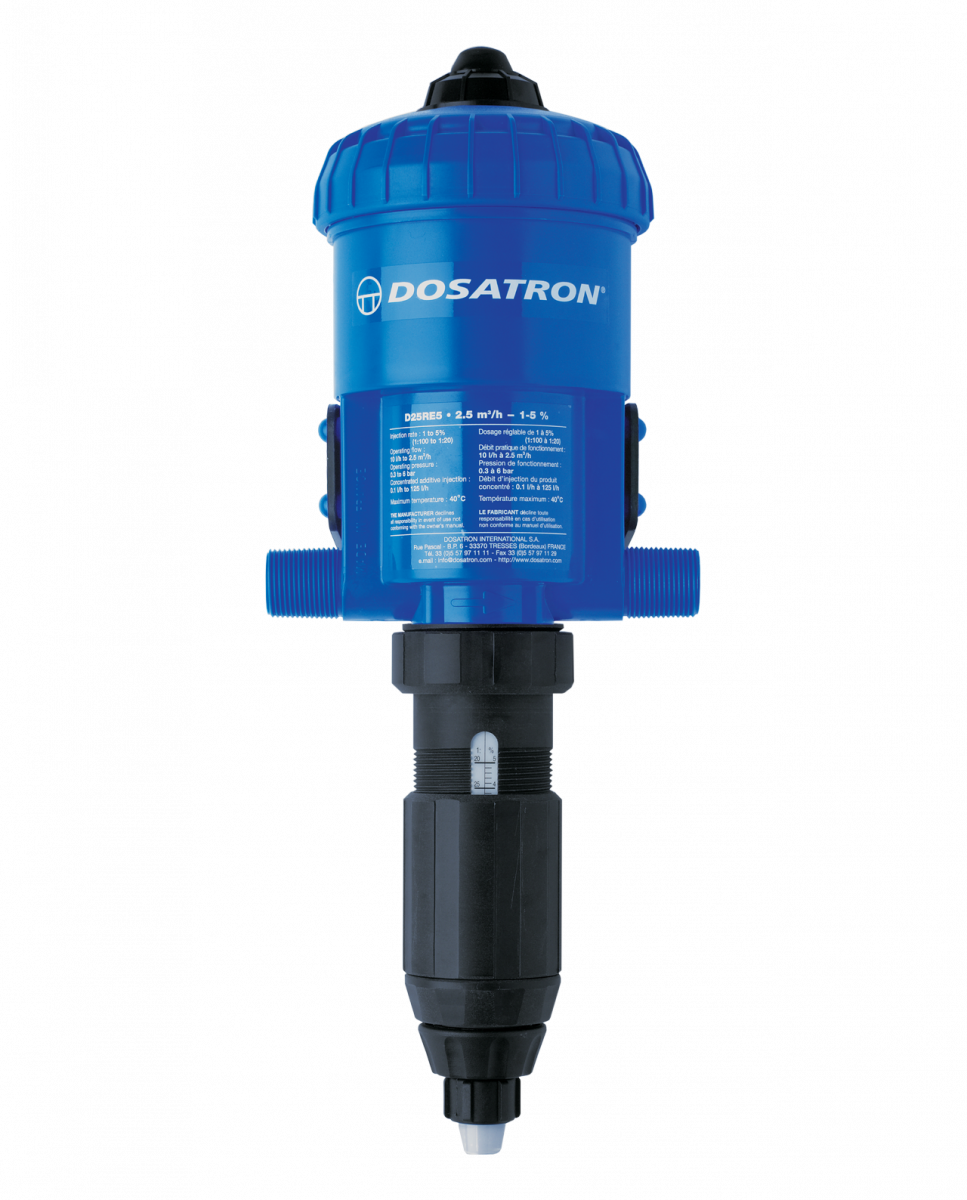

Water-Powered Dosatron D25RE5AFII injector with dosing seals for industrial applications. It has a water flow range of .05 to 11 GPM and a dilution range of 1:100 to 1:20. For industrial applications plumb right into your system using an Industrial Plumbing Kit # IPK34-10GPM.
Specifications
- Connection Size: 3/4" NPT
- Unit Weight: 4 lbs
- Dimensions: 14" x 6 1/4"
- Flow: 0.05 to 11 GPM (0.19 to 42 LPM)
- Pressure: 4.3 to 85 PSI
- Ratio Range: 1:100 to 1:20
- Percentage Range: 1 to 5%
- Ounces Per Gallon Range: 1.280 to 6.400
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

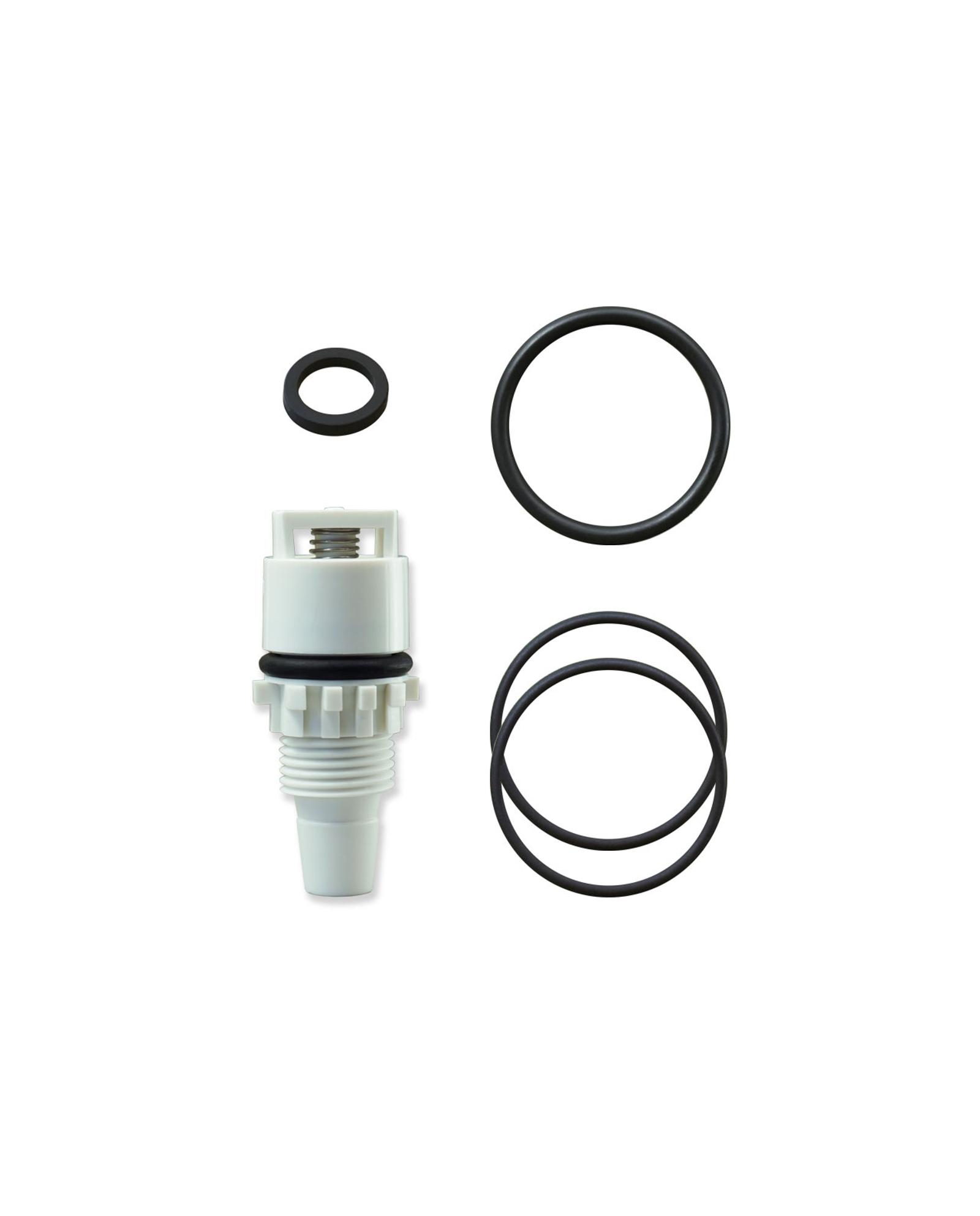

Seal Kit for the D25RE5
Injection seal kit for the D25RE5 - 11 GPM. Part #: PJ119.
Specifications
Kit Includes:
- Injection sleeve o-ring
- Check valve assembly
- Plunger seal
- Injection stem o-ring
