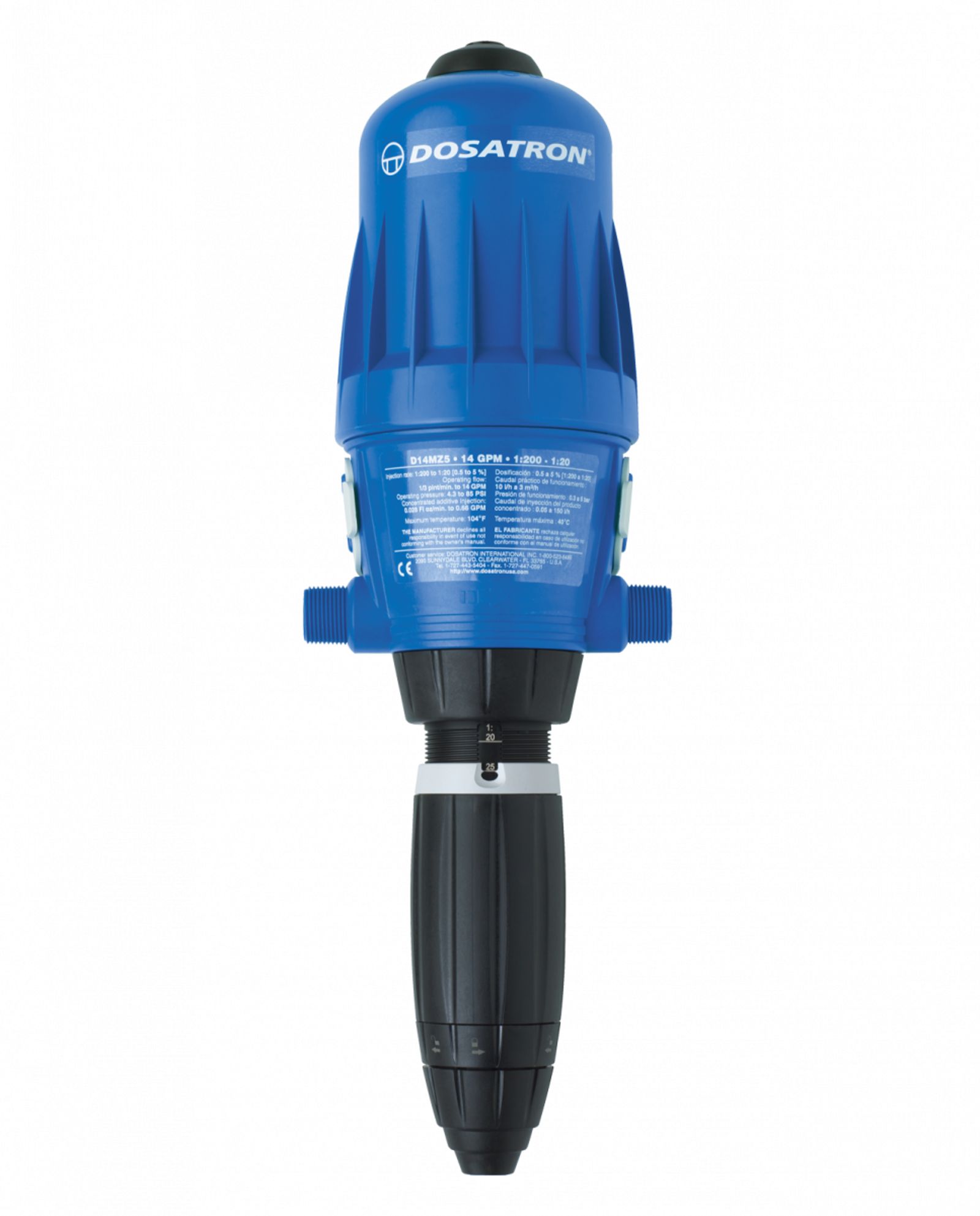

D14MZ5-D: Injector for Car Wash Applications

  • Connection Size: 3/4" NPT
  • Percentage Range: 0.5 to 5%
  • Unit Weight: 6 lbs
  • Ounces Per Gallon Range: 0.640 to 6.400
  • Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
  • Pressure: 4.3 to 85 PSI
  • Dimensions: 19 1/8" x 6 5/16"
  • Ratio Range: 1:200 to 1:20

Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

Key Specifications

Weight

6

lbs

Water Flow Range

0.05 - 14

GPM

Operating Pressure Range

4.3 - 85

PSI

Maximum Temperature

104

°F

Engineered for car wash operations that require higher chemical concentrations, the D14MZ5-D provides accurate, proportional dosing powered entirely by water flow. Its adjustable injection range of 1:200 to 1:20 (0.5% to 5%) allows operators to precisely meter detergents, presoaks, wheel cleaners, conditioners, and other wash chemicals while maintaining the selected dilution ratio across varying flow conditions. This consistent dosing helps improve cleaning effectiveness, reduce chemical waste, and deliver a more uniform wash result from vehicle to vehicle. With a flow capacity of up to 14 GPM, the D14MZ5-D is well suited for demanding vehicle wash applications where reliability, efficiency, and chemical control are essential.

Pressure loss
pressure loss - D14MZ5 and D3RE5
Viscosity limits
viscosity-limits- D3RE5 and D14MZ5

For the best performance and service life, the D14MZ5-D should be installed in a clean, accessible location with adequate filtration upstream of the injector. A dedicated bypass or chemical metering line is often recommended, allowing the unit to be isolated for maintenance without disrupting wash operations. Incorporating shutoff valves and appropriate backflow protection helps safeguard both the injector and the facility's water system. To promote consistent concentrate uptake, position the chemical supply container close to the unit and minimize suction distance wherever possible. Proper installation and routine maintenance help ensure accurate dosing, dependable operation, and long-term reliability in high-volume car wash environments.



Every application is different. Flow rates, water quality, chemical compatibility, and installation requirements all impact the best injector configuration.

Contact a Dosatron expert today to determine the ideal setup for your application.

Find your maintenance kit in seconds — just check how long your pump has been in service.



Time in service

Recommended kit

Why

Buy Now

Under 6 months

Mini Maintenance Kit

Quick refresh of the wear parts that go first — keeps dosing accuracy on spec.

Click here

6 months – 2 years

Seal Kit

Replaces the seals and O-rings before leaks and dosing drift start.

Click here

Over 2 years

Rebuild Kit

A full internal overhaul — restores your pump to factory performance.

Click here

Over 5 years

Talk to our team

At this stage the motor piston typically needs replacing. We'll confirm the right solution for your unit.

Contact Us

Need a single replacement part instead of a full kit?

Contact our team with your model and application. We'll help you identify and source the exact component you need.

Reach out to us
