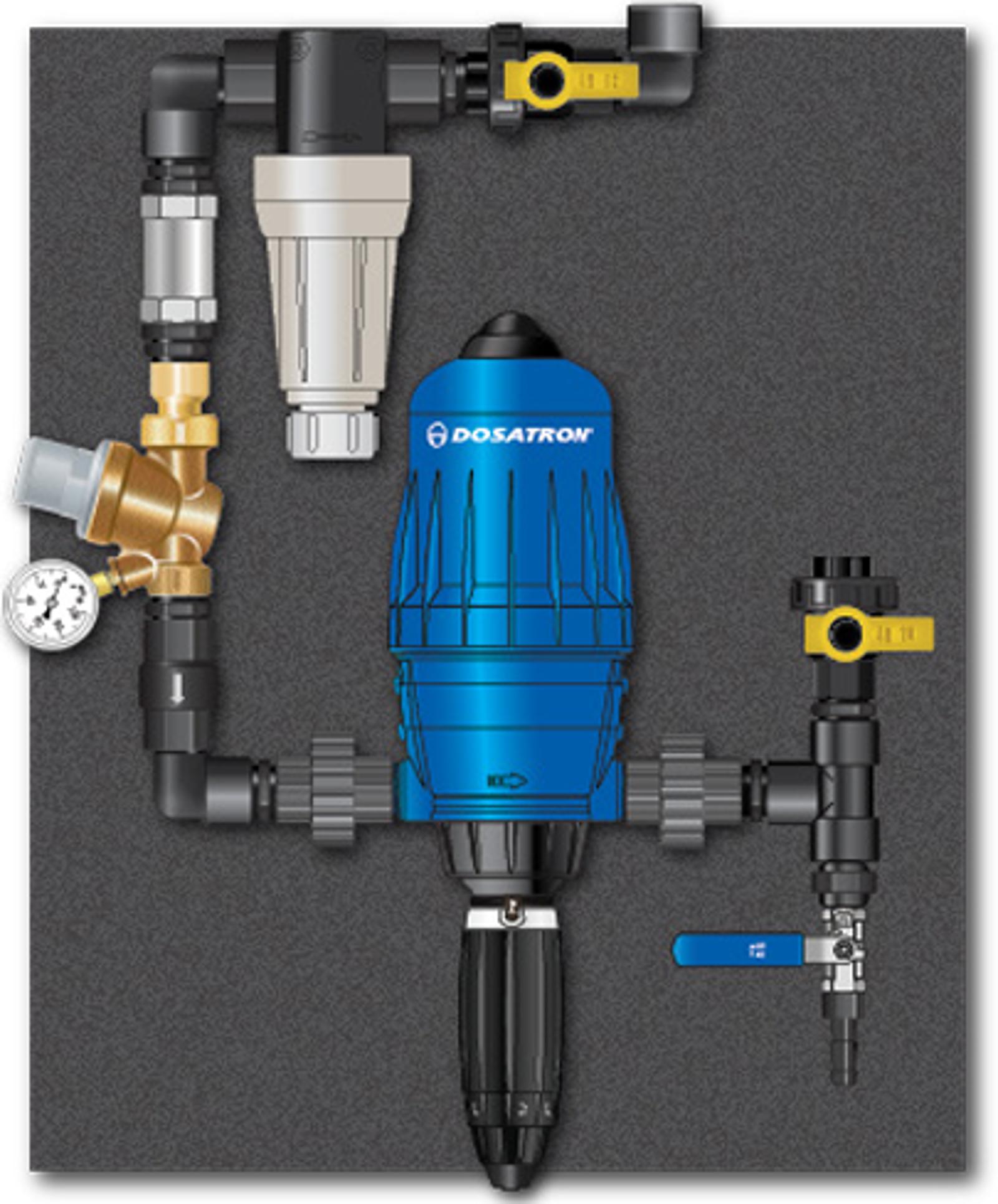

Single-unit panel system with D14MZ1000. For food sanitation applications
(Part numbers: PS1A600-BLEND, PS1A601-BLEND, PS1A602-BLEND, PS1A603-BLEND)
The Dosatron D14MZ1000-14 GPM is the ideal injector for the most common liquid fertilizer programs, offering higher flow rates and greater chemical compatibility than existing technology. With its full 10x dosing range – from a true 1% to 0.1% – you no longer need to predilute your chemistries.
- Dilution Range: 1:1000 - 1:100 (0.1% to 1%)
- Water Flow Range: 0.05 to 14 GPM
- Operating Pressure Range: 4.3 to 85 PSI
- Available Housing Materials: Polypropylene
- Dimensions: 19 1/18” x 6 5/16”
- Weight: 6 lbs
- Connection Size: 3/4” NPT
- Maximum Temperature: 104°F
Included Accessories: 6’ clear suction tube, strainer, weight, mounting bracket and quick start guide
Recommended Accessories: 200 mesh filter, check valve, pressure regulator, flow restrictor

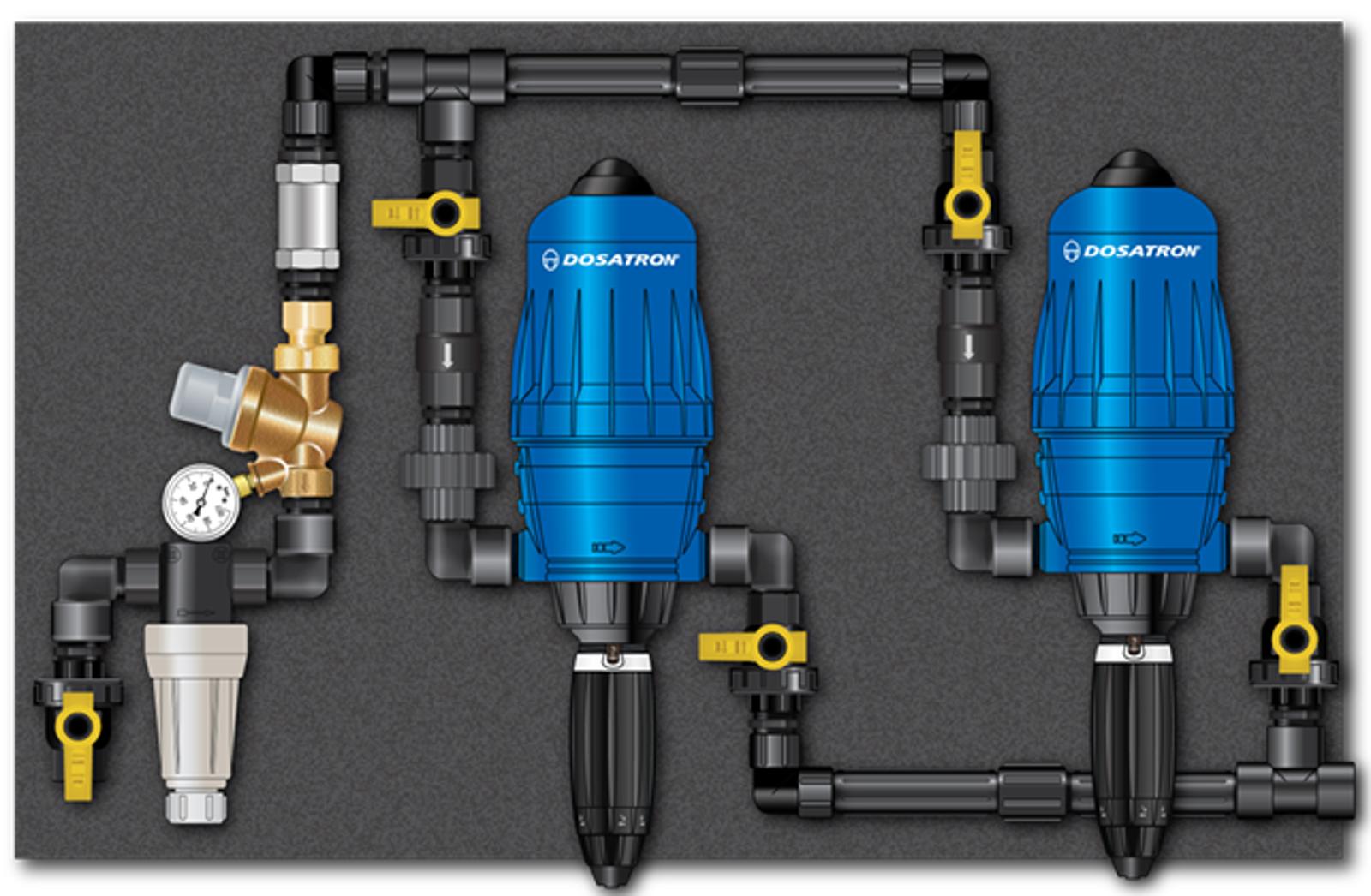

Fail safe unit panel system with two D14MZ1000. For food sanitation applications
(Part numbers: PS4G600-600-FAILSAFE, PS4G601- 601-FAILSAFE, PS4G602-602- FAILSAFE, PS4G603-603- FAILSAFE)

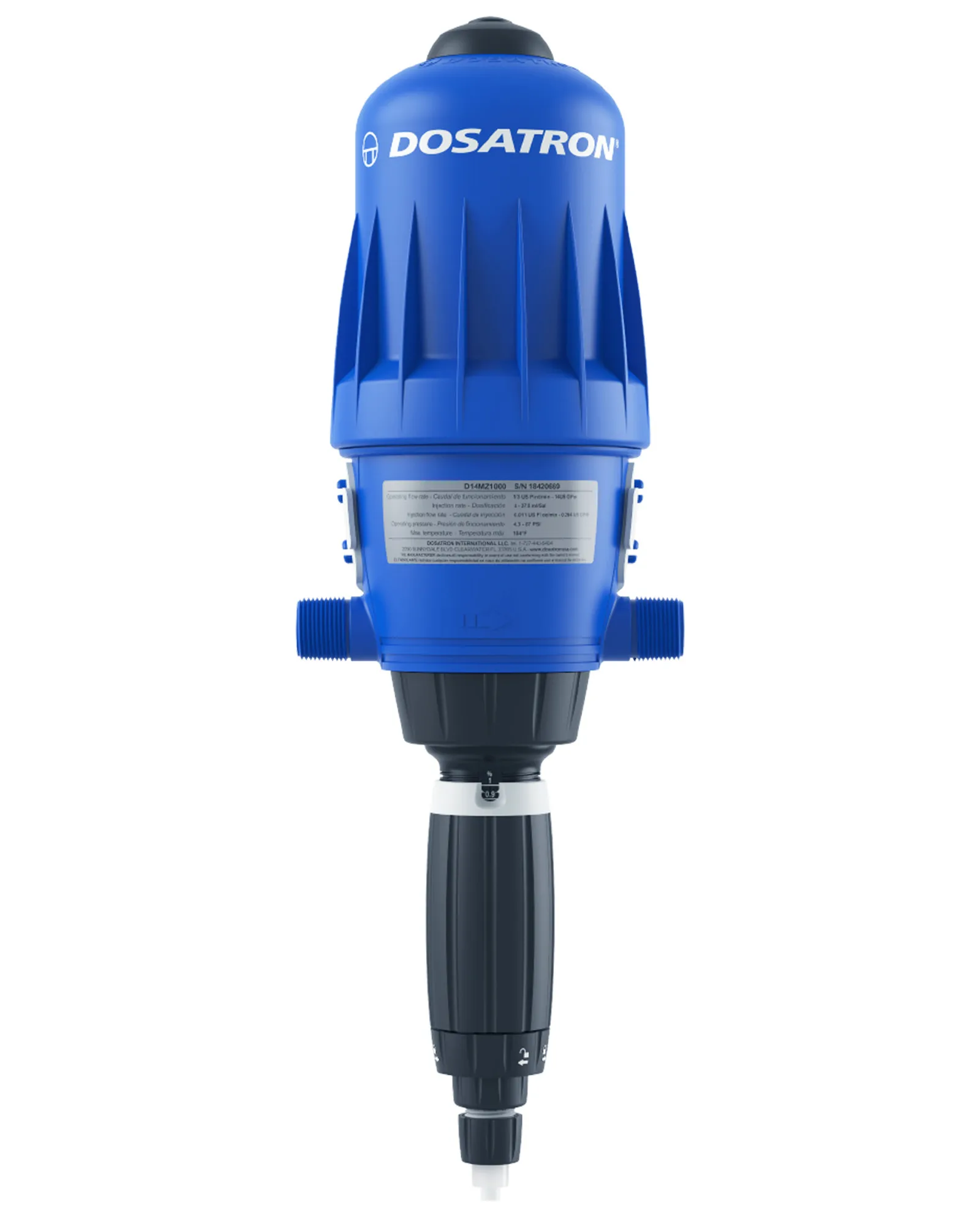

D14MZ1000 – 14 GPM
Water-powered Dosatron D14MZ1000 - 14 GPM is used in irrigation and industrial applications. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:1000 - 1:100 (0.1% to 1%). For industrial applications installation is easy with an Industrial Plumbing Kit # IPK34-14GPM.
Specifications
- Connection Size: 3/4" NPT
- Unit Weight: 6 lbs
- Dimensions: 19 1/18" x 6 5/16"
- Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
- Pressure: 4.3 to 85 PSI
- Ratio Range: 1:1000 to 1:100
- Percentage Range: 0.1% to 1%
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide
Seal Kit for the D14MZ1000
Rebuild Kit for the D14MZ1000
