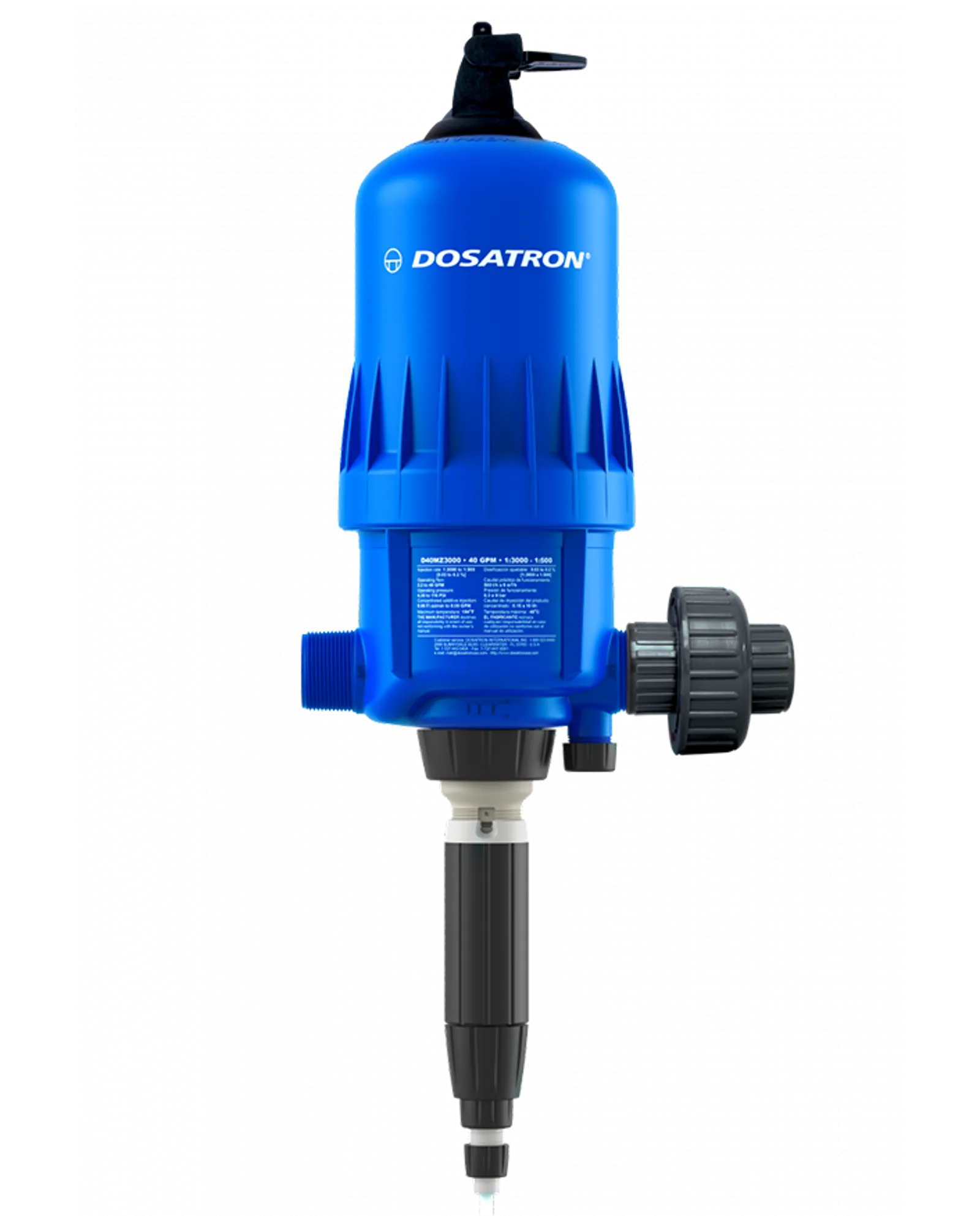

D40MZ3000-HY: High Flow Hydroponic Pump

  • Connection Size: 1 1/2" NPT
  • Percentage Range: 0.03% to 0.2%
  • Unit Weight: 12 lbs
  • Flow: 2.2 to 40 GPM (8.32 to 151 LPM)
  • Pressure: 4.3 to 116 PSI
  • Dimensions: 25 1/4” x 8 1/2”
  • Part Number: D40MZ3000BPVFHY
  • Injection Range mL per gal: 1.25 to 7.5 mL

Included Accessories:Mounting bracket, suction hose, weighted strainer, bypass, union, and quick start guide.

Key Specifications

Weight

12

lbs

Water Flow Range

2.2 - 40

GPM

Operating Pressure Range

4.3 - 116

PSI

Maximum Temperature

104

°F

The D40MZ3000-HY is purpose-built for large-scale hydroponic and nutrient delivery systems that require extremely precise, low-volume nutrient injection at higher flow rates. Using Dosatron's water-powered proportional dosing technology, it injects concentrates at rates equivalent to 1.25 to 7.5 mL per gallon (0.03% to 0.2%), automatically adjusting dosing to match changing water flow. This ensures nutrients remain consistently diluted throughout the irrigation cycle, helping growers maintain stable feeding programs and uniform crop development. With a capacity of 2.2 to 40 GPM, the D40MZ3000-HY is ideal for commercial growing operations where precise nutrient management, scalability, and reliability are essential. It also includes a bypass and union fitting for easier integration into hydroponic nutrient delivery systems.

Pressure loss
pressure loss - D40MZ3000 - D40WL3000NAF - HY.png

For optimal performance, the D40MZ3000-HY should be installed in series within a properly designed hydroponic irrigation system where water pressure and flow remain within the recommended operating range. Adequate upstream filtration helps protect internal components and maintain long-term dosing accuracy, while the included bypass allows nutrient injection to be isolated when maintenance or system adjustments are required. Positioning nutrient stock tanks close to the injector and minimizing suction distance supports stable concentrate uptake and consistent dosing performance. Because this model is designed for higher-flow applications, proper pipe sizing and system layout are important to ensure uniform nutrient distribution throughout the growing area. A well-planned installation helps maximize nutrient efficiency, reduce fertilizer waste, and support consistent crop production.



Every application is different. Flow rates, water quality, chemical compatibility, and installation requirements all impact the best injector configuration.

Contact a Dosatron expert today to determine the ideal setup for your application.

Find your maintenance kit in seconds — just check how long your pump has been in service.



Time in service

Recommended kit

Why

Buy Now

Under 6 months

Mini Maintenance Kit

Quick refresh of the wear parts that go first — keeps dosing accuracy on spec.

Click here

6 months – 2 years

Seal Kit

Replaces the seals and O-rings before leaks and dosing drift start.

Click here

Over 2 years

Rebuild Kit

A full internal overhaul — restores your pump to factory performance.

Click here

Over 5 years

Talk to our team

At this stage the motor piston typically needs replacing. We'll confirm the right solution for your unit.

Contact Us

Need a single replacement part instead of a full kit?

Contact our team with your model and application. We'll help you identify and source the exact component you need.
