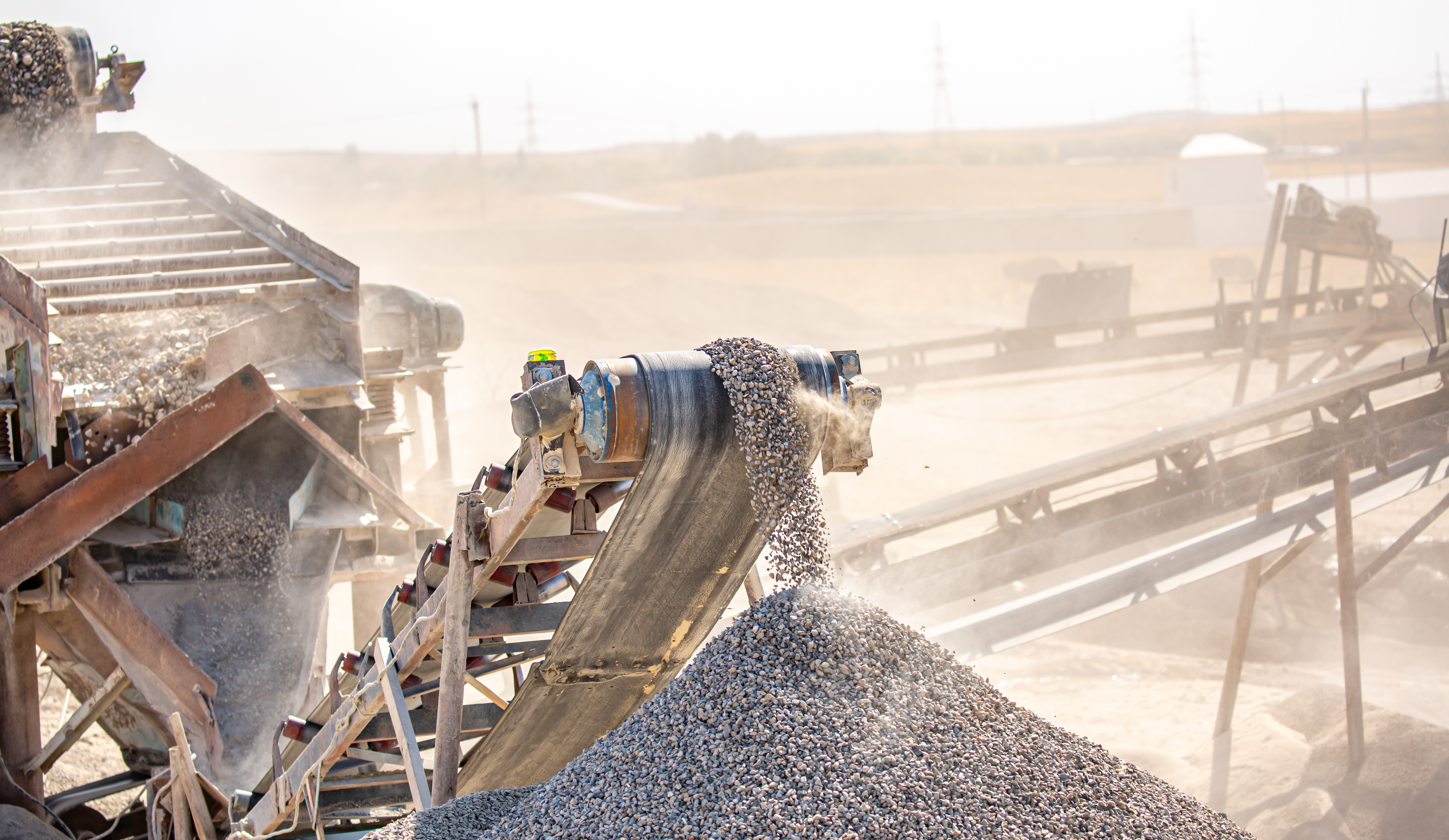

Dust generation is an unavoidable reality at every stage of mining — drilling, blasting, crushing, hauling, stockpiling, and loading. Each of these operations releases massive volumes of dust particles into the air, creating hazards that go far beyond reduced visibility. Left unmanaged, airborne dust degrades the work environment, threatens human health, accelerates equipment wear, and exposes operators to escalating regulatory risk.

Respirable crystalline silica (quartz dust) causes silicosis, progressive massive fibrosis, lung cancer, and chronic kidney disease.

Regulators are responding aggressively. In April 2024, MSHA lowered the permissible exposure limit (PEL) for respirable crystalline silica to 50 µg/m³ (8-hour TWA) for all miners — coal, metal, and nonmetal — with an action level set at 25 µg/m³. Non-compliance triggers immediate corrective action, mandatory sampling, and potential shutdowns.

The environmental impact extends beyond the fence line: fugitive dust — dust that escapes operations and becomes airborne — contaminates water sources, damages vegetation, disrupts ecosystems, and generates community complaints.

The message is clear: effective dust control is no longer optional — it's existential for mining operations.

Why Water Alone Fails - And Why Selecting the Right Products Matters

Water sprays are the oldest and most common method used to control dust on mine sites. But on their own, they are deeply insufficient — and selecting the right products to add to your water makes the difference between compliance and failure.

Here's why water alone doesn't work:

  • Rapid evaporation — especially in arid, hot, or windy environments — means dust levels return to dangerous concentrations within minutes of spraying
  • Water droplets from conventional spray nozzles are too large to effectively capture fine respirable particles (PM2.5 and PM10). The physics is simple: a large droplet passes right by a tiny dust particle without making contact.
  • No binding effect — once the surface dries, nothing prevents dust from becoming airborne again the moment a haul truck passes or the wind picks up
  • Excessive water use degrades unpaved roads, causes belt slippage on conveyors, increases material moisture content, and creates its own operational problems
  • High water consumption drives up maintenance costs — more truck hours, more fuel, more wear on pumps and fill stations

Chemical dust suppressants solve every one of these problems. They work by reducing water's surface tension (so smaller, more effective water droplets can wet hydrophobic particles like coal), by binding particles together (so they resist wind erosion), and by retaining moisture for hours or days instead of minutes. The result: dramatically lower dust emissions, less water consumption — studies show reductions of 65% or more — and longer-lasting suppression between applications.

The challenge?

These chemicals must be dosed precisely and consistently into the water stream. Too little, and you're barely better than plain water. Too much, and you waste expensive reagents, risk environmental contamination, and can interfere with downstream processing. That's where Dosatron comes in.

Where Dosatron Fits - Inline Chemical Injection for Every Dust Control Point

Dust suppression systems in mining rely on mixing liquid chemical concentrates into water before it reaches the spray nozzle, fog cannon, or truck. Traditionally, this is done by manual batch mixing (inconsistent, labor-intensive) or by electric metering pumps (expensive, complex, power-dependent).

A Dosatron water-powered injector offers a fundamentally better approach. It installs directly on the water supply line feeding your dust suppression system. As water flows through the unit, it drives a hydraulic motor that draws a precise volume of liquid chemical concentrate and mixes it into the water stream — proportionally, consistently, and without electricity.

This means:

  • Constant ratio — whether you're filling a 5,000 L water truck or a 20,000 L truck, the chemical-to-water percentage stays identical. Dust levels stay controlled regardless of flow variation.
  • No electricity — operates purely on water pressure (0.3 to 8 bar), making it ideal for remote pit-side locations, mobile fill stations, and off-grid operations
  • No overdosing, no waste — volumetric metering eliminates guesswork, reducing dust control chemical spend by 15–30% compared to manual mixing
  • Instant adjustability — turn the dial to change the dosing ratio in seconds, adapting your control measures to seasonal conditions, material changes, or regulatory requirements
  • Minimal maintenance — no electronics, no calibration software, no spare parts inventory. Lower maintenance costs across the board.

Chemicals Injected - And How They Differ by Mine Type

The chemistry you inject through a Dosatron depends on the type of mine, the dust source, and environmental constraints. Here's the breakdown:

Mine Type

Primary Dust Hazard

Recommended Suppressant Chemistry

Why This Chemistry

Coal Mines

Coal dust (combustible + respirable)

Surfactants / wetting agents + hygroscopic salts (MgCl₂, CaCl₂)

Coal dust is hydrophobic — surfactants lower water surface tension to wet particles that plain water can't. Salts retain moisture longer. Avoid petroleum-based products (fire risk).

Metal Mines
(copper, gold, iron)

Silica dust, metal-bearing particulates

Polymer emulsions (acrylic/vinyl) + surfactants

Silica is extremely fine and dangerous. Polymers form flexible films that bind particles on roads and stockpiles for days. Surfactants improve initial wetting of ore fines.

Limestone / Aggregate Quarries

Calcium carbonate dust

Lignosulfonates (bio-based binders) + surfactants

Limestone dust is alkaline and relatively easy to bind. Lignosulfonates are cost-effective, biodegradable, and work well on unpaved roads.

Oil Sands / Tar Sands

Bituminous particulates + VOCs

Polymer emulsions + organic binders (bio-based)

Petroleum-based suppressants are avoided due to redundancy and environmental concerns. Bio-based polymers offer strong binding without adding more hydrocarbons to the environment.

Phosphate / Potash Mines

Fine mineral dust + ammonia compounds

Surfactants + hygroscopic salts

These operations often handle soluble minerals; hygroscopic salts help retain surface moisture while surfactants improve coverage.

Why Mining Operations Choose Dosatron

Challenge

Dosatron Advantage

Remote sites with no power grid

100% water-powered — no electricity, no batteries, no solar panels needed

Harsh, dusty, corrosive environments

Robust mechanical design with chemical-resistant materials (Viton, Aflas seals)

Variable water flow rates (truck fills, spray systems)

Proportional dosing maintains exact ratio regardless of flow/pressure changes

High chemical costs (reagents at remote sites)

Zero overdosing = significant chemical savings vs. manual mixing or fixed-speed pumps

Regulatory compliance (dust & odor limits)

Repeatable, auditable dosing ensures consistent treatment levels

Multiple chemicals needed (suppressant + neutralizer)

Multiple Dosatrons in series can inject different products into the same line

Not sure which Dosatron fits your site? Let's spec it together.

Mining dust suppression covers a wide range of duties — from low-pressure perimeter misting to high-flow haul road tankers — and the right Dosatron model depends on your water pressure, flow rate, suppressant chemistry, and injection ratio. Our application engineers will review your site conditions and recommend the exact model, injection range, and materials of construction for each duty point.
