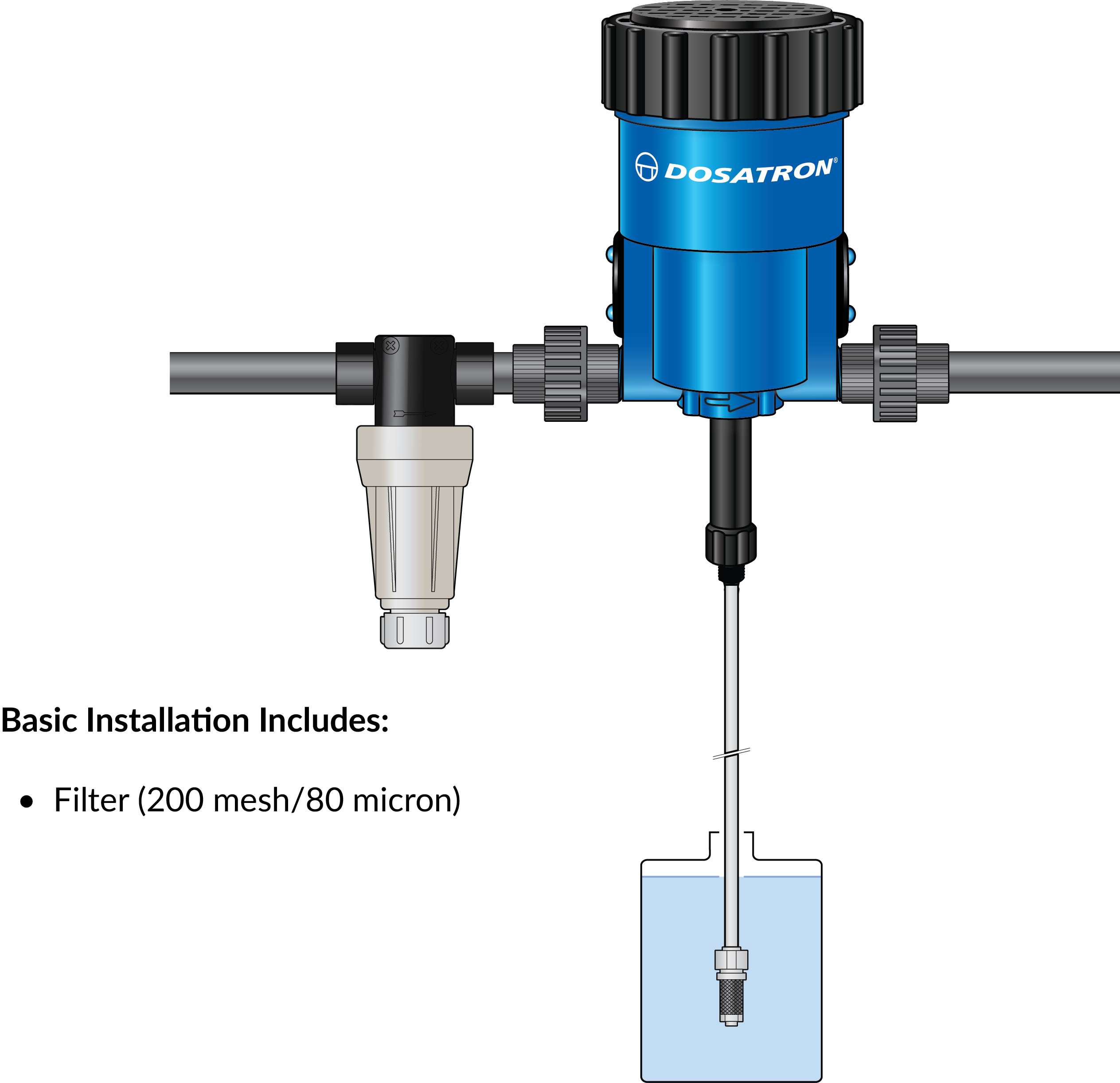

D128R – 7 GPM basic installation. Basic Installation
- Connection Size: 3/4" NPT
- Percentage Range: 0.5 to 1%
- Unit Weight: 4 lbs
- Ounces Per Gallon Range: 0.640/1.000/1.280
- Flow: 0.09 to 7 GPM (0.34 to 27 LPM)
- Pressure: 7 to 70 PSI
- Dimensions: 13" x 6 1/4"
- Ratio Range: 1:200/1:128/1:100
Included Accessories:Mounting bracket, suction hose, weighted strainer, and quick start guide.
D128R SERVICE VIDEO

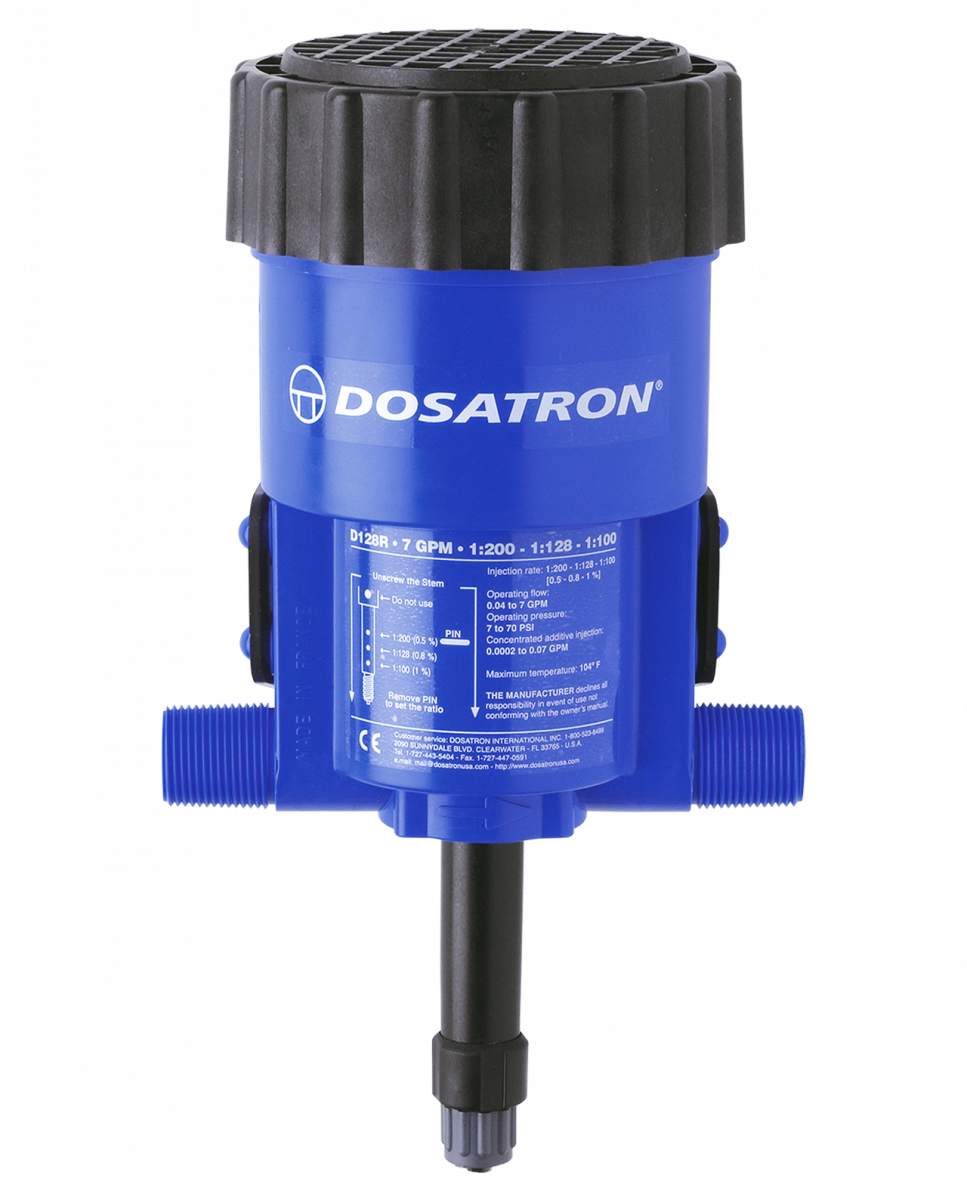

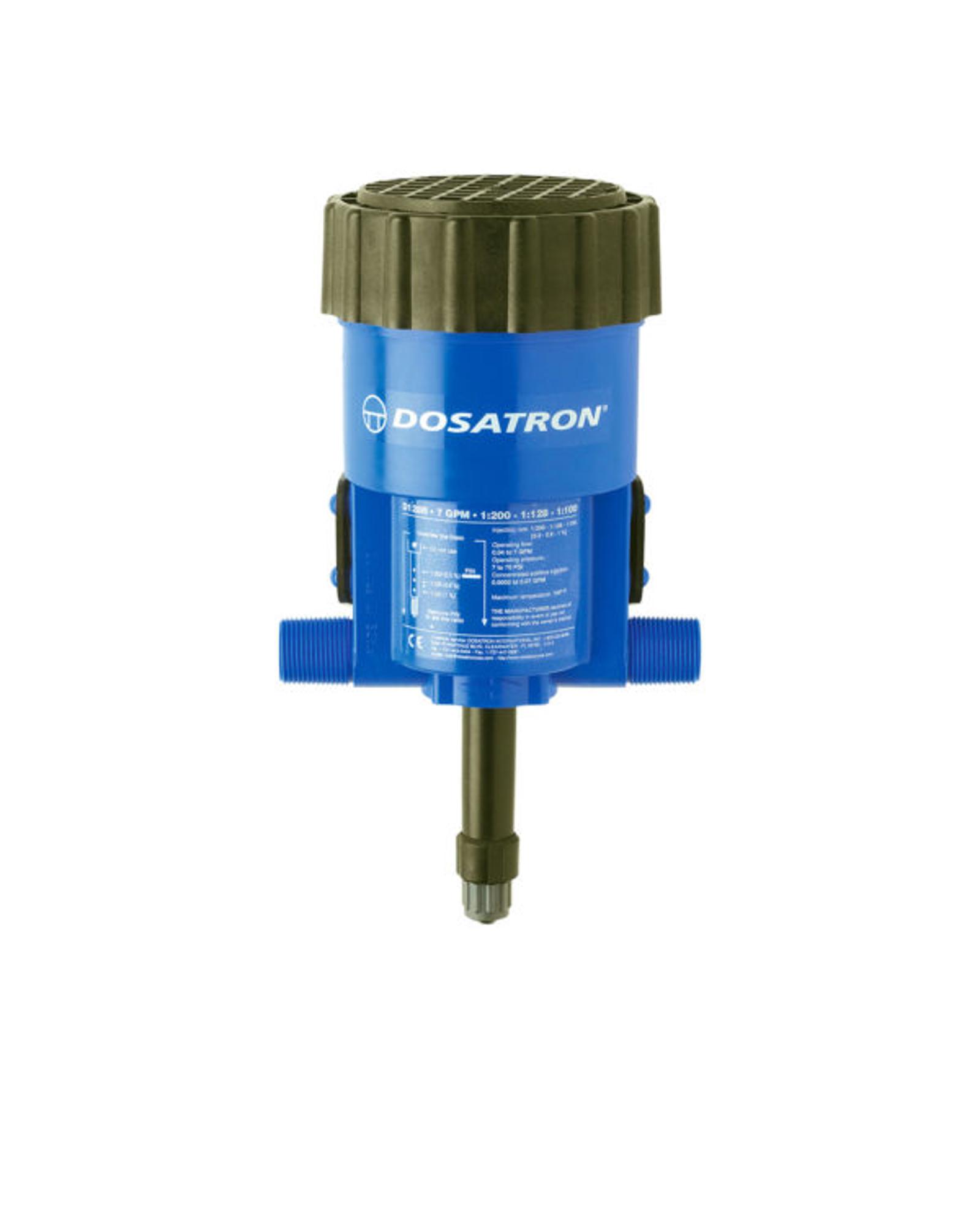

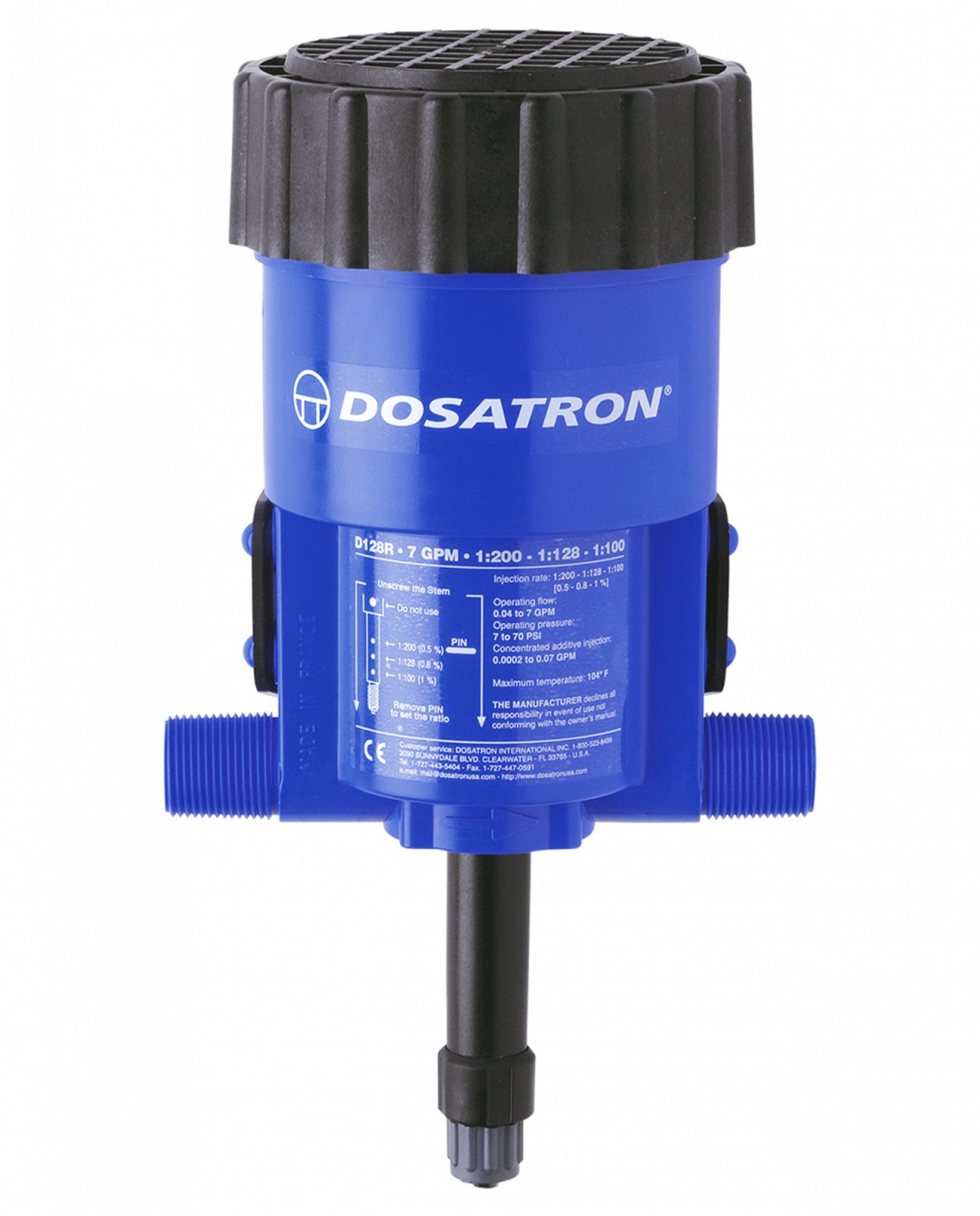

D128RVTII – 7 GPM
Water-powered Dosatron D128RVTII is the original flat top medicator used in animal health applications. It is well known for its dependability and ease of use with a flow range of 0.09 to 7 GPM and dilution range settings of 1:128, 1:100, and 1:200. To extend the life of your D128RVTII use rebuild kit # MKD128R
Specifications
- Connection Size: 3/4" NPT
- Unit Weight: 4 lbs
- Dimensions: 13" x 6 1/4"
- Flow: 0.09 to 7 GPM (0.34 to 27 LPM)
- Pressure: 7 to 70 PSI
- Ratio Range: 1:200/1:128/1:100
- Percentage Range: 0.5 to 1%
- Ounces Per Gallon Range: 0.640/1.000/1.280
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

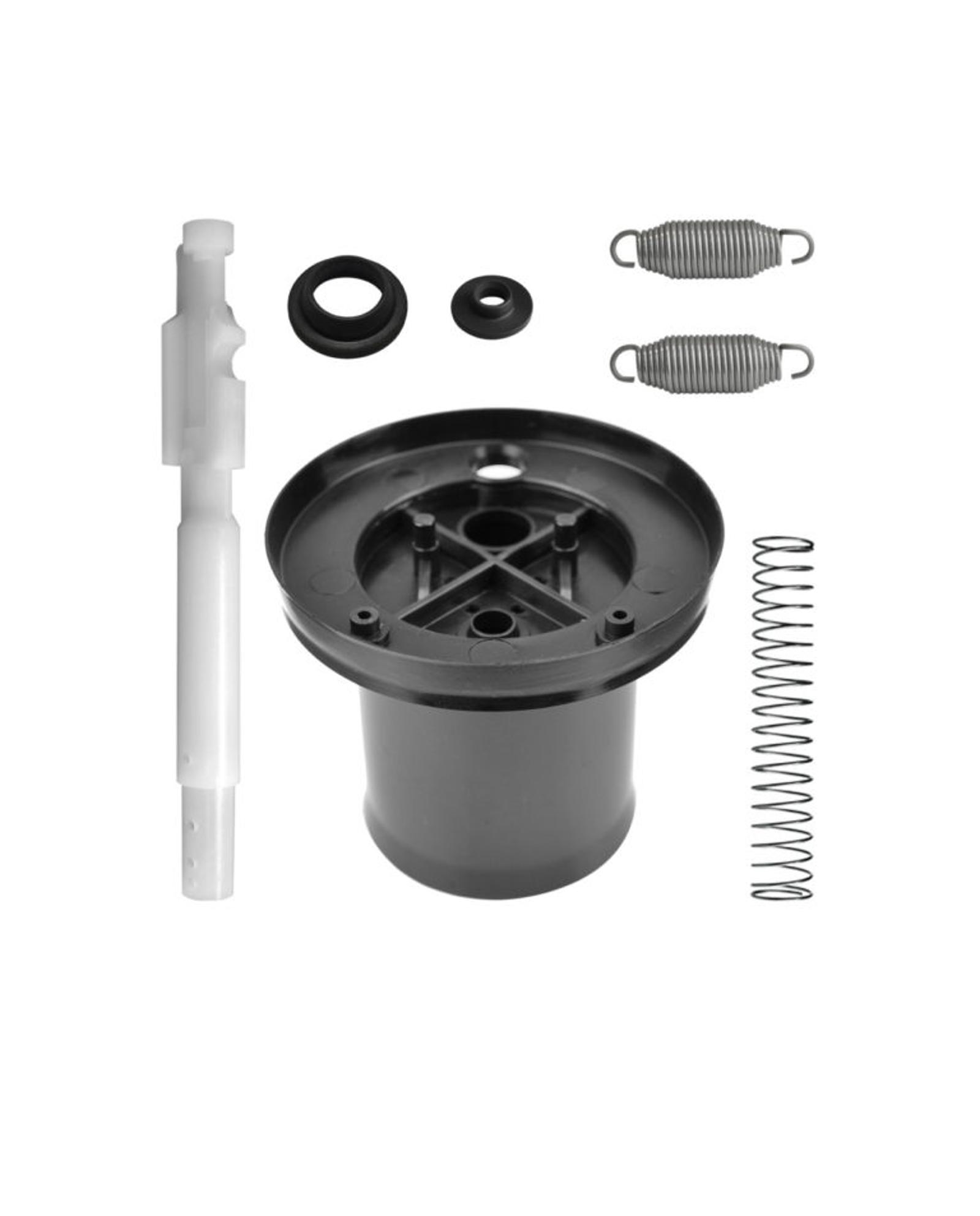

Rebuild Kit for the D128R
Extend the life of your Dosatron D128R - 7 GPM with our Rebuild Kit.
Specifications
Features:
- Two Parts - Part 1: Piston Kit Contents - Part 2: Seal Kit Contents
- Complete, detailed instructions
