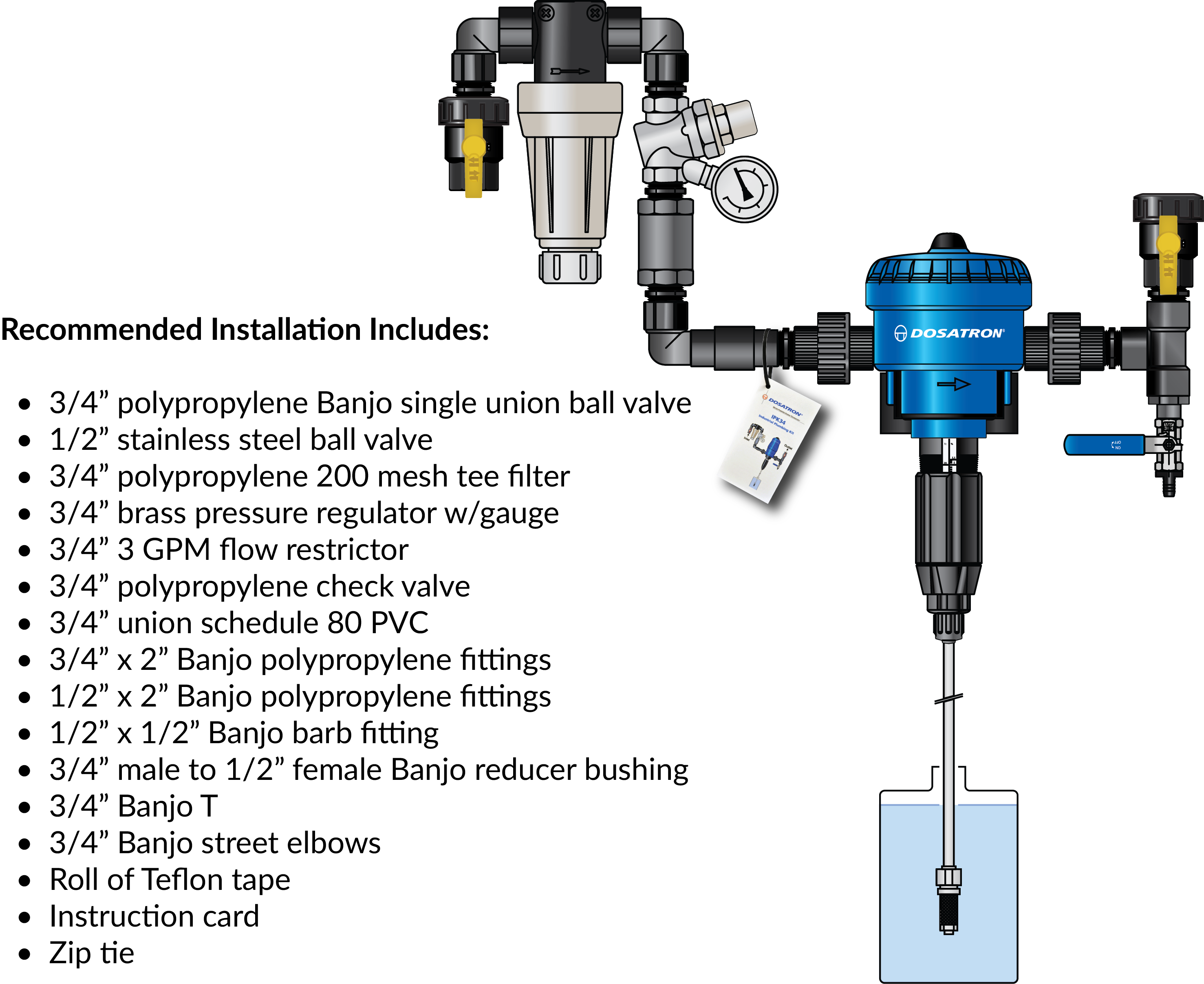

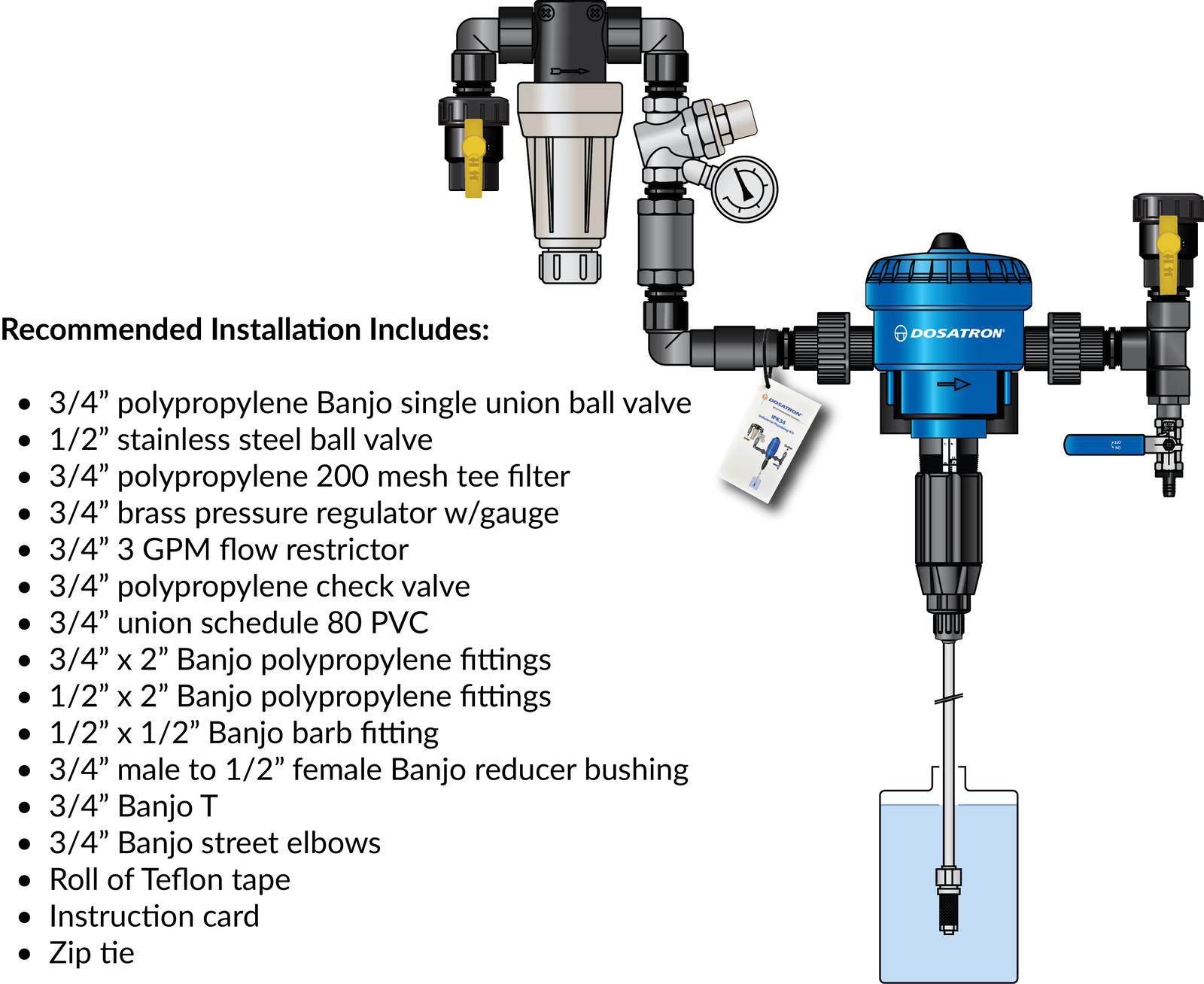

IPK3GPM – D07RE Industrial Plumbing Kit. SUGGESTED INSTALLATION
- Connection Size: 3/4" NPT
- Percentage Range: 0.8 to 5.5%
- Unit Weight: 2 lbs
- Ounces Per Gallon Range: 1.000 to 6.400
- Flow: 0.02 to 3 GPM (0.08 to 12 LPM)
- Pressure: 4.3 to 85 PSI
- Dimensions: 10" x 4.5"
- Ratio Range: 1:128 to 1:18
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.
Dosatron D07 - 3 GPM Spotlight
To load this content, approve your cookie preferences and allow the required cookies.

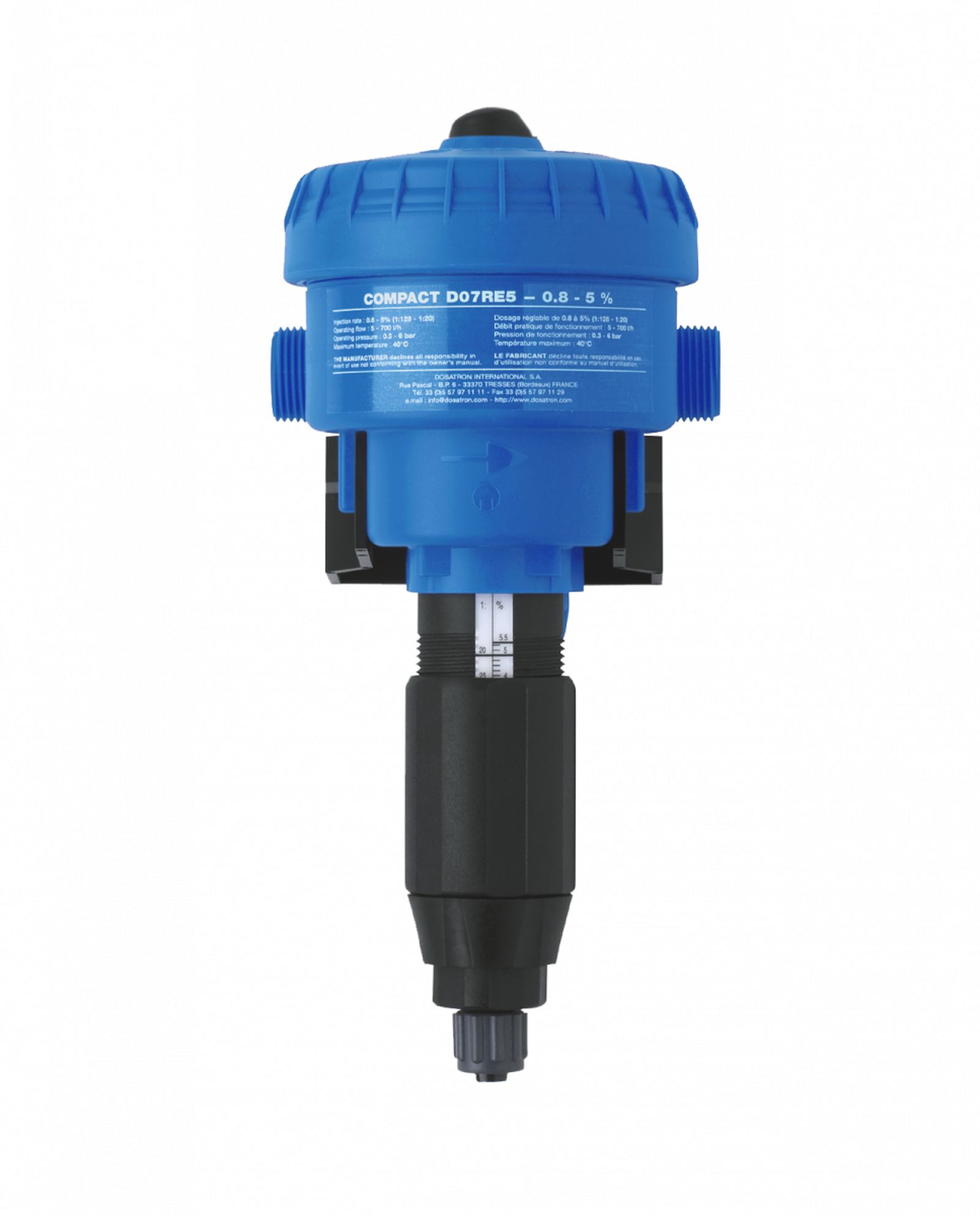

D07RE5- 3 GPM
Water-powered Dosatron D07RE5 is used in industrial applications such as Metal Processing. It has flow range of 0.02 to 3 GPM and a dilution range of 1:128 to 1:18 (0.8% to 5.5%). Installation is easy with an Industrial Plumbing Kit # IPK34-3GPM.
Specifications
- Connection Size: 3/4" NPT
- Unit Weight: 2 lbs
- Dimensions: 10" x 4.5"
- Flow: 0.02 to 3 GPM (0.08 to 12 LPM)
- Pressure: 4.3 to 85 PSI
- Ratio Range: 1:128 to 1:18
- Percentage Range: 0.8 to 5.5%
- Ounces Per Gallon Range: 1.000 to 6.400
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

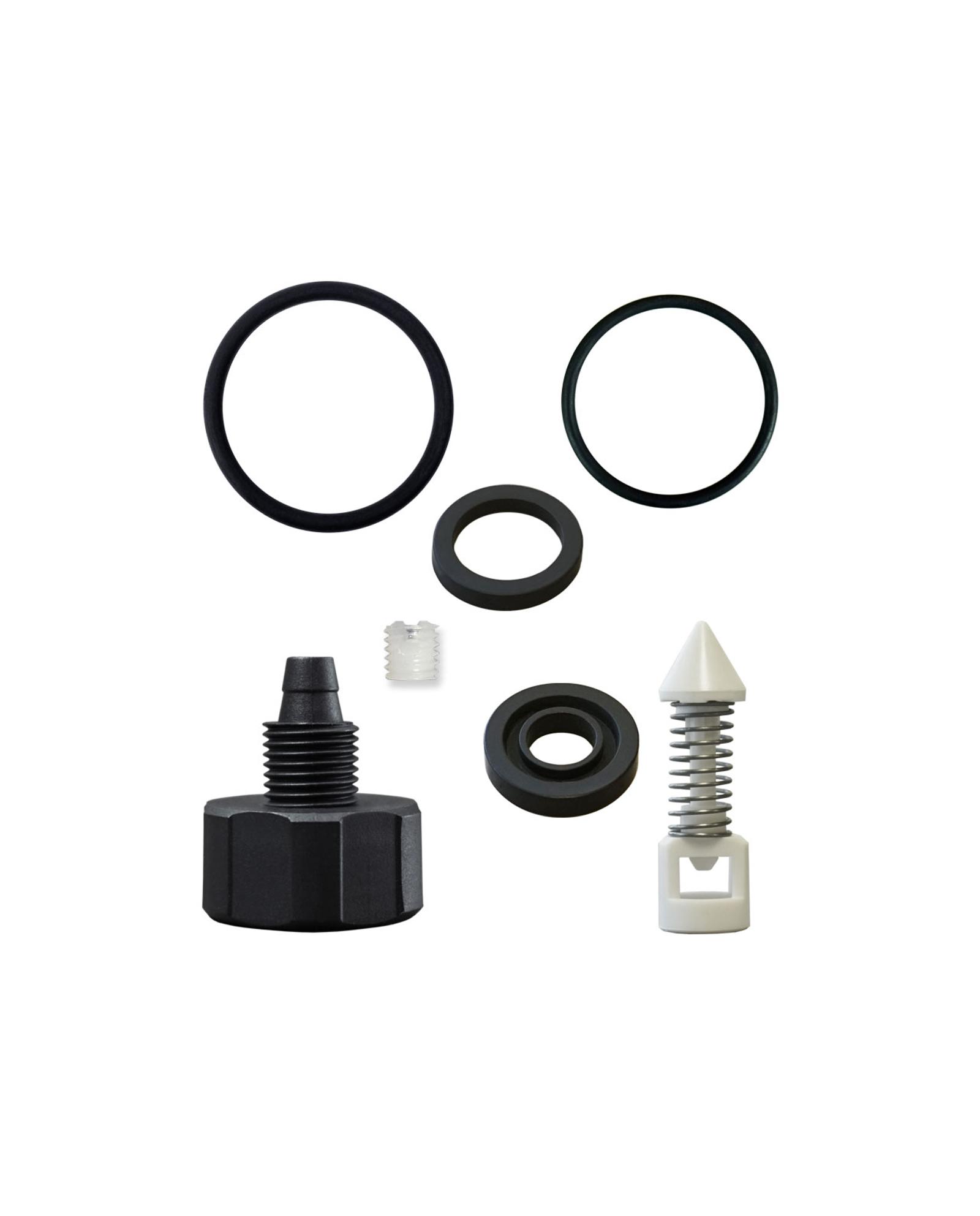

Seal Kit for the D07RE5
Injection seal kit for the D07RE5 - 3 GPM. Part #: PJDI095.
Specifications
Kit Includes:
- Check valve barb
- Injection sleeve o-ring
- Check valve assembly
- Injection sleeve key
- Check valve seal
- Plunger seal
- Injection stem o-ring
