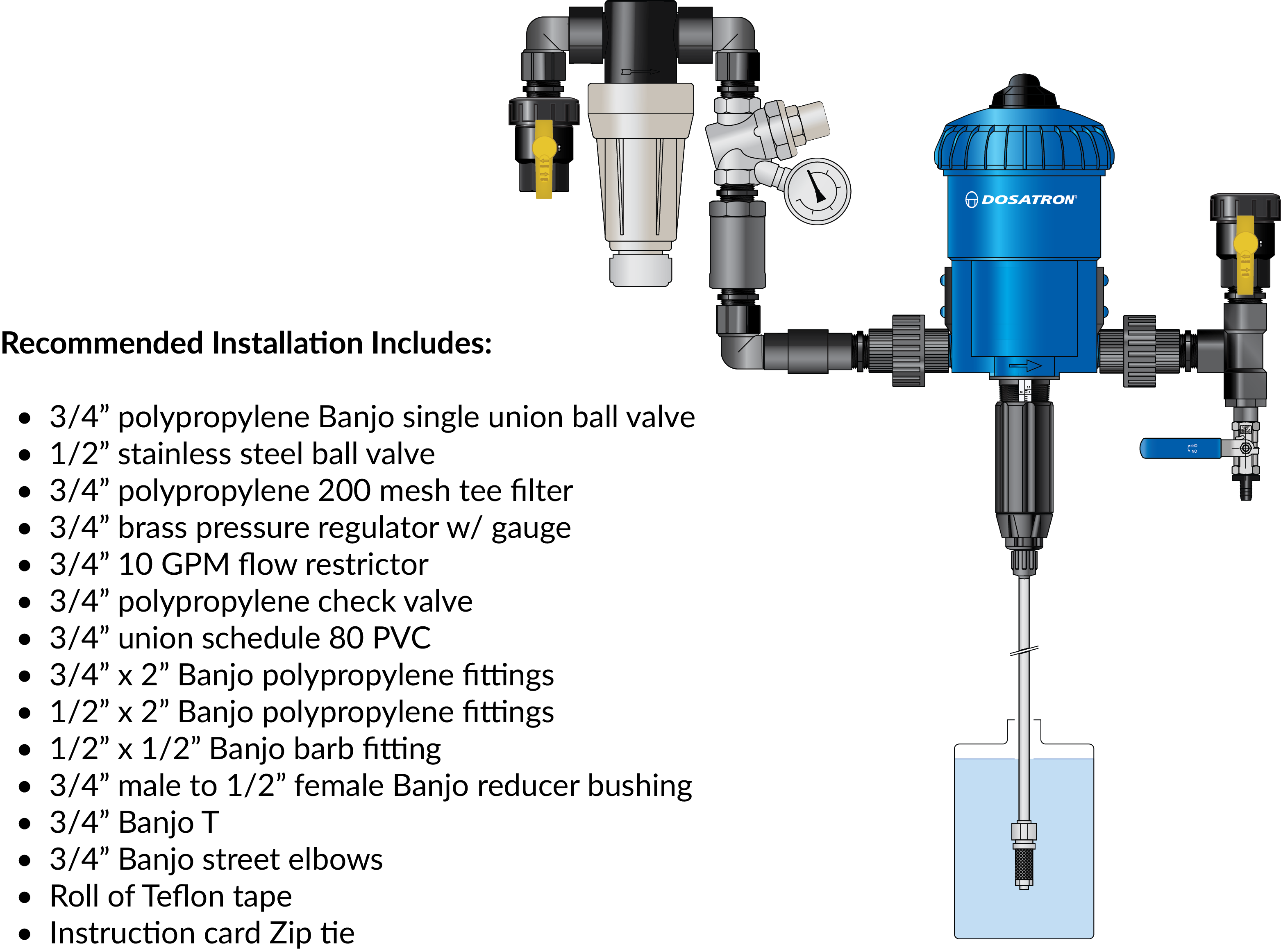

IPK34-10GPM D25 Industrial Plumbing Kit. Recommended Installation
- Connection Size: 3/4" NPT
- Percentage Range: 0.2 to 2%
- Unit Weight: 4 lbs
- Ounces Per Gallon Range: 0.256 to 2.560
- Flow: 0.05 to 11 GPM (0.19 to 42 LPM)
- Pressure: 4.3 to 85 PSI
- Dimensions:14" x 6 1/4"
- Ratio Range: 1:500 to 1:50
Included Accessories:Mounting bracket, suction hose, weighted strainer, and quick start guide.
D25RE2 Specifications
Open
D25RE2 Schematics
Open
D25RE2-IE Schematics
Open
D25RE2 Owners Manual
Open
D25RE2 Quick Start Up
Open
D25RE2 Injection Kit Instructions
Open
D25RE2 Mini Maintenance Kit Instructions
Open
D25RE2 Maintenance Kit Instructions
Open
D25RE2 Service Instructions
Open
D25RE2 Troubleshooting Instructions
Open
IPK34 - 7 GPM Industrial Plumbing Kit Instructions
Open
IPK34 - 10 GPM Industrial Plumbing Kit Instructions
Open
IPK34MC - 10 GPM Industrial Plumbing Kit Instructions
Open

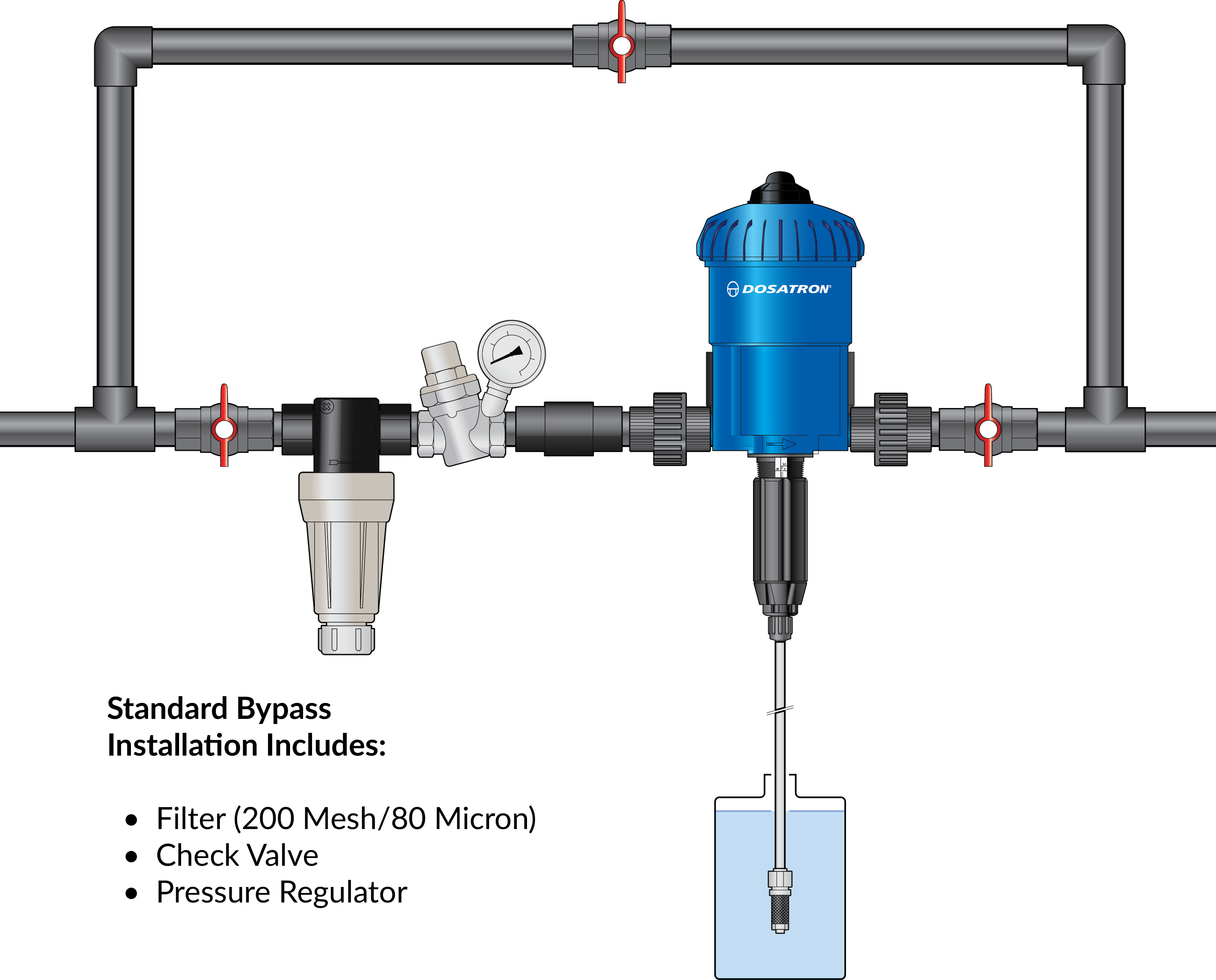

Suggested bypass installation D25 – 11 GPM. Bypass Installation
D25RE2 SERVICE VIDEO
D25RE2 TROUBLESHOOTING VIDEO
D25RE2 BYPASS INSTALLATION VIDEO

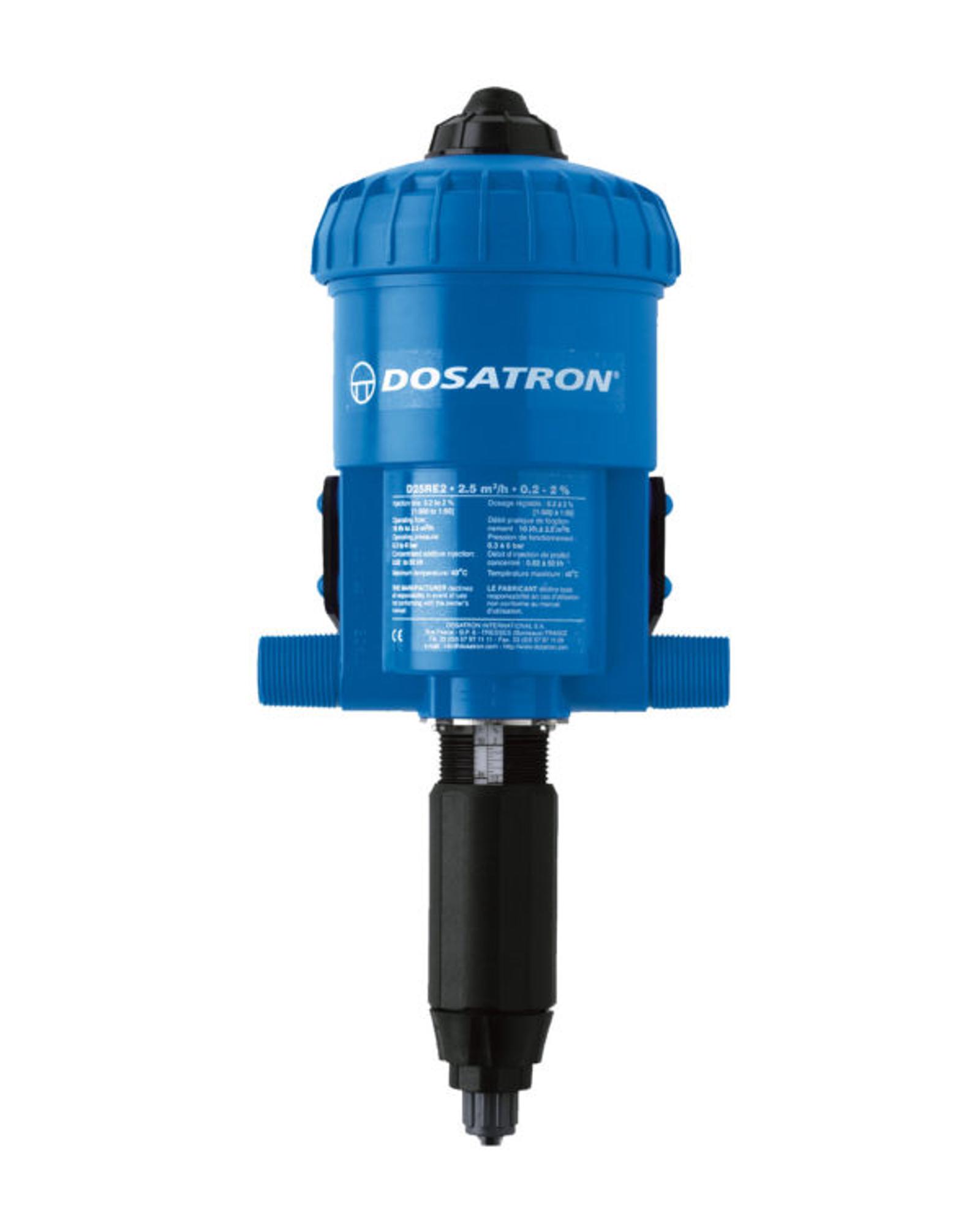

D25RE2 – 11 GPM
Water-Powered Dosatron D25RE2 - 11 GPM is used for a variety of livestock and industrial applications. It has a flow range of 0.05 to 11 GPM and a dilution range of 1:500 to 1:50 (0.2% to 2%).
Specifications
- Connection Size: 3/4" NPT
- Unit Weight: 4 lbs
- Dimensions: 14" x 6 1/4"
- Flow: 0.05 to 11 GPM (0.19 to 42 LPM)
- Pressure: 4.3 to 85 PSI
- Ratio Range: 1:500 to 1:50
- Percentage Range: 0.2 to 2%
- Ounces Per Gallon Range: 0.256 to 2.560
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

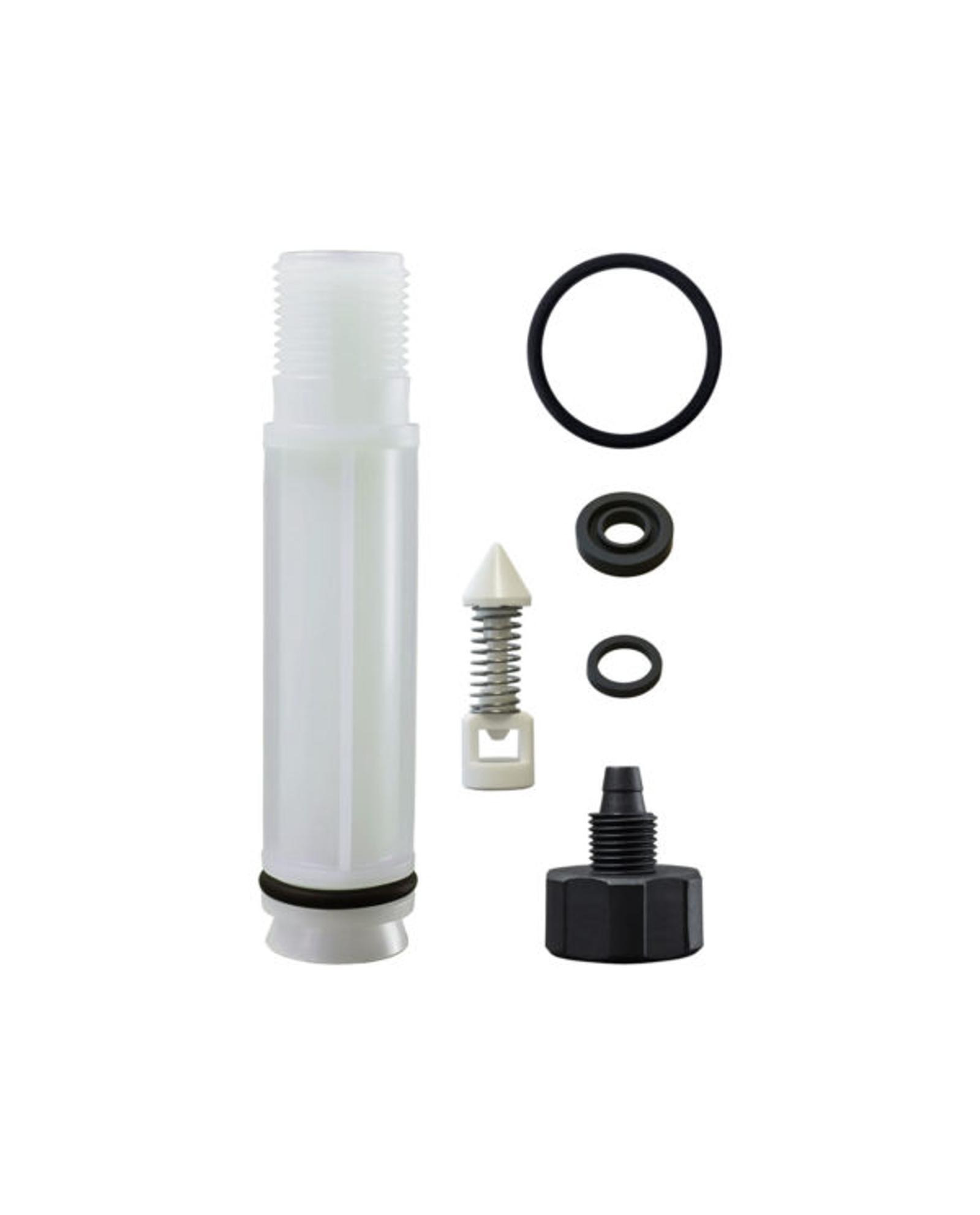

Seal Kit for the D25RE2
Injection seal kit for the D25RE2 - 11 GPM. Part #: PJ093.
Specifications
Kit Includes:
- Check valve barb
- Injection sleeve o-ring
- Check valve assembly
- Check valve seal
- Plunger seal
- Injection stem assembly

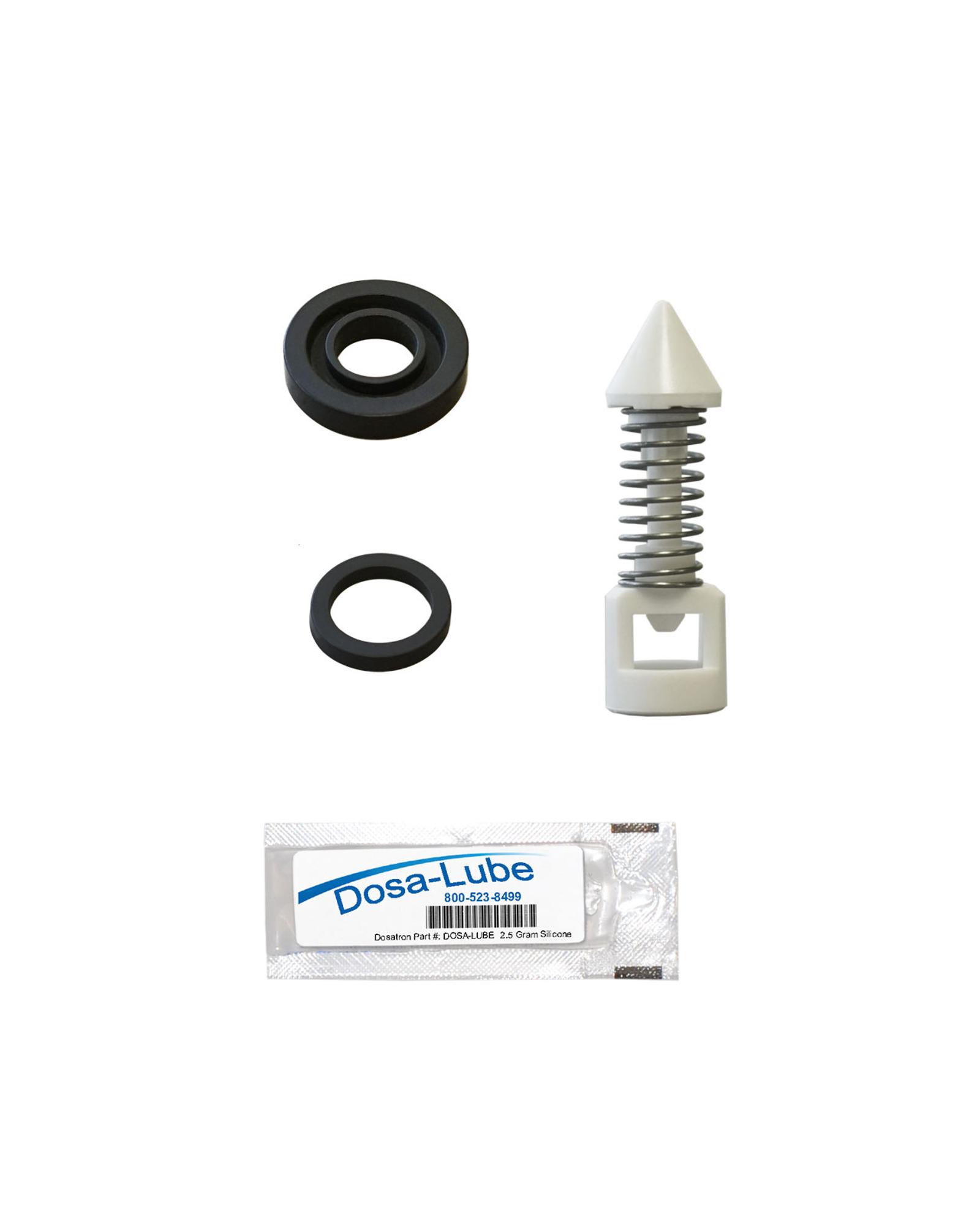

Mini Maintenance Kit for D25F1/D25RE2
Injection seal kit for the D25F1 and D25RE2 - 11 GPM. Part #: PJ117MINI-H.
Specifications
Kit Includes:
- Plunger seal
- Check valve assembly
- Check valve seal
- Dosa-Lube (Silicone)

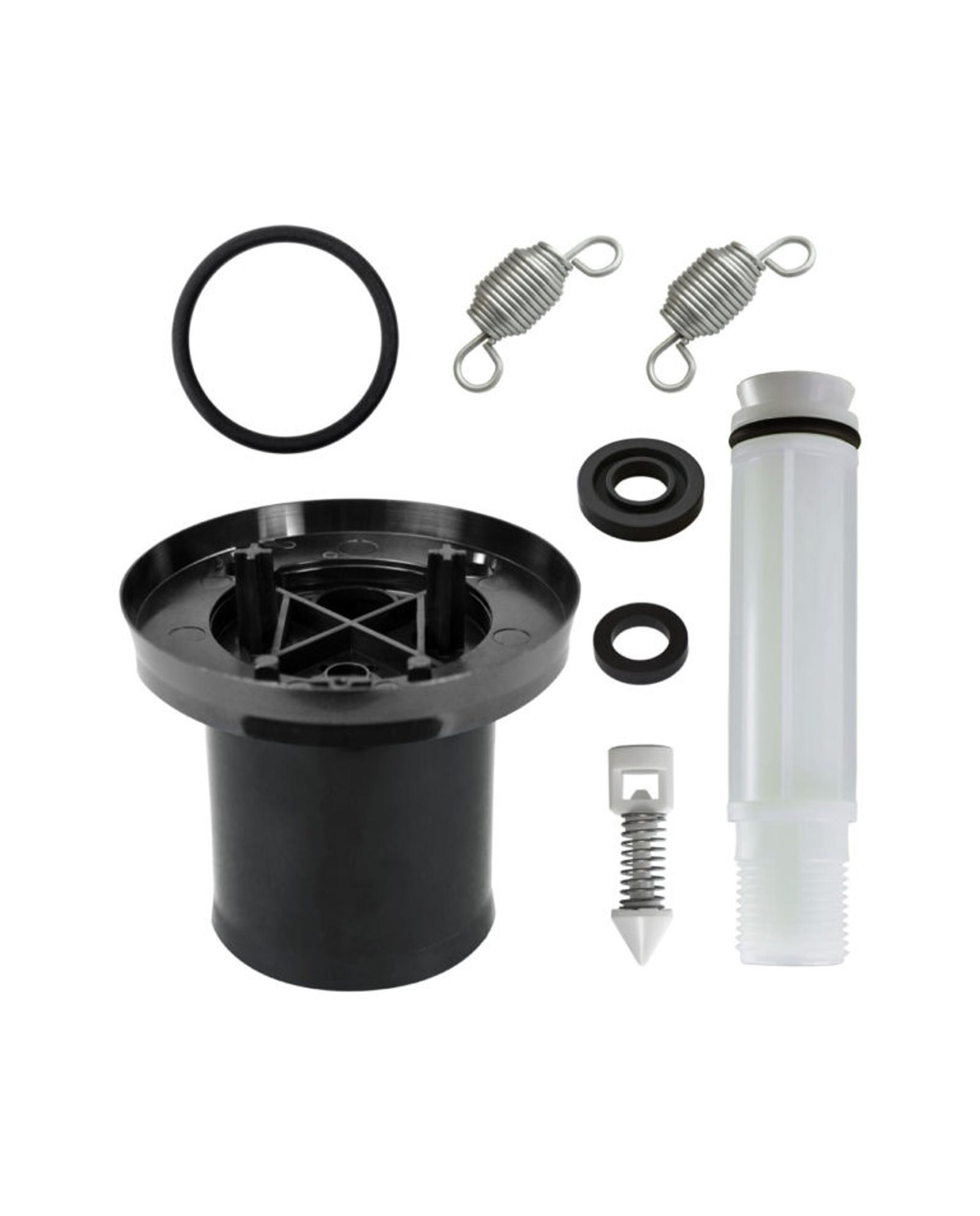

Rebuild Kit for the D25RE2
Extend the life of your Dosatron D25RE2 - 11 GPM with our Rebuild Kit part.
Specifications
Features:
- Two Parts - Part 1: Piston Kit Contents - Part 2: Seal Kit Contents
- Complete, detailed instructions
