Discover the DM11F Diaphragm Metering Pump

  • Connection Size: 3/4" NPT
  • Percentage Range: 0.8%
  • Unit Weight: 5 lbs
  • Ounces Per Gallon Range: 1.000
  • Flow: 0.02 to 11 GPM (0.08 to 42 LPM)
  • Pressure: 1.5 to 85 PSI
  • Dimensions: 16" x 7"
  • Ratio Range: 1:128 fixed

Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

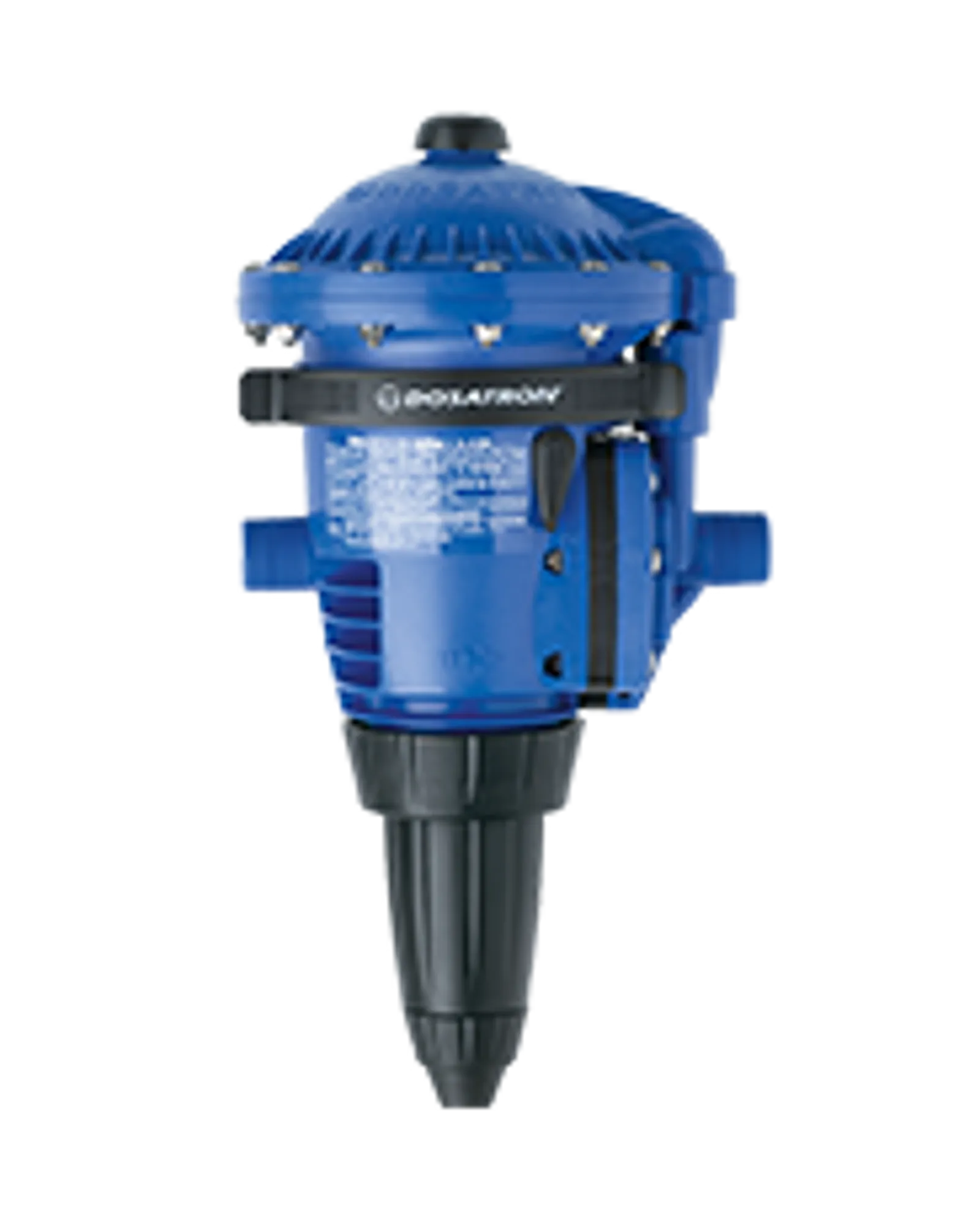

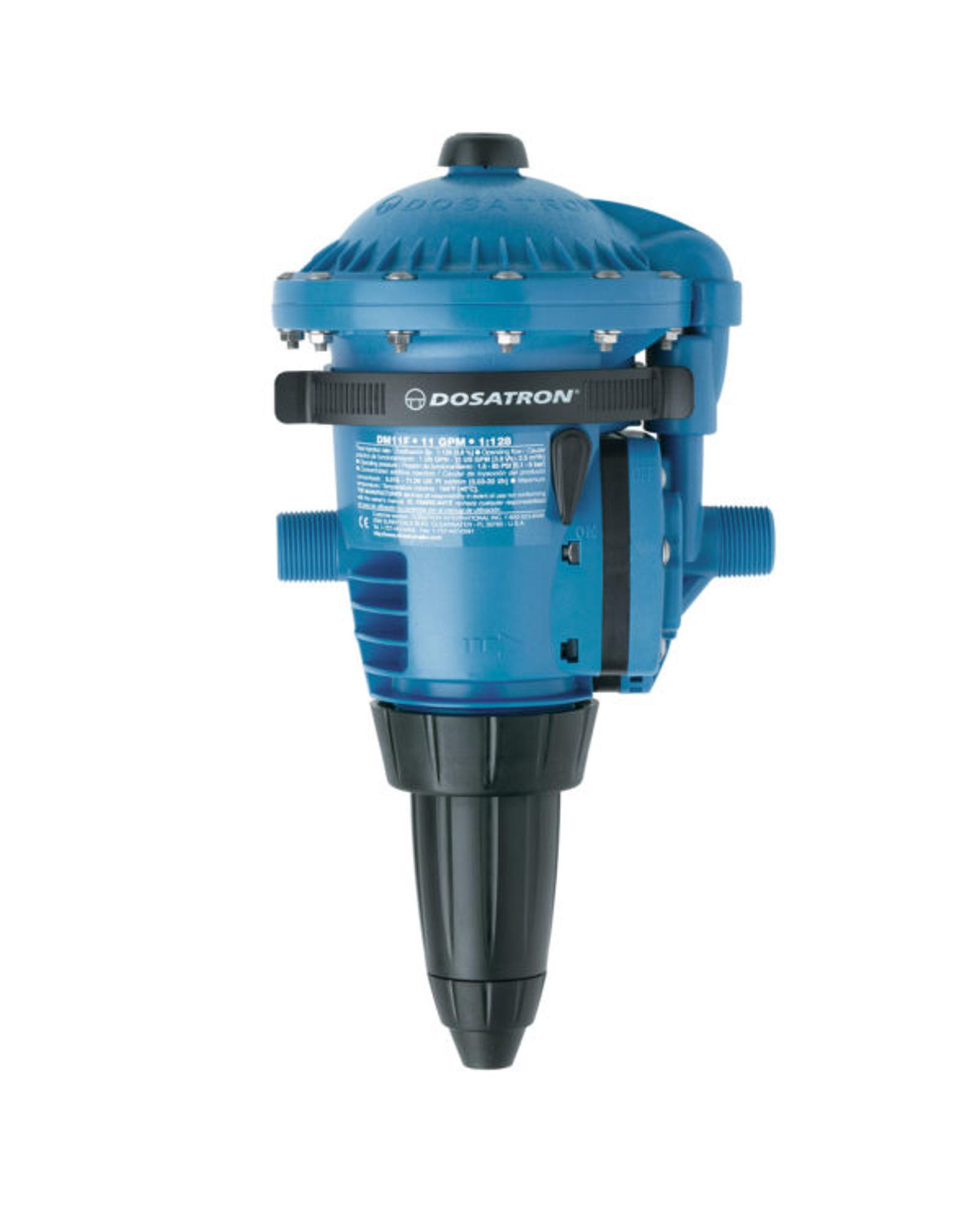

DM11F – 11 GPM (LIVESTOCK)

Water-Powered Dosatron DM11FVF - 11 GPM is a diaphragm medicator with dosing seals for the injection of acidic chemistries in livestock applications. It has a wide flow range from 0.02 GPM up to 11 GPM and a dilution fixed at 1:128 (0.8%). The low flow is perfect to treat day-old chicks and weaners. The high flow allows for larger houses and growing animals.

Specifications

  • Connection Size: 3/4" NPT
  • Unit Weight: 5 lbs
  • Dimensions: 16" x 7"
  • Flow: 0.02 to 11 GPM (0.08 to 42 LPM)
  • Pressure: 1.5 to 85 PSI
  • Ratio Range: 1:128 fixed
  • Percentage Range: 0.8%
  • Ounces Per Gallon Range: 1.000
  • Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

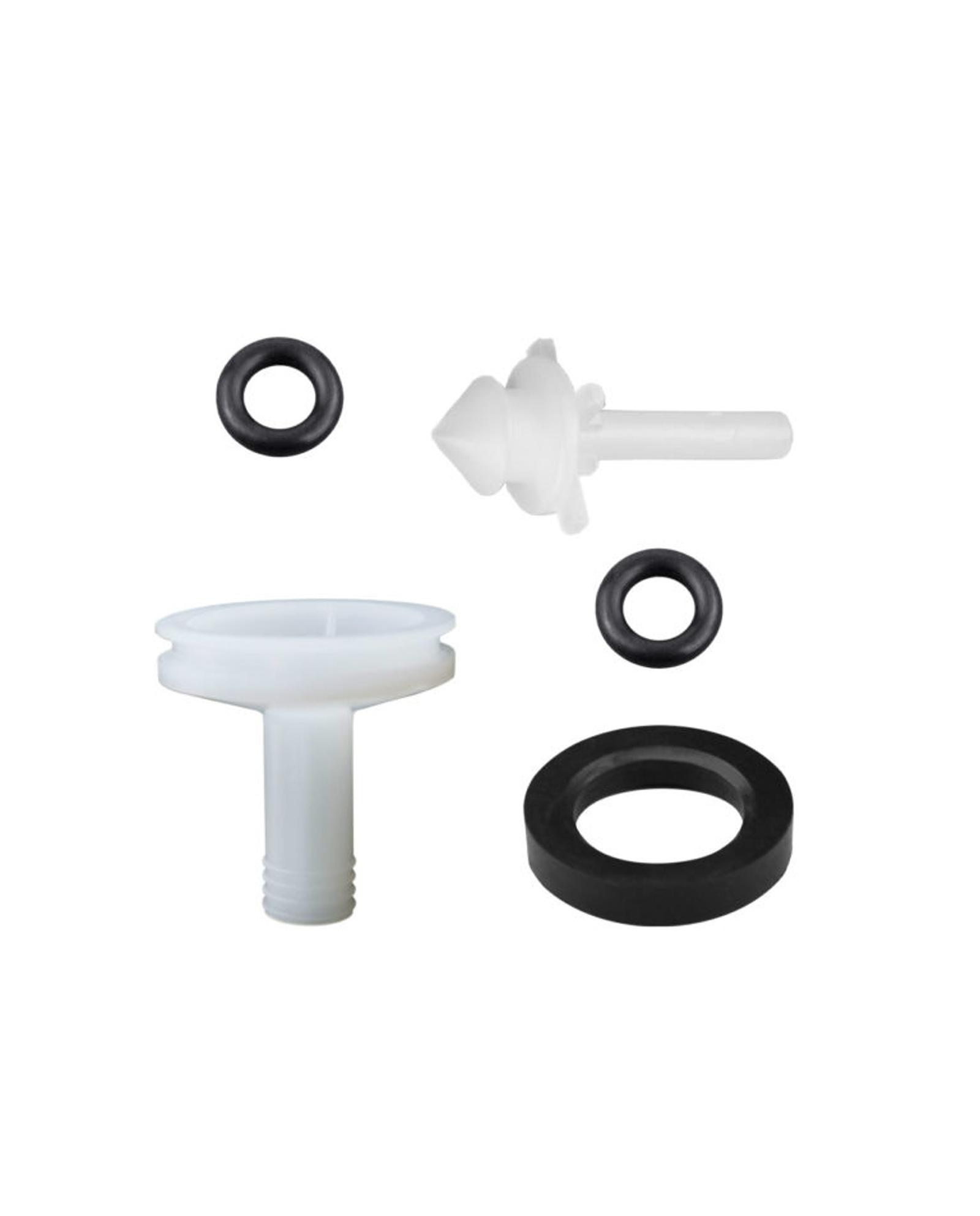

Seal Kit Kit for the DM11F

Injection seal kit for the  DM11F - 11 GPM. Part #: PJDI900

Specifications


Kit Includes:

  • Plunger seal
  • Check valve cone
  • Check valve cone o-ring
  • Plunger o-ring
  • Isolation body

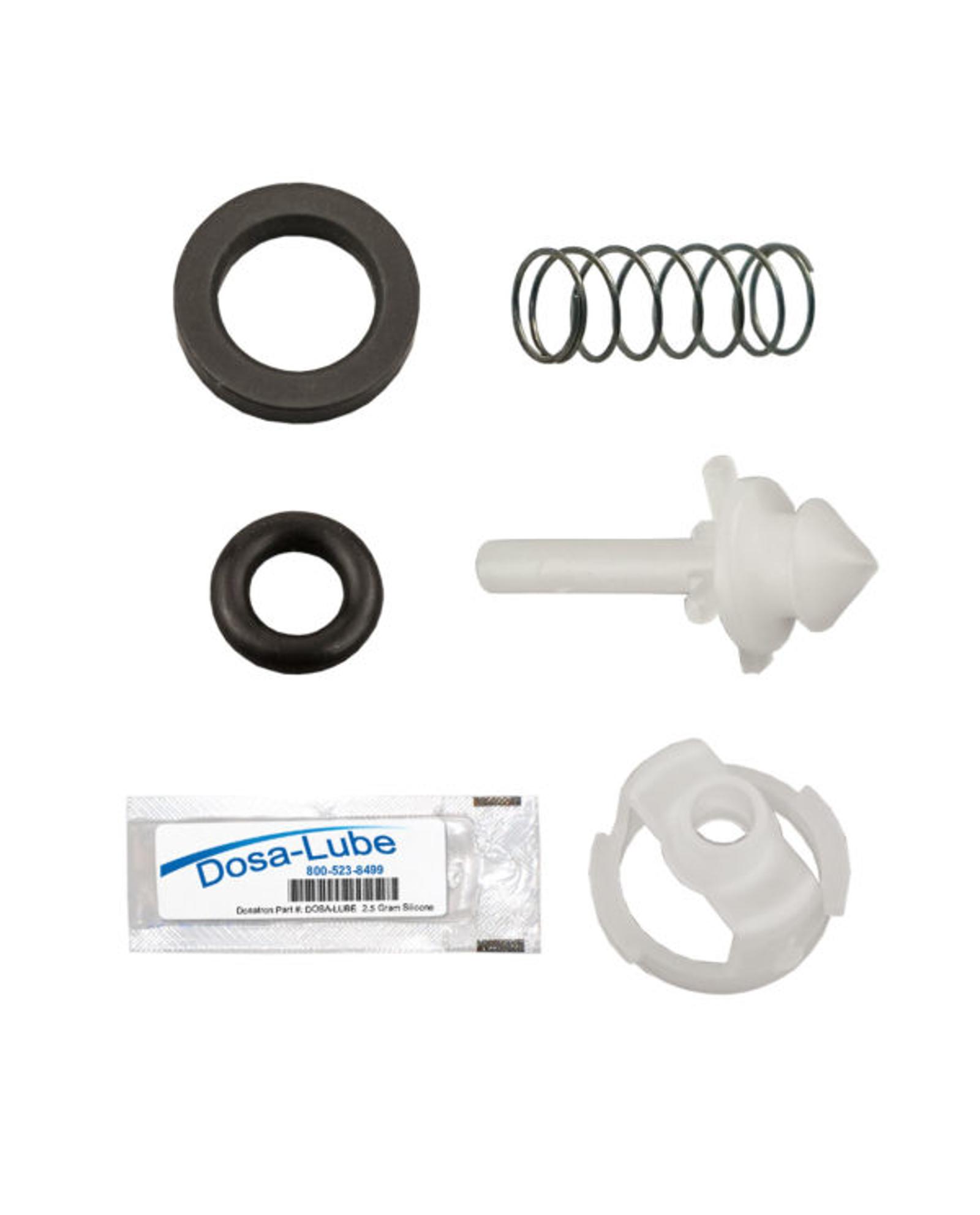

Mini Maintenance Kit for the DM11F

Mini maintenance kit for the  DM11F - 11 GPM. Part #: PJDI900MINI-LS.

Specifications


Kit Includes:

  • Plunger seal
  • Top guide
  • Check valve cone
  • Check valve spring
  • Check valve cone o-ring
  • Dosa-Lube (Silicone)
