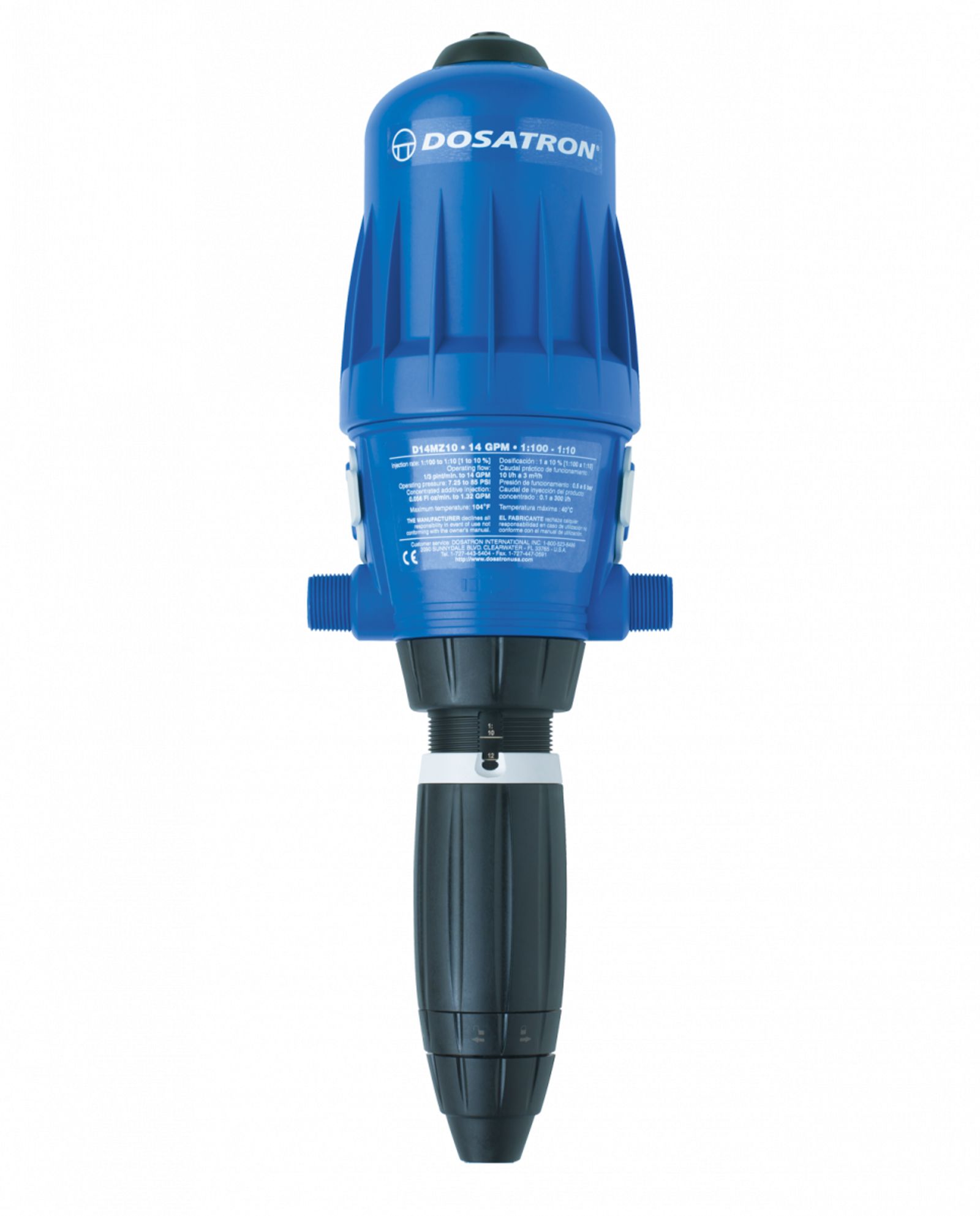

When applications demand stronger solution concentrations, the D14MZ10 delivers precise, repeatable chemical injection across a broad operating range. The water-powered injector maintains a constant dosing ratio regardless of fluctuations in water flow, helping eliminate inconsistencies commonly associated with manual mixing methods. With dosing capabilities up to 10%, the D14MZ10 is a practical choice for coolant mixing, sanitation systems, industrial processing, and other operations where accuracy directly impacts efficiency and results.
- Connection Size: 3/4" NPT
- Percentage Range: 1 to 10%
- Unit Weight: 6 lbs
- Ounces Per Gallon Range: 1.280 to 12.800
- Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
- Pressure: 7 to 85 PSI
- Dimensions: 19 1/8" x 6 5/16"
- Ratio Range: 1:100 to 1:10
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

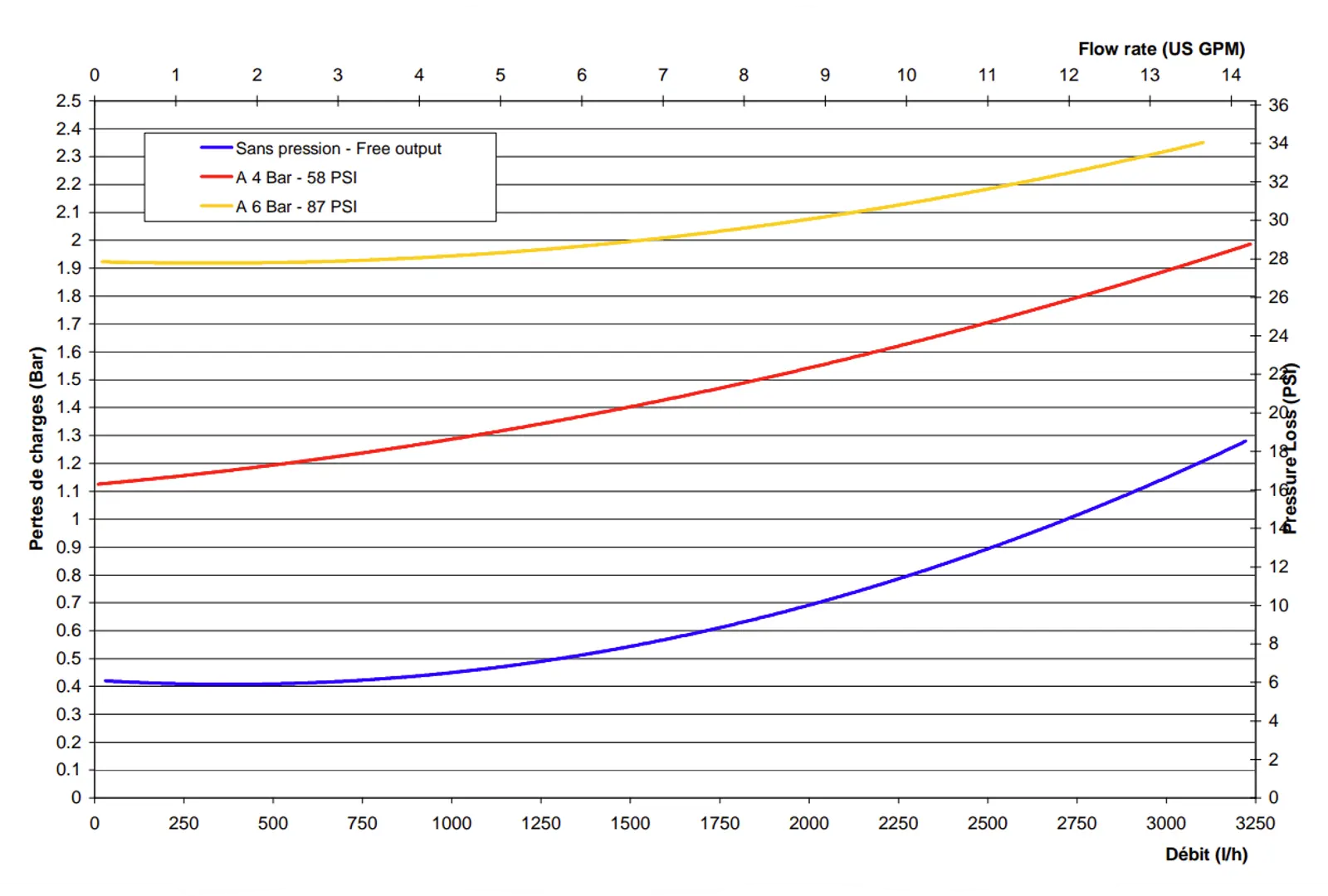

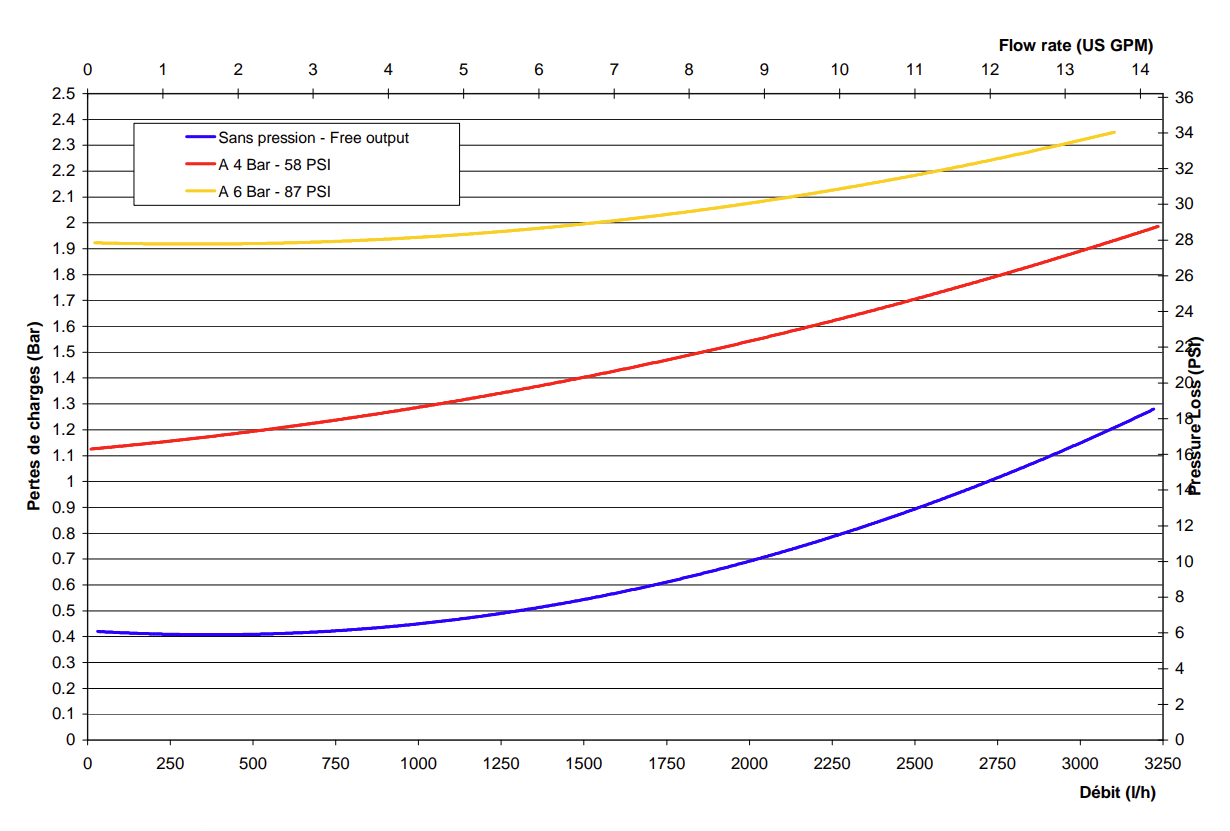

Pressure loss at 10%

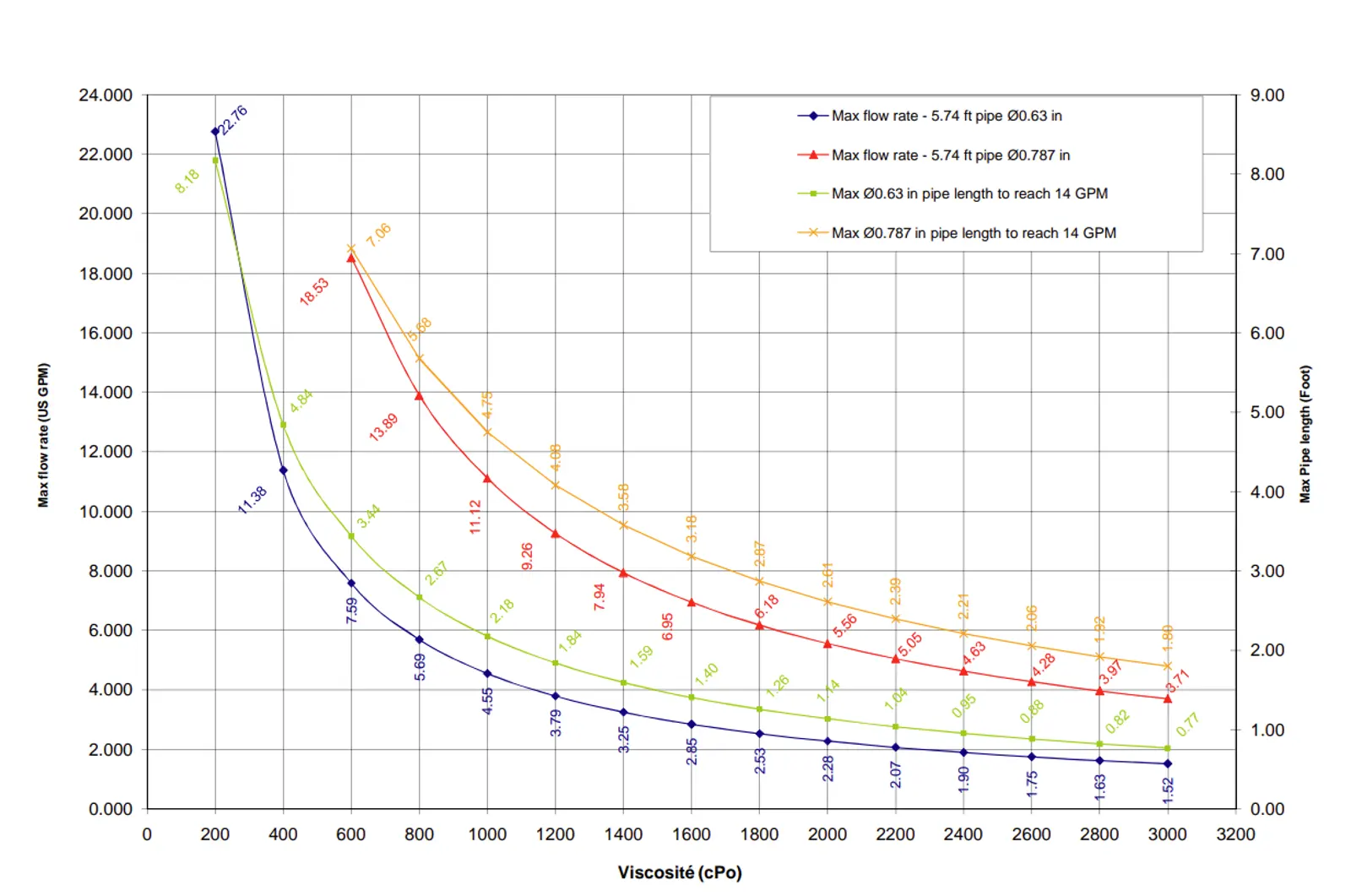

Viscosity limits

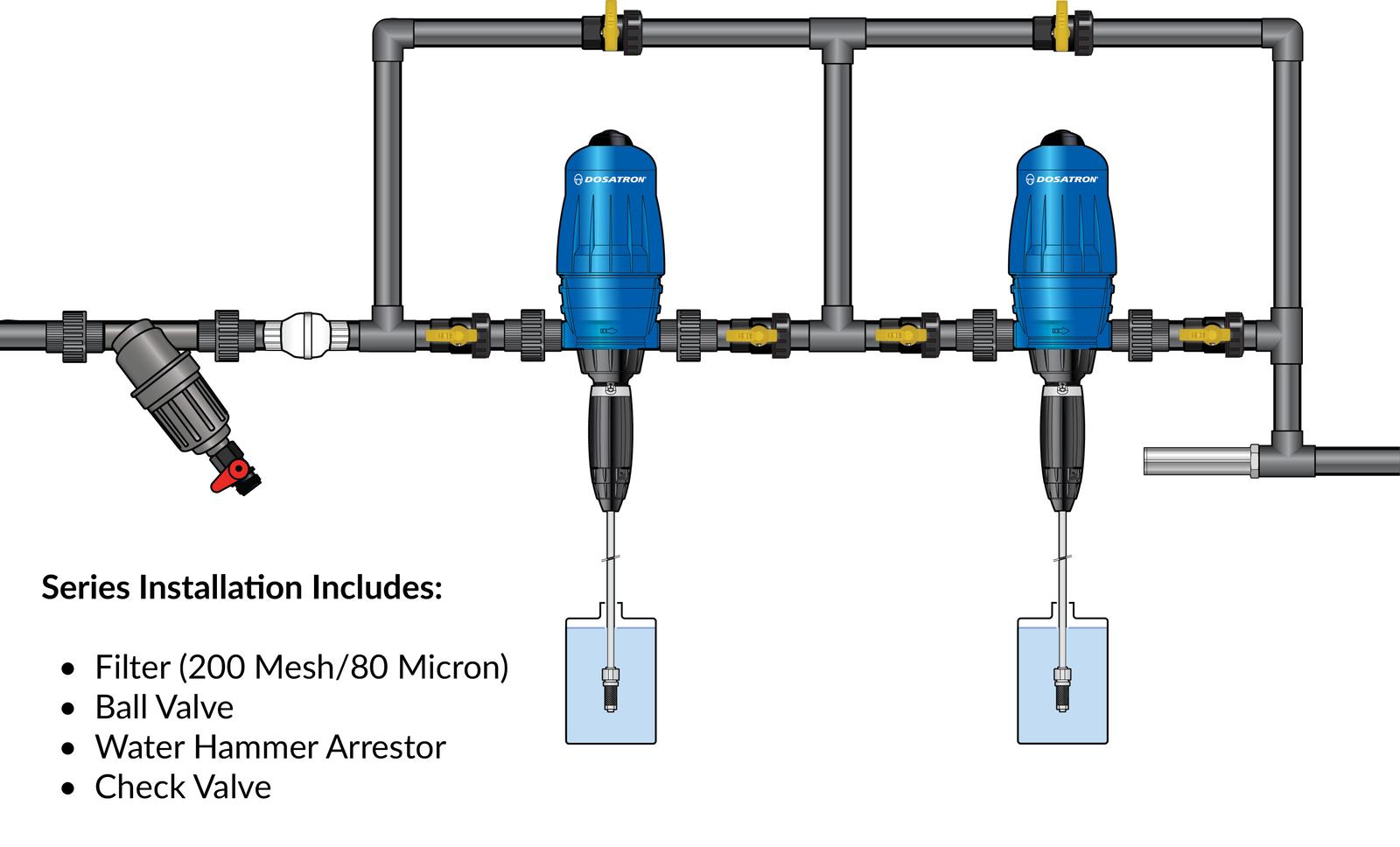

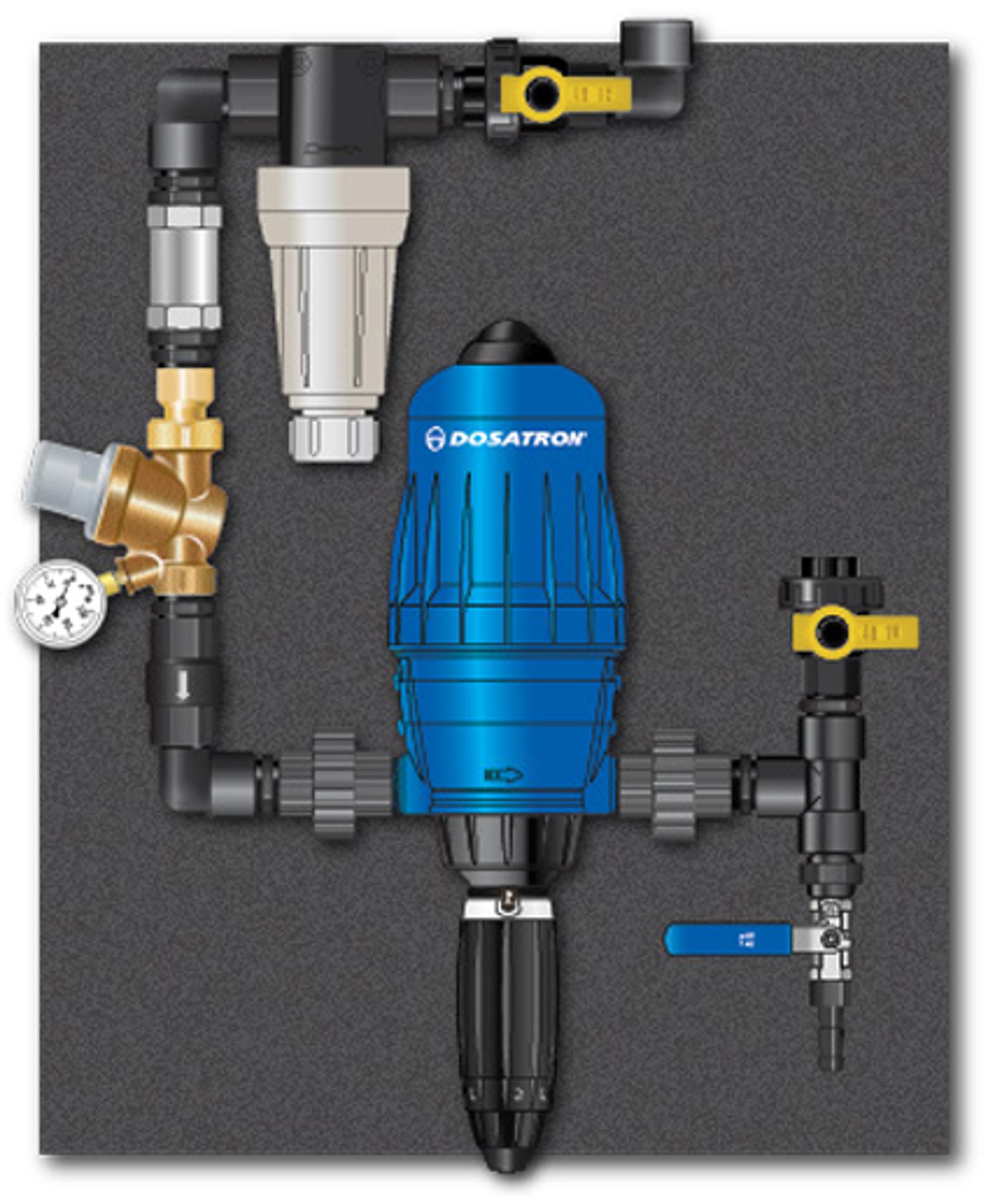

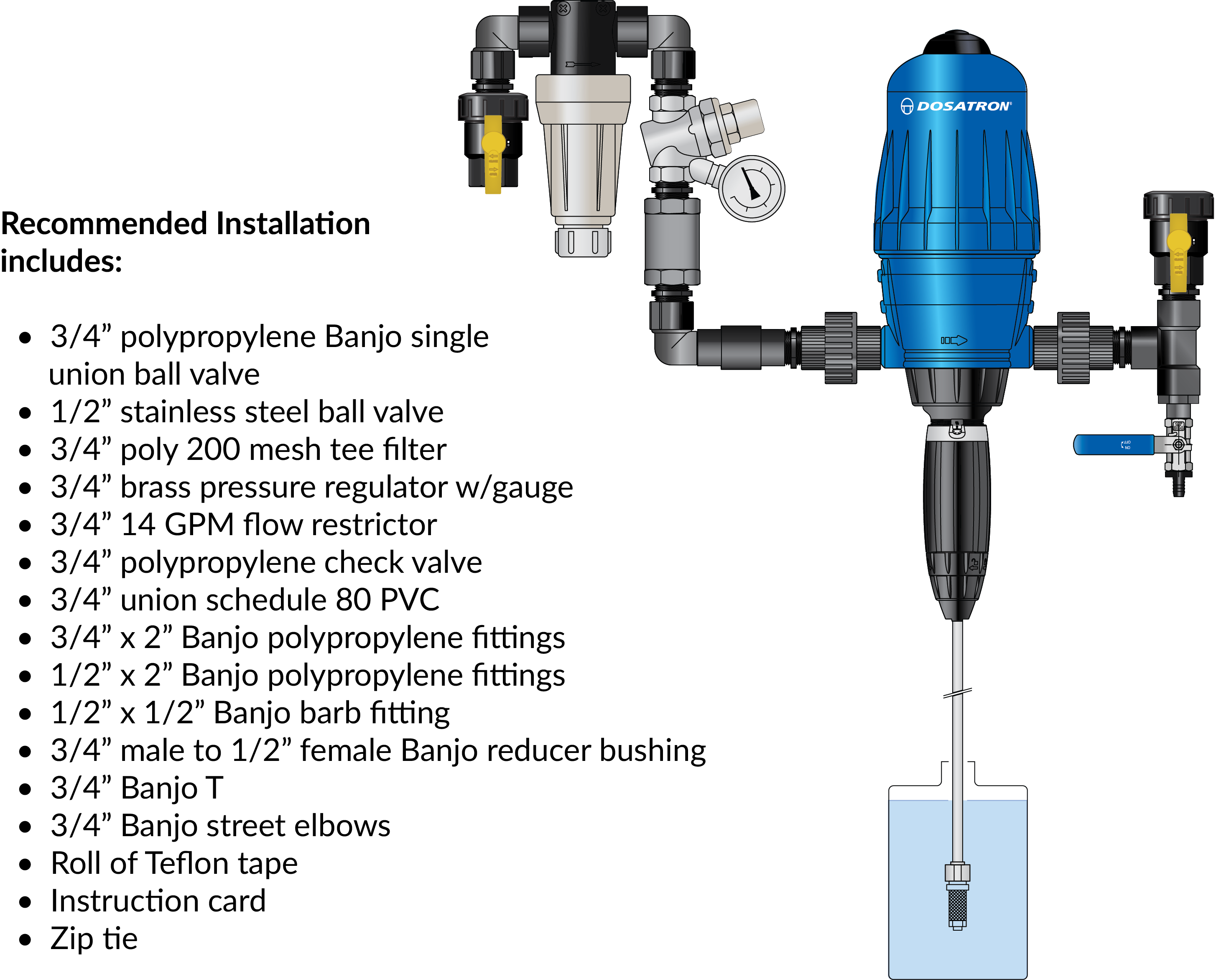

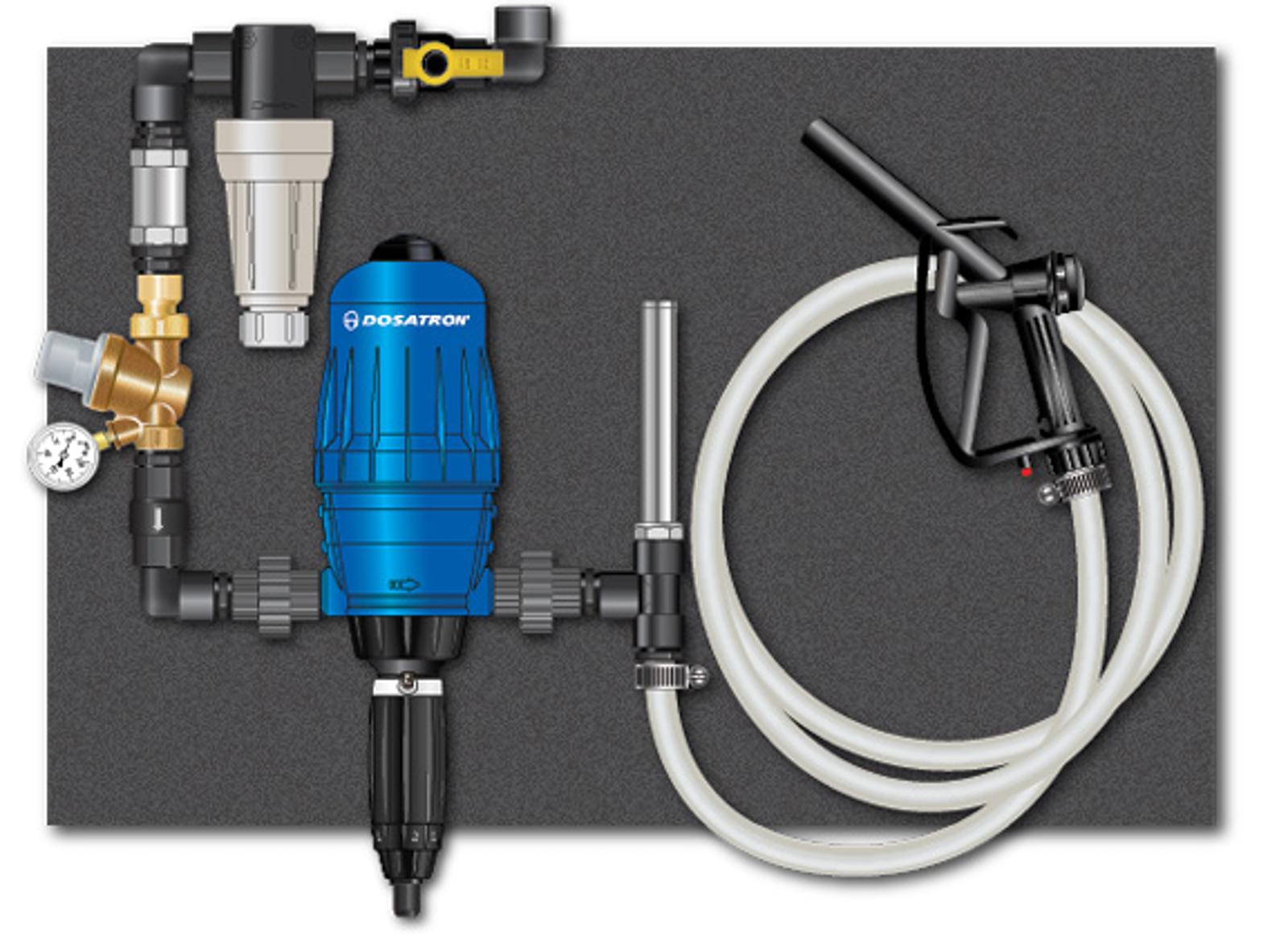

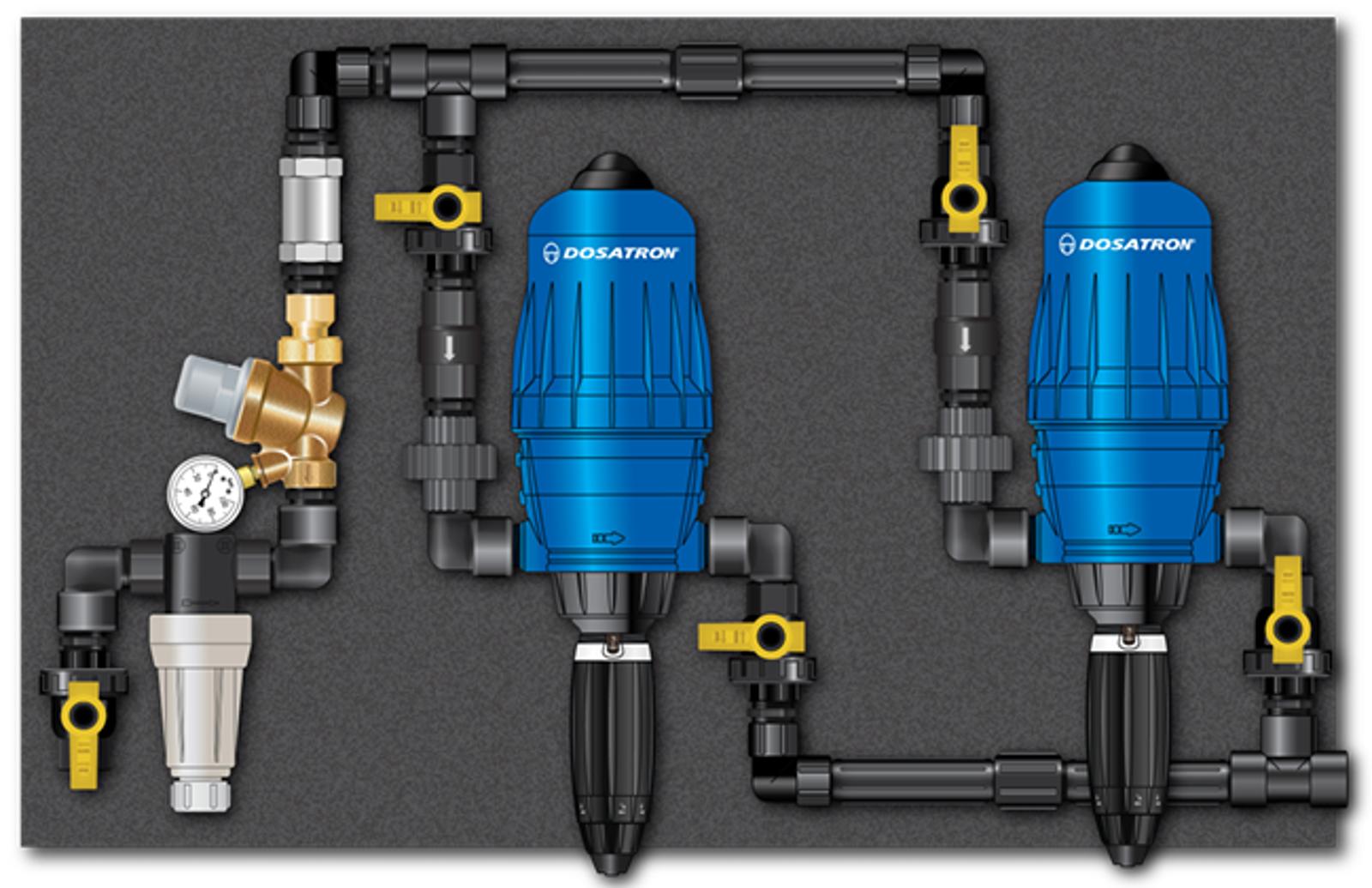

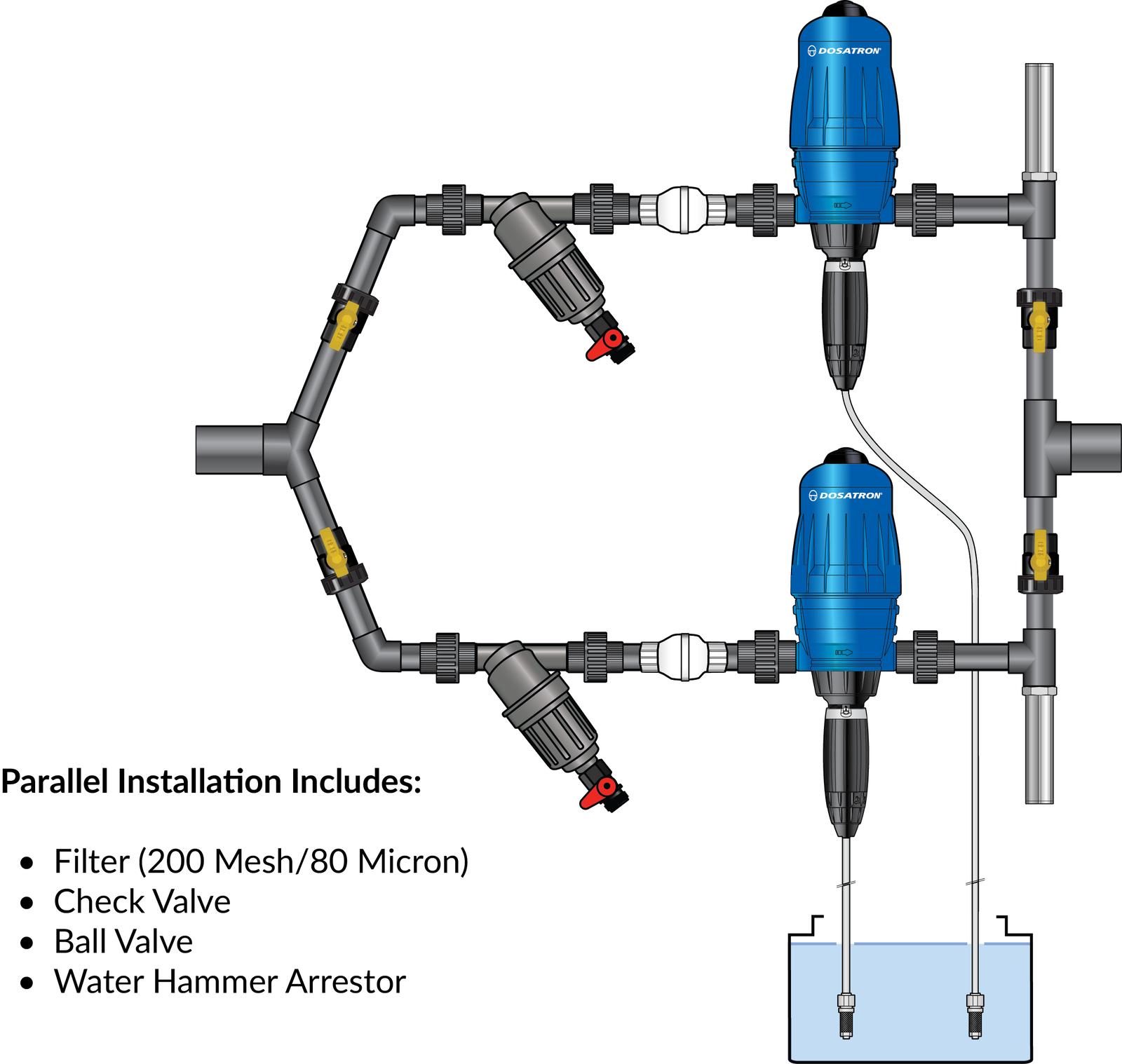

For dependable operation and maximum dosing accuracy, the D14MZ10 should be installed in a properly configured injection system designed for the application's flow and pressure requirements. Dosatron recommends using appropriate filtration, isolation valves, and backflow protection to safeguard the injector and maintain long-term performance. Positioning the chemical supply close to the unit and minimizing suction restrictions helps ensure smooth concentrate pickup and consistent dosing. A well-designed installation not only improves accuracy but also simplifies maintenance and extends equipment life.
Every application is different. Flow rates, water quality, chemical compatibility, and installation requirements all impact the best injector configuration.
Contact a Dosatron expert today to determine the ideal setup for your application.
Find your maintenance kit in seconds — just check how long your pump has been in service.
Time in service | Recommended kit | Why | Buy Now |
|---|---|---|---|

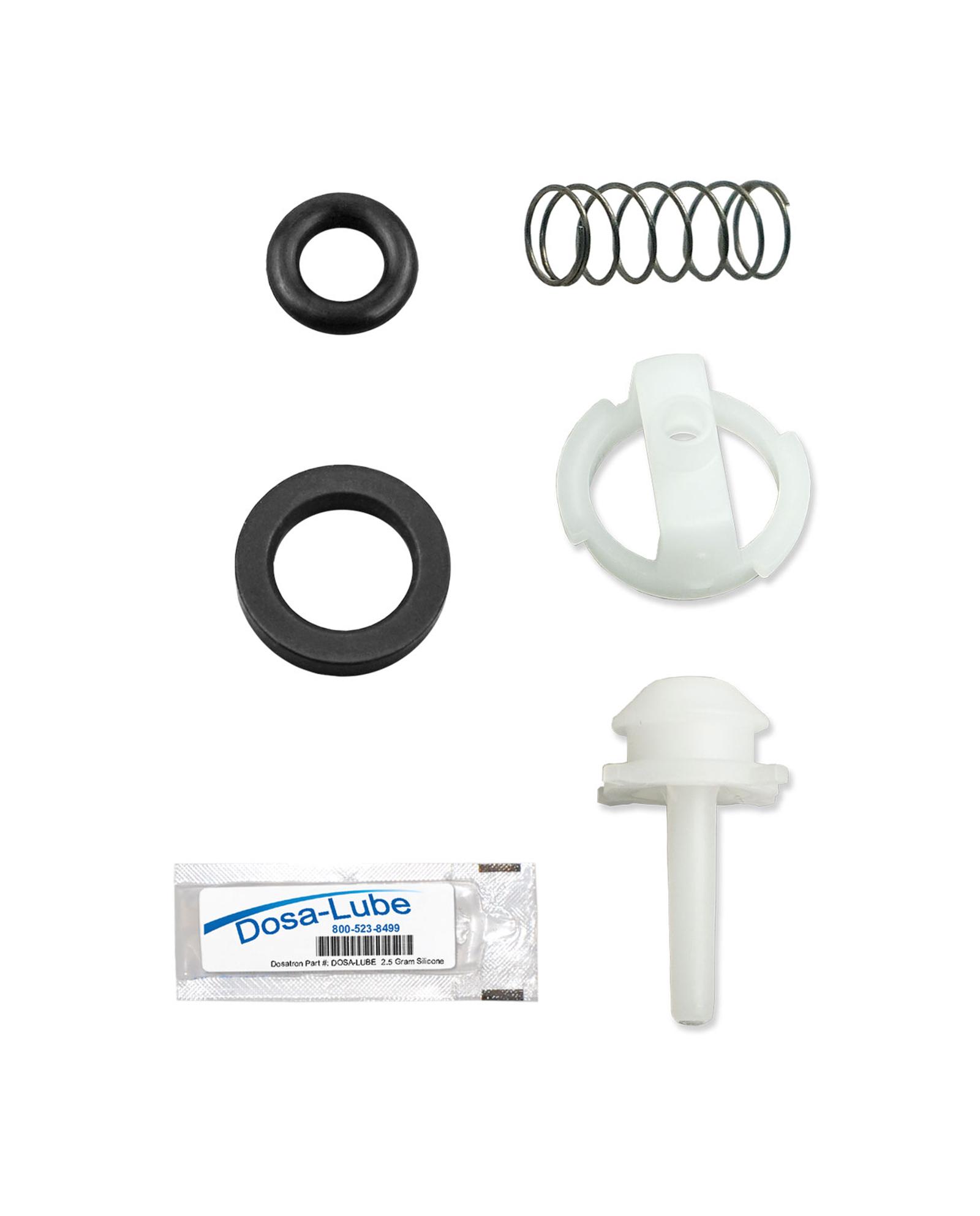

Under 6 months | Mini Maintenance Kit | Quick refresh of the wear parts that go first — keeps dosing accuracy on spec. | Click here |

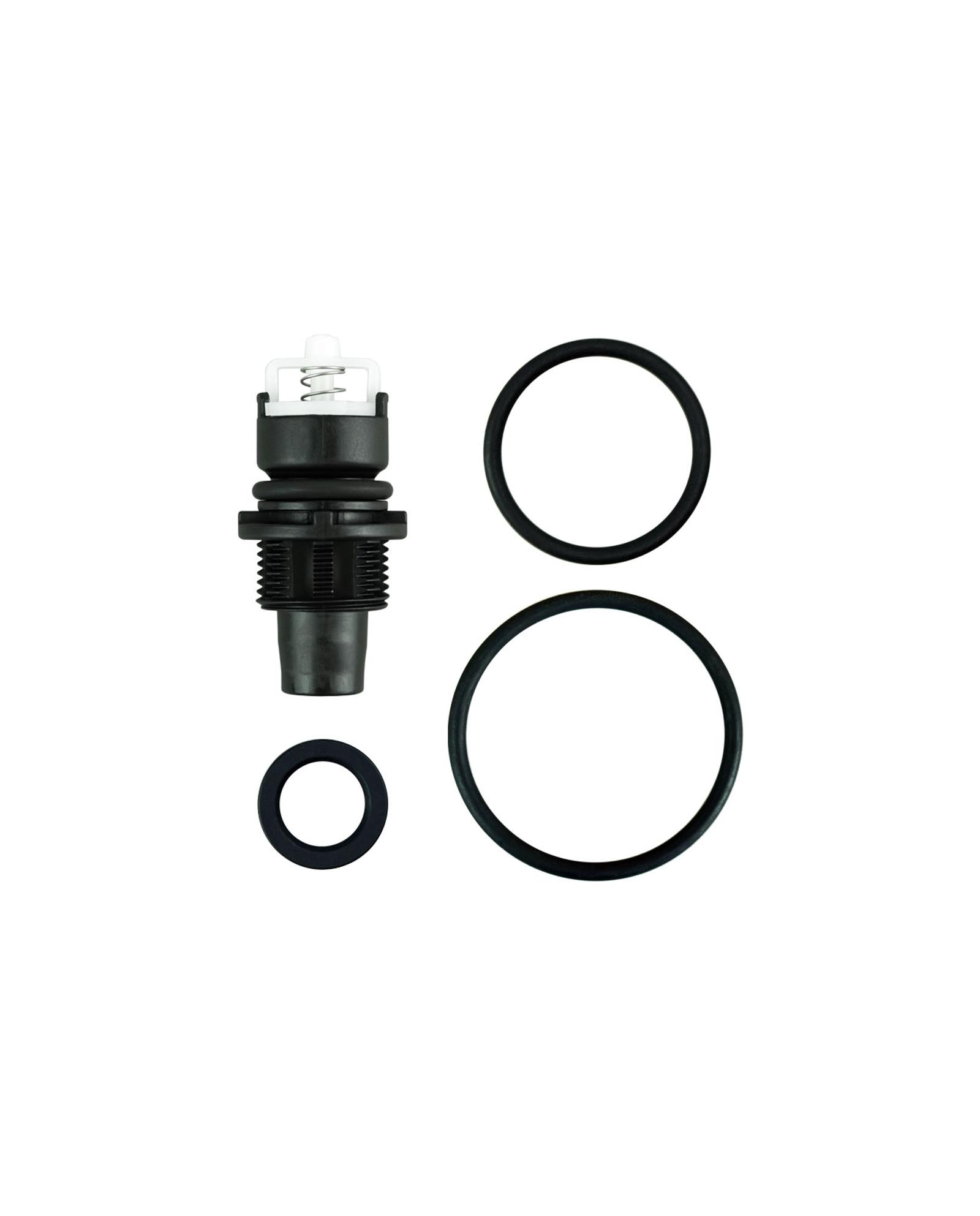

6 months – 2 years | Seal Kit | Replaces the seals and O-rings before leaks and dosing drift start. | Click here |
Over 2 years | Rebuild Kit | A full internal overhaul — restores your pump to factory performance. | Click here |
Over 5 years | Talk to our team | At this stage the motor piston typically needs replacing. We'll confirm the right solution for your unit. |
|
Need a single replacement part instead of a full kit?
Contact our team with your model and application. We'll help you identify and source the exact component you need.
Reach out to us
