D14MZ1000-HY Low Flow Hydroponic Dosing Pump

The Dosatron D14MZ1000-HY-14 GPM is the ideal injector for the most common liquid fertilizer programs, offering higher flow rates and greater chemical compatibility than existing technology. Because the D14MZ1000-HY can be adapted to new or existing Lo-Flo Nutrient Delivery Systems, installation is easier than ever. Simply swap out the injection stem and plunger assembly to achieve the extended dosing range.

Dilution Range: 1:1000 - 1:100 (0.1% to 1%)
Water Flow Range: 0.05 to 14 GPM
Operating Pressure Range: 4.3 to 85 PSI
Available Housing Materials: Polypropylene
Dimensions: 19 1/18” x 6 5/16”
Weight: 6 lbs
Connection Size: 3/4” NPT
Maximum Temperature: 104°F
Injection Range mL/gal: 3.75 to 37.5 mL/gal

Included Accessories: 6’ clear suction tube, strainer, weight, mounting bracket and quick start guide

Recommended Accessories: 200 mesh filter, check valve, pressure regulator, flow restrictor

Buy Now

D14MZ1000-HY Product Specifications

Open

D14MZ1000-HY Schematics

Open

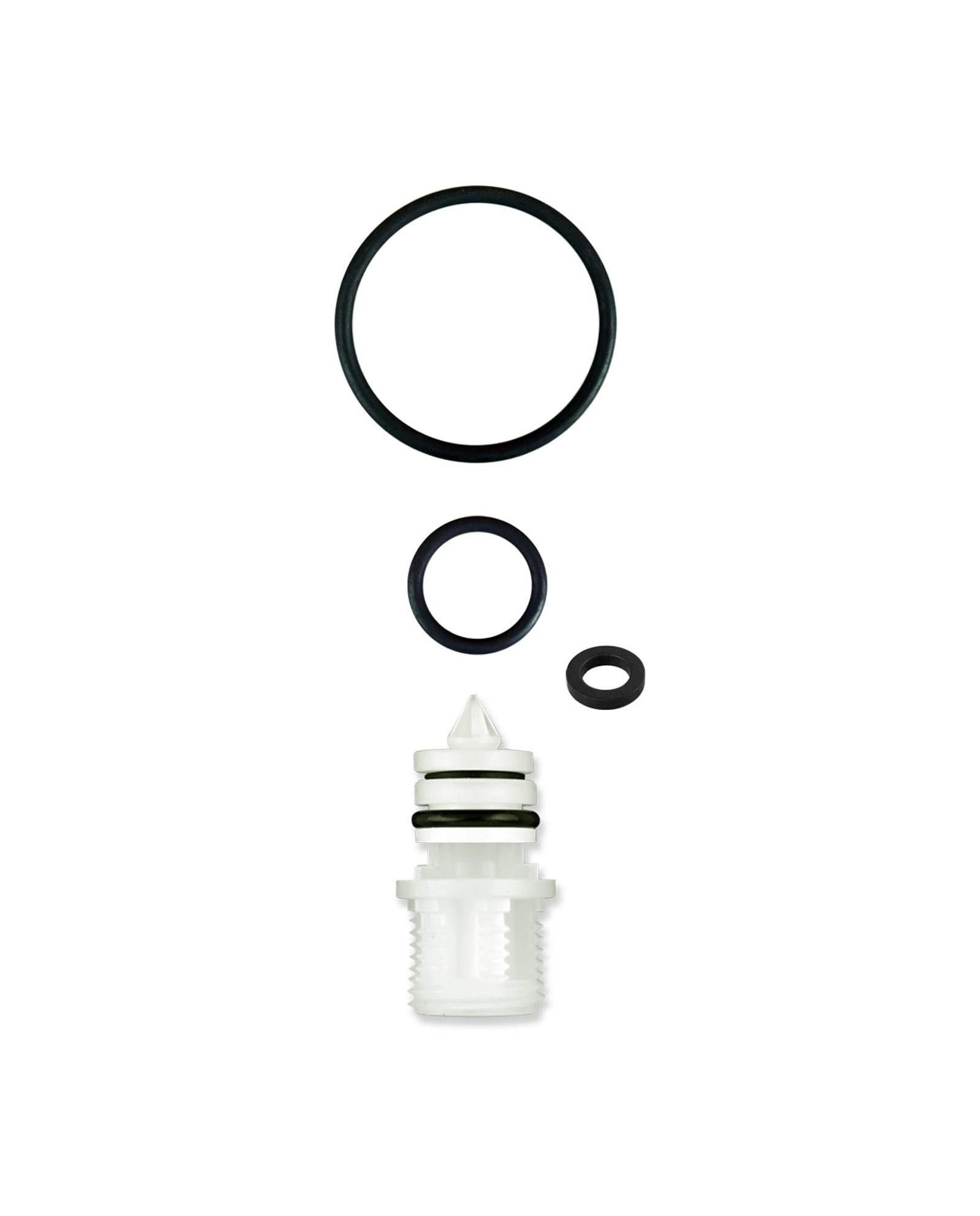

D14MZ1000-HY Seal Kit Instructions

Open

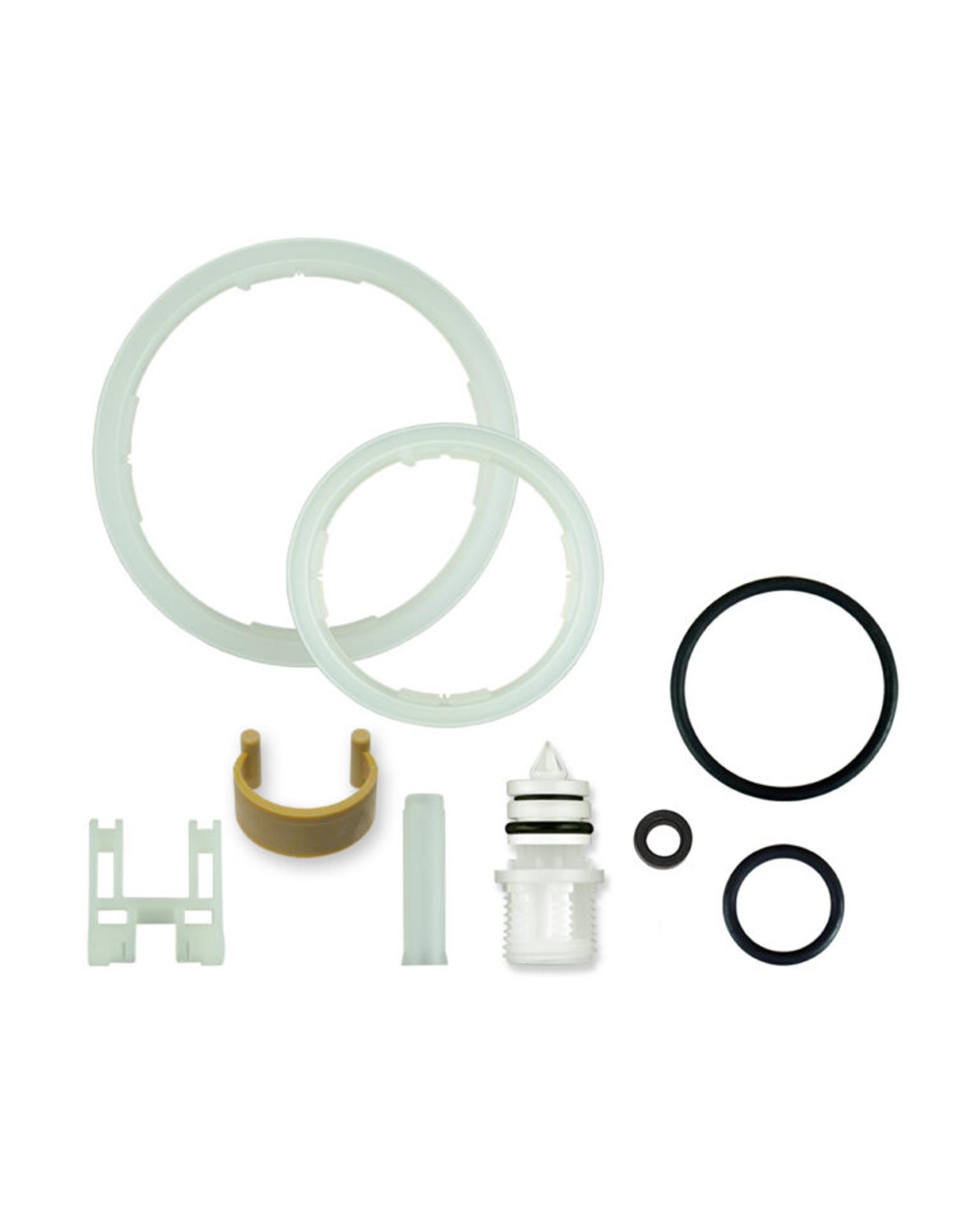

Mini-Maintenance Kit Instructions

Open

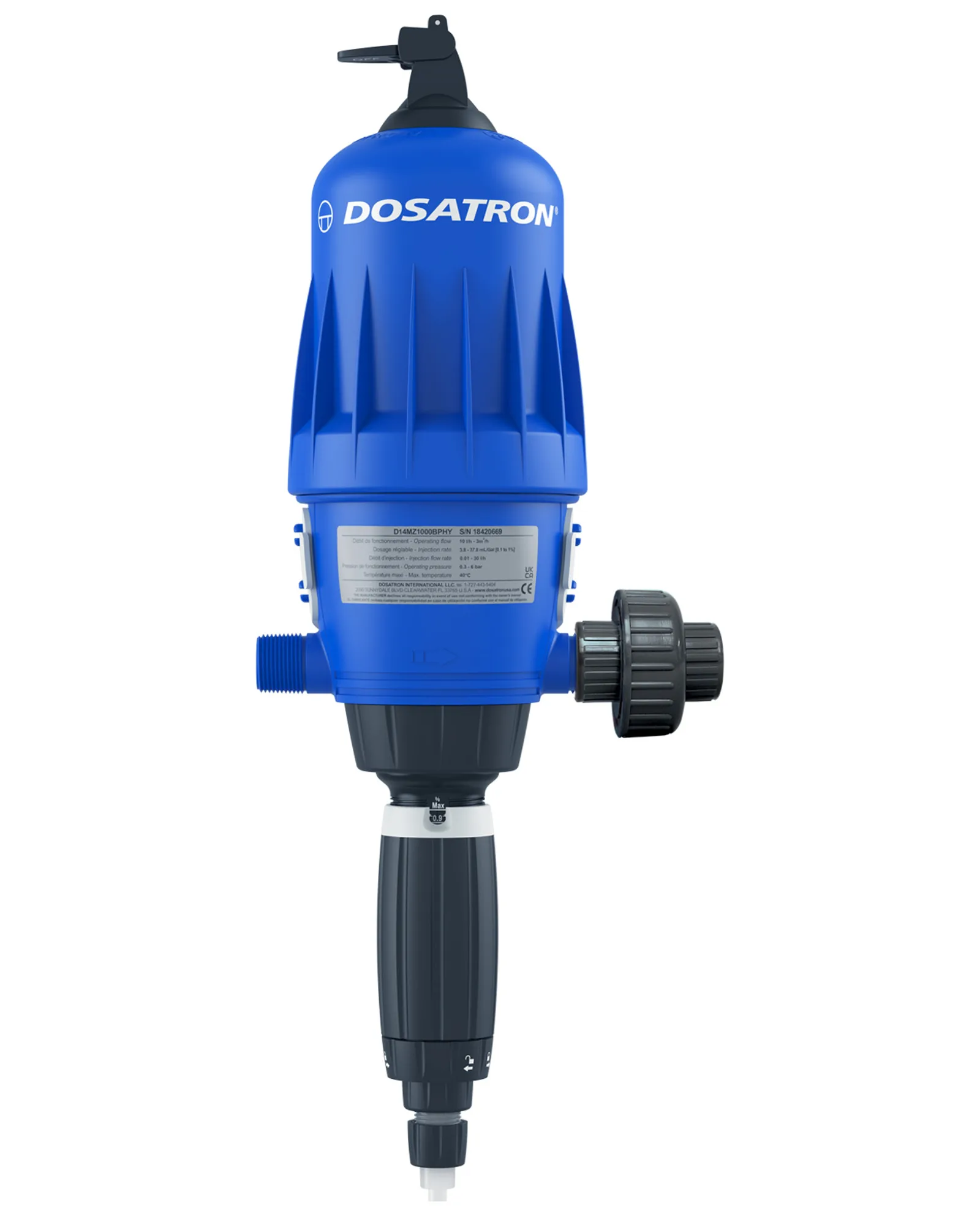

D14MZ1000-HY – 14 GPM (HYDRO)

Water-powered Dosatron D14MZ1000-HY with dosing scale specifically designed for hydroponic applications. Includes an integrated by-pass to easily switch the nutrients on and off. Unit made to be installed in series as part of a hydroponic system with included union fitting. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:1000 - 1:100 (0.1% to 1%).

Specifications

Connection Size: 3/4" NPT
Unit Weight: 6 lbs
Dimensions: 19 1/18" x 6 5/16"
Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
Pressure: 4.3 to 85 PSI
Ratio Range: 1:1000 to 1:100
Percentage Range: 0.1% to 1%
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide
