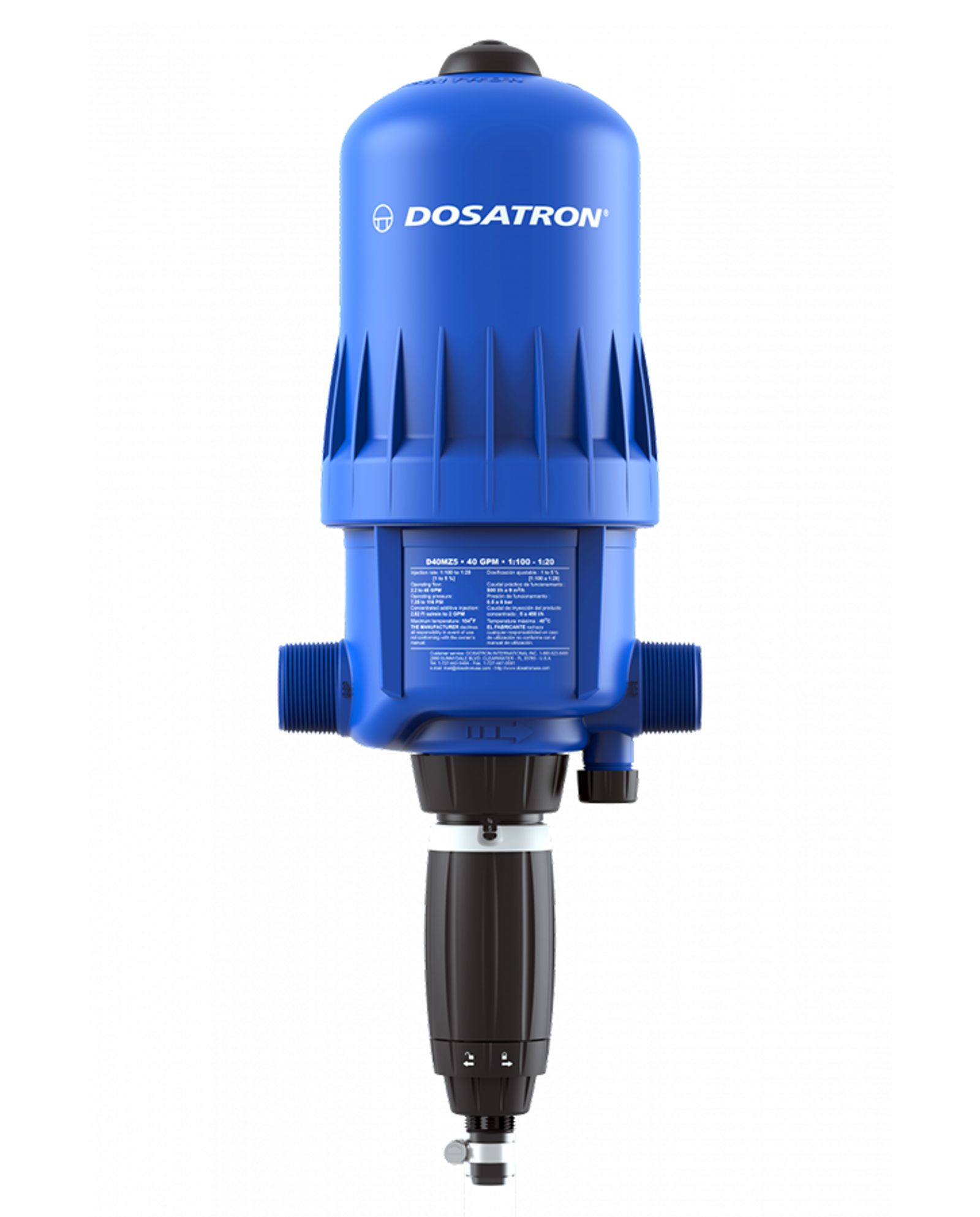

D40MZ5: Versatile Dosing Solution for All Applications

  • Connection Size: 1 1/2" NPT
  • Percentage Range: 1% to 5%
  • Unit Weight: 12 lbs
  • Flow: 2.2 to 40 GPM (8.32 to 151 LPM)
  • Pressure: 7.2 to 116 PSI
  • Dimensions: 25 1/4” x 8 1/2”
  • Ratio Range: 1:100 to 1:20

Included Accessories:Mounting bracket, suction hose, weighted strainer, and quick start guide.

Key Specifications

Weight

12

lbs

Water Flow Range

2.2 - 40

GPM

Operating Pressure Range

7.2 - 116

PSI

Maximum Temperature

104

°F

The D40MZ5 is a high-flow proportional dosing injector designed for applications that require higher chemical injection rates while maintaining precise, consistent dosing. Powered entirely by water flow, it automatically adjusts concentrate injection in proportion to changing water demand, delivering dilution ratios from 1:100 to 1:20 (1% to 5%). This makes it well suited for industrial processing, sanitation, cleaning systems, water treatment, and agricultural applications where stronger chemical concentrations are often required. With a flow capacity of 2.2 to 40 GPM, the D40MZ5 combines the reliability of water-powered operation with the accuracy needed to improve process consistency, reduce chemical waste, and optimize operating efficiency.

Pressure loss

For dependable performance and long-term reliability, the D40MZ5 should be installed on a properly sized line with sufficient upstream filtration to protect the injector from debris and contaminants. Isolation valves are recommended to make routine maintenance and servicing easier without disrupting the entire system. To maintain accurate chemical dosing, the concentrate source should be positioned close to the injector with minimal suction lift and unrestricted suction tubing. Where required, backflow prevention equipment should be incorporated to protect both the water supply and chemical inventory. A well-designed installation helps maximize dosing accuracy, extend injector service life, and ensure reliable operation across demanding commercial, agricultural, and industrial applications.



Every application is different. Flow rates, water quality, chemical compatibility, and installation requirements all impact the best injector configuration.

Contact a Dosatron expert today to determine the ideal setup for your application.

Find your maintenance kit in seconds — just check how long your pump has been in service.



Time in service

Recommended kit

Why

Buy Now

Under 6 months

Mini Maintenance Kit

Quick refresh of the wear parts that go first — keeps dosing accuracy on spec.

Click here

6 months – 2 years

Seal Kit

Replaces the seals and O-rings before leaks and dosing drift start.

Click here

Over 2 years

Rebuild Kit

A full internal overhaul — restores your pump to factory performance.

Click here

Over 5 years

Talk to our team

At this stage the motor piston typically needs replacing. We'll confirm the right solution for your unit.



Contact Us



Need a single replacement part instead of a full kit?

Contact our team with your model and application. We'll help you identify and source the exact component you need.
