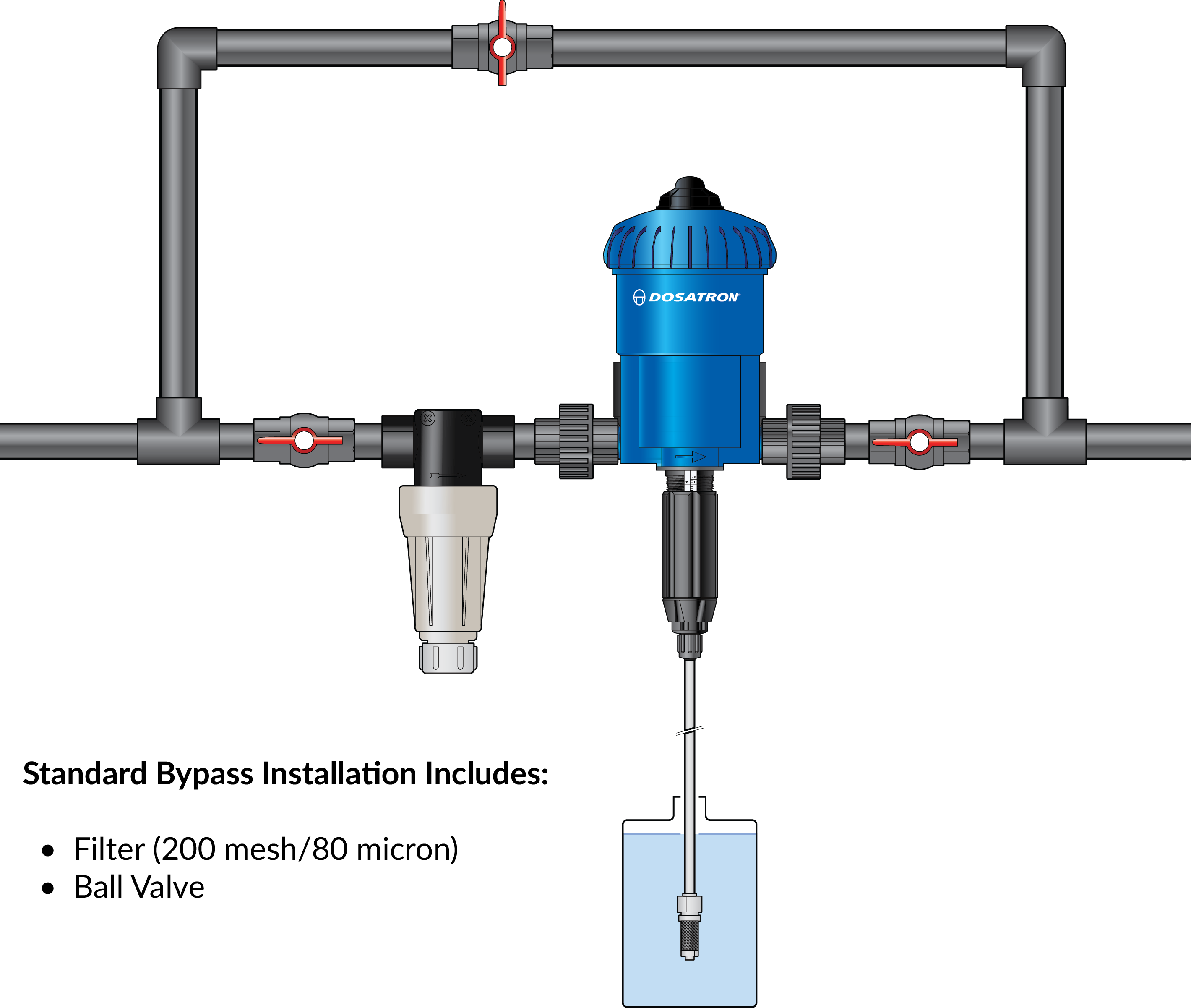

Bypass Installation Suggested bypass installation D25F – 11 GPM.
- Connection Size: 3/4" NPT
- Percentage Range: 0.8%
- Unit Weight: 4 lbs
- Ounces Per Gallon Range: 1.000
- Flow: 0.05 to 11 GPM (0.19 to 42 LPM)
- Pressure: 4.3 to 85 PSI
- Dimensions: 14" x 6 1/4"
- Ratio Range: 1:128 fixed
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.
Dosatron D25F Service Video
To load this content, approve your cookie preferences and allow the required cookies.
Dosatron D25F1 Troubleshooting Video
To load this content, approve your cookie preferences and allow the required cookies.

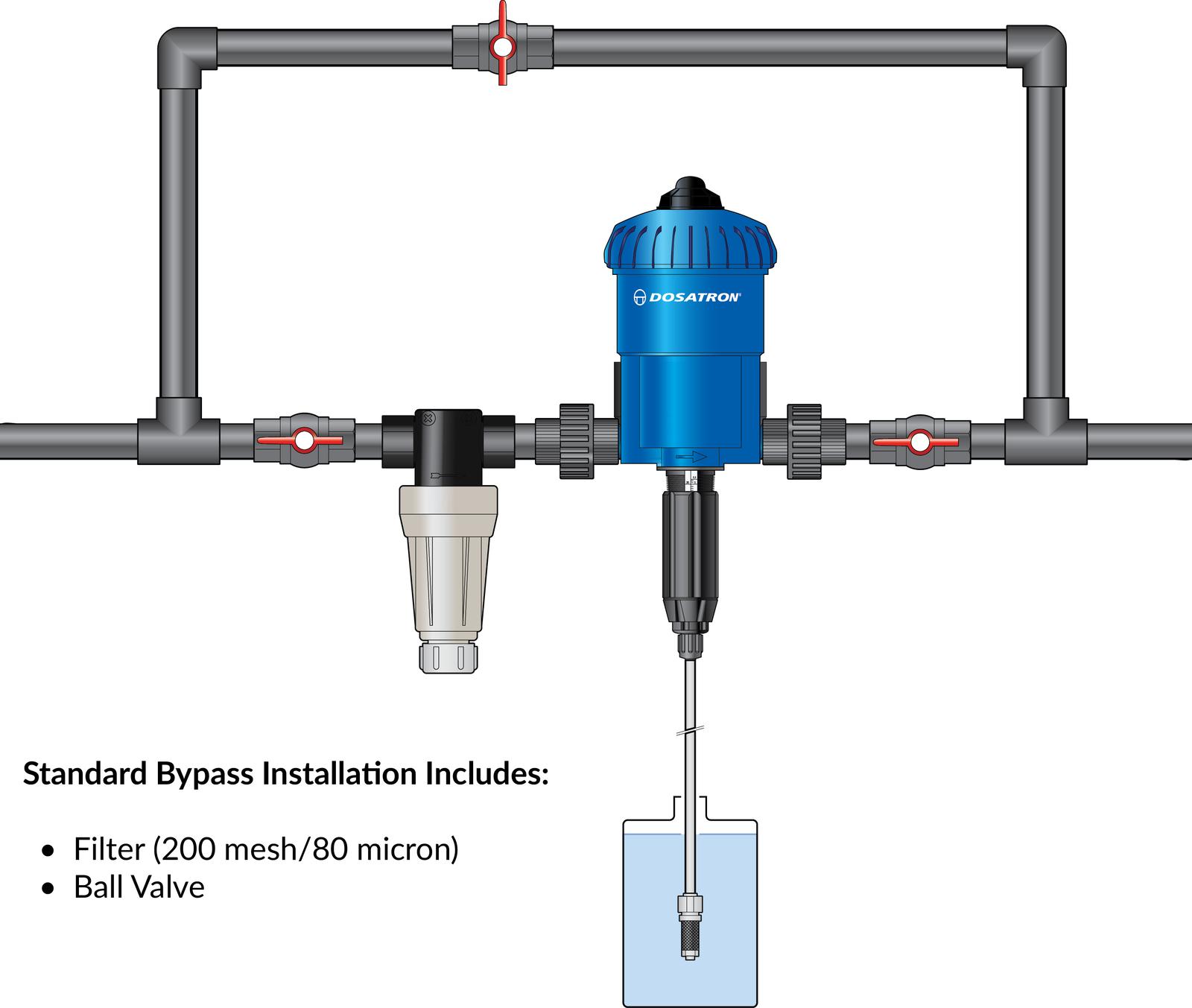

D25 Series Bypass Installation
To load this content, approve your cookie preferences and allow the required cookies.

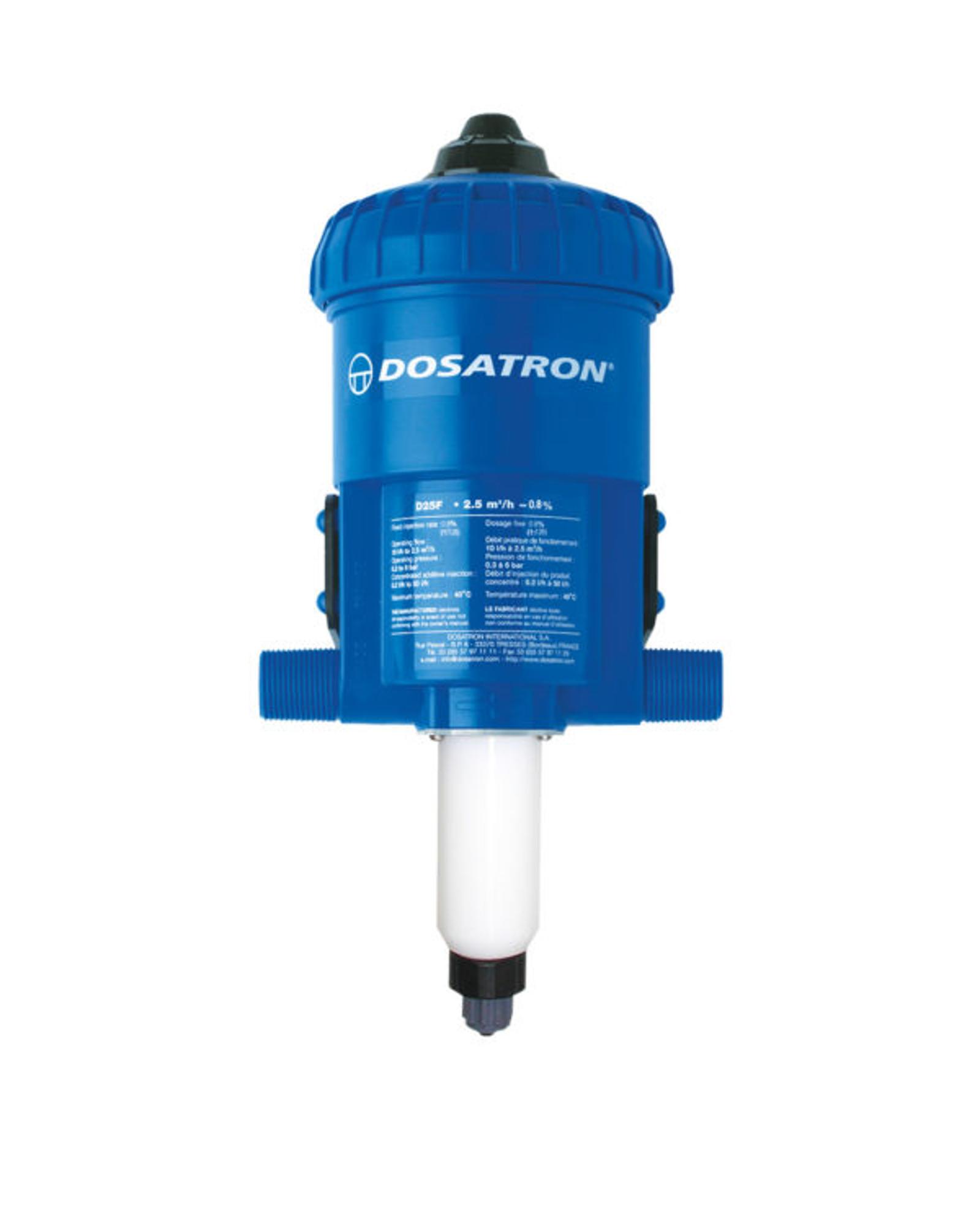

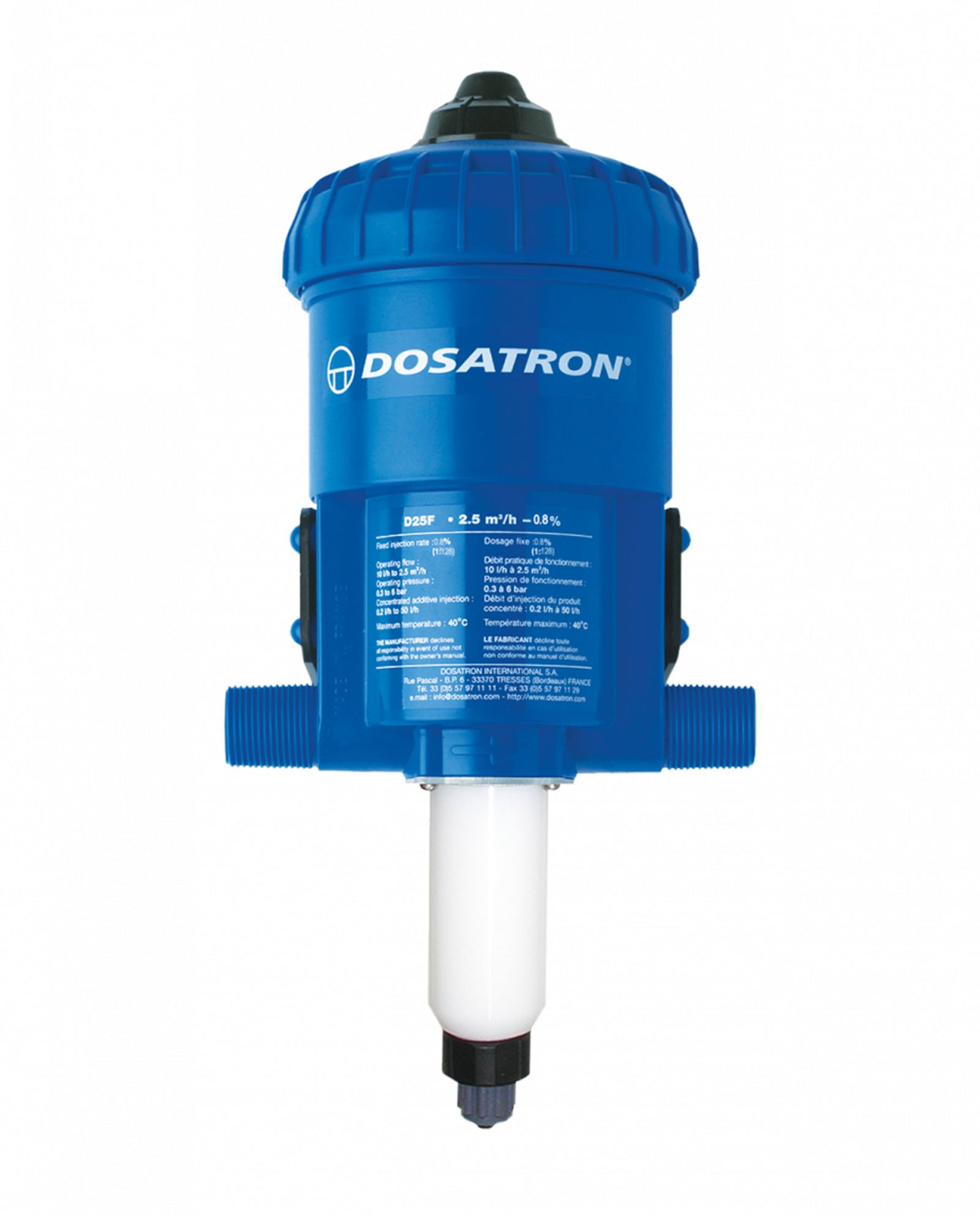

D25F – 11 GPM
Water-Powered Dosatron D25F - 11 GPM is used in livestock applications. It has a flow range of 0.05 to 11 GPM and a dilution of 1:128 Fixed (0.8%).
Specifications
- Connection Size: 3/4" NPT
- Unit Weight: 4 lbs
- Dimensions: 14" x 6 1/4"
- Flow: 0.05 to 11 GPM (0.19 to 42 LPM)
- Pressure: 4.3 to 85 PSI
- Ratio Range: 1:128 fixed
- Percentage Range: 0.8%
- Ounces Per Gallon Range: 1.000
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

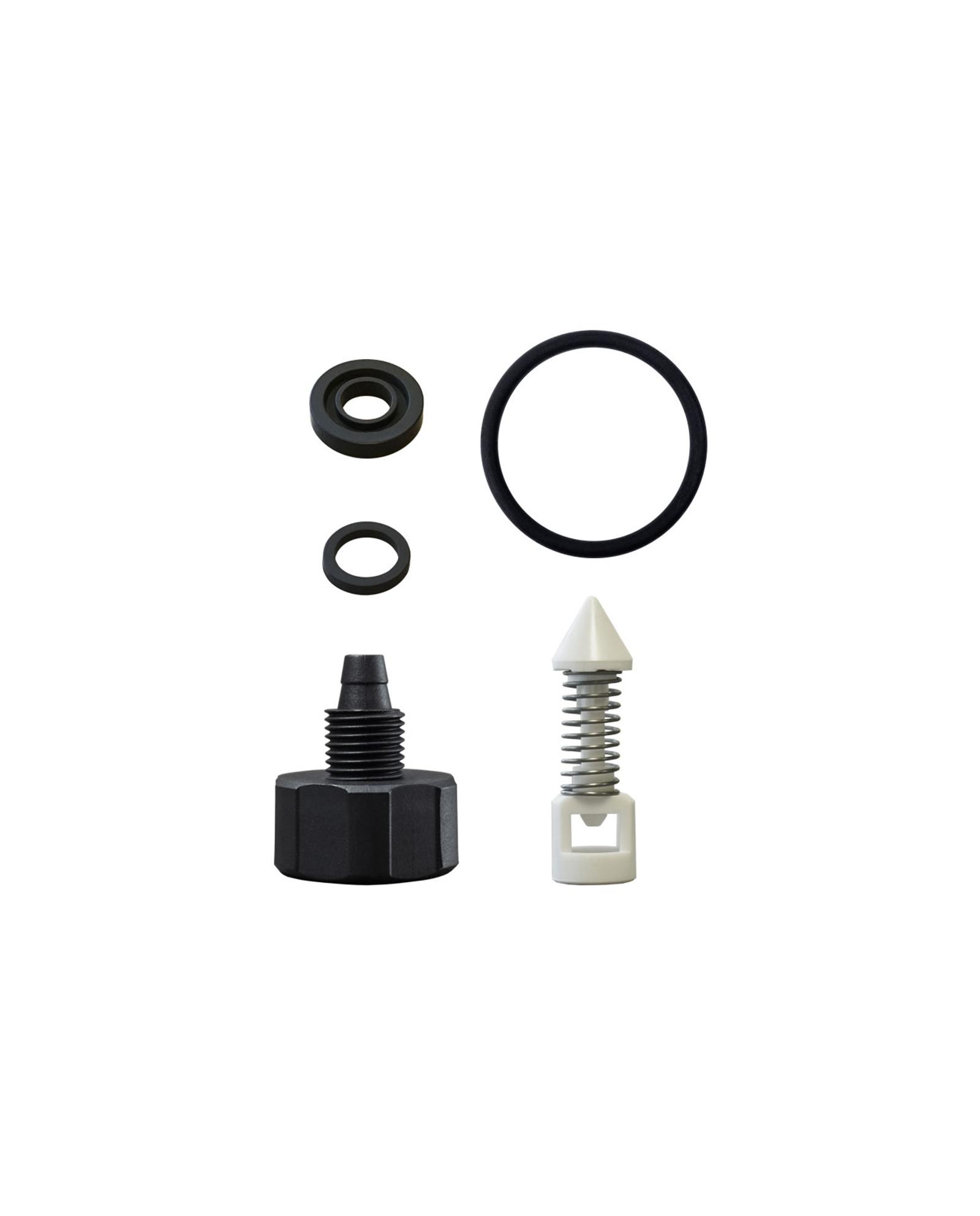

Seal Kit for the D25F/D25F1
Injection seal kit for the Dosatron D25F and D25F1 - 11 GPM. Part #: PJ117.
Specifications
Kit Includes:
- Check valve barb
- Injection sleeve o-ring
- Check valve assembly
- Check valve seal
- Plunger seal

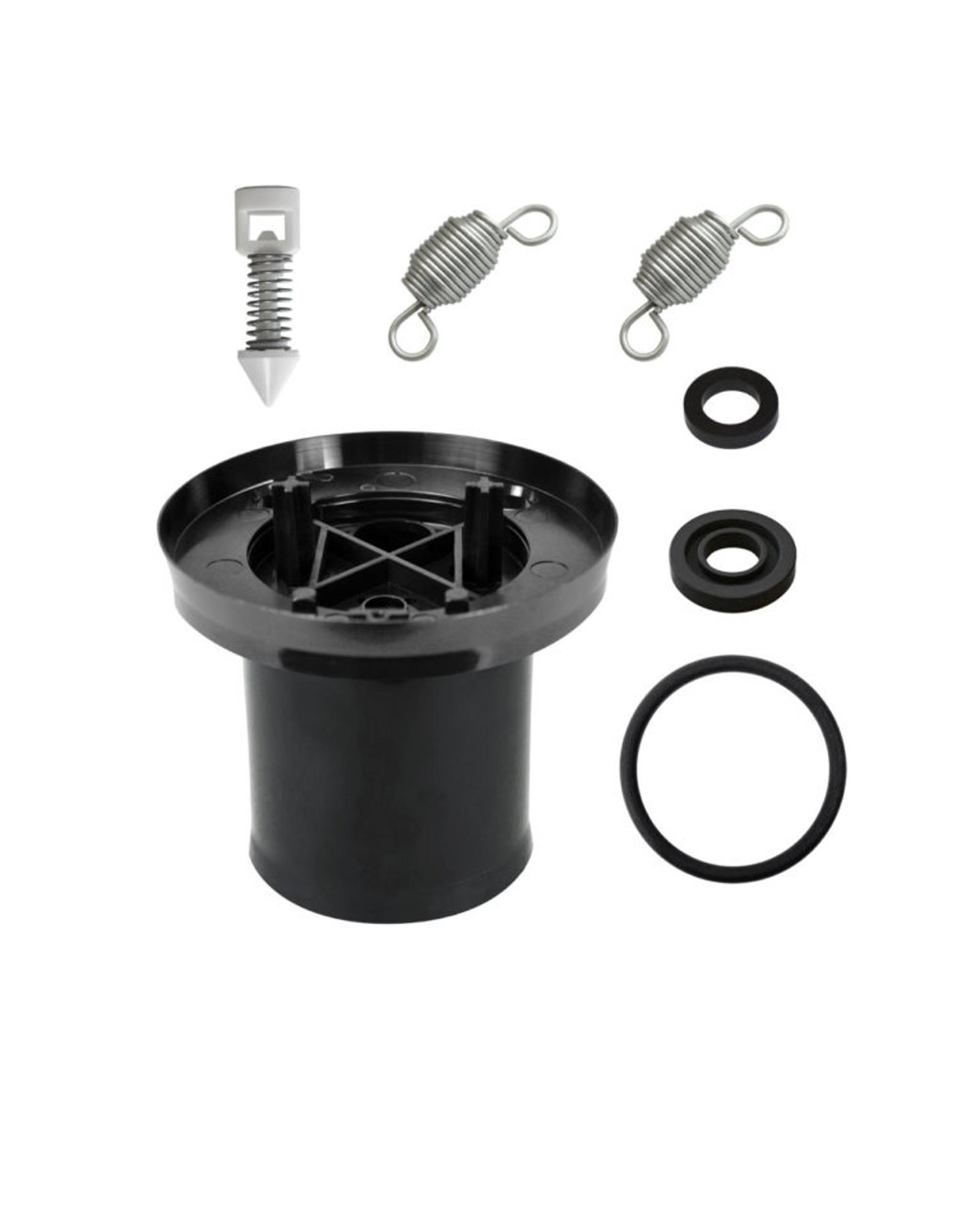

Rebuild Kit for the D25F
Extend the life of your Dosatron D25F - 11 GPM with our Rebuild Kit.
Specifications
Features:
- Two Parts - Part 1: Piston Kit Contents - Part 2: Seal Kit Contents
- Complete, detailed instructions
