Suggested bypass installation D25F1 – 11 GPM
- Connection Size: 3/4" NPT
- Percentage Range: 1%
- Unit Weight: 4 lbs
- Ounces Per Gallon Range: 1.280
- Flow: 0.05 to 11 GPM (0.19 to 42 LPM)
- Pressure: 4.3 to 85 PSI
- Dimensions: 14" x 6 1/4"
- Ratio Range: 1:100 fixed
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.
Perfect for spot treatments and root drenches.

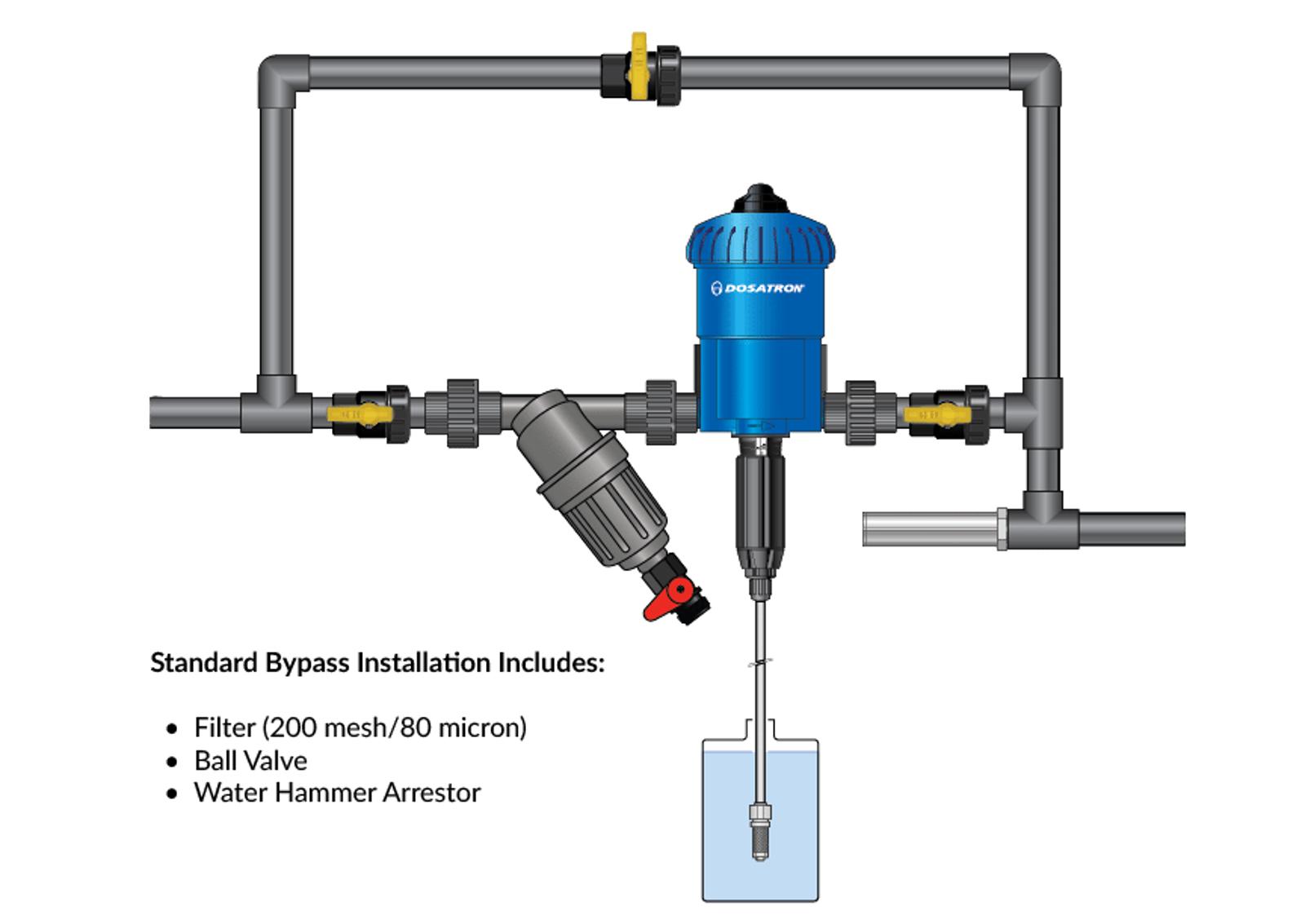

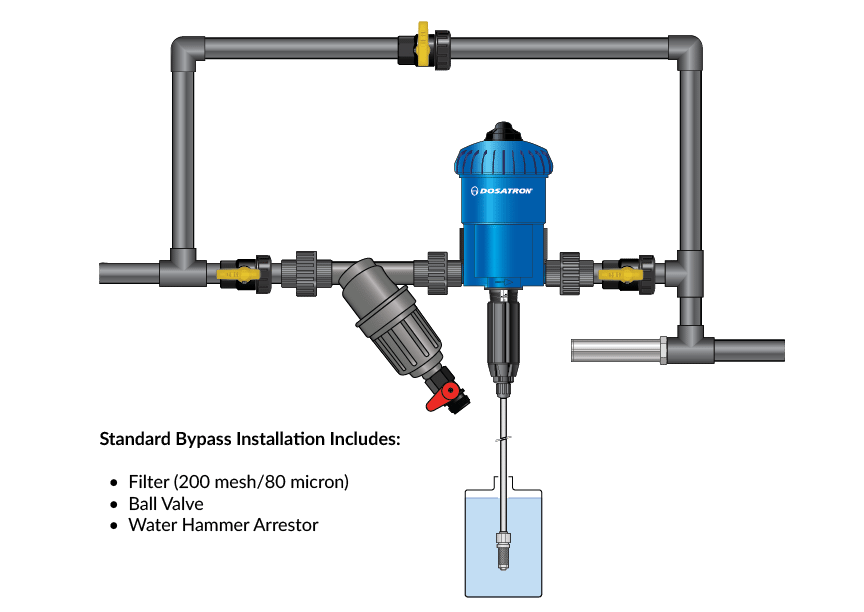

D25F1 BYPASS INSTALLATION
D25F1 SERVICE SEAL KIT
D25F1 SERVICE MINI KIT
D25F1 TROUBLESHOOTING

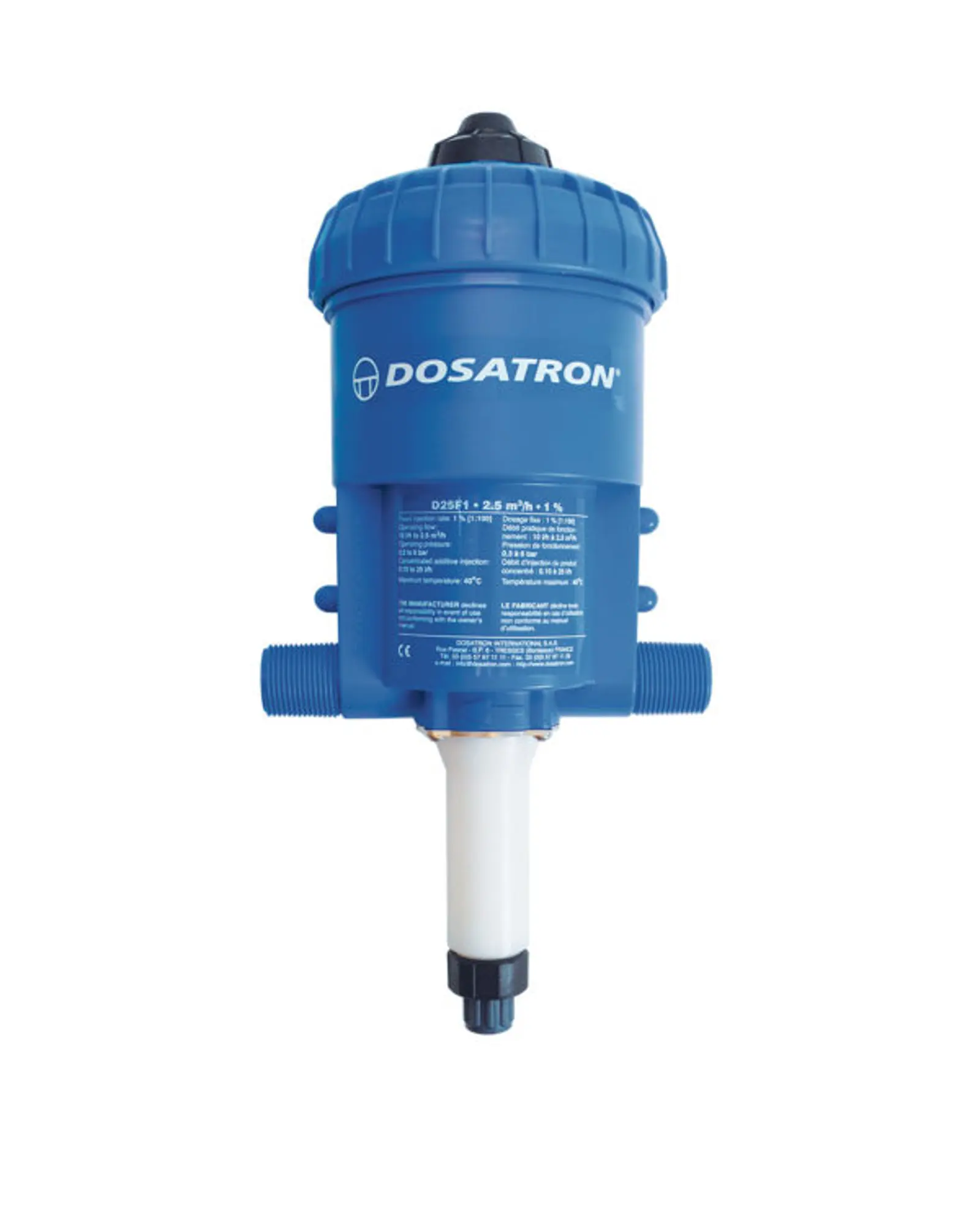

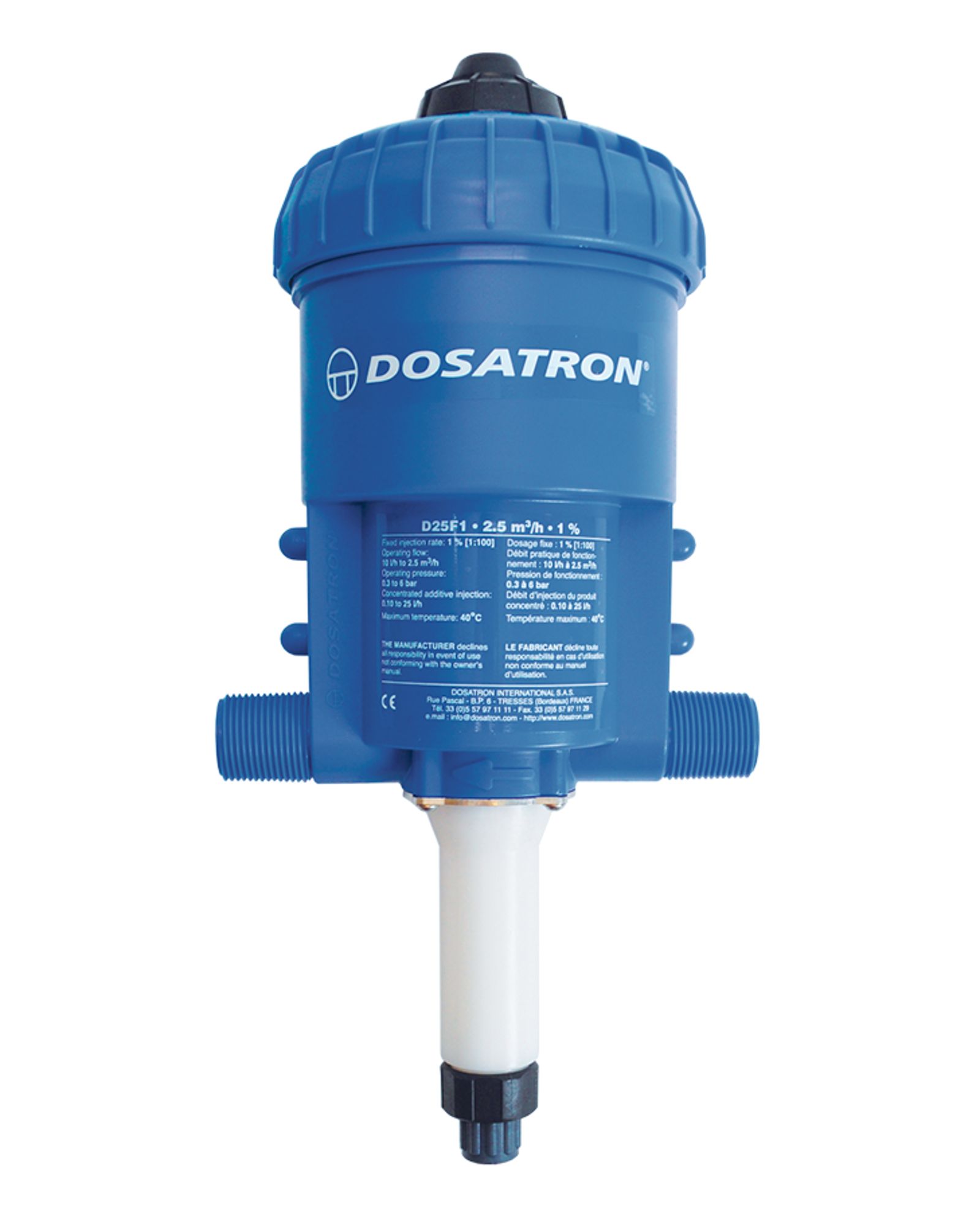

D25F1 – 11 GPM
Water-Powered Dosatron D25F1 - 11 GPM is used in irrigation applications. It has a flow range of 0.05 to 11 GPM and a dilution of 1:100 Fixed (1%).
Specifications
- Connection Size: 3/4" NPT
- Unit Weight: 4 lbs
- Dimensions: 14" x 6 1/4"
- Flow:> 0.05 to 11 GPM (0.19 to 42 LPM)
- Pressure: 4.3 to 85 PSI
- Ratio Range: 1:100 fixed
- Percentage Range:> 1%
- Ounces Per Gallon Range: 1.280
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.
Seal Kit for the D25F/D25F1
Injection seal kit for the Dosatron D25F and D25F1 - 11 GPM. Part #: PJ117.
Specifications
Kit Includes:
- Check valve barb
- Injection sleeve o-ring
- Check valve assembly
- Check valve seal
- Plunger seal
Mini Maintenance Kit for D25F1/D25RE2
Injection seal kit for the D25F1 and D25RE2 - 11 GPM. Part #: PJ117MINI-H.
Specifications
Kit Includes:
- Plunger seal
- Check valve assembly
- Check valve seal
- Dosa-Lube (Silicone)
