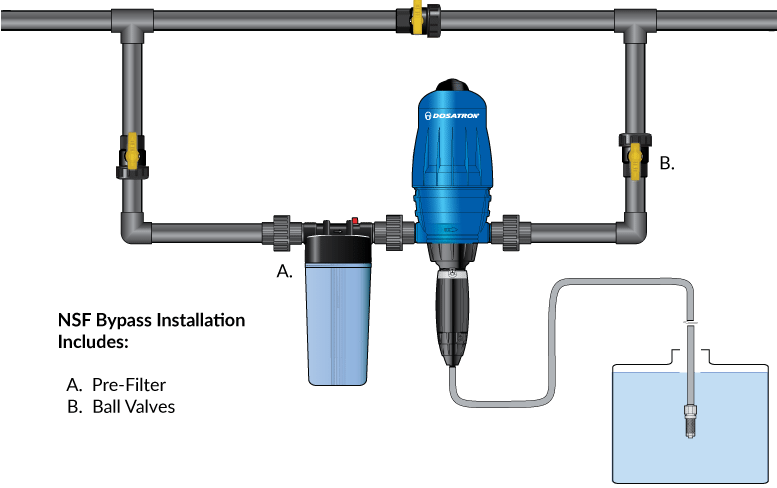

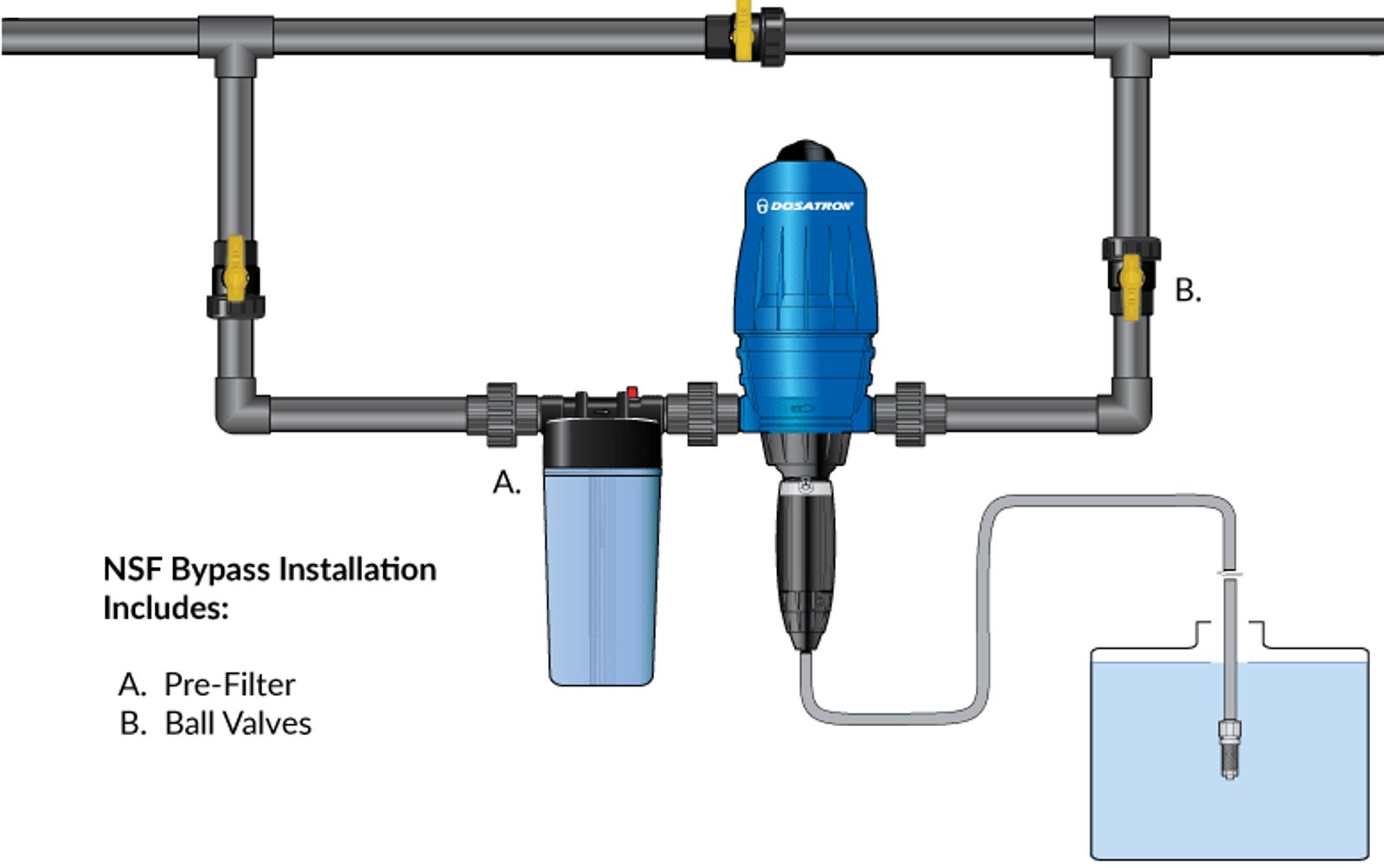

NSF Recommended Installation 3/4 Bypass Installation
DOSATRON D14 SPOTLIGHT

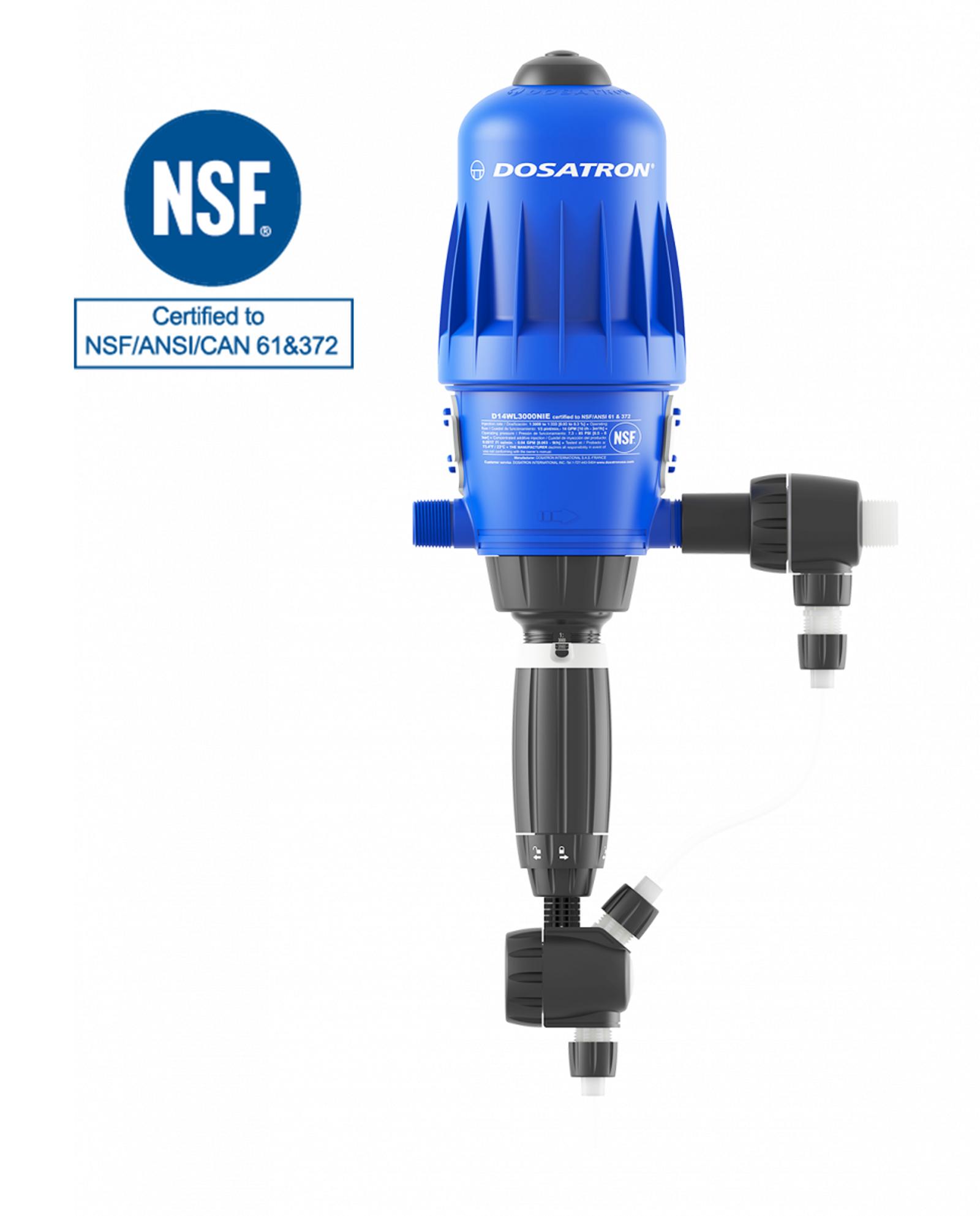

D14WL3000NIEAFII – 14 GPM (Water Treatment)
Water-Powered Dosatron D14WL3000NIEAFII side-inject is NSF/ANSI/CAN 61&372 Certified. Applications include water potabilization, water disinfection, or water sanitation. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:3000 to 1:333 (0.03% to 0.3%). Installation is easy with an Industrial Plumbing Kit # IPK34-14GPM.
Specifications
- Special: Certified by NSF to NSF/ANSI 61 & 372 Standards
- Connection Size: 3/4" NPT
- Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
- Pressure: 4.3 to 85 PSI
- Ratio Range: 1:3000 to 1:333
- Percentage Range: 0.03% to 0.3%
- Included Accessories: 6' clear suction hose, weighted strainer, mounting bracket and quick start guide.
