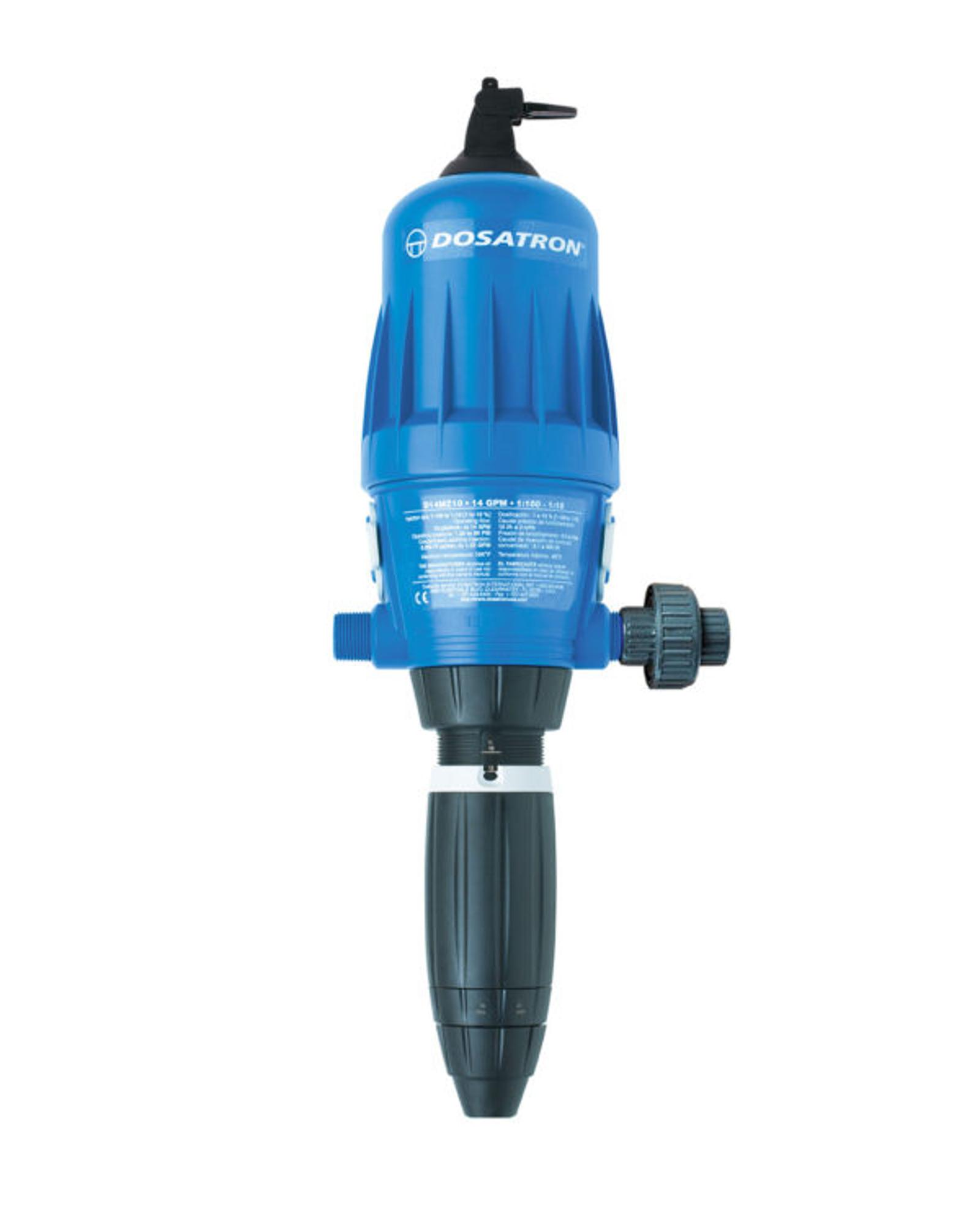

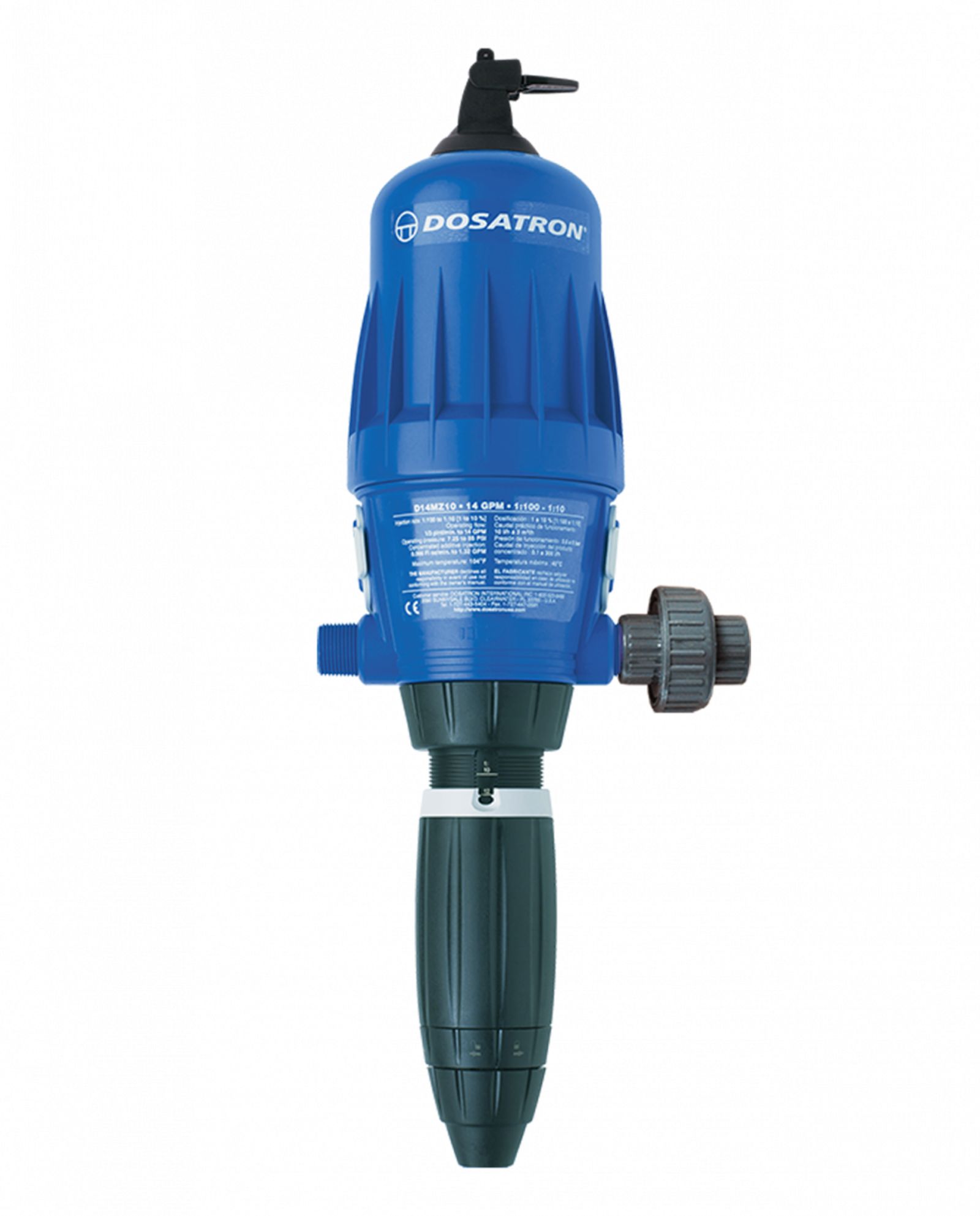

D14MZ10-HY – 14 GPM (HYDRO)
Water-powered Dosatron D14MZ10VFBPHY - 14 GPM with dosing seals for the injection of acidic chemistries and concentration scale specifically designed for hydroponic applications.
Specifications
- Special: Doser for the Nutrient Delivery System
- Connection Size: 3/4" NPT
- Unit Weight: 6 lbs
- Dimensions: 19 1/8" x 6 5/16"
- Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
- Pressure: 7 to 85 PSI
- mL/gal: 37.5 to 375 mL
- tsp/gal: 7.5 to 75 tsp
- Percentage (%): 1 to 10%
- Oz/gal: 1.280 to 12.800
- Included Accessories: Mounting bracket, suction hose, bypass, union, weighted strainer, and quick start guide.

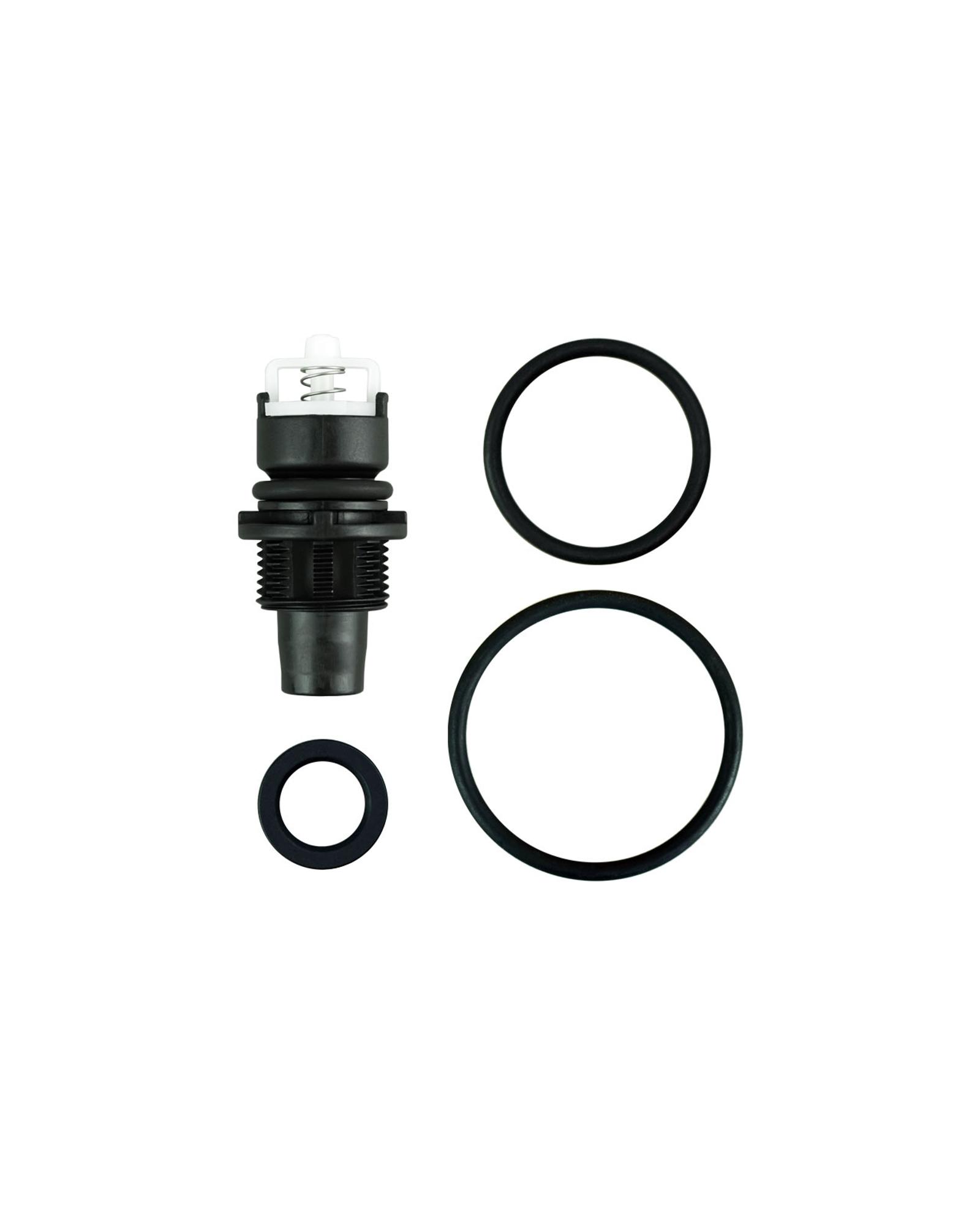

Seal Kit for D14MZ10/D14TMZ10
Injection seal kit for the D14MZ10, D14TMZ10 - 14 GPM and D40MZ5 - 40 GPM. Part #: PJDI122.
Specifications
Kit Includes:
- Injection sleeve o-ring
- Check valve assembly
- Injection stem o-ring
- Plunger seal

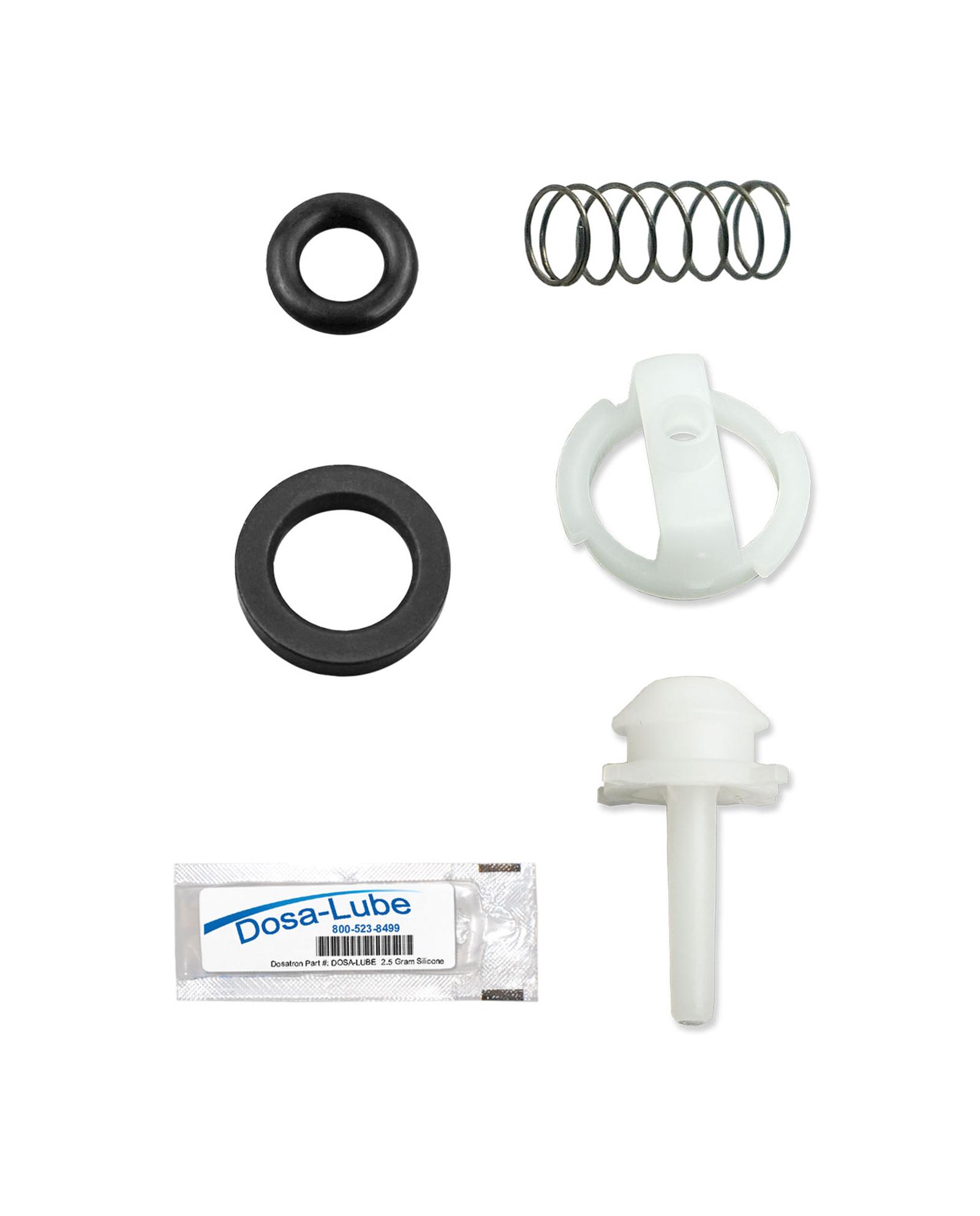

Mini Maintenance Kit for D14MZ10/D14TMZ10
Mini maintenance kit for the D14MZ10, D14MZ10-HY, and D14TMZ10 - 14 GPM. Part #: PJDI122MINI-H.
Specifications
Kit Includes:
- Plunger seal
- Top guide
- Check valve cone
- Check valve spring
- Check valve cone o-ring
- Dosa-Lube (Silicone)

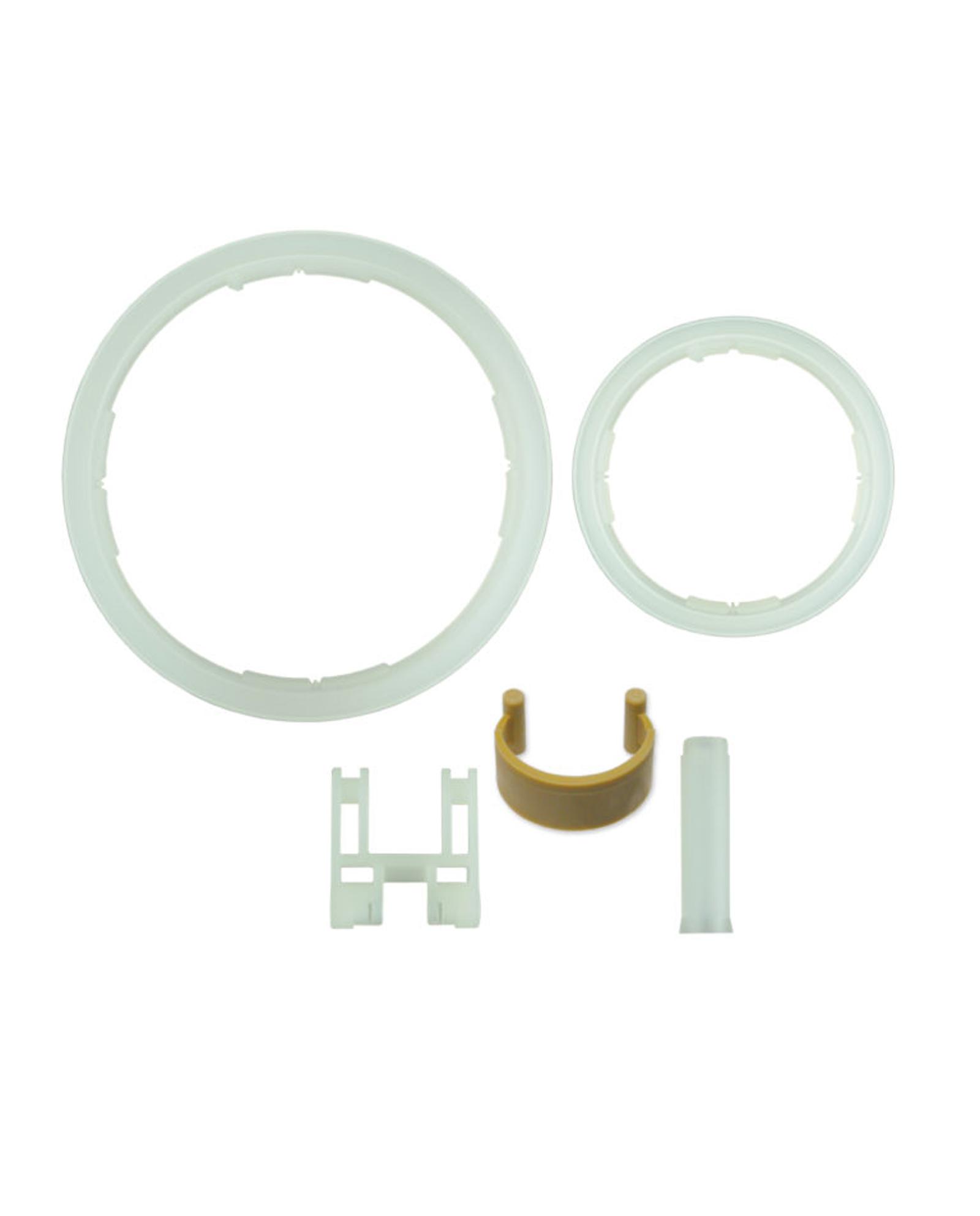

Piston Flange Kit for D14 Series
Piston Flange Rebuild kit for the Dosatron D14 Series, part #: PPDI034
Specifications
Features: PDI651 - Omega Spring, PDI649 - Connecting Rod, PDI648 - Push Rod Seal, PDI643 - Upper Flange, PDI644 - Lower Flange, instruction booklet

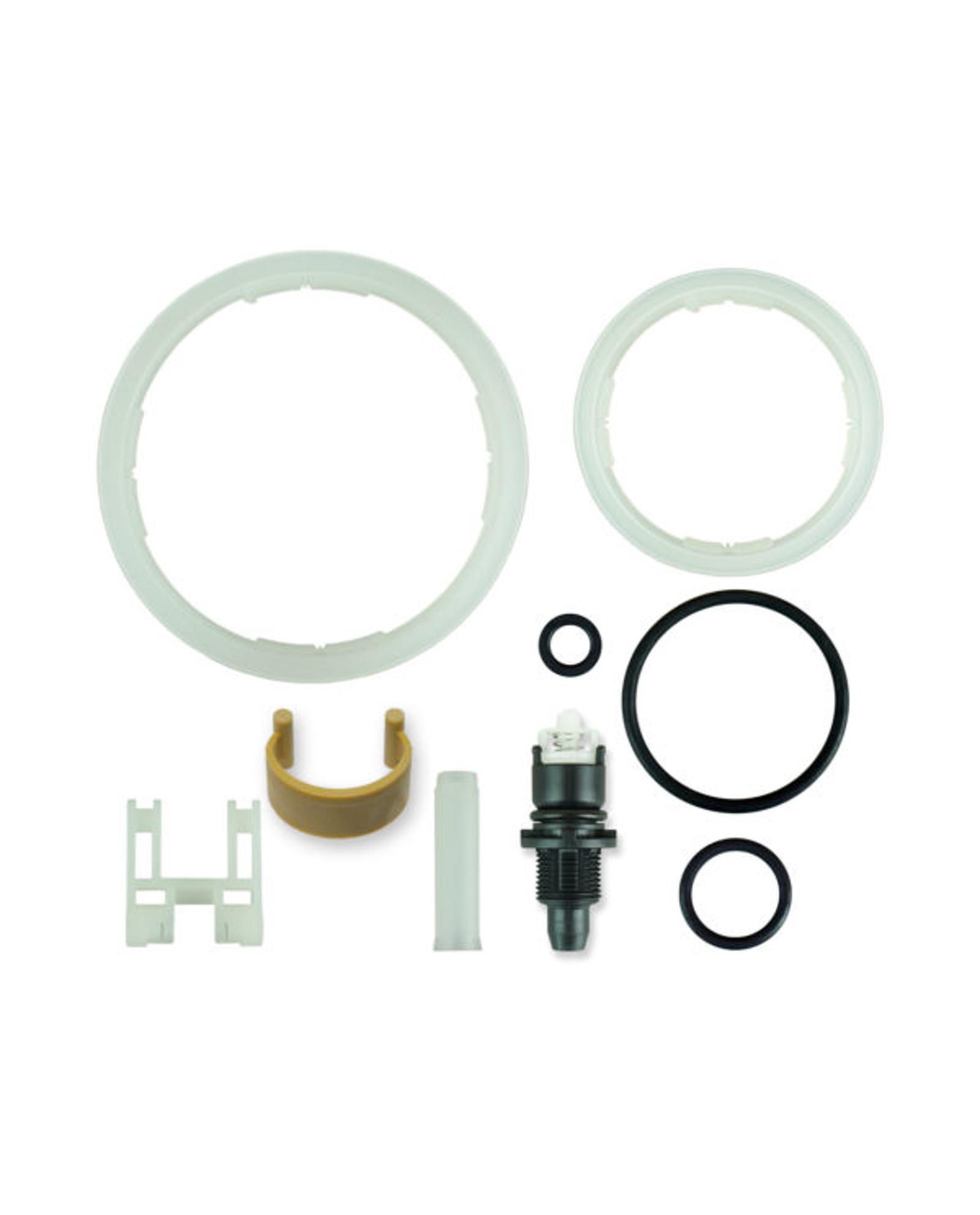

Rebuild Kit for the D14MZ10
Extend the life of your Dosatron D14MZ10-HY and D14MZ10 - 14 GPM with one of our Rebuild Kits.
Specifications
Features:
- Two Parts - Part 1: Piston Kit Contents - Part 2: Seal Kit Contents
- Complete, detailed instructions
