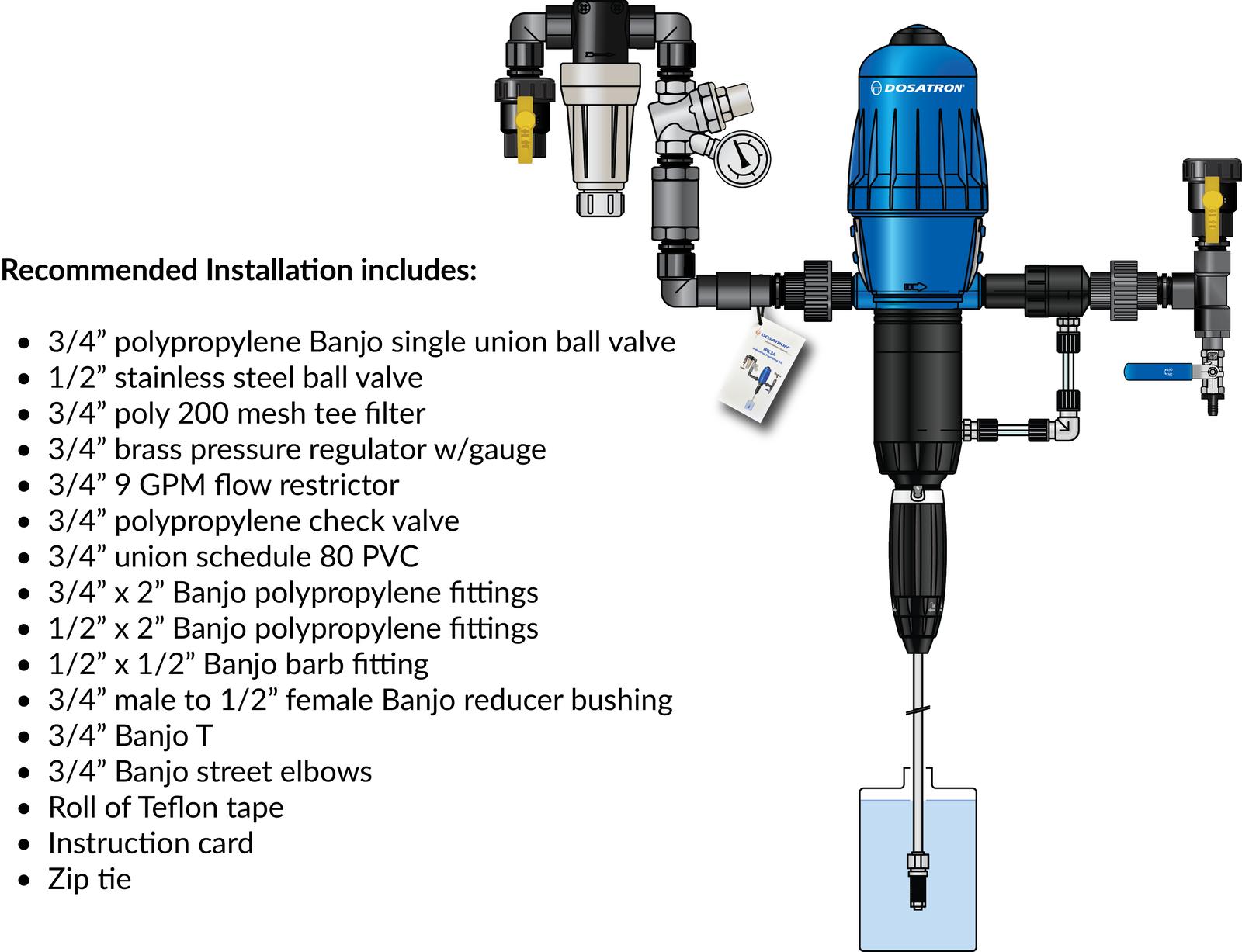

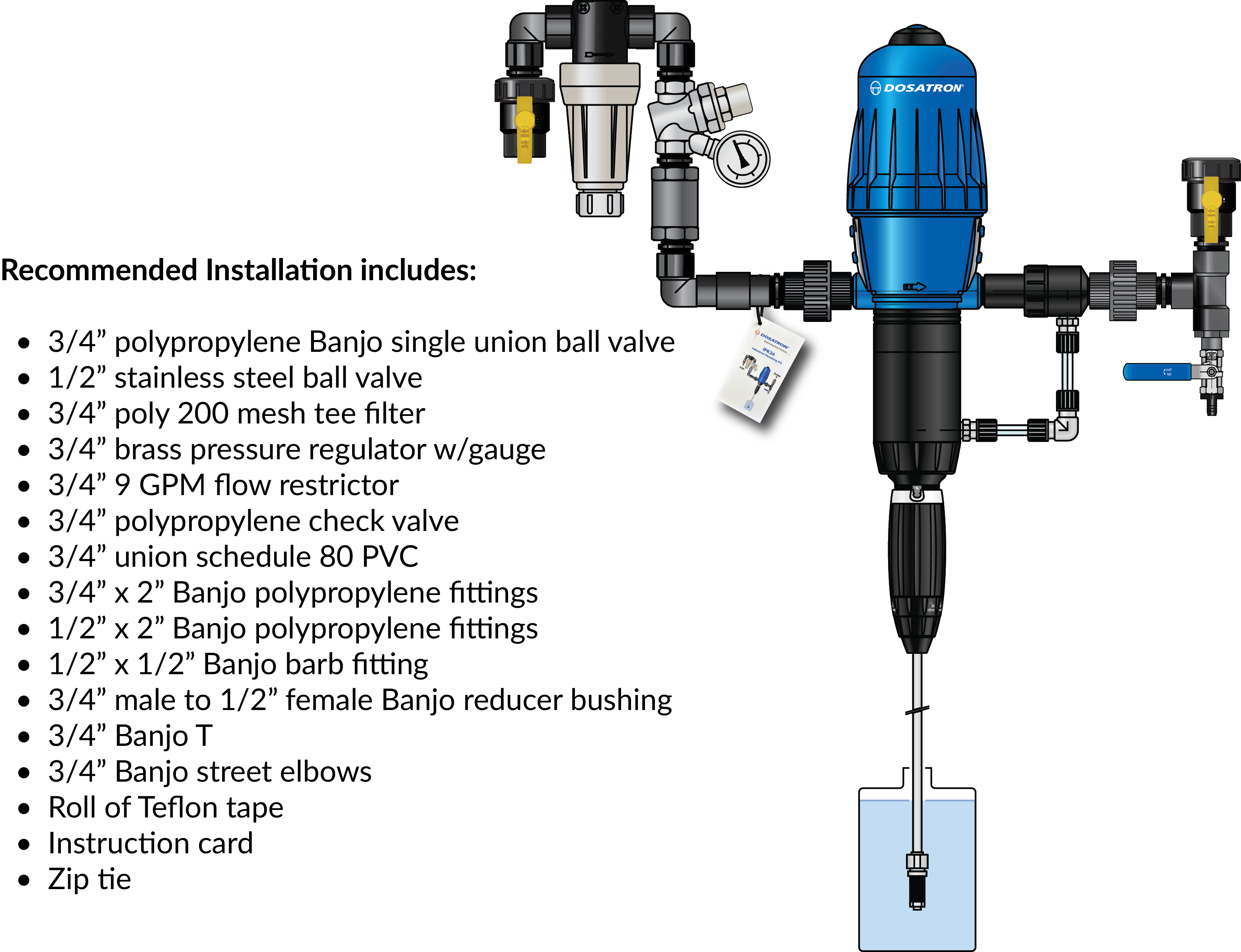

IPK34-9GPM D14MZ520 Industrial Plumbing Kit. Suggested Installation
- Connection Size: 3/4" NPT
- Percentage Range: 5 to 20%
- Unit Weight: 8.8 lbs
- Ounces Per Gallon Range: 6.400 to 25.60
- Flow: 0.05 to 9 GPM (0.19 to 34 LPM)
- Pressure: 7 to 57 PSI
- Dimensions: 26 1/8" x 10 1/4"
- Ratio Range: 1:20 to 1:5
Included Accessories:Mounting bracket, suction hose, weighted strainer, and quick start guide.
D14MZ520 Product Specifications
Open
D14MZ520 Schematics (SERIAL NUMBERS 18113022 AND UP)
Open
D14MZ520 Schematics (SERIAL NUMBERS 16290363 UP TO 18113021)
Open
D14MZ520 Schematics (SERIAL NUMBERS 13400000 UP TO 16290362)
Open
D14MZ520 Schematics (SERIAL NUMBERS UP TO 13400000)
Open
D14MZ520 Owner’s Manual
Open
D14MZ520 Quick Start Up Instructions
Open
D14MZ520 Seal Kit Instructions (SERIAL NUMBERS 16290363 AND UP)
Open
D14MZ520 Seal Kit Instructions (SERIAL NUMBERS 13400000 UP TO 16290362)
Open
D14MZ520 Seal Kit Instructions (SERIAL NUMBERS UP TO 13400000)
Open
D14MZ520 Piston Flange Kit
Open
D14MZ520 Industrial Plumbing Kit Specifications
Open
D14MZ520 Industrial Plumbing Kit Assembly Instructions
Open

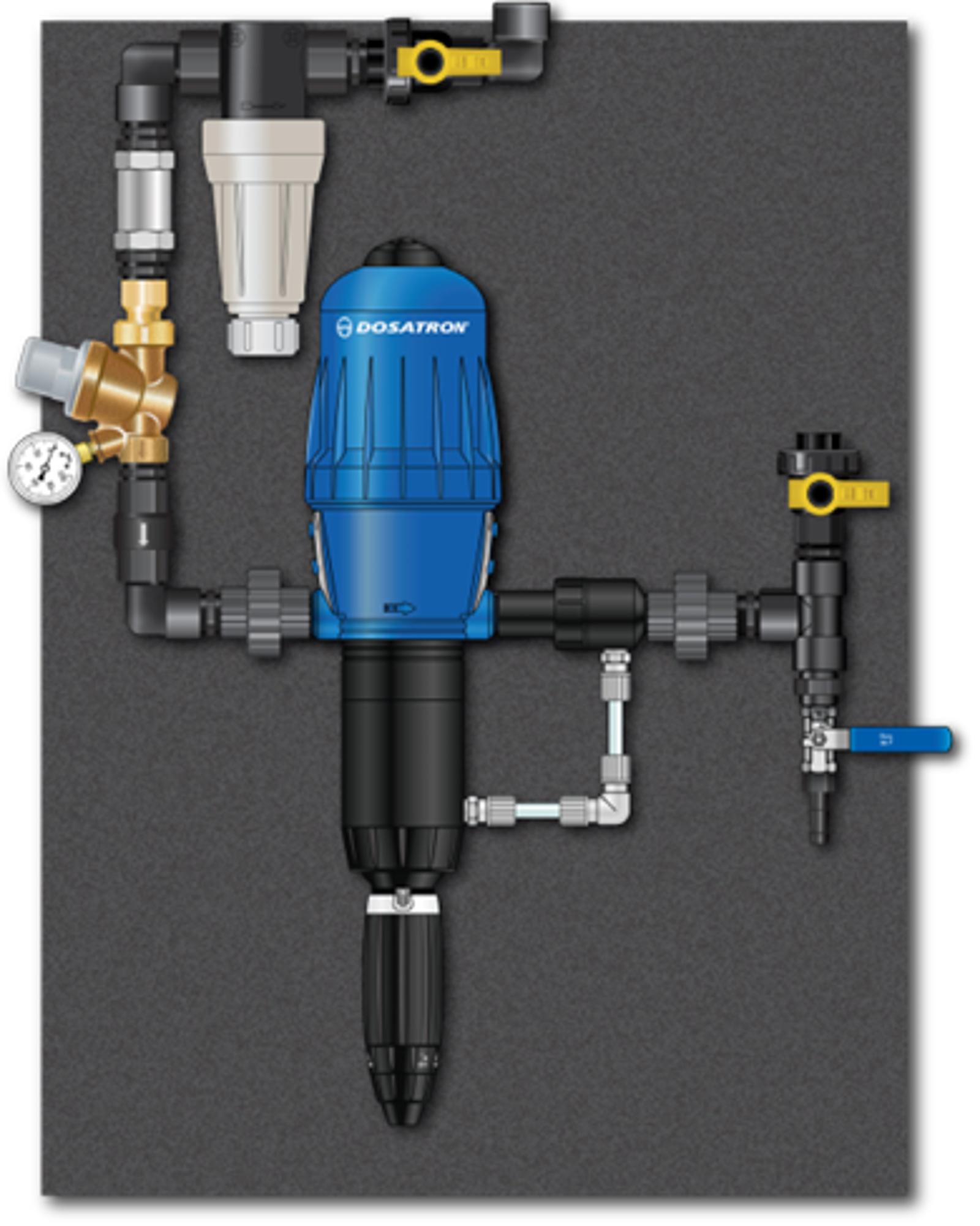

Single unit panel system with D14MZ520. For metalworking applications
(Part numbers: PS4A182-BLEND, PS4A184-BLEND)
D14 Series Bypass Switch Installation
To load this content, approve your cookie preferences and allow the required cookies.
D14 Piston Service Video
To load this content, approve your cookie preferences and allow the required cookies.
D14 Spotlight
To load this content, approve your cookie preferences and allow the required cookies.

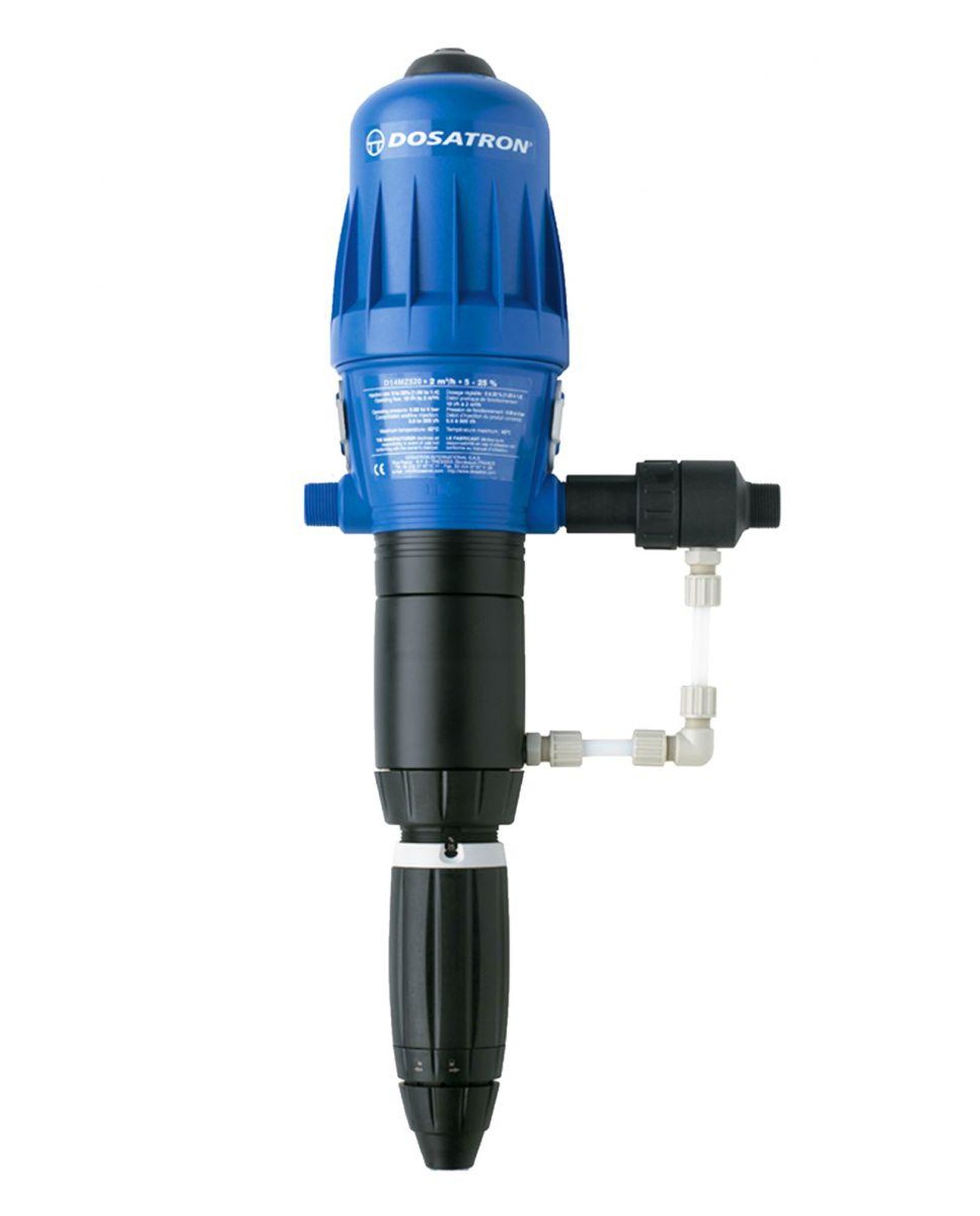

D14MZ520 – 9 GPM
Water-powered Dosatron D14MZ520 - 9 GPM is used in industrial applications. It has a flow range of 0.05 to 9 GPM and a dilution range of 1:20 to 1:5 (5% to 20%). For industrial applications installation is easy with an Industrial Plumbing Kit # IPK34-9GPM.

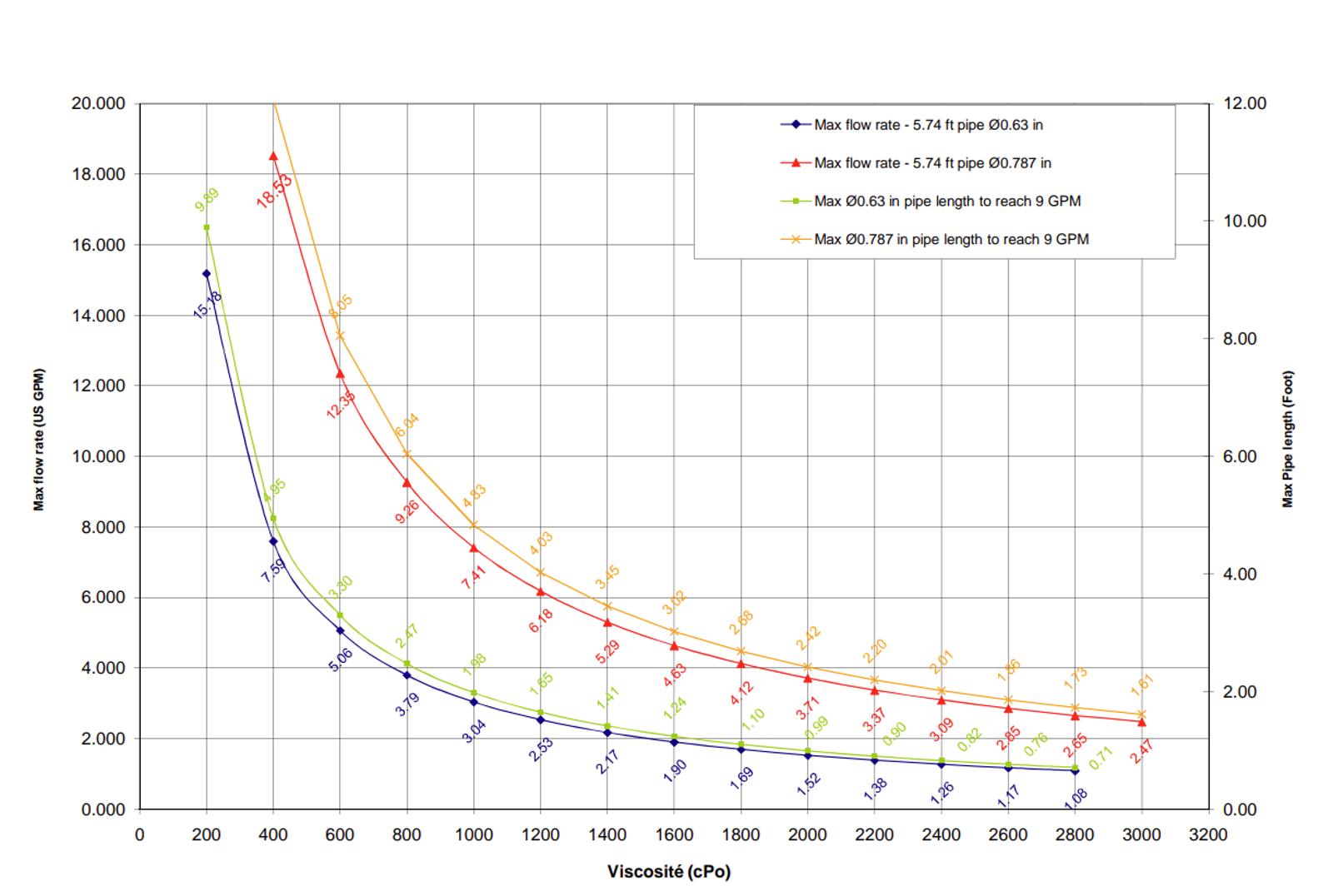

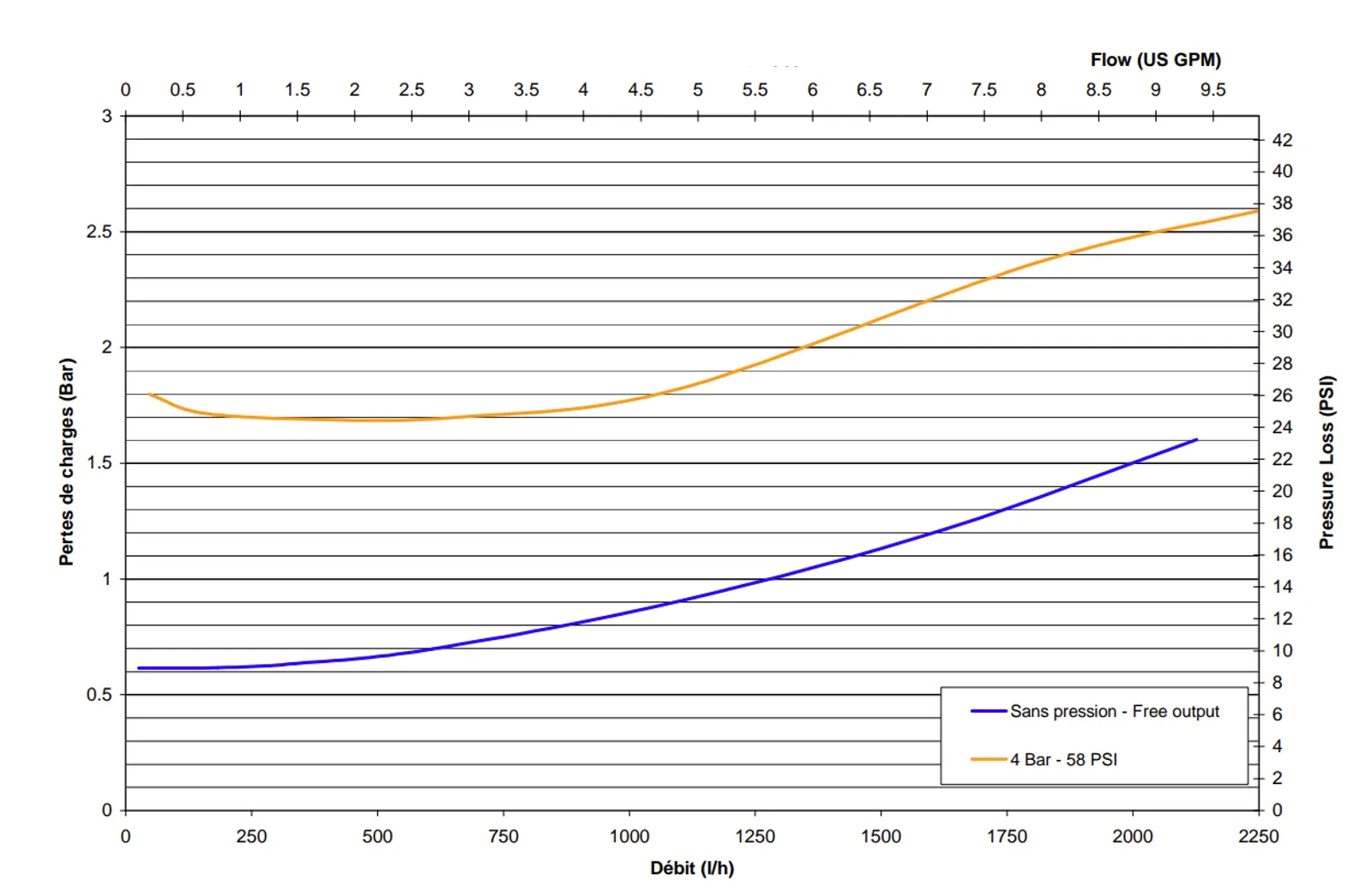

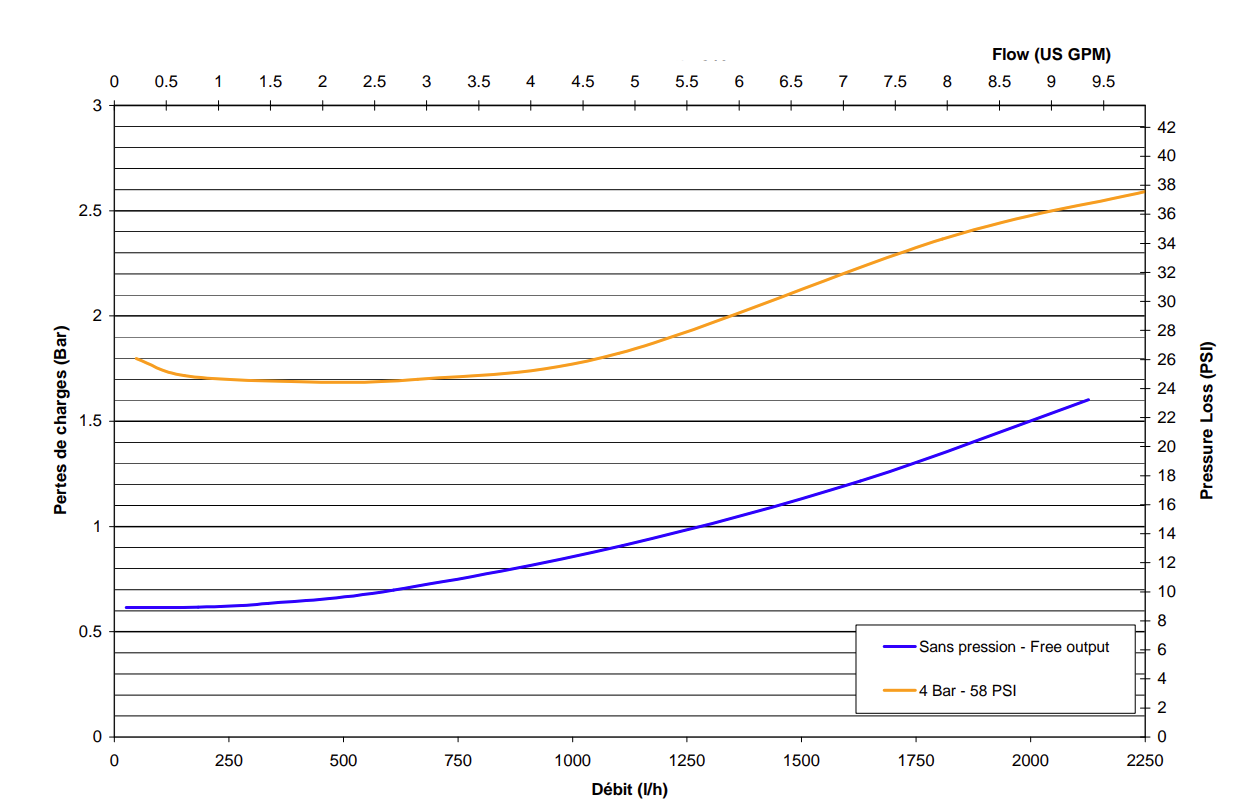

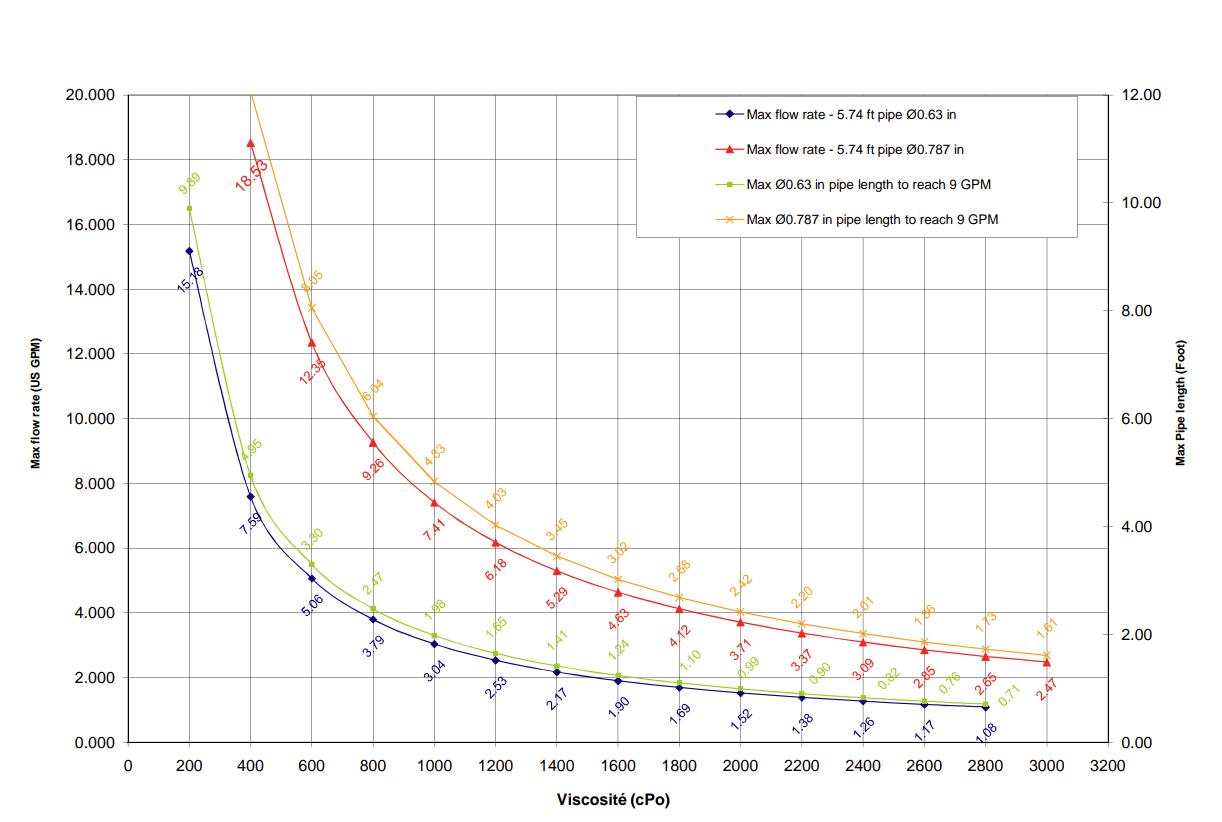

Specifications
- Connection Size: 3/4" NPT
- Unit Weight: 8.8 lbs
- Dimensions: 26 1/8" x 10 1/4"
- Flow:> 0.05 to 9 GPM (0.19 to 34 LPM)
- Pressure: 7 to 57 PSI
- Ratio Range:> 1:20 to 1:5
- Percentage Range: 5 to 20%
- Ounces Per Gallon Range: 6.400 to 25.60
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

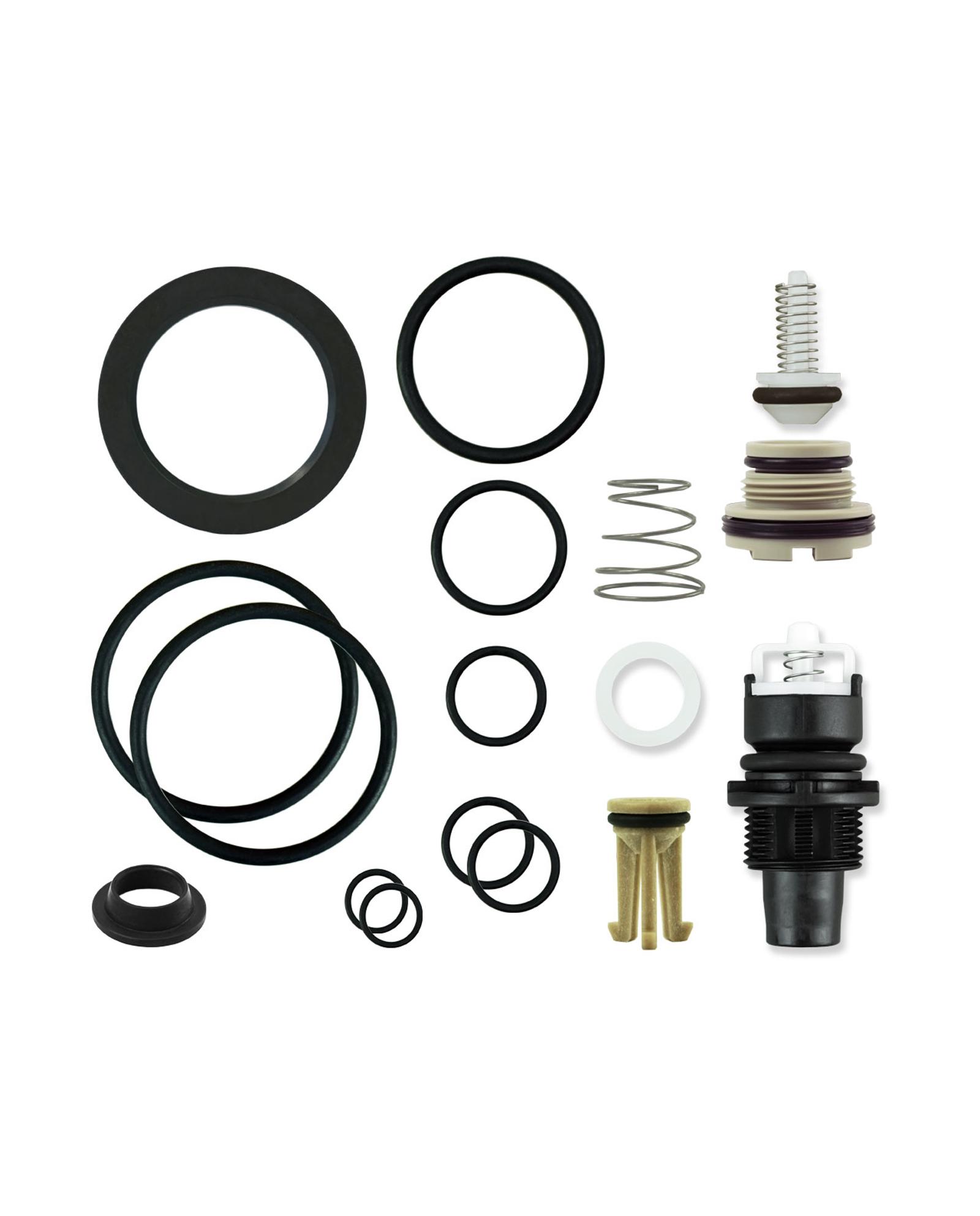

Seal Kit for the D14MZ520
Injection seal kit for the D14MZ520 - 9 GPM (For serial # over 16290363). Part #: PJDI199.
Specifications
- Side-inject connection o-ring
- White plastic ring
- Side-inject o-rings
- Cylinder nut o-ring
- Black plastic lip seal
- Side-inject o-ring
- Stem o-ring
- Plunger seal
- O-rings for cylinder and sleeve
- Check valve assembly
- Plunger Valve Assembly
- Side-inject valve assembly
Piston Flange Kit for D14 Series
Piston Flange Rebuild kit for the Dosatron D14 Series, part #: PPDI034
Specifications
Features: PDI651 - Omega Spring, PDI649 - Connecting Rod, PDI648 - Push Rod Seal, PDI643 - Upper Flange, PDI644 - Lower Flange, instruction booklet
