Installations D07RE125
- Connection Size: 3/4" NPT
- Percentage Range: 0.15 to 1.25%
- Unit Weight: 2 lbs
- Ounces Per Gallon Range: 0.183 to 1.600
- Flow: 0.02 to 3 GPM (0.08 to 12 LPM)
- Pressure: 4.3 to 85 PSI
- Dimensions: 10
- Ratio Range: 1:667 to 1:80
- Tank Size: 0.183 to 1.600
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.
Dosatron D07 - 3 GPM Spotlight
To load this content, approve your cookie preferences and allow the required cookies.

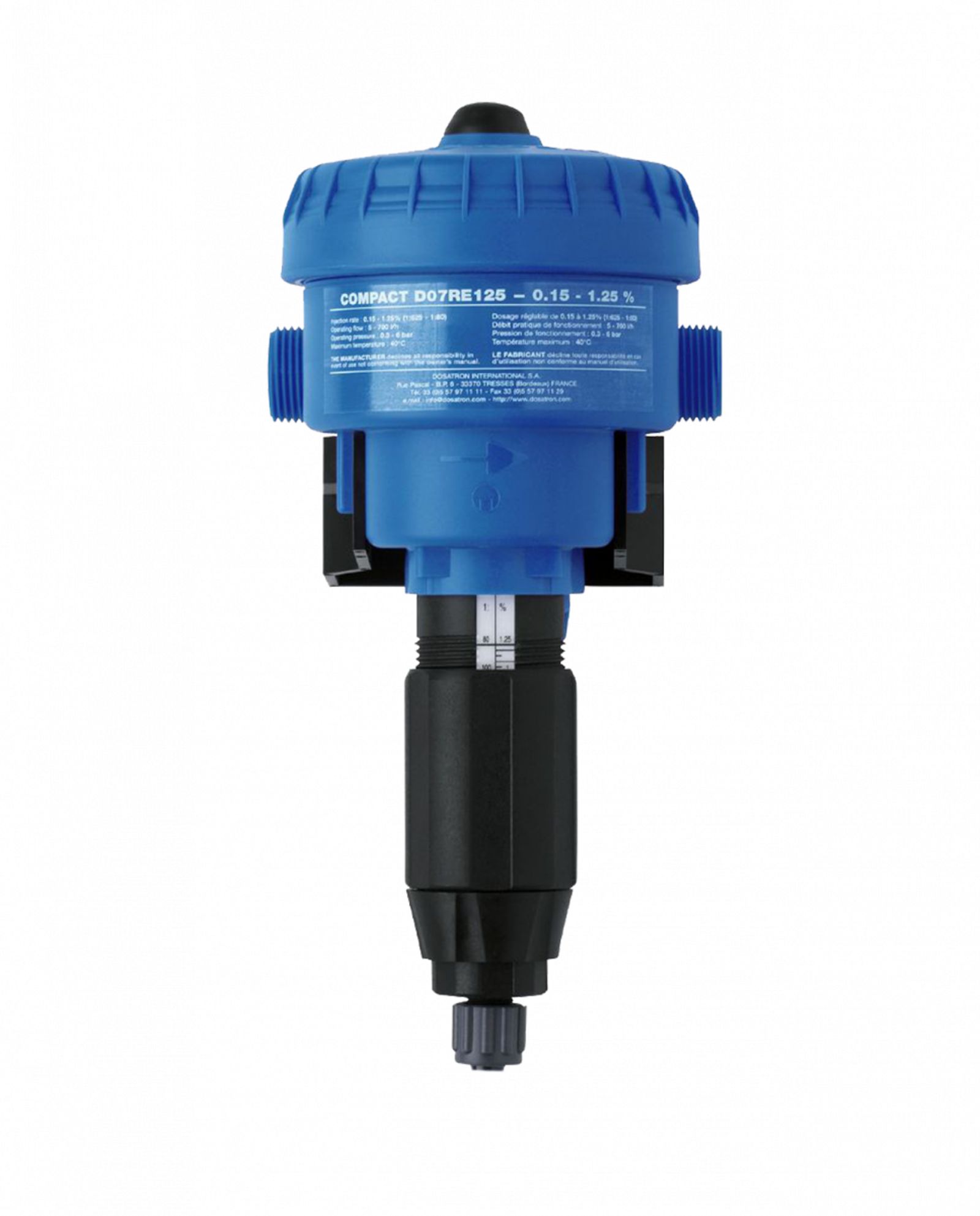

D07RE125 – 3 GPM

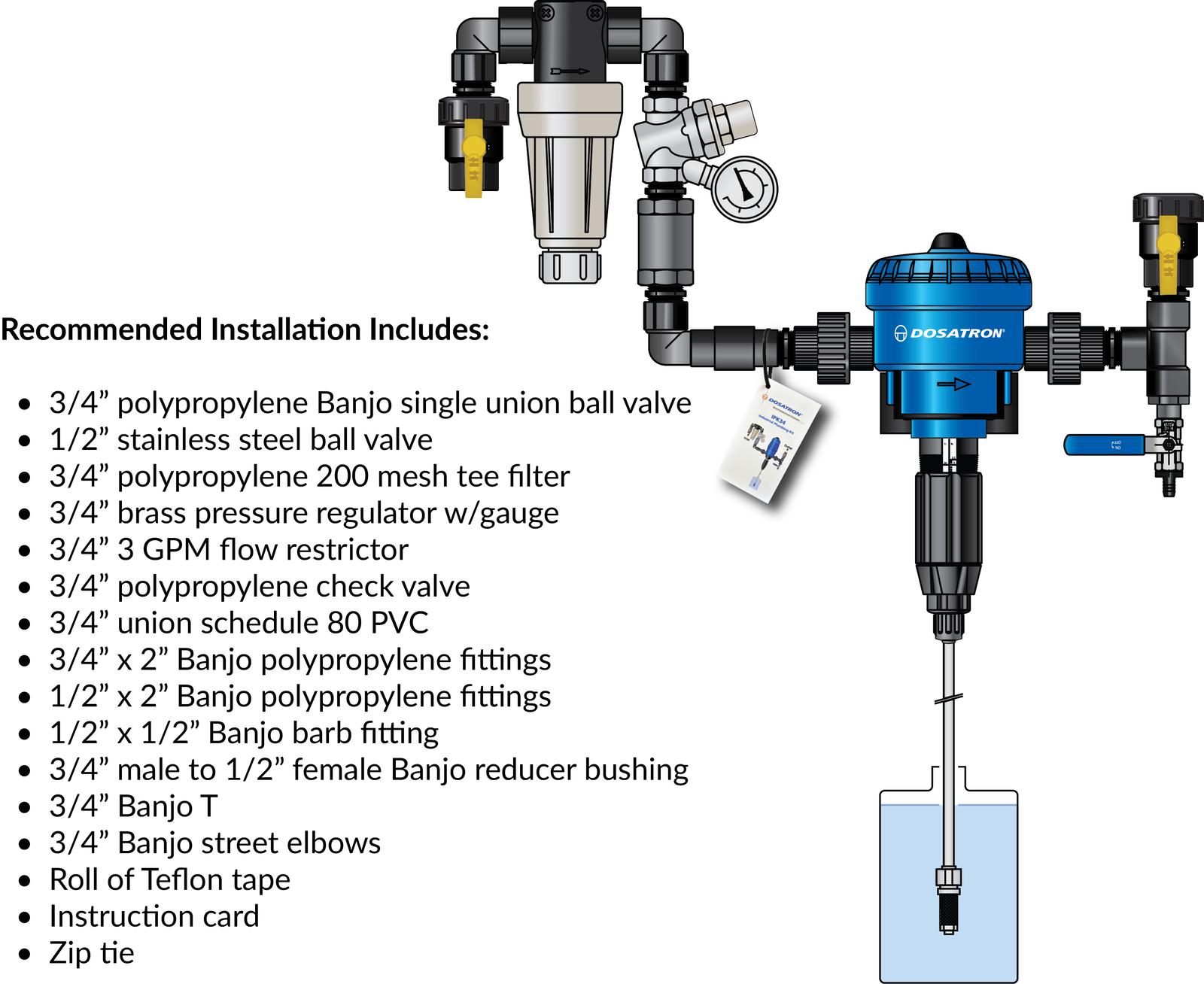

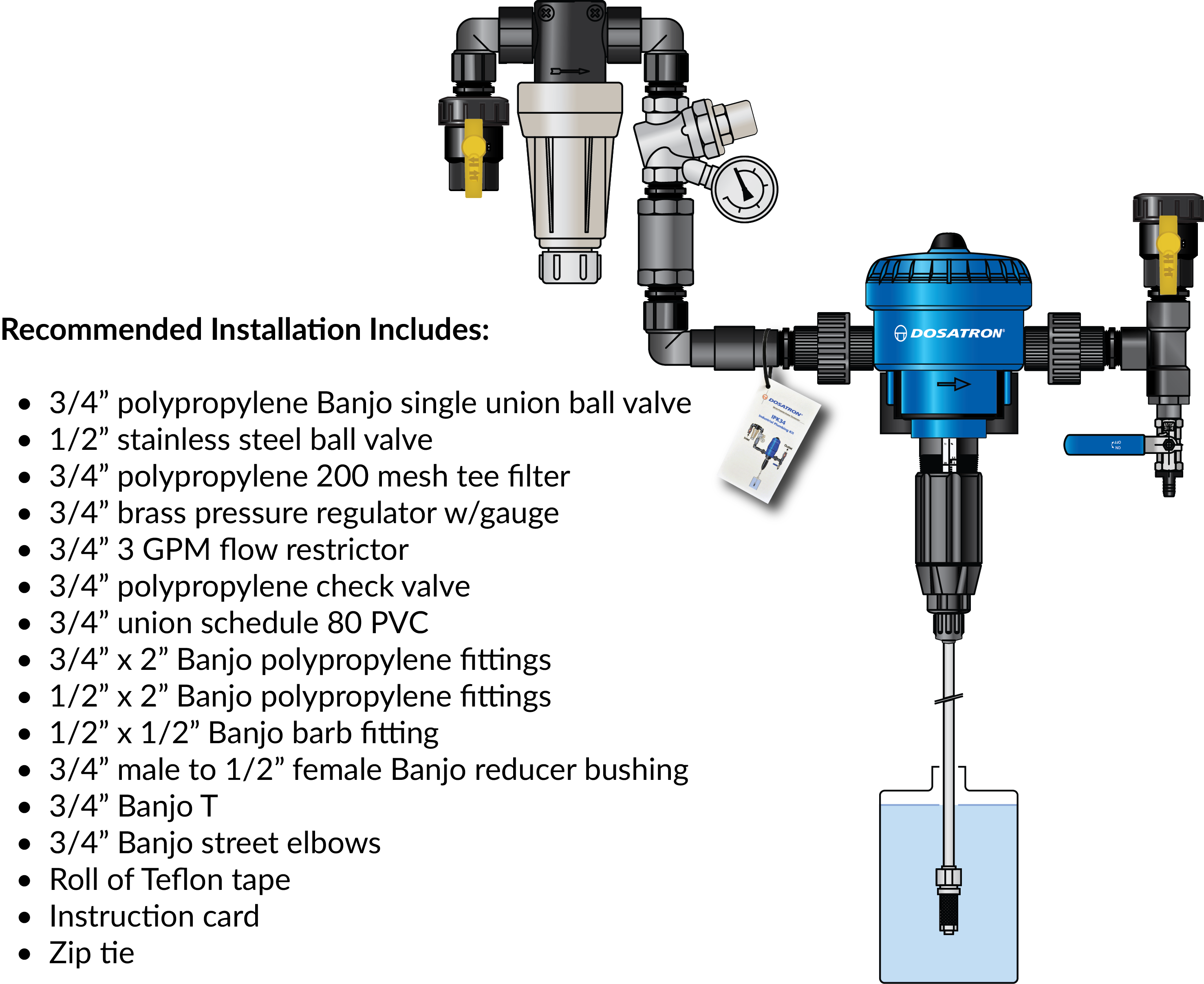

Water-powered Dosatron D07RE125 is used in industrial applications such as Metal Processing. It has a flow range of 0.02 to 3 GPM and a dilution range of 1:667 to 1:80 (0.15% to 1.25%). Installation is easy with an Industrial Plumbing Kit # IPK34-3GPM.
Specifications
- Connection Size: 3/4" NPT
- Unit Weight: 2 lbs
- Dimensions: 10" x 4.5"
- Flow: 0.02 to 3 GPM (0.08 to 12 LPM)
- Pressure: 4.3 to 85 PSI
- Ratio Range: 1:667 to 1:80
- Percentage Range: 0.15 to 1.25%
- Ounces Per Gallon Range: 0.183 to 1.600
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

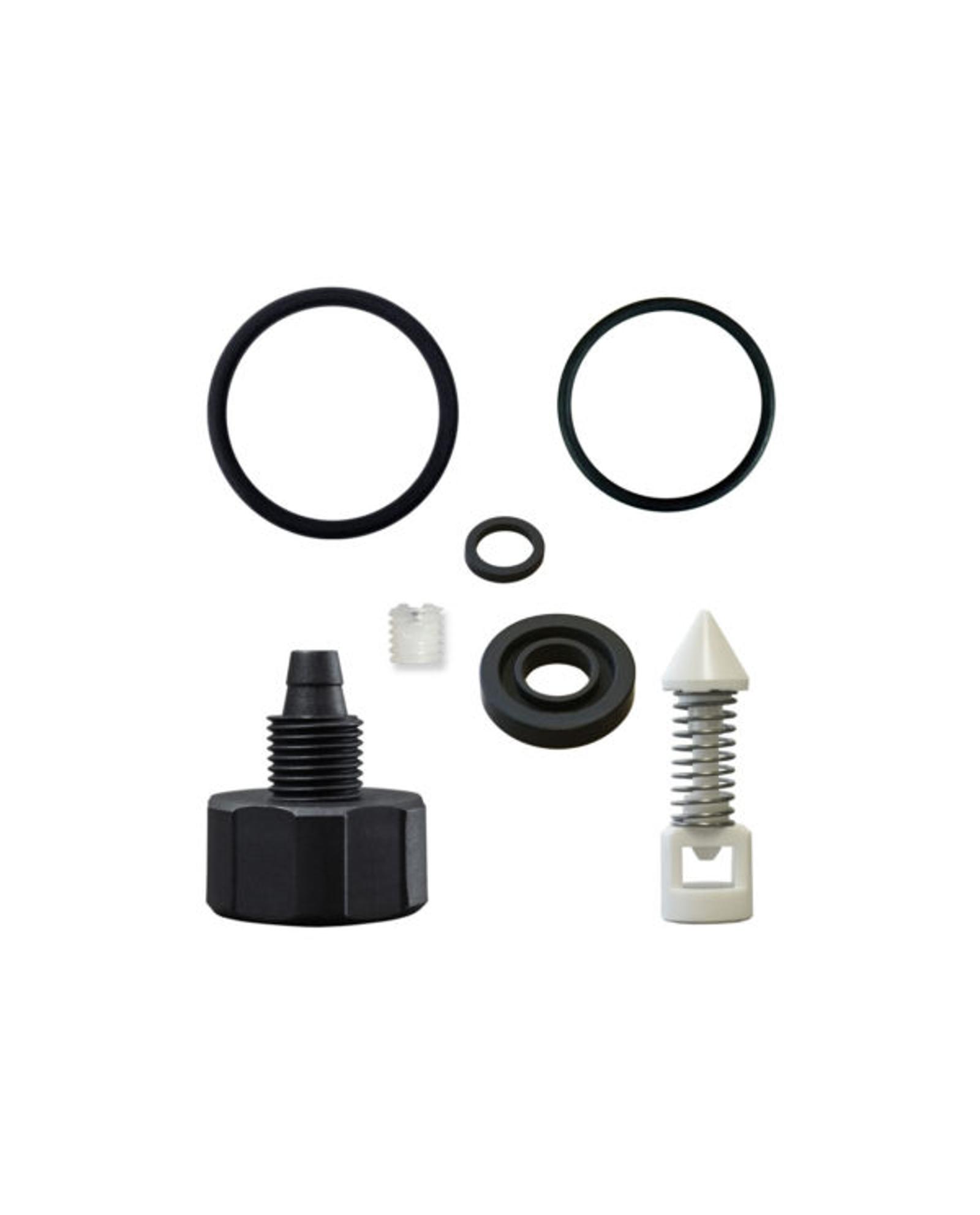

Seal Kit for the D07RE125
Injection seal kit for the D07RE125 - 3 GPM (For serial # over 05370953). Part #: PJDI106.
Specifications
- Kit Includes:
- Check valve barb
- Injection sleeve o-ring
- Check valve assembly
- Injection sleeve key
- Check valve seal
- Plunger seal
- Injection stem o-ring
