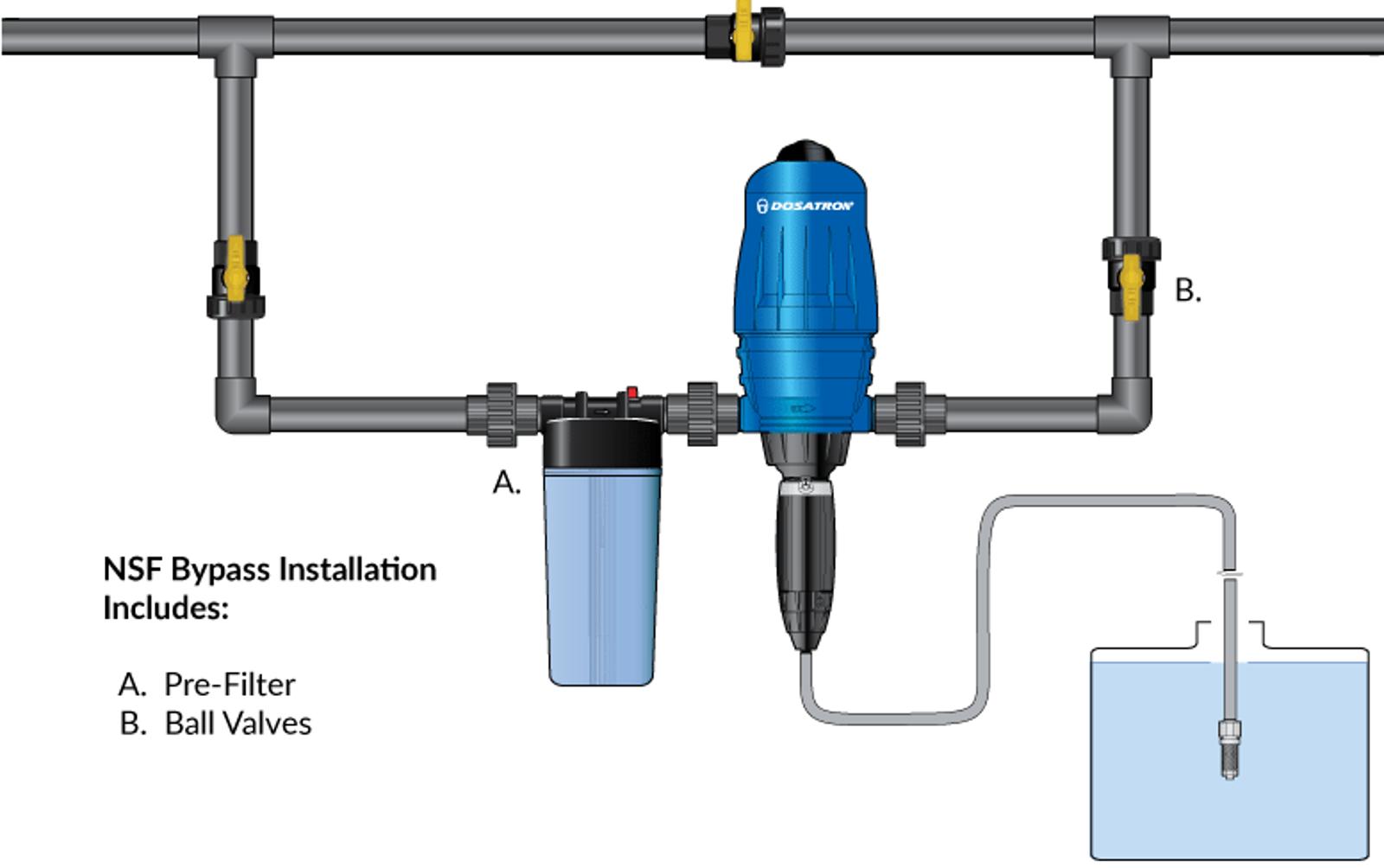

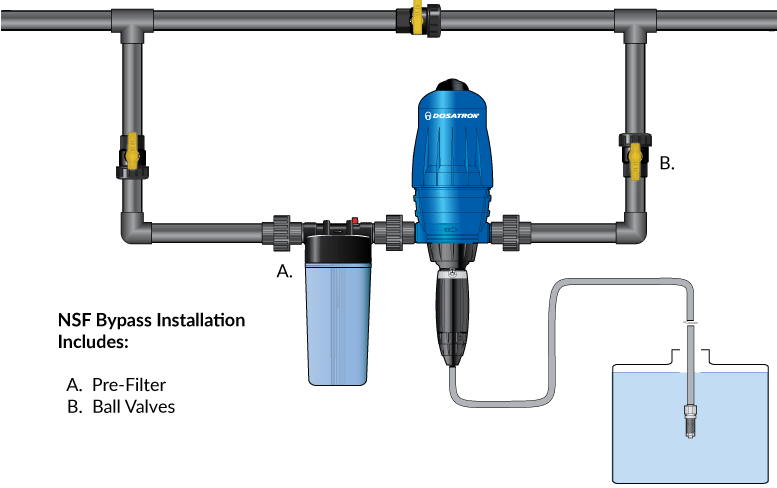

3/4 Bypass Installation NSF Recommended Installation
- Connection Size: 3/4" NPT
- Percentage Range: 0.2 to 2%
- Unit Weight: 6 lbs
- Ounces Per Gallon Range: 0.256 to 2.560
- Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
- Pressure: 4.3 to 85 PSI
- Dimensions: 19 1/8" x 6 5/16"
- Ratio Range: 1:500 to 1:50
Included Accessories: Mounting bracket, suction hose, bypass, union, weighted strainer, and quick start guide
D14 Spotlight
To load this content, approve your cookie preferences and allow the required cookies.

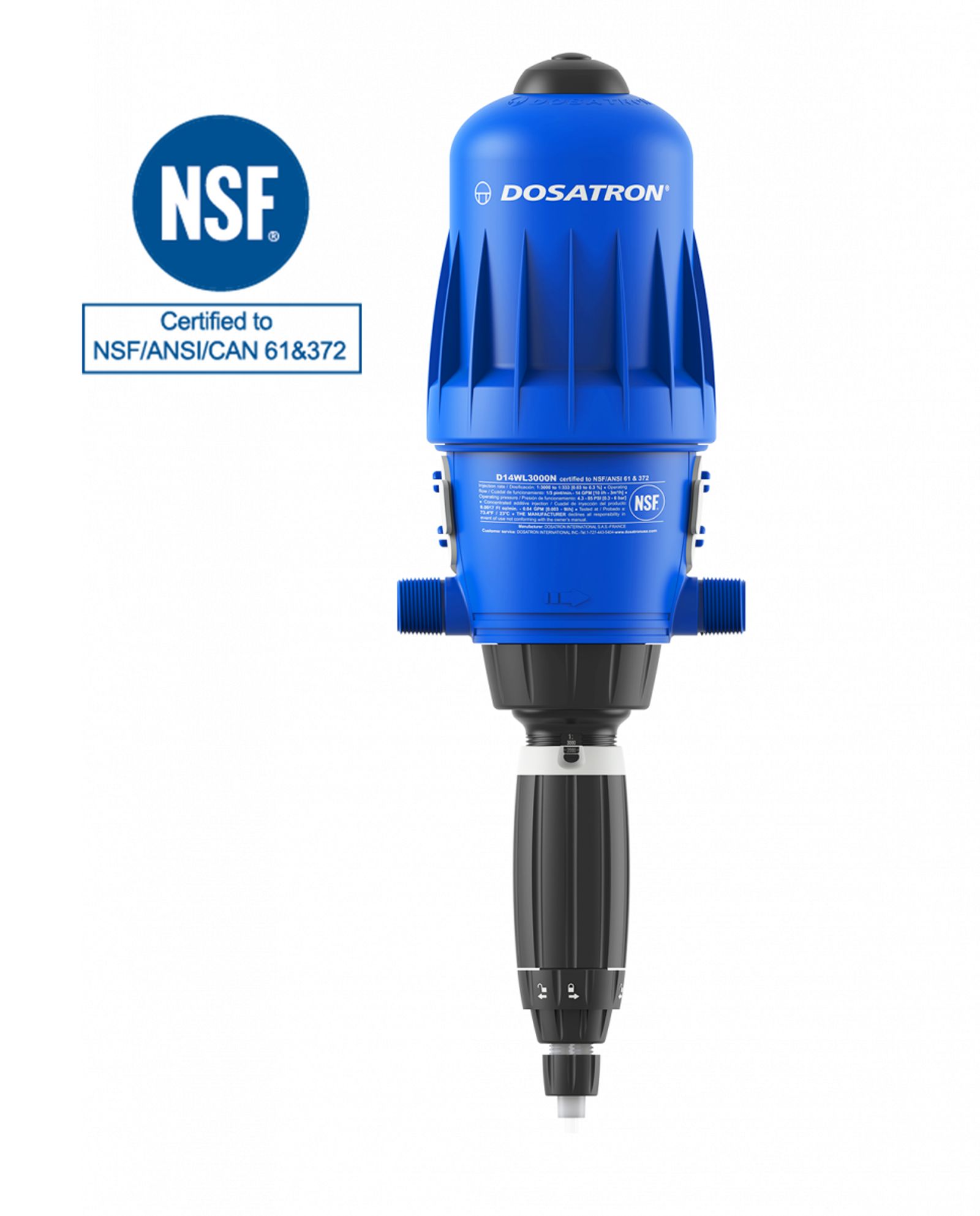

D14WL2NAFII – 14 GPM (Water Treatment)
Water-Powered Dosatron D14WL2NAFII injector NSF/ANSI/can 61&372 Certified. Applications include water potabilization, water disinfection, or water sanitation. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:500 to 1:50 (0.2% to 2%). Installation is easy with an Industrial Plumbing Kit # IPK34-14GPM. For a recommended yearly maintenance use Seal kit # PJDI116NAF. To extend the life of your Dosatron use Rebuild Kit # MKD14MZ2AF.
Specifications
- Special: Certified by NSF to NSF/ANSI 61 & 372 Standards
- Connection Size: 3/4" NPT
- Unit Weight: 6 lbs
- Dimensions: 19 1/8" x 6 5/16"
- Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
- Pressure: 4.3 to 85 PSI
- Ratio Range: 1:500 to 1:50
- Percentage Range: 0.2 to 2%
- Ounces Per Gallon Range: 0.256 to 2.560
- Included Accessories: 6' clear suction hose, weighted strainer, mounting bracket and quick start guide.

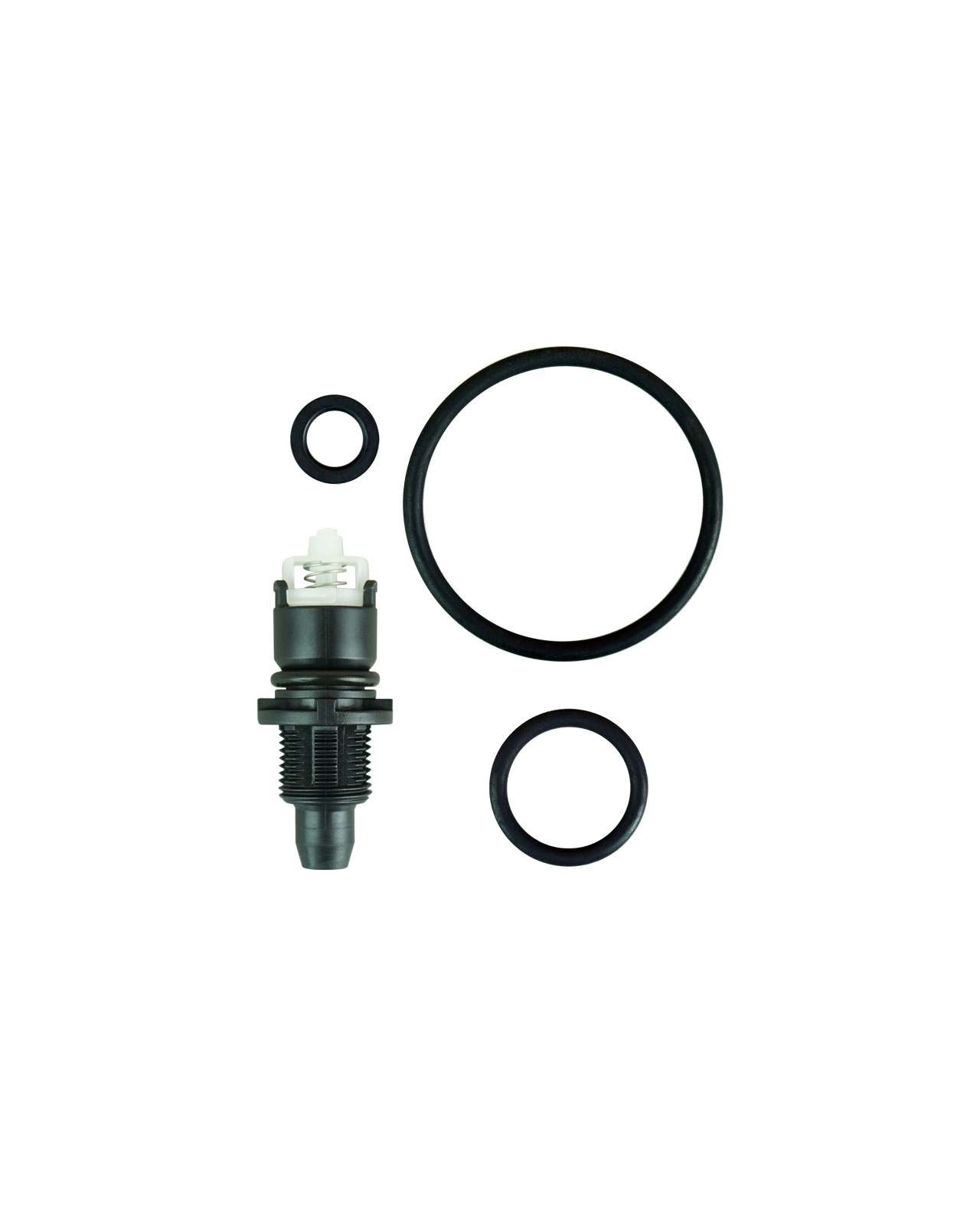

Seal Kit for the D14WL2NAF
Injection seal kit for the NSF/ANSI 61 & 372 Certified Dosatron D14WL2NAF - 14 GPM. Seal kit recommended for a yearly maintenance.
Specifications
Kit Includes:
- Injection sleeve o-ring
- Check valve assembly
- Injection stem o-ring
- Plunger seal
