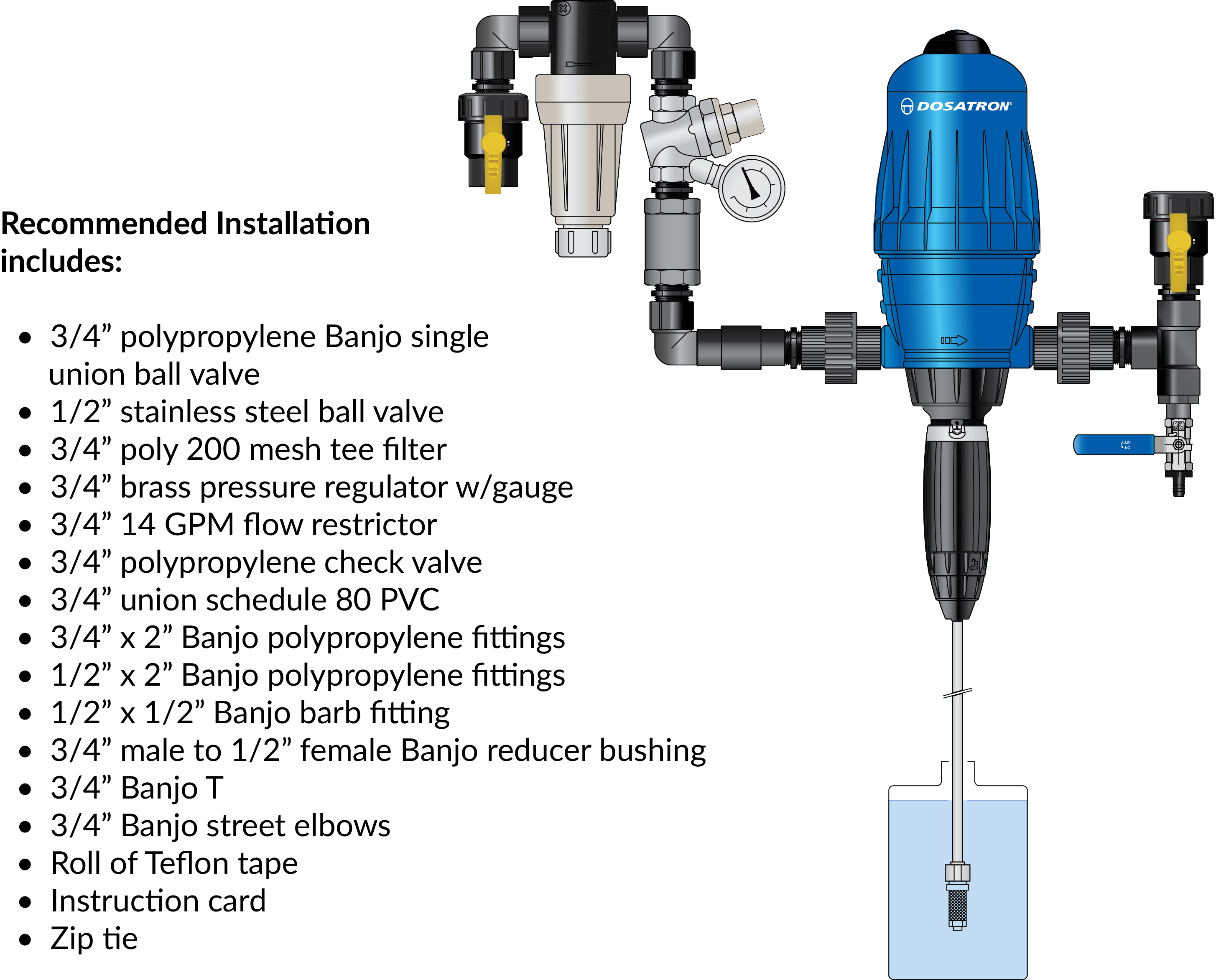

IPK34-14GPM Industrial Plumbing Kit. Recommended Installation
- Connection Size: 3/4" NPT
- Percentage Range: 0.5 to 5%
- Unit Weight: 6 lbs
- Ounces Per Gallon Range: 0.640 to 6.400
- Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
- Pressure: 4.3 to 85 PSI
- Dimensions: 19 1/8" x 6 5/16"
- Ratio Range: 1:200 to 1:20
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.
D14MZ5 Product Specifications
Open
D14MZ5 Schematics
Open
D14MZ5 Owner’s Manual
Open
D14MZ5 Quick Start Up Instructions
Open
D14MZ5 Seal Kit Instructions (PJDI120)
Open
D14MZ5 Seal Kit Instructions (PJDI120V)
Open
D14MZ5 Rebuild Kit Instructions
Open
D14MZ5 Piston Flange Kit
Open
D14MZ5 Industrial Plumbing Kit Specifications
Open
D14MZ5 Industrial Plumbing Kit Assembly Instructions
Open
D14MZ5 Industrial Plumbing Kit with Mixing Chamber Assembly Instructions
Open

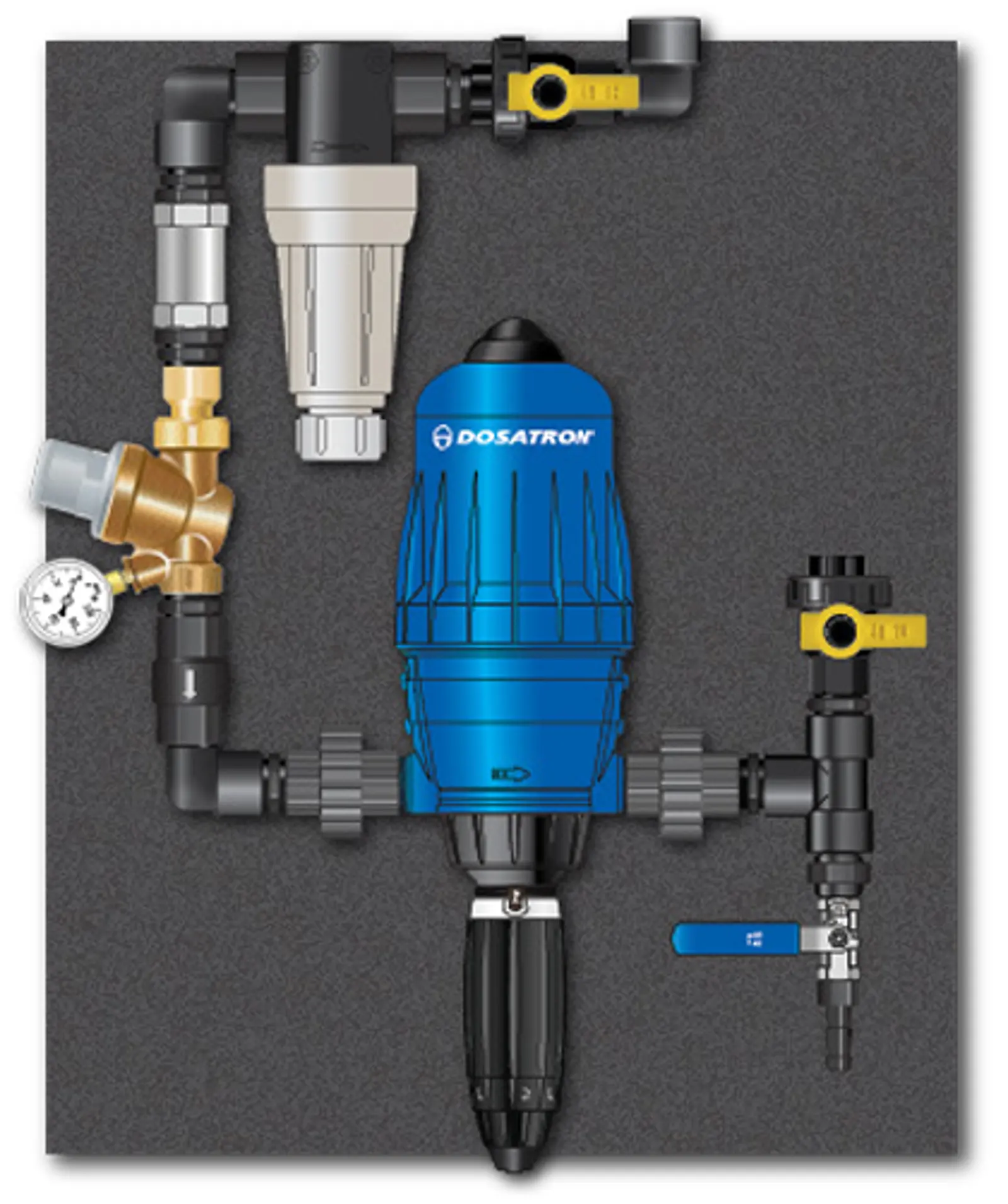

Single-unit panel system with D14MZ5. For food sanitation and metalworking applications
(Part numbers: PS1A141-BLEND, PS1A142-BLEND)

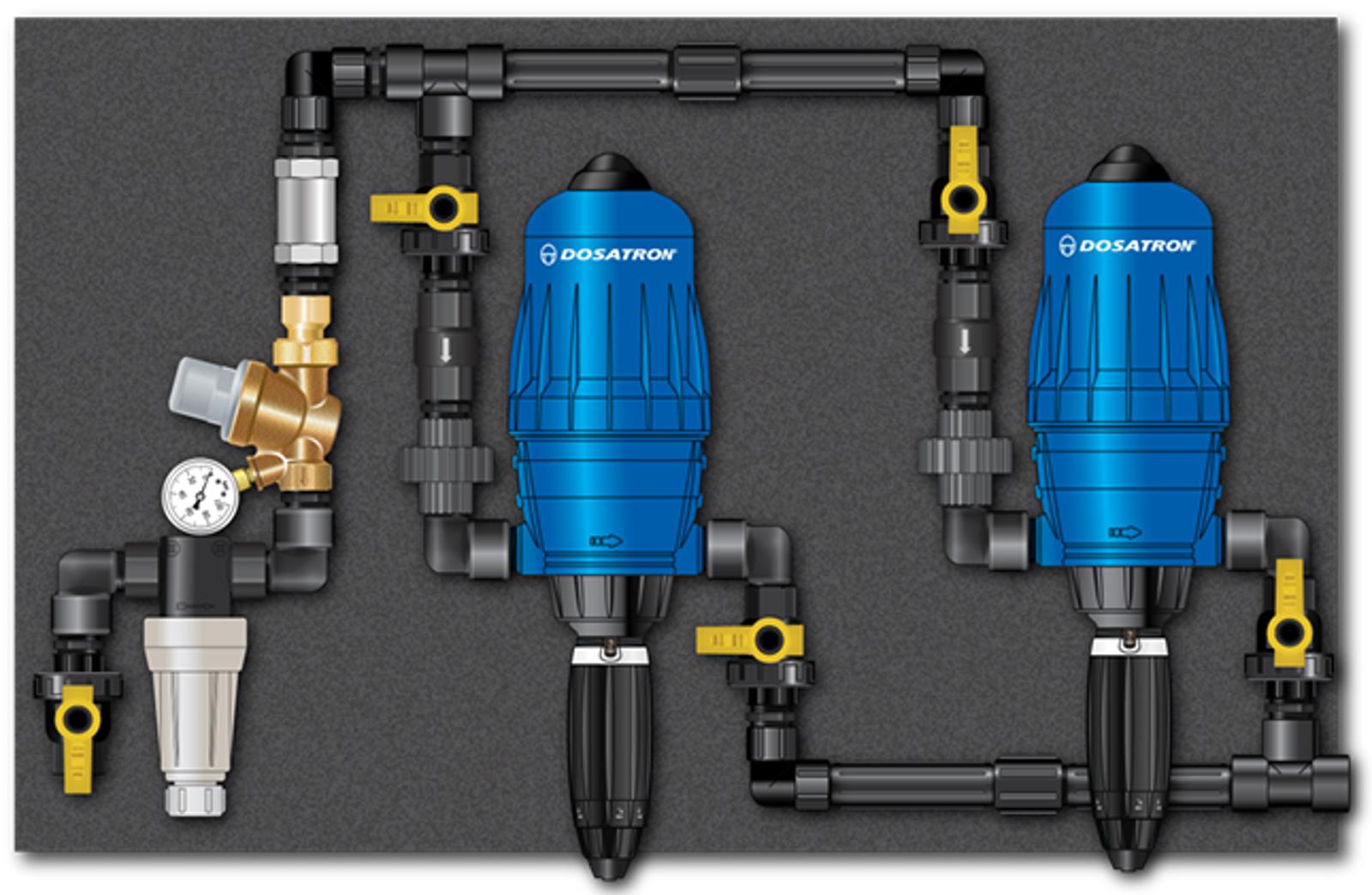

Fail safe unit panel system with two D14MZ5. For food sanitation applications
(Part numbers: PS4G141- 141-FAILSAFE, PS4G142-142-FAILSAFE)

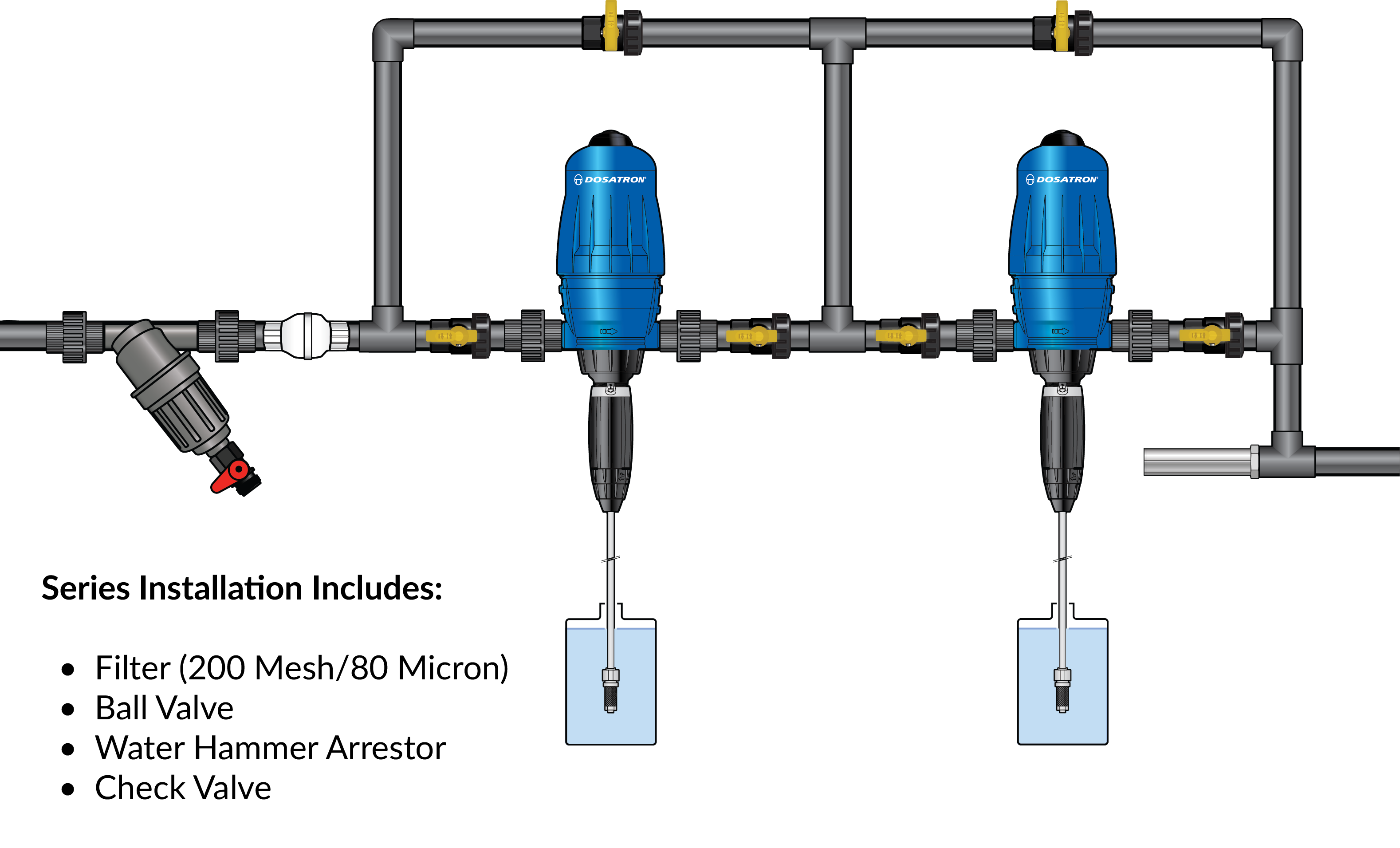

Dosatron D14 – 14 GPM series installation. Series Installation

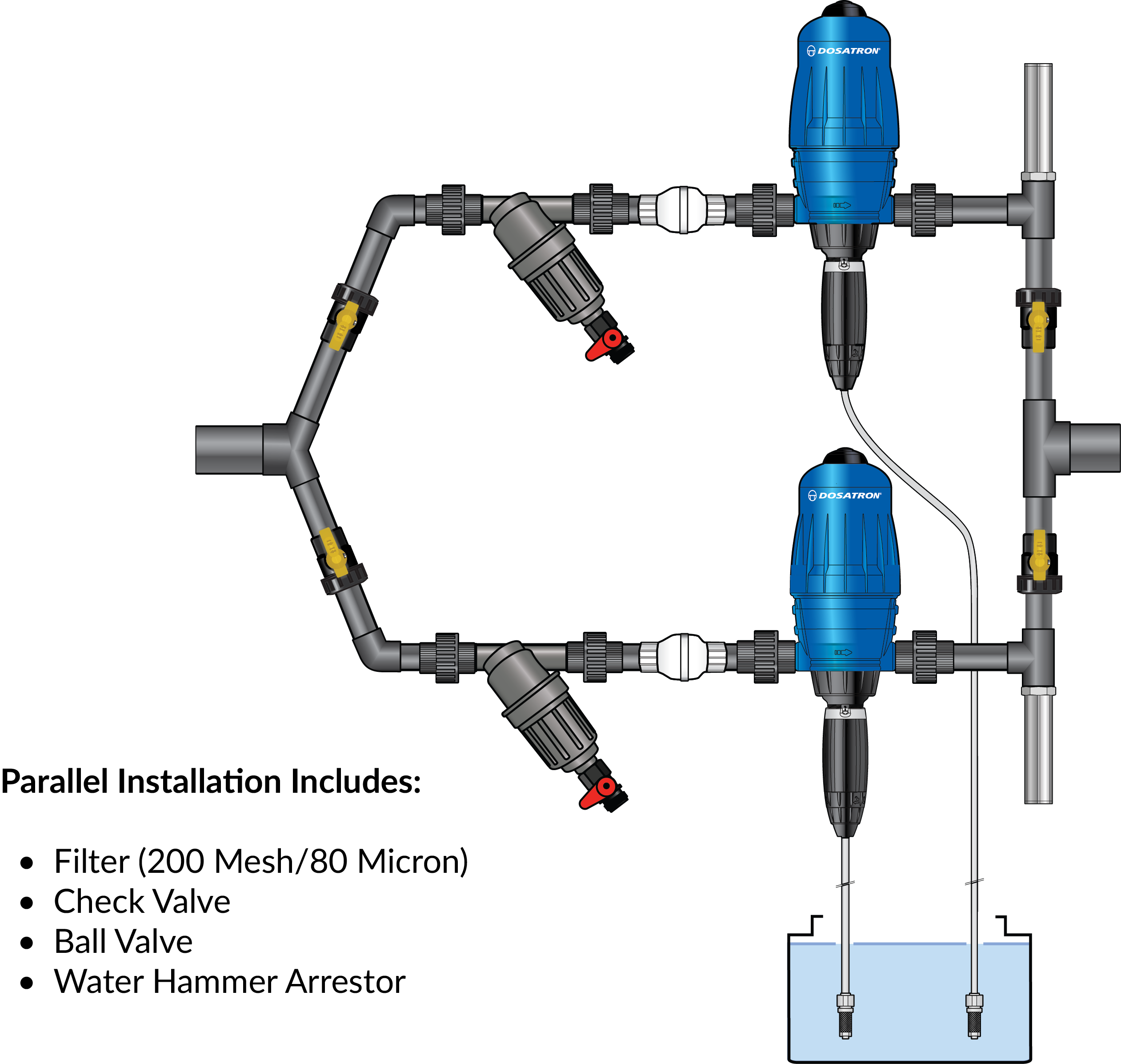

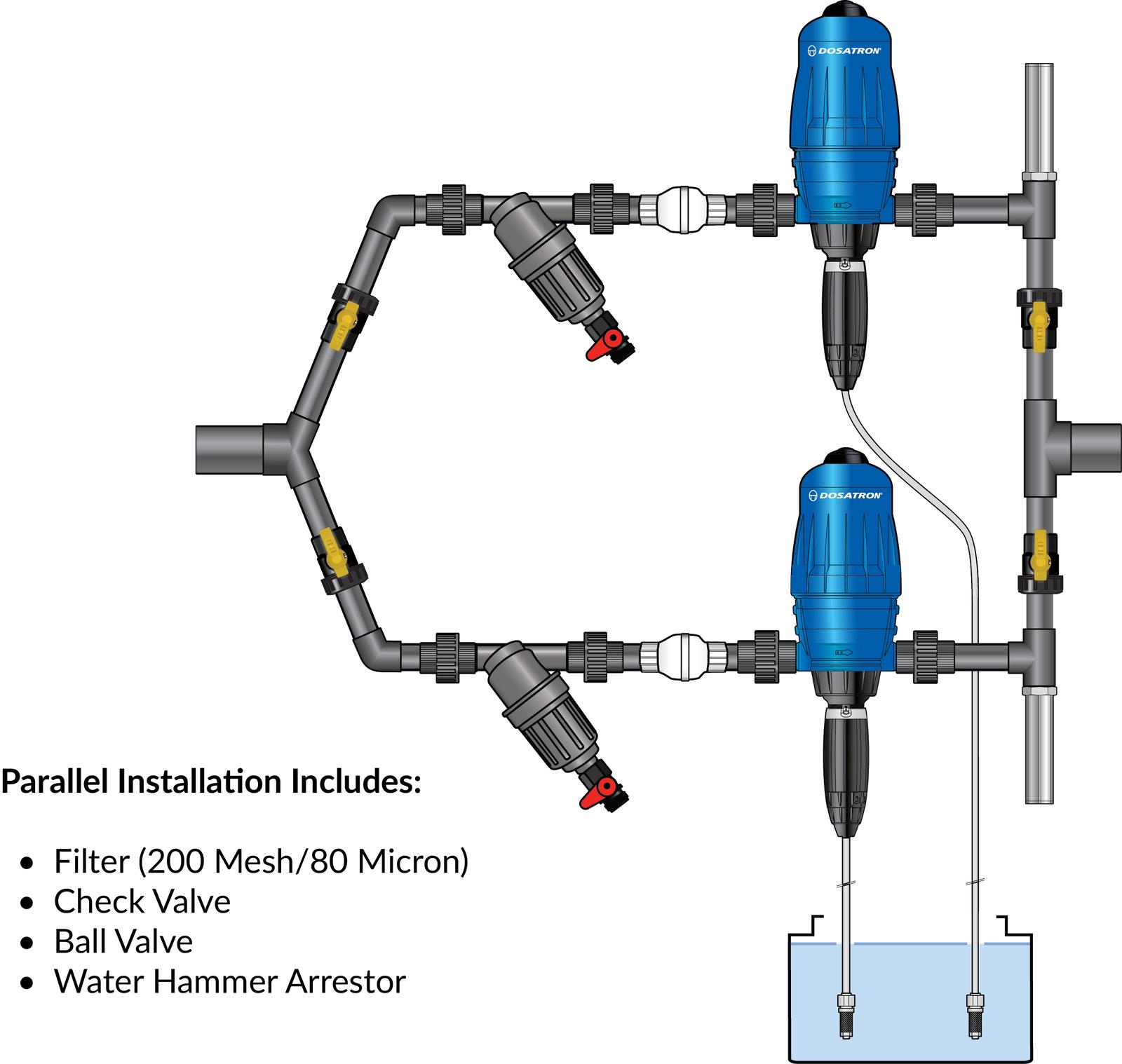

D14 – 14 GPM parallel installation. Parallel Installation
Dosatron D14MZ5 Service Video
To load this content, approve your cookie preferences and allow the required cookies.
Dosatron D14MZ5 Troubleshooting Video
To load this content, approve your cookie preferences and allow the required cookies.
D14 Piston Service Video
To load this content, approve your cookie preferences and allow the required cookies.
D14 Series Bypass Switch Installation
To load this content, approve your cookie preferences and allow the required cookies.
D14 Spotlight
To load this content, approve your cookie preferences and allow the required cookies.

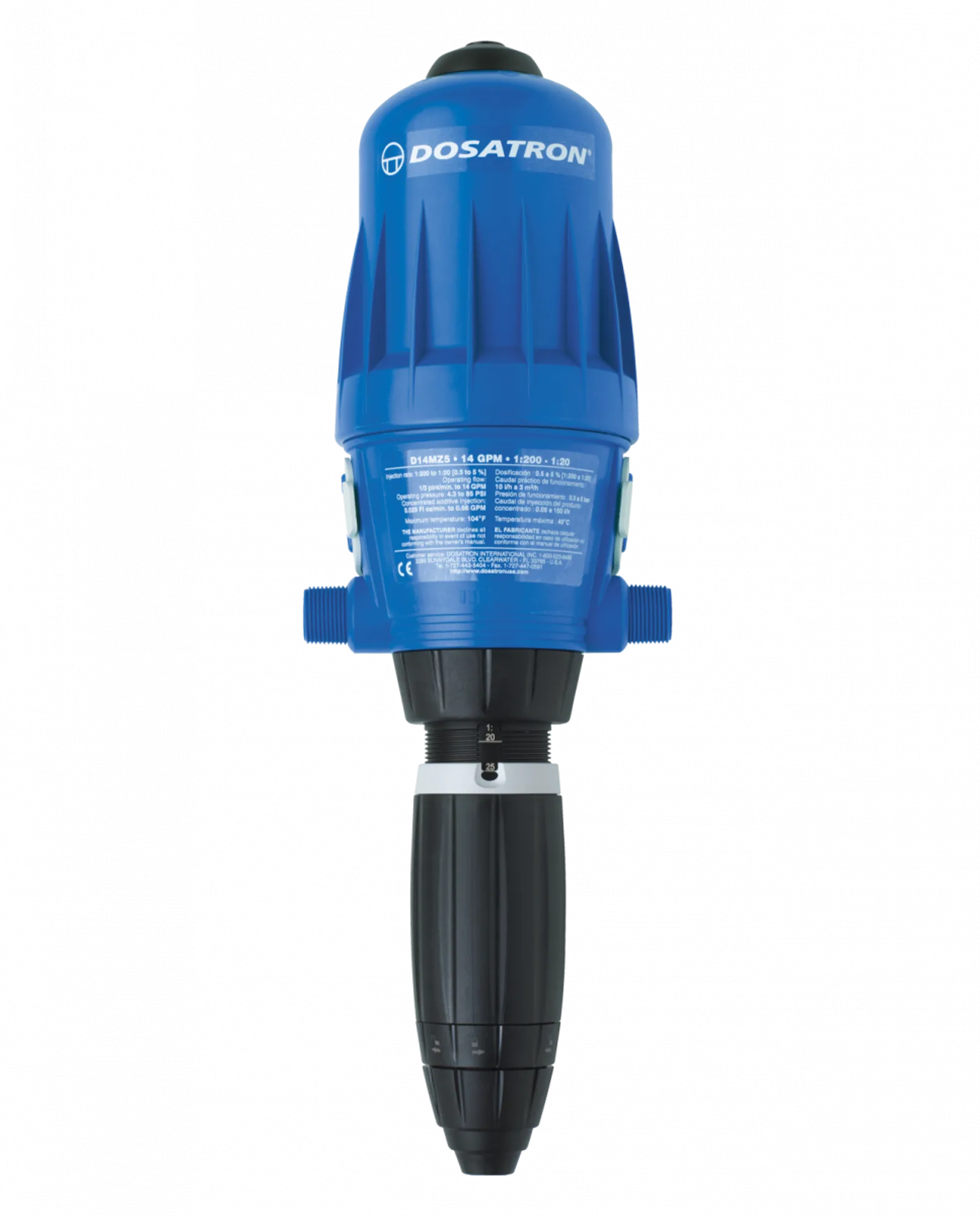

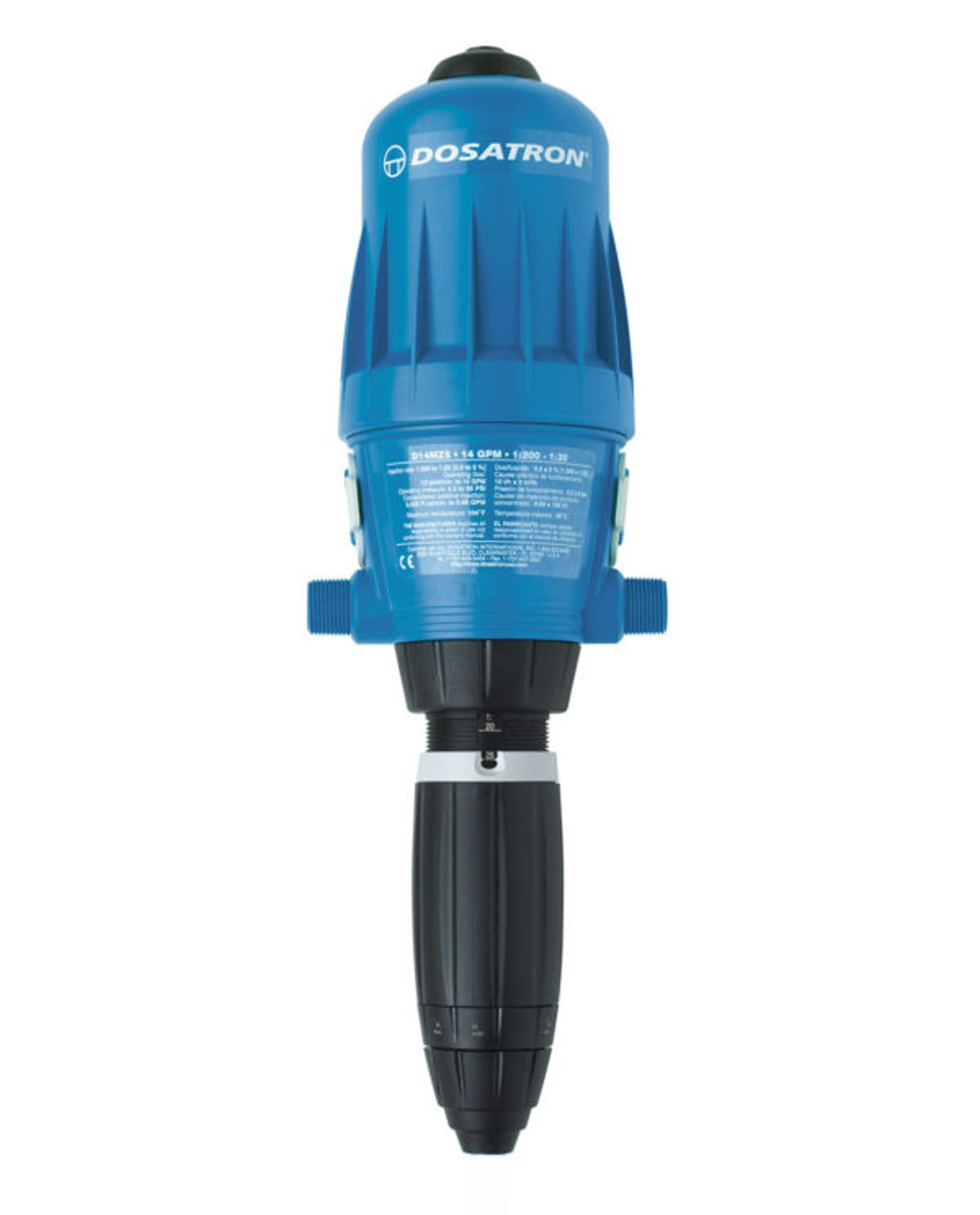

D14MZ5 – 14 GPM
Water-Powered Dosatron D14MZ5 - 14 GPM is used in irrigation and industrial applications. It has a flow range of 0.05 to 14 GPM and a dilution range of1:200 to 1:20 (0.5% to 5%). For industrial applications installation is easy with an Industrial Plumbing Kit # IPK34-14GPM.
Specifications
- Connection Size: 3/4" NPT
- Unit Weight: 6 lbs
- >Dimensions: 19 1/8" x 6 5/16"
- >Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
- Pressure: 4.3 to 85 PSI
- Ratio Range: 1:200 to 1:20
- Percentage Range: 0.5 to 5%
- Ounces Per Gallon Range: 0.640 to 6.400
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

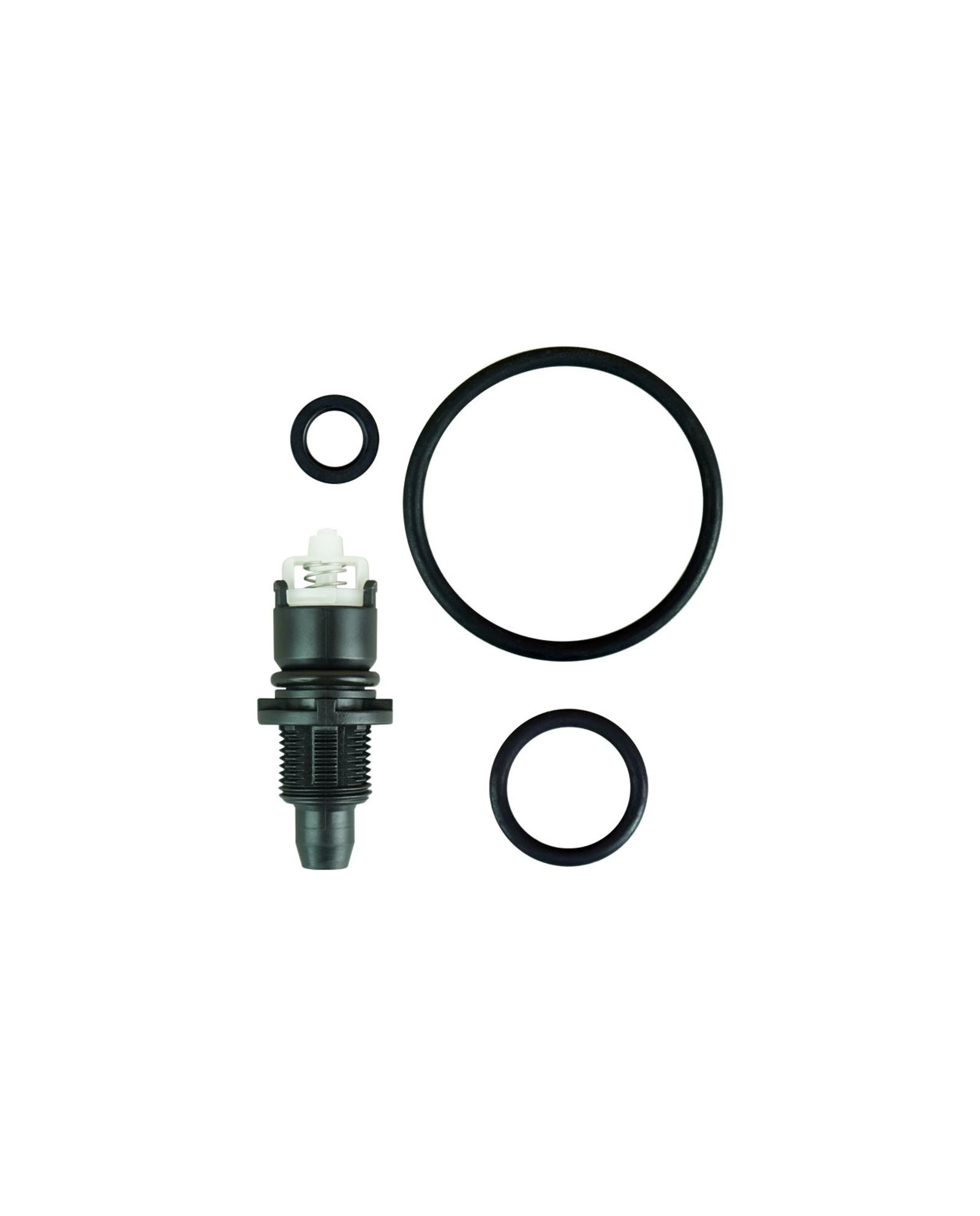

Seal Kit for D14MZ5/D14TMZ5
Injection seal kit for the Dosatrons D14MZ5 - 14 GPM, and D40MZ2-40 GPM.
Specifications
Kit Includes:
- Injection sleeve o-ring
- Check valve assembly
- Injection stem o-ring
- Plunger seal
Piston Flange Kit for D14 Series
Piston Flange Rebuild kit for the Dosatron D14 Series, part #: PPDI034
Specifications
Features: PDI651 - Omega Spring, PDI649 - Connecting Rod, PDI648 - Push Rod Seal, PDI643 - Upper Flange, PDI644 - Lower Flange, instruction booklet
Rebuild Kit for the D14MZ5
Extend the life of your Dosatron D14MZ5 - 14GPM with our Rebuild Kit.
Specifications
Features:
- Two Parts - Part 1: Piston Kit Contents - Part 2: Seal Kit Contents
- Complete, detailed instructions
