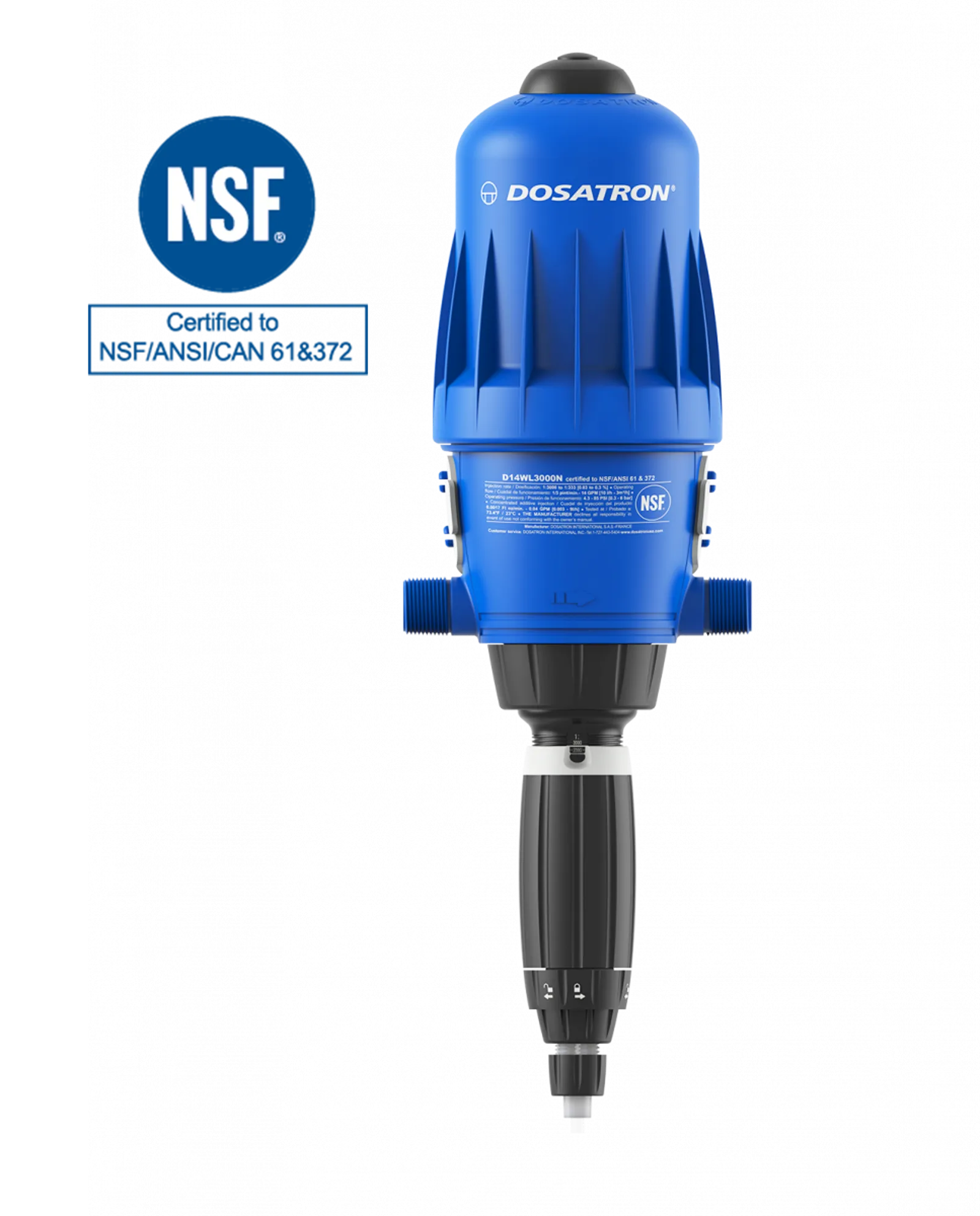

D14WL3000NAF: Low-Flow NSF Certified Chlorinator

  • Connection Size: 3/4" NPT
  • Percentage Range: 0.03% to 0.3%
  • Unit Weight: 6 lbs
  • Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
  • Pressure: 4.3 to 85 PSI
  • Dimensions: 21" X 6 5/16"
  • Ratio Range: 1:3000 to 1:333

Included Accessories: 6' clear suction hose, weighted strainer, mounting bracket and quick start guide.

Key Specifications

Weight

6

lbs

Water Flow Range

0.05 - 14

GPM

Operating Pressure Range

4.3 - 85

PSI

Maximum Temperature

104

°F

The D14WL3000NAF is specifically engineered for low-flow water treatment applications where precise chemical injection is critical for maintaining water quality and safety. Using Dosatron's water-powered dosing technology, it injects treatment chemicals at ratios from 1:3000 to 1:333 (0.03% to 0.3%), automatically adjusting dosing in proportion to water flow to ensure a consistent concentration at all times. Certified to NSF/ANSI/CAN 61 and 372 standards, the unit is well suited for water potabilization, disinfection, and sanitation applications where compliance and dosing accuracy are essential. By delivering reliable, proportional injection without electricity, the D14WL3000NAF helps improve treatment consistency, reduce chemical waste, and simplify water treatment operations.

Pressure loss
Viscosity limits

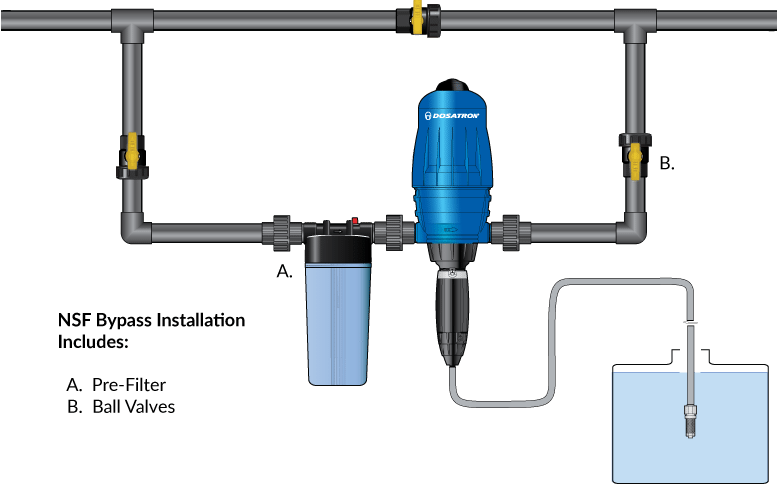

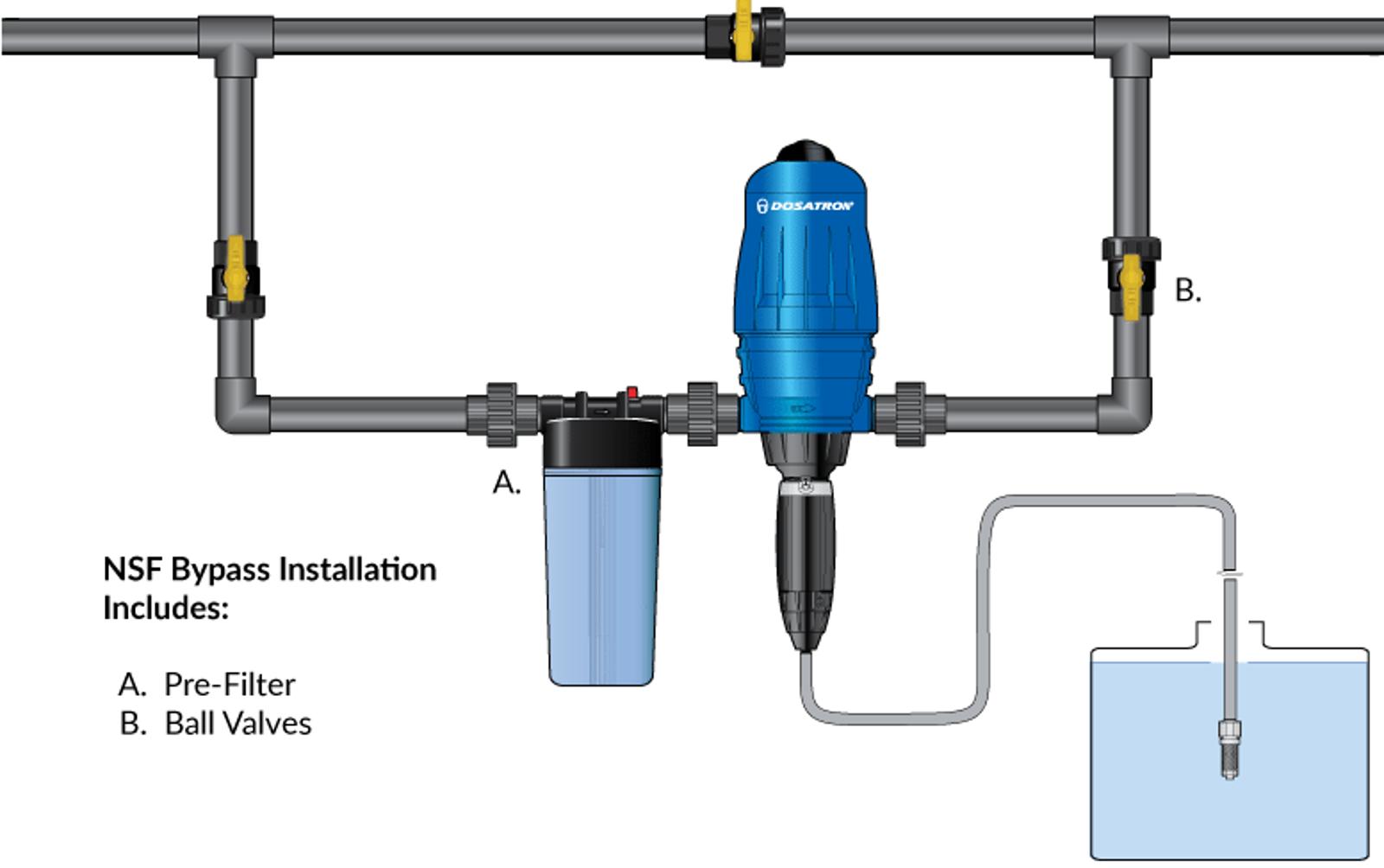

For dependable performance, the D14WL3000NAF should be installed on a dedicated treatment line or bypass assembly designed for drinking water and sanitation applications. Proper filtration upstream of the injector helps prevent debris from affecting dosing accuracy, while isolation valves make routine maintenance easier and minimize system downtime. Because the unit is commonly used in potable water treatment systems, appropriate backflow prevention measures are strongly recommended to protect the water supply. Positioning the chemical storage container close to the injector and minimizing suction distance promotes stable chemical uptake and consistent dosing performance. A properly designed installation helps ensure accurate treatment, regulatory compliance, and long-term reliability in water disinfection and chlorination applications.



Every application is different. Flow rates, water quality, chemical compatibility, and installation requirements all impact the best injector configuration.

Contact a Dosatron expert today to determine the ideal setup for your application.

Find your maintenance kit in seconds — just check how long your pump has been in service.



Time in service

Recommended kit

Why

Buy Now

Under 6 months

Mini Maintenance Kit

Quick refresh of the wear parts that go first — keeps dosing accuracy on spec.

Click here

6 months – 2 years

Seal Kit

Replaces the seals and O-rings before leaks and dosing drift start.

Click here

Over 2 years

Rebuild Kit

A full internal overhaul — restores your pump to factory performance.

Click here

Over 5 years

Talk to our team

At this stage the motor piston typically needs replacing. We'll confirm the right solution for your unit.

Contact Us

Need a single replacement part instead of a full kit?

Contact our team with your model and application. We'll help you identify and source the exact component you need.
