- Injection range 0,2 - 2 % [1:500 - 1:50]
- Water flow range 10 l/h - 2,5 m3/h
- Operating water pressure 0,3 - 6 bar
- Concentrated additive injection 0,02 - 50 l/h
- Stroke volume ~ 0,45 l
- Connections NPT-BSP 20x27 - 3/4"M

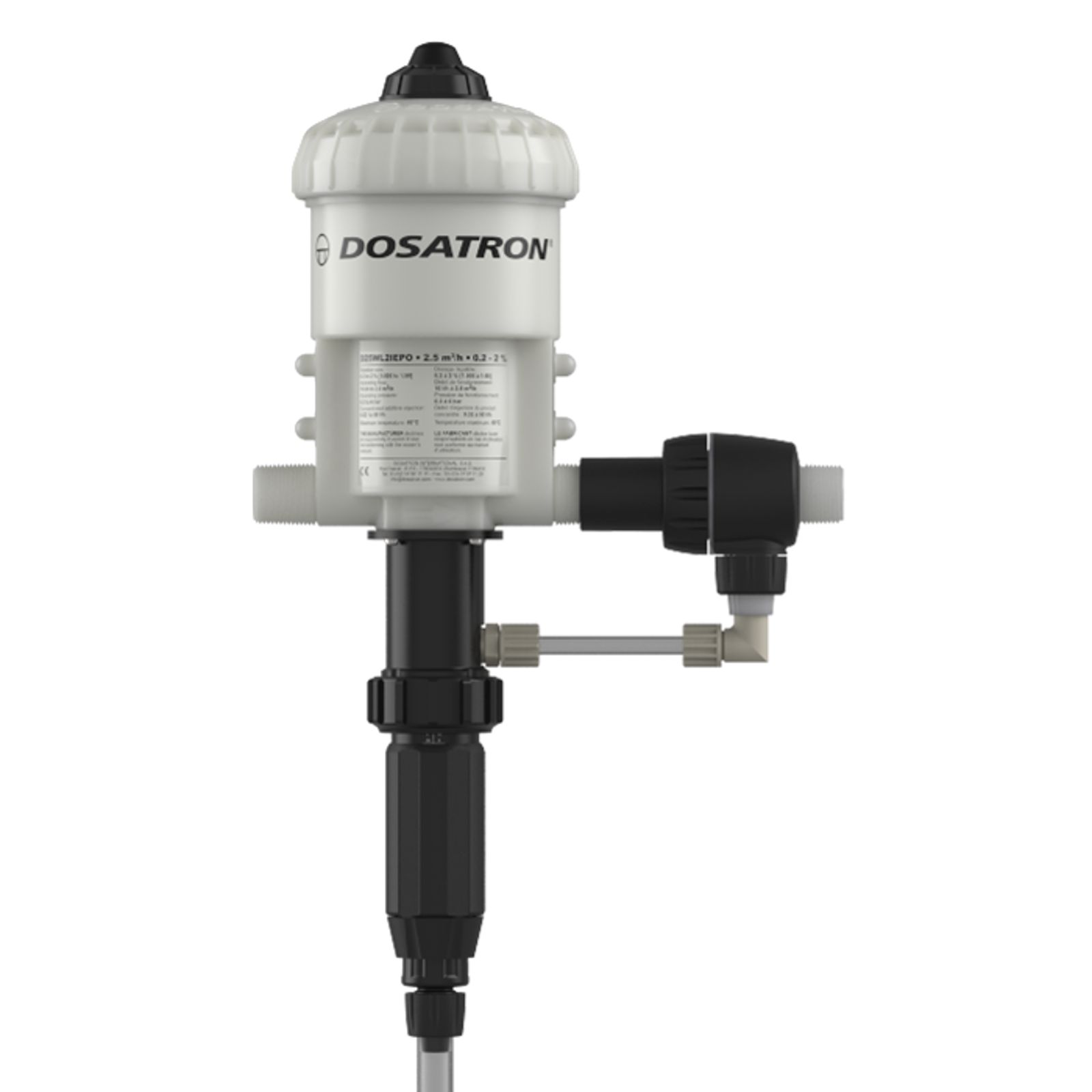

Polymer injection system
The D25WL2 IE PO PVDF dispenser is an efficient and attractive solution for in-line polymer dosing, thanks to standard equipment adapted to viscous products and external injection.
- Proportional dosing and without electricity
- Proportionality dependent on water flow
- Pump casing and motor housing made of PVDF
- Seals for additives up to pH 9
- External Injection
- Kit for viscous additives recommended for more than 200 or 400 cPs (depending on model)
- PVDF housing for highly concentrated acids and other aggressive concentrates
- Dynamic Mixer
