- Seals for acidic additives : VF (FKM)
- Seals for alkaline additives : AF

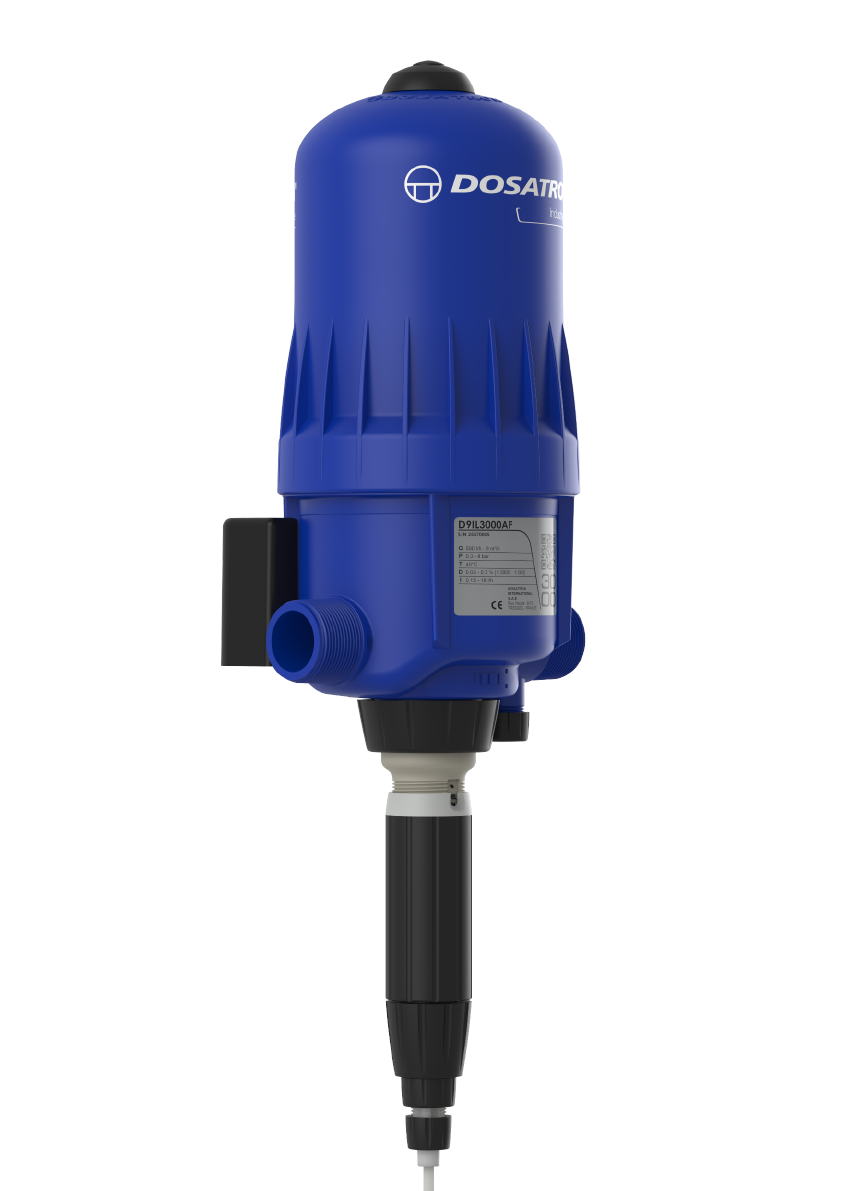

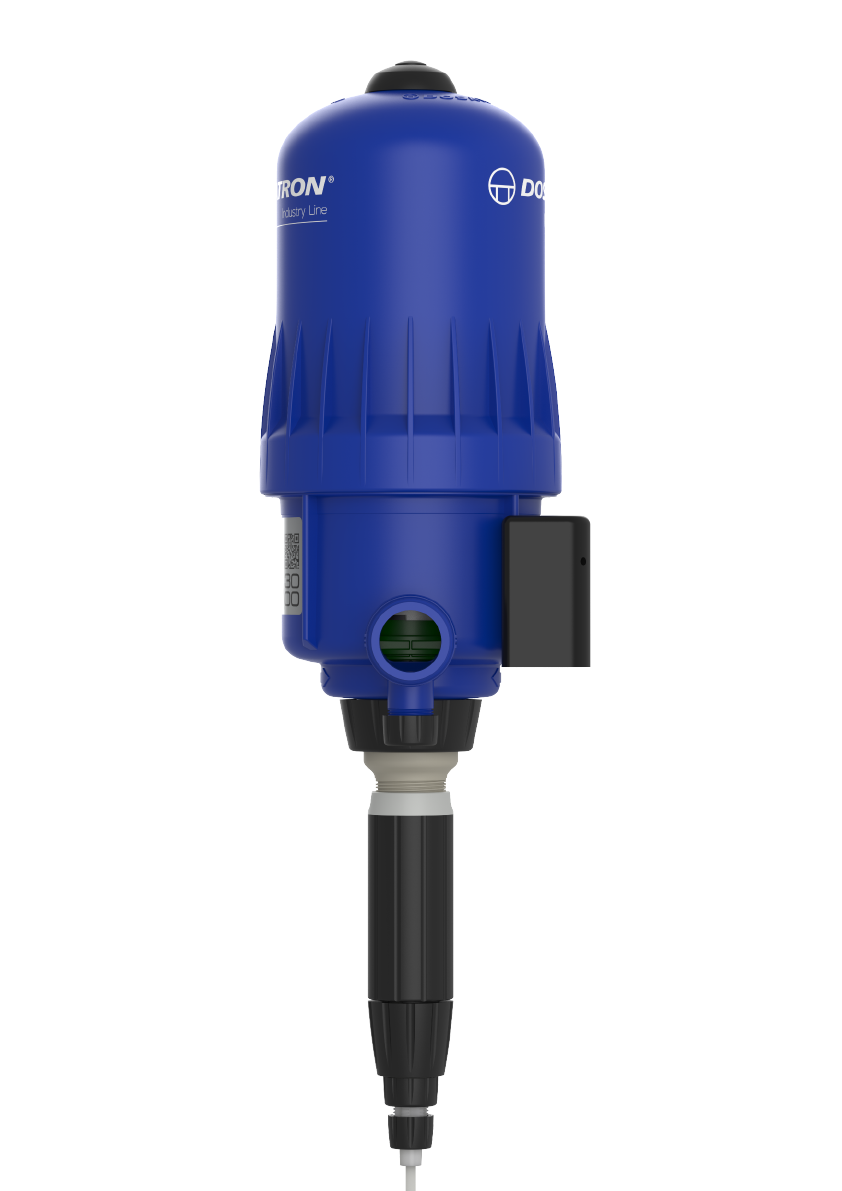

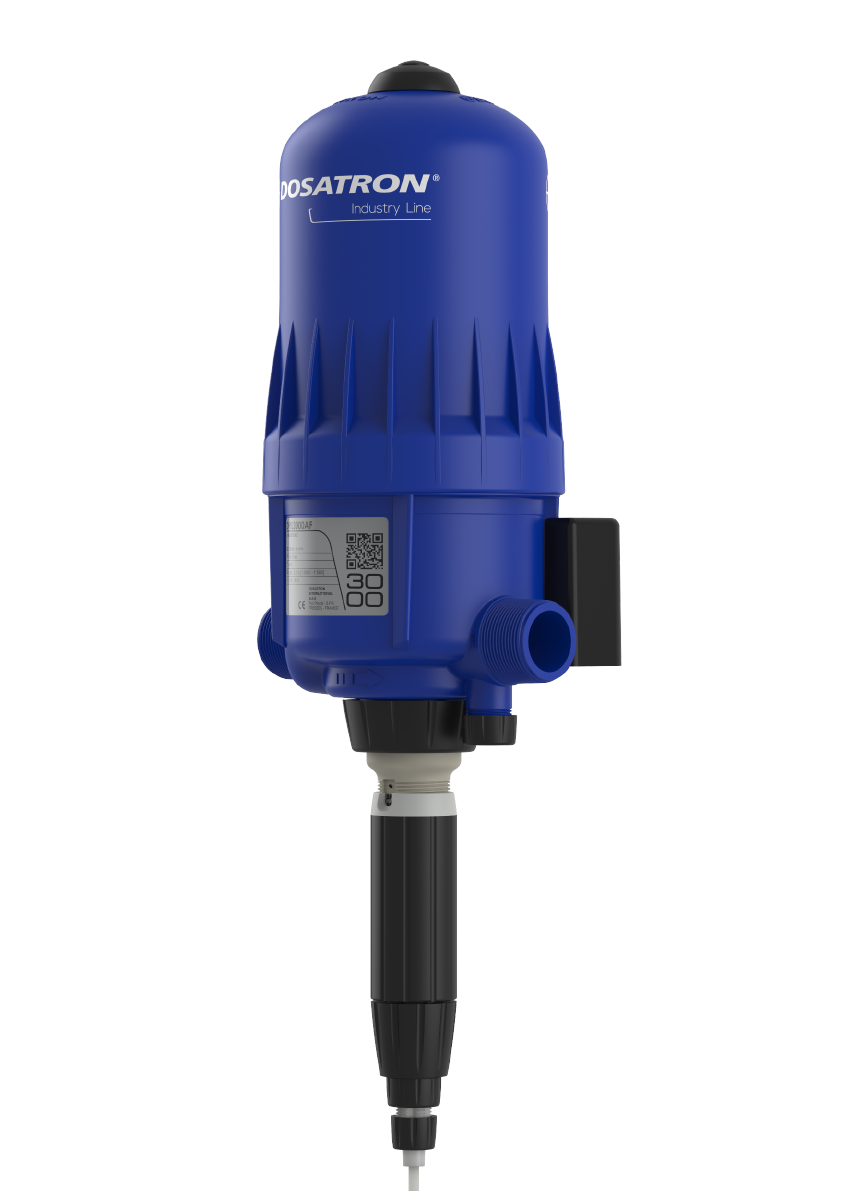

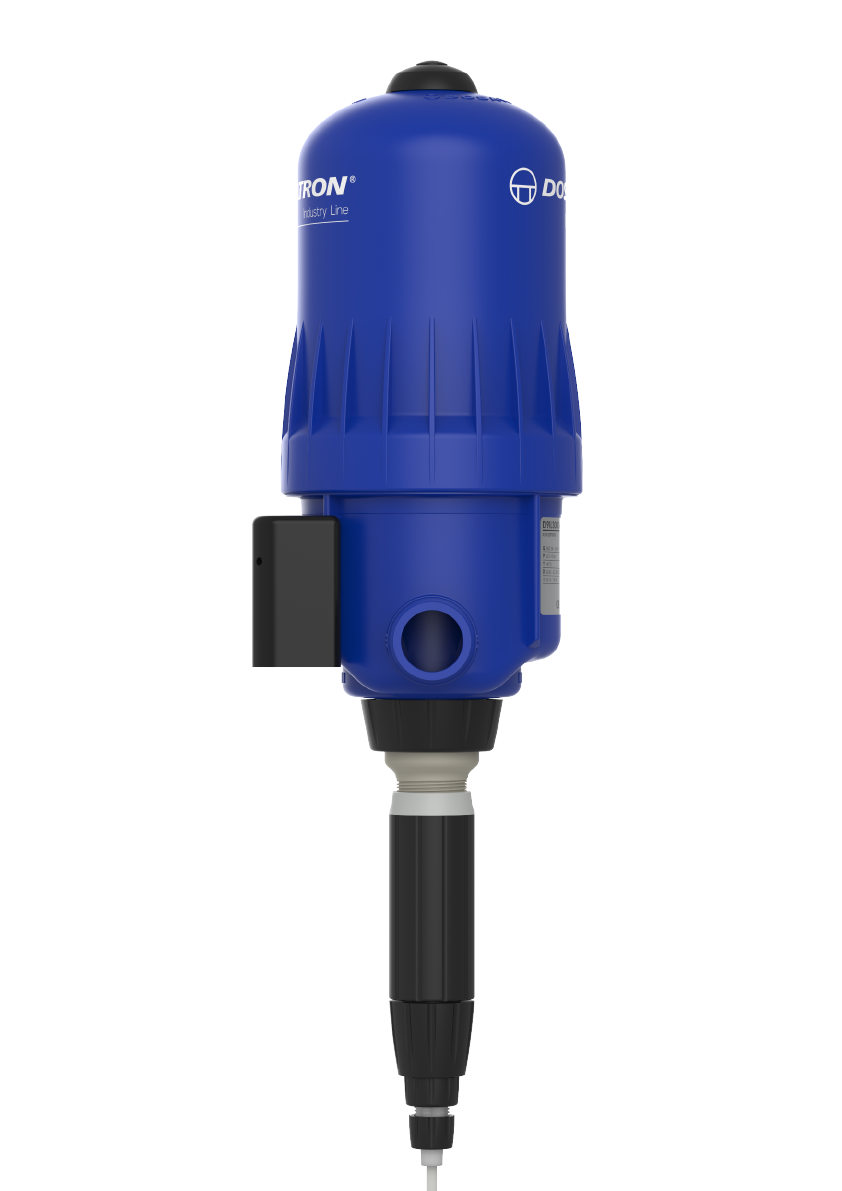

The proportional dosing solution for centralized industrial applications at low dosage
Specifications:
Injection range 0,03 - 0,2 % [1:3000 - 1:500]
Water flow range 500 l/h- 9 m3/h
Operating water pressure 0,15 - 8 bar
Concentrated additive injection 0,15 - 18 l/h
Stroke volume ~ 1,7 l
Connections NPT-BSP 1''1/2 M Ø 40x49mm
Hose PTFE Ø 4x6 mm- Lg 1,75m
- (Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)
- (Integrated by-pass) system for automatic activation of the additive suction (on) and stop (off)
