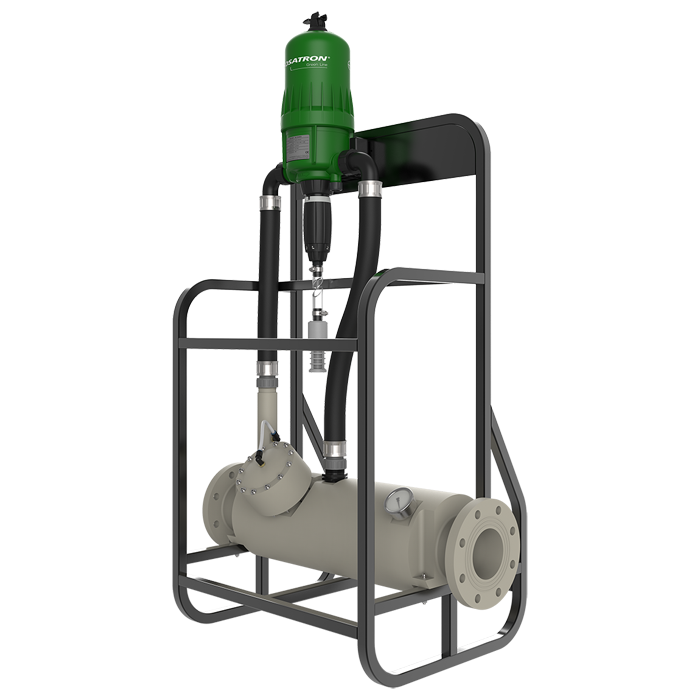

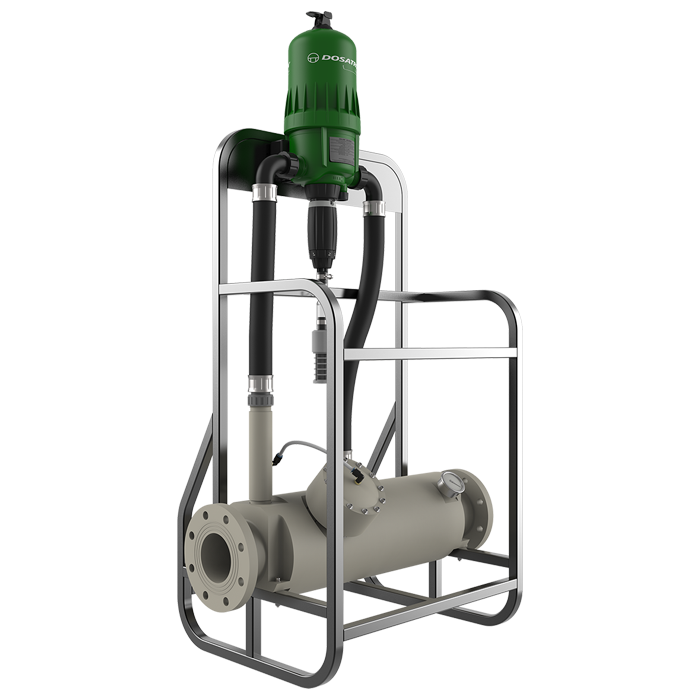

MEGAFLOW
The mobile solution for high flow applications
Specific features
- Favours a homogeneous and qualitative production for controlled yields.
- Compatible with 100% of soluble, liquid, conventional and organic fertigation products.
- Fast installation and start-up without any further equipment.
- Robust and long-lasting material.
- Lifetime enhanced by simple and economical maintenance.
- Injection range 0,1 – 0,5 % [1:1000 – 1:200]
- Water flow range 25 - 90 m3/h
- Operating water pressure 0,5 - 8 bar
- Concentrated additive injection 25 - 450 l/h
- Stroke volume ~ 1,70 l
- Connections Flanges DN 100 DIN ASME
- Hose PVC Ø 20x27mm - Lg 4m
- Seals for additives up to pH 9
- (Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)
