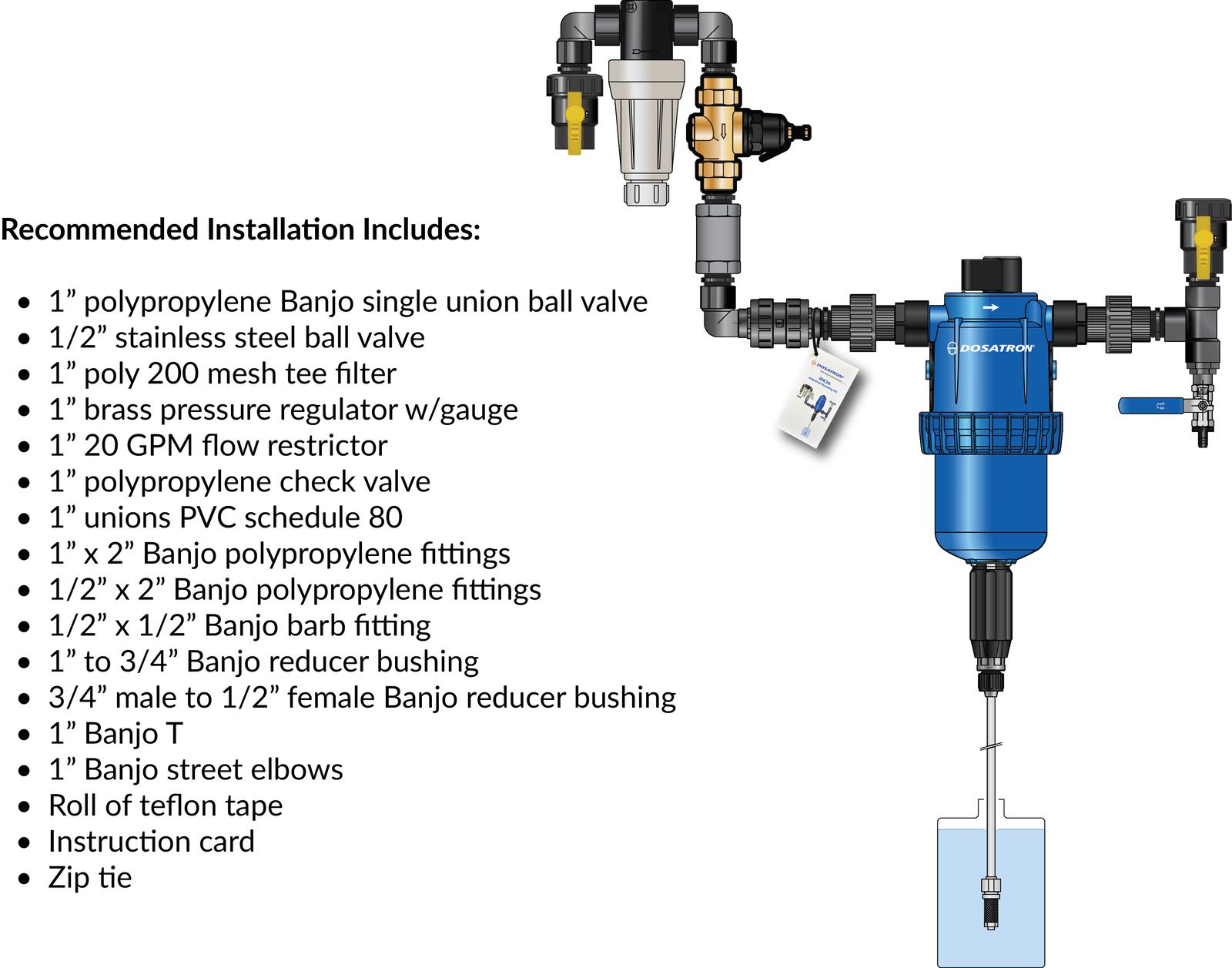

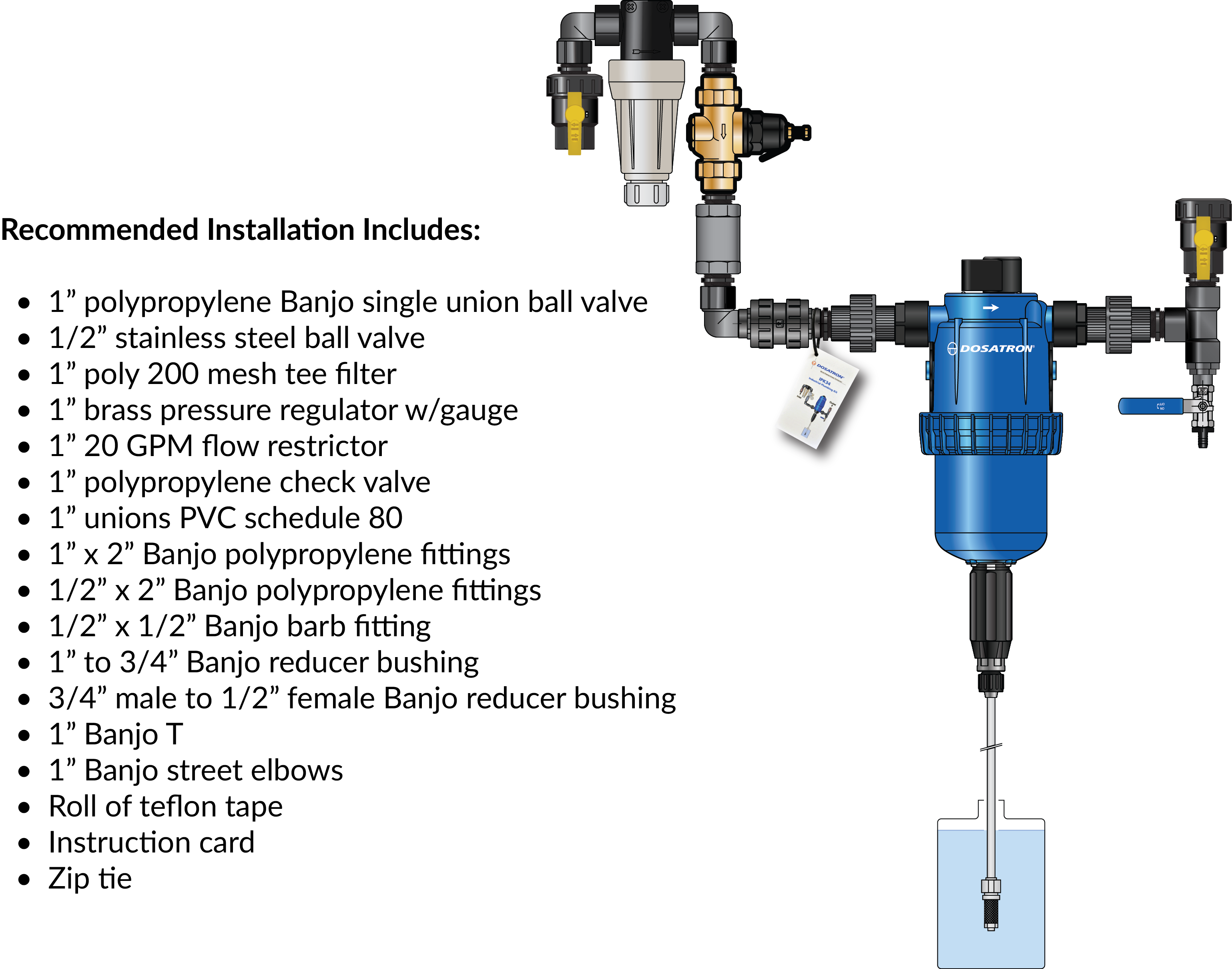

Recommended Installation
IPK34-20GPM – D45RE Series Industrial Plumbing Kit
- Connection Size: 1" NPT
- Percentage Range: 3 to 8%
- Unit Weight: 8 lbs
- Ounces Per Gallon Range: 3.879 to 12.800
- Flow: 0.4 to 20 GPM (1.51 to 76 LPM)
- Pressure: 7 to 70 PSI
- Dimensions: 24" x 7 1/2"
- Ratio Range: 1:33 to 1:12
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

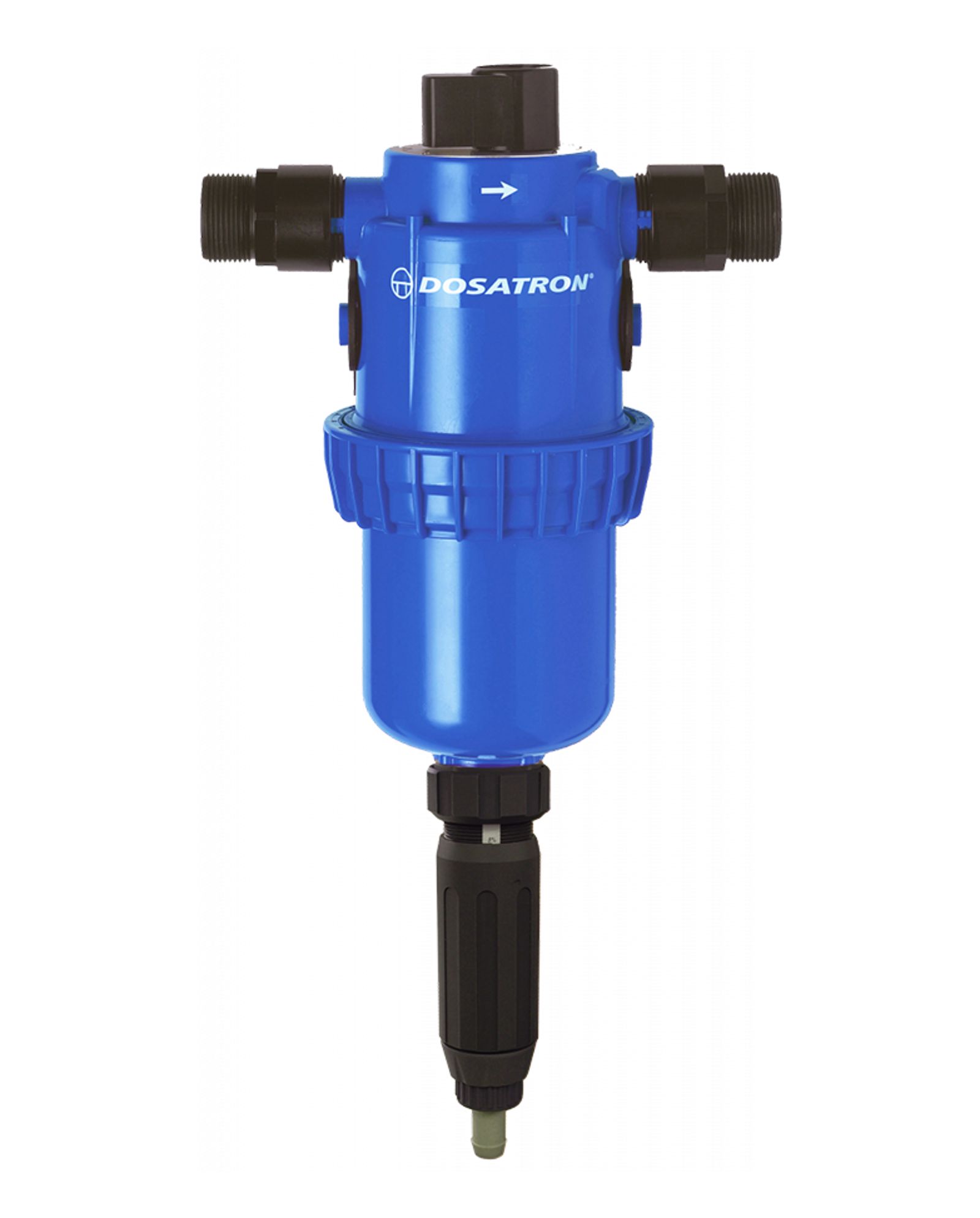

D45RE8 – 20 GPM
Water-Powered Dosatron D45RE8AFII - 20 GPM with dosing seals for industrial applications. It has a flow range 0.4 to 20 GPM and a dilution range of 1:33 to 1:12 (3% to 8%). Installation is easy with an Industrial Plumbing Kit # IPK100-20GPM.
Specifications
- Connection Size: 1" NPT
- Unit Weight: 8 lbs
- Dimensions: 24" x 7 1/2"
- Flow: 0.4 to 20 GPM (1.51 to 76 LPM)
- Pressure: 7 to 70 PSI
- Ratio Range: 1:33 to 1:12
- Percentage Range: 3 to 8%
- Ounces Per Gallon Range: 3.879 to 12.800
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

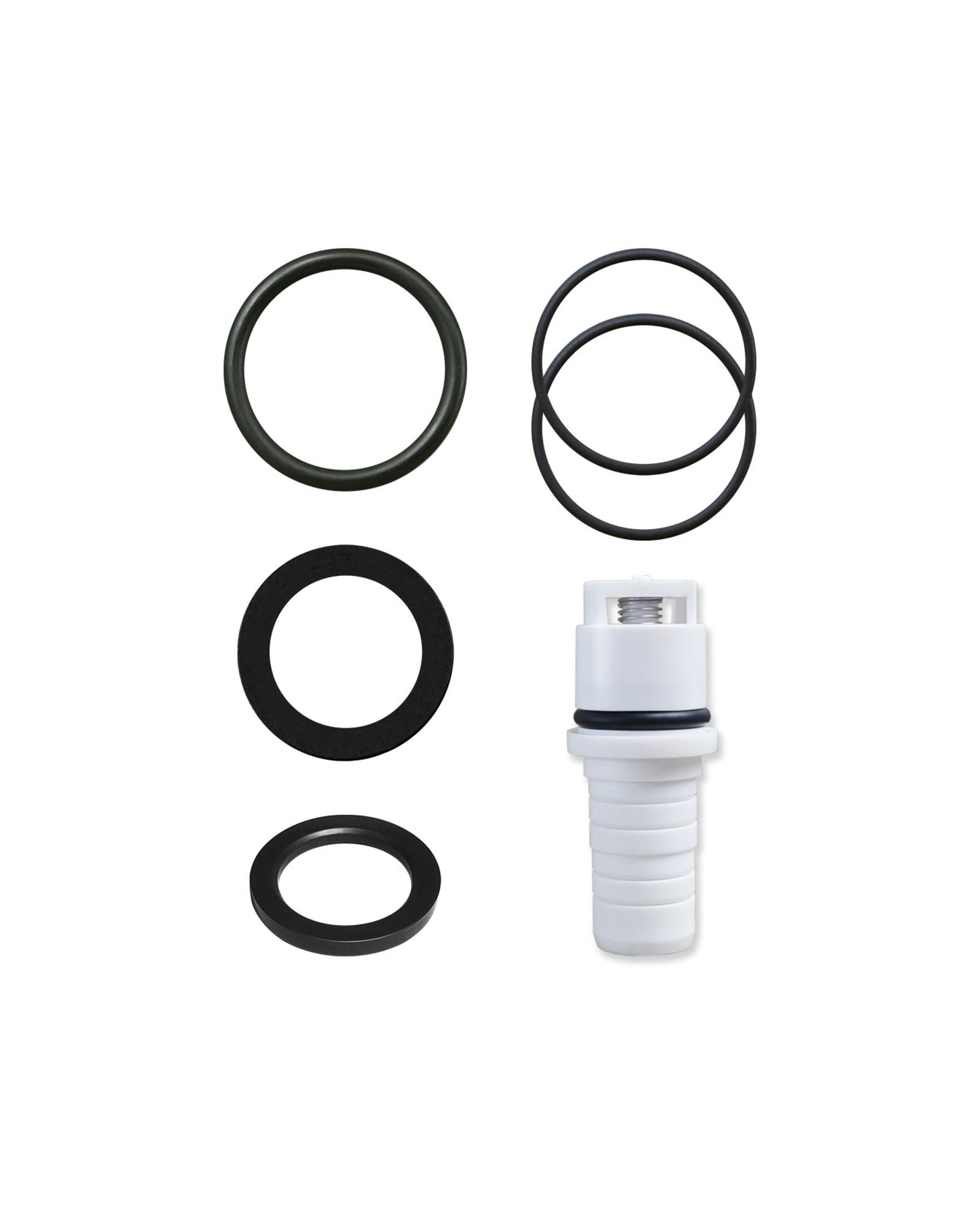

Seal Kit for the D45RE8
Injection seal kit for the D45RE8 - 20 GPM (For serial # over 07141221). Part #: PJ151.
Specifications
Kit Includes:
- Check valve assembly
- Plunger seal
- Collar o-ring
- Stem o-ring
