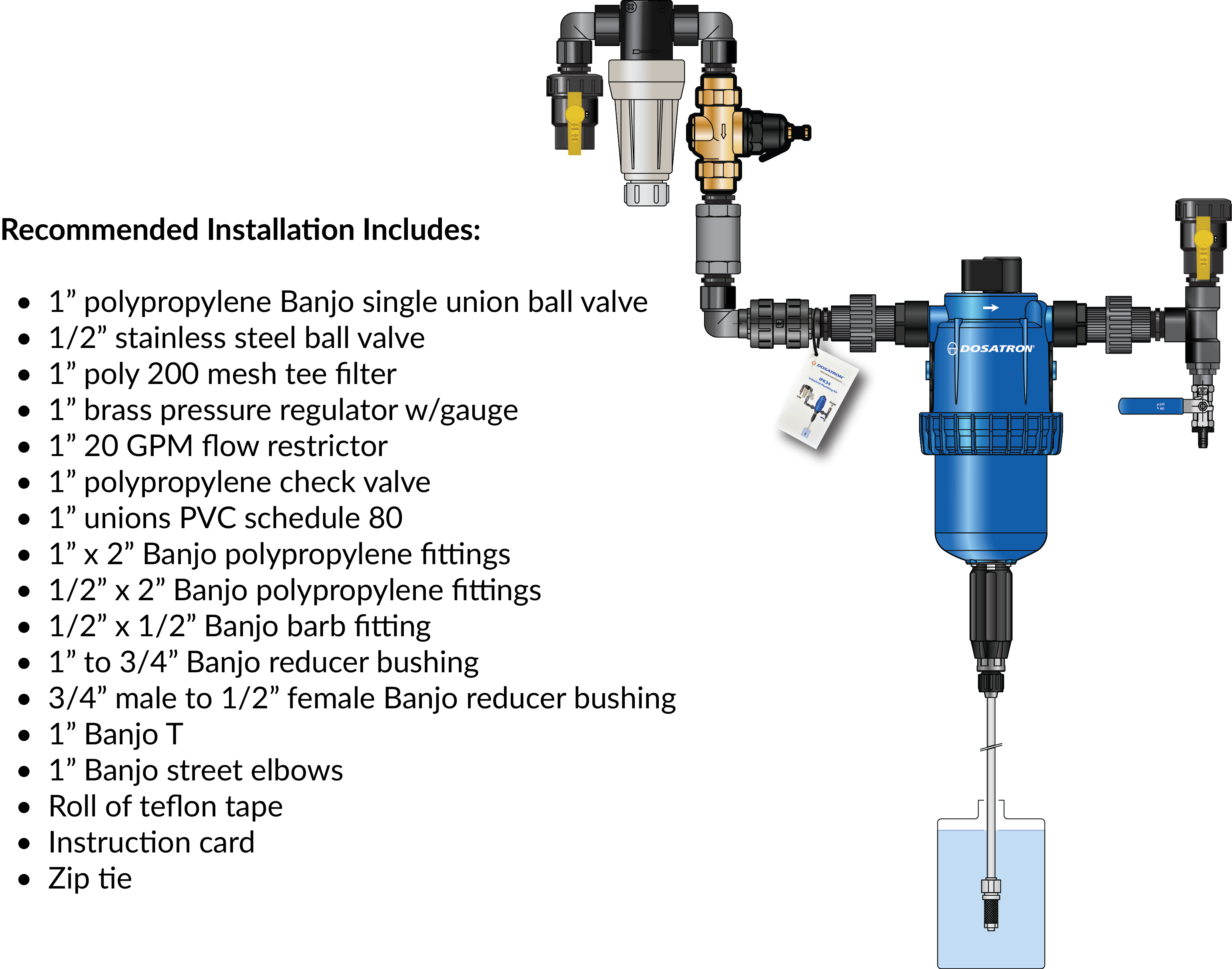

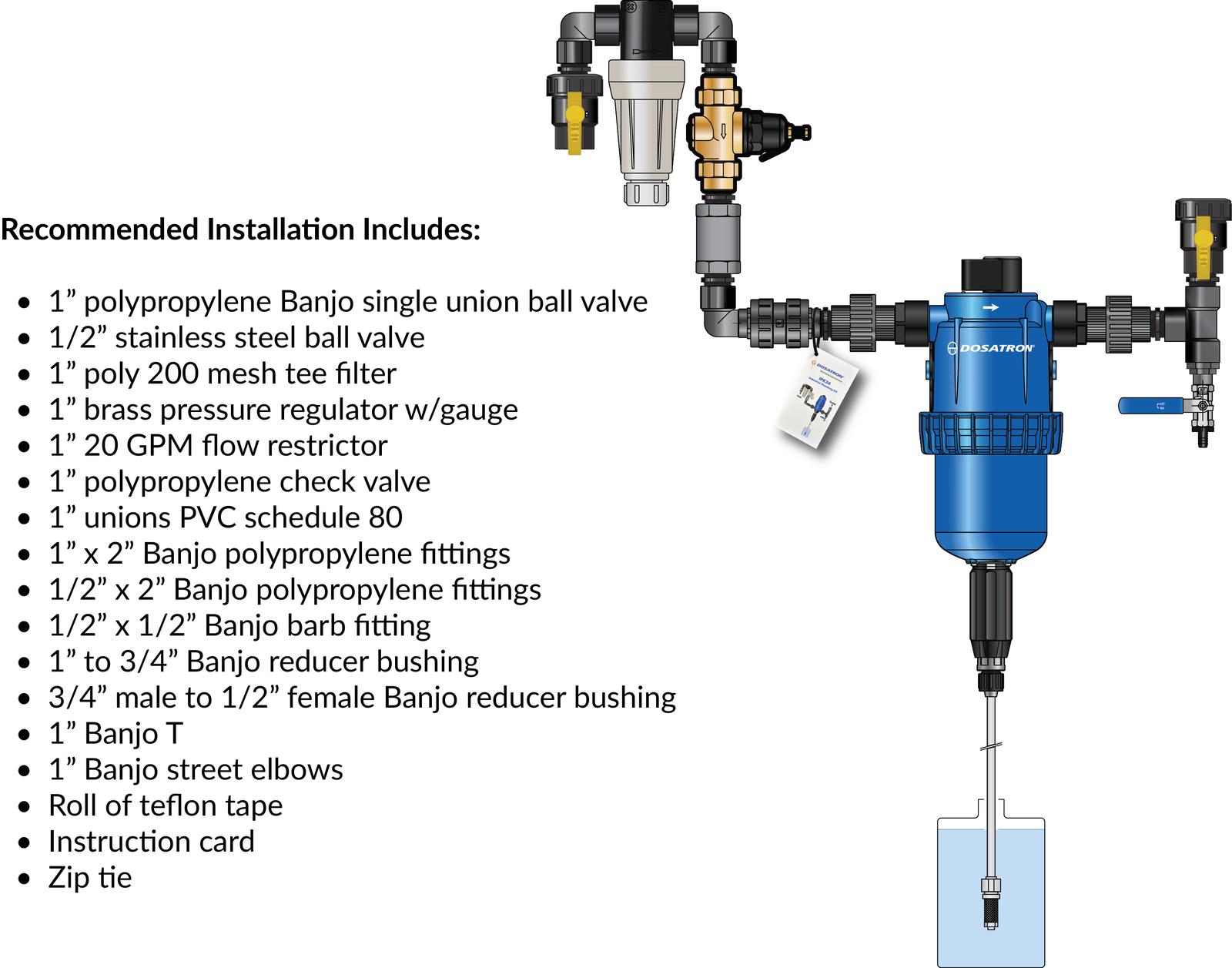

Recommended Installation
IPK34-20GPM – Industrial Plumbing Kit
- Connection Size: 1" NPT
- Percentage Range: 0.5 to 3%
- Unit Weight: 8 lbs
- Ounces Per Gallon Range: 0.640 to 3.879
- Flow: 0.4 to 20 GPM (1.51 to 76 LPM)
- Pressure: 7 to 70 PSI
- Dimensions: 24" x 7 1/2"
- Ratio Range: 1:200 to 1:33
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.
D45RE3 Schematics
Open
D45RE3 Product Specifications
Open
D45RE3IE Schematics
Open
D45RE3 Owner’s Manual
Open
D45RE3 Seal Kit Instructions
Open
D45RE3-IE Seal Kit Instructions
Open
D45RE3 Industrial Plumbing Kit Specifications
Open
D45RE3 Industrial Plumbing Kit Assembly Instructions
Open
D45RE3 Series Bypass Instructions
Open

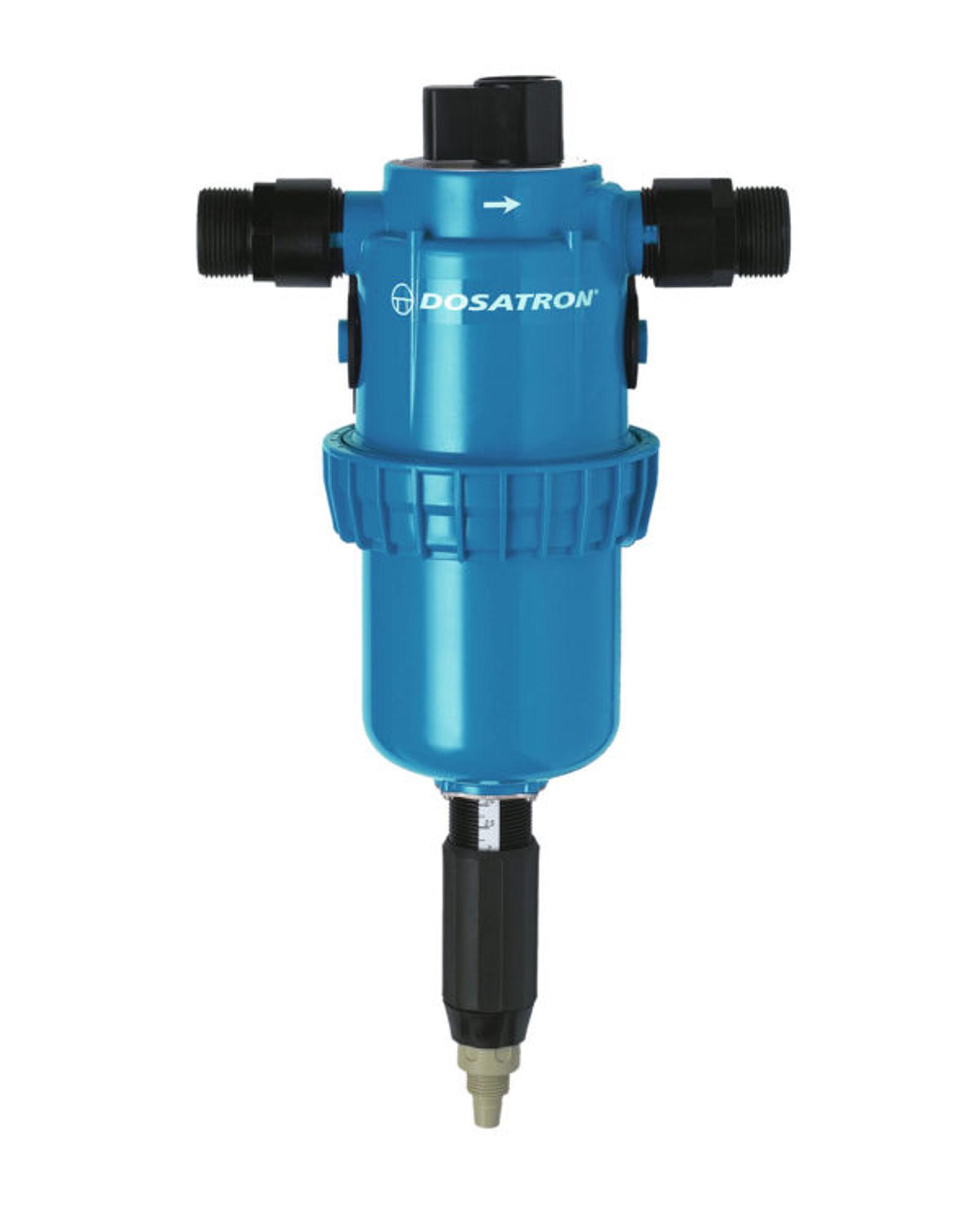

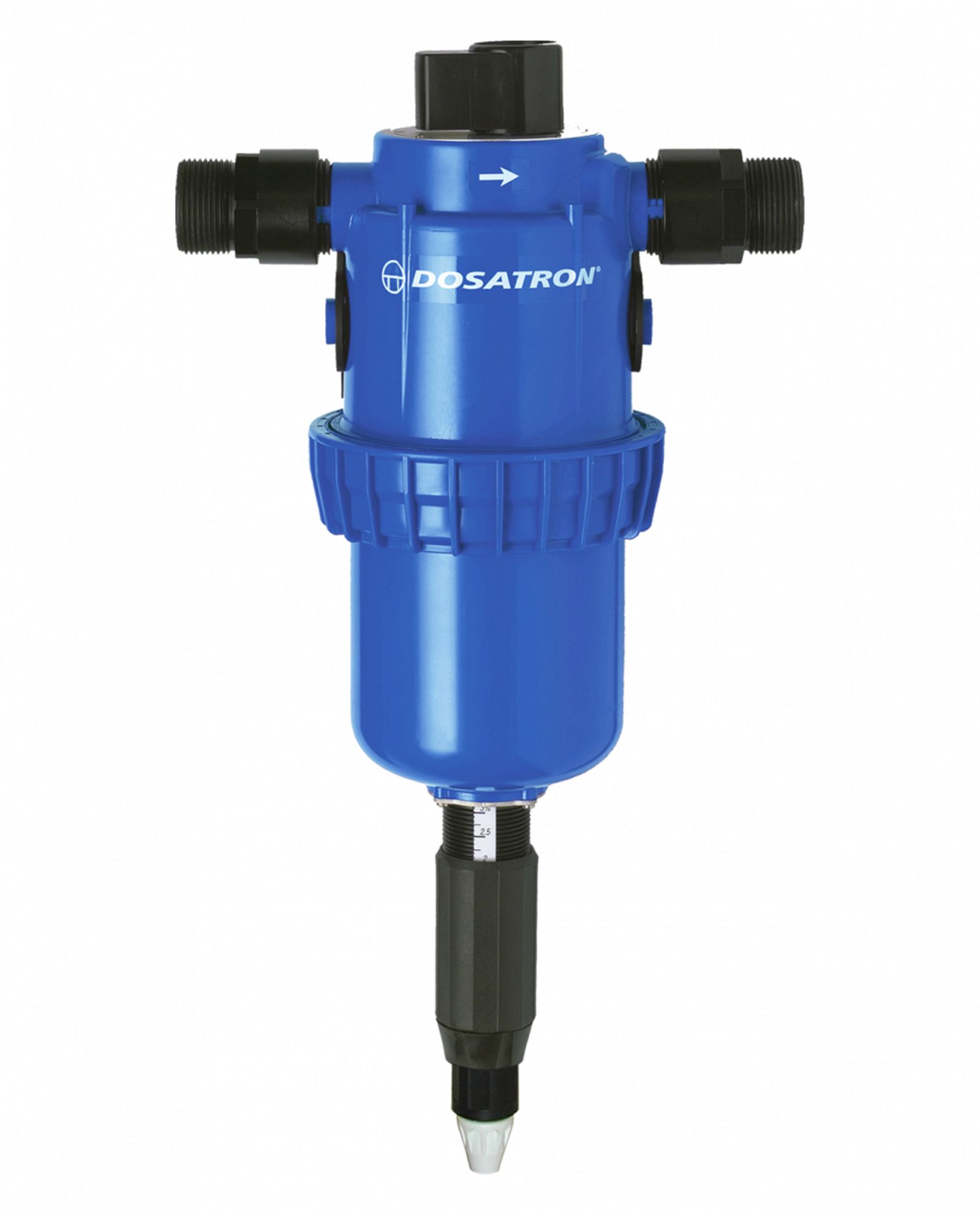

D45RE3 – 20 GPM
Water-Powered Dosatron D45RE3AFII - 20 GPM with dosing seals for industrial applications. It has a flow range 0.4 to 20 GPM and a dilution range of 1:200 to 1:33 (0.5% to 3%). Installation is easy with an Industrial Plumbing Kit # IPK100-20GPM.
Specifications
- Connection Size: 1" NPT
- Unit Weight:> 8 lbs
- Dimensions: 24" x 7 1/2"
- Flow: 0.4 to 20 GPM (1.51 to 76 LPM)
- Pressure: 7 to 70 PSI
- Ratio Range: 1:200 to 1:33
- Percentage Range: 0.5 to 3%
- >Ounces Per Gallon Range: 0.640 to 3.879
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

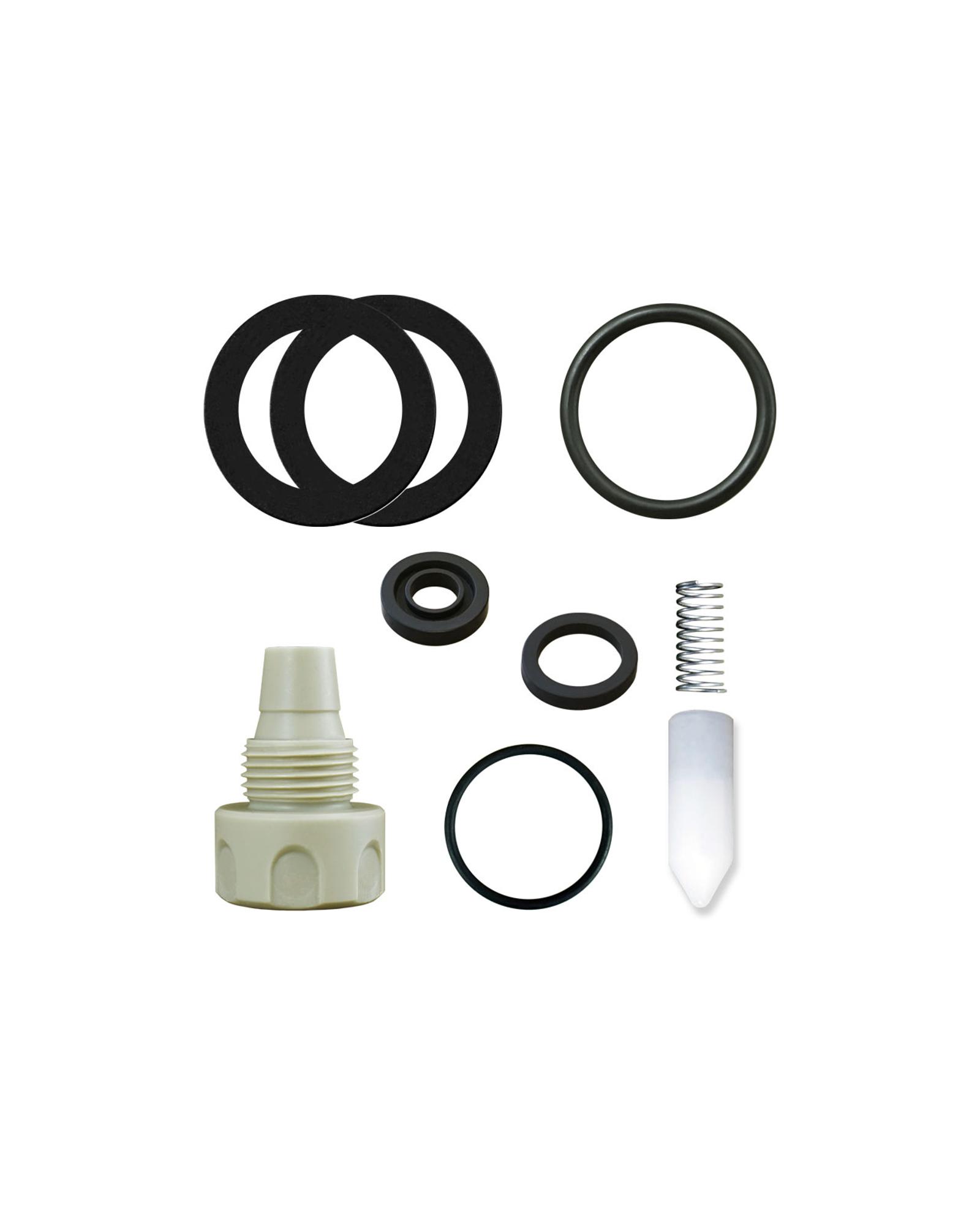

Seal Kit for the D45RE3
Injection seal kit for the D45RE3 - 20 GPM. Part #: PJ084.
Specifications
Kit Includes:
- Injection sleeve o-ring
- Check valve assembly
- Injection stem o-ring
- Plunger seal
