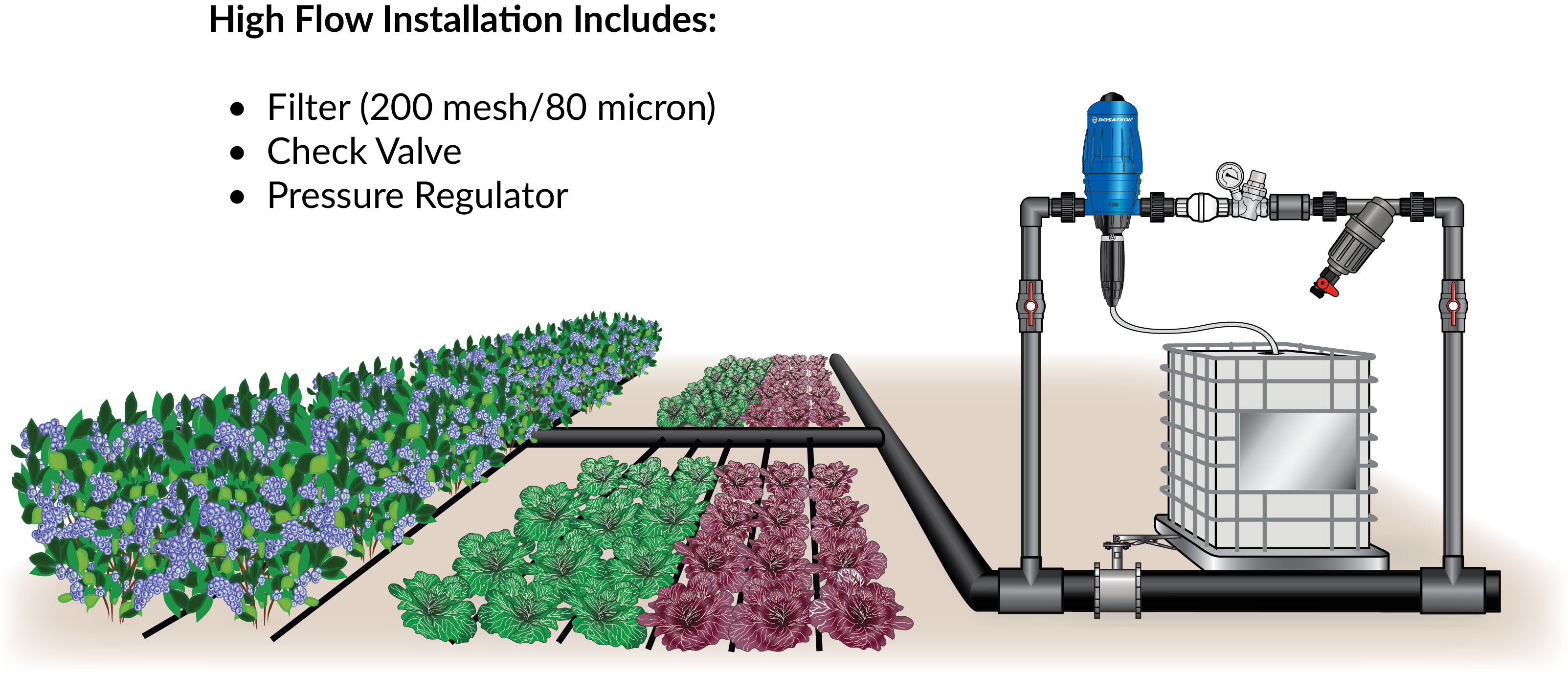

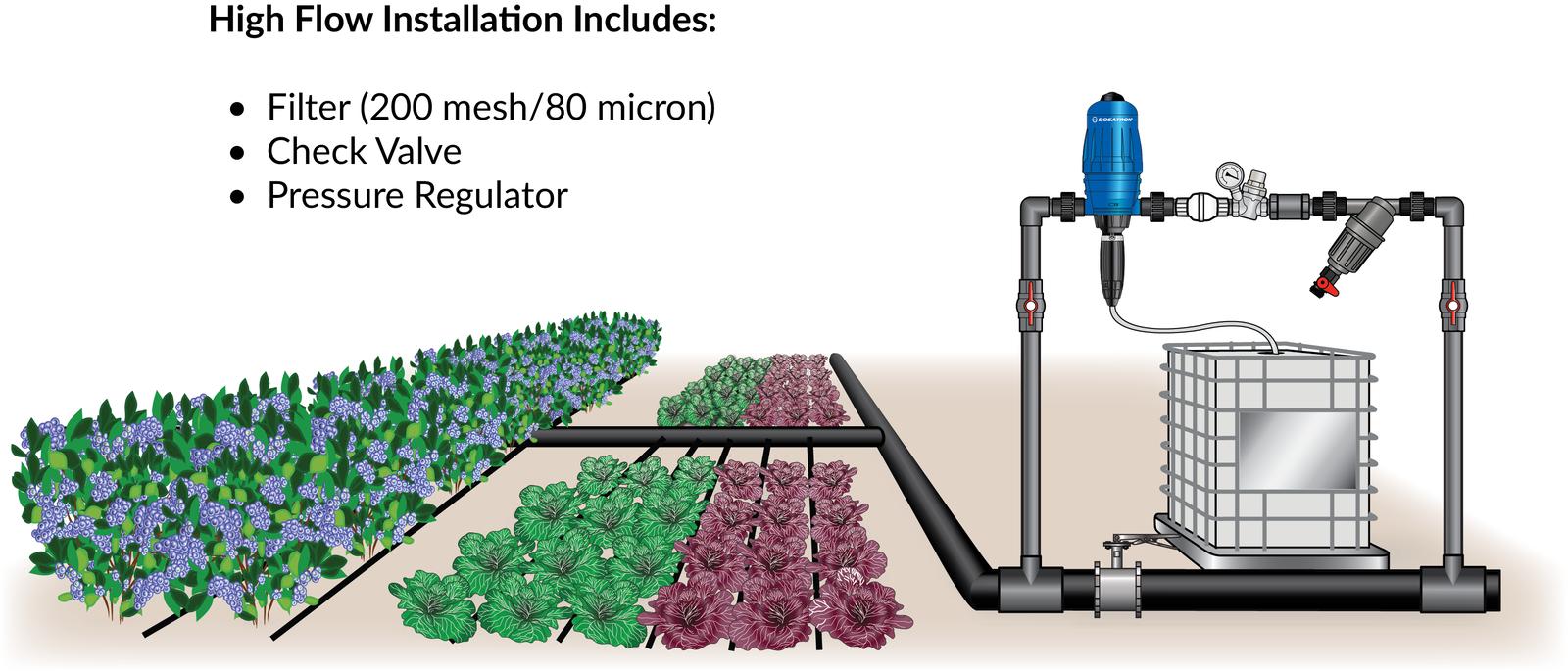

High Flow Installation
Agriculture field application
- Connection Size: 1" NPT
- Percentage Range: 0.2 to 1.5%
- Unit Weight: 8 lbs
- Ounces Per Gallon Range: 0.256 to 1.829
- Flow: 0.4 to 20 GPM (1.51 to 76 LPM)
- Pressure: 7 to 70 PSI
- Dimensions: 24" x 7 1/2"
- Ratio Range: 1:500 to 1:66
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.
D45RE15 Product Specifications
Open
D45RE15 Schematics
Open
D45RE15-IE Schematics
Open
D45RE15 Owner’s Manual
Open
D45RE15 Seal Kit Instructions
Open
D45RE15 Mini Maintenance Kit Instructions
Open
D45RE15 Industrial Plumbing Kit Specifications
Open
D45RE15 Industrial Plumbing Kit Assembly Instructions
Open
D45RE15 Series Bypass
Open

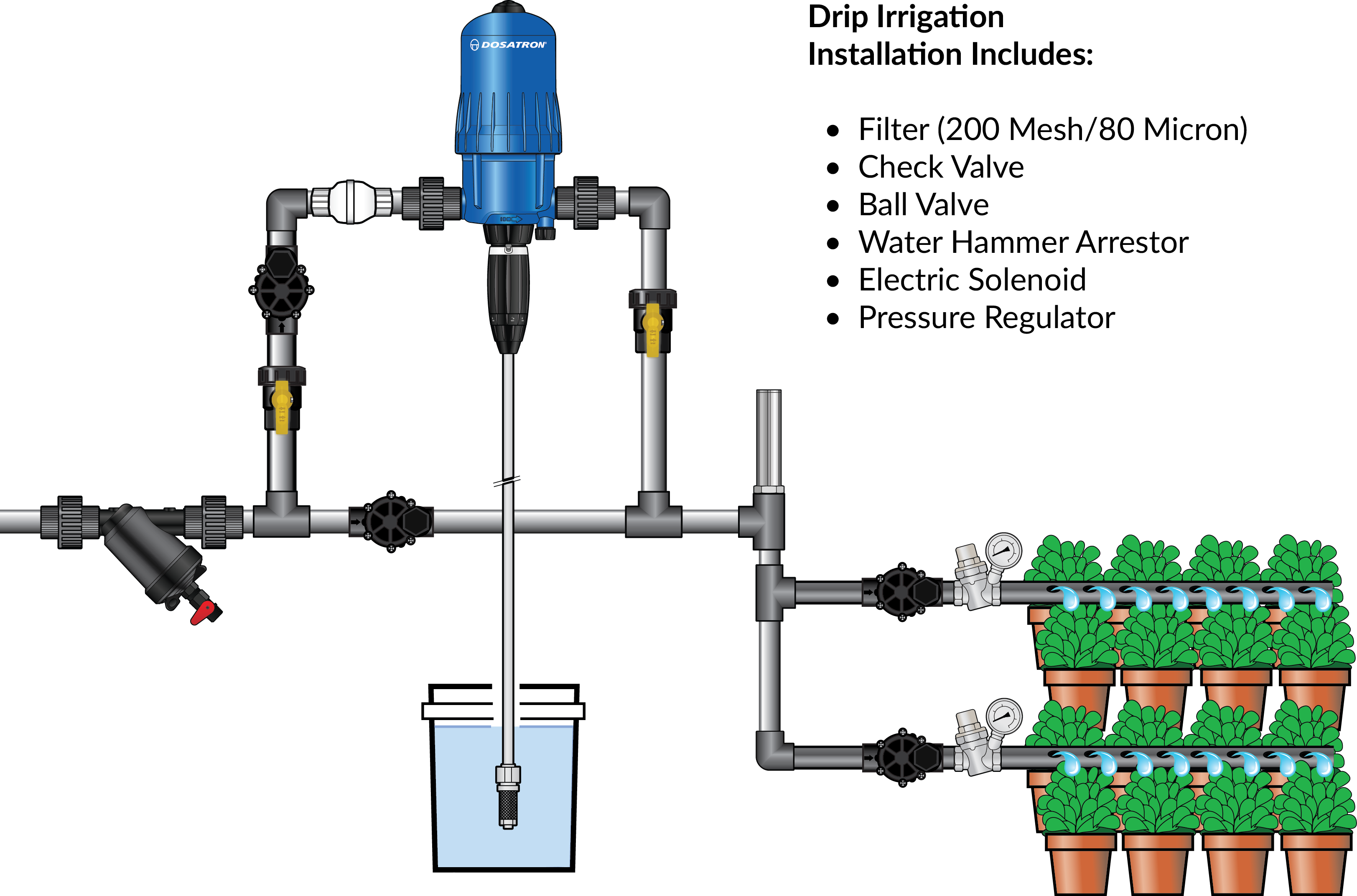

Drip Irrigation Installation
Dosatron D45RE15 Mini Maintenance Kit Video
To load this content, approve your cookie preferences and allow the required cookies.
Dosatron D45RE15 Complete Seal Kit Video
To load this content, approve your cookie preferences and allow the required cookies.
Dosatron D45RE15 Troubleshooting Video
To load this content, approve your cookie preferences and allow the required cookies.

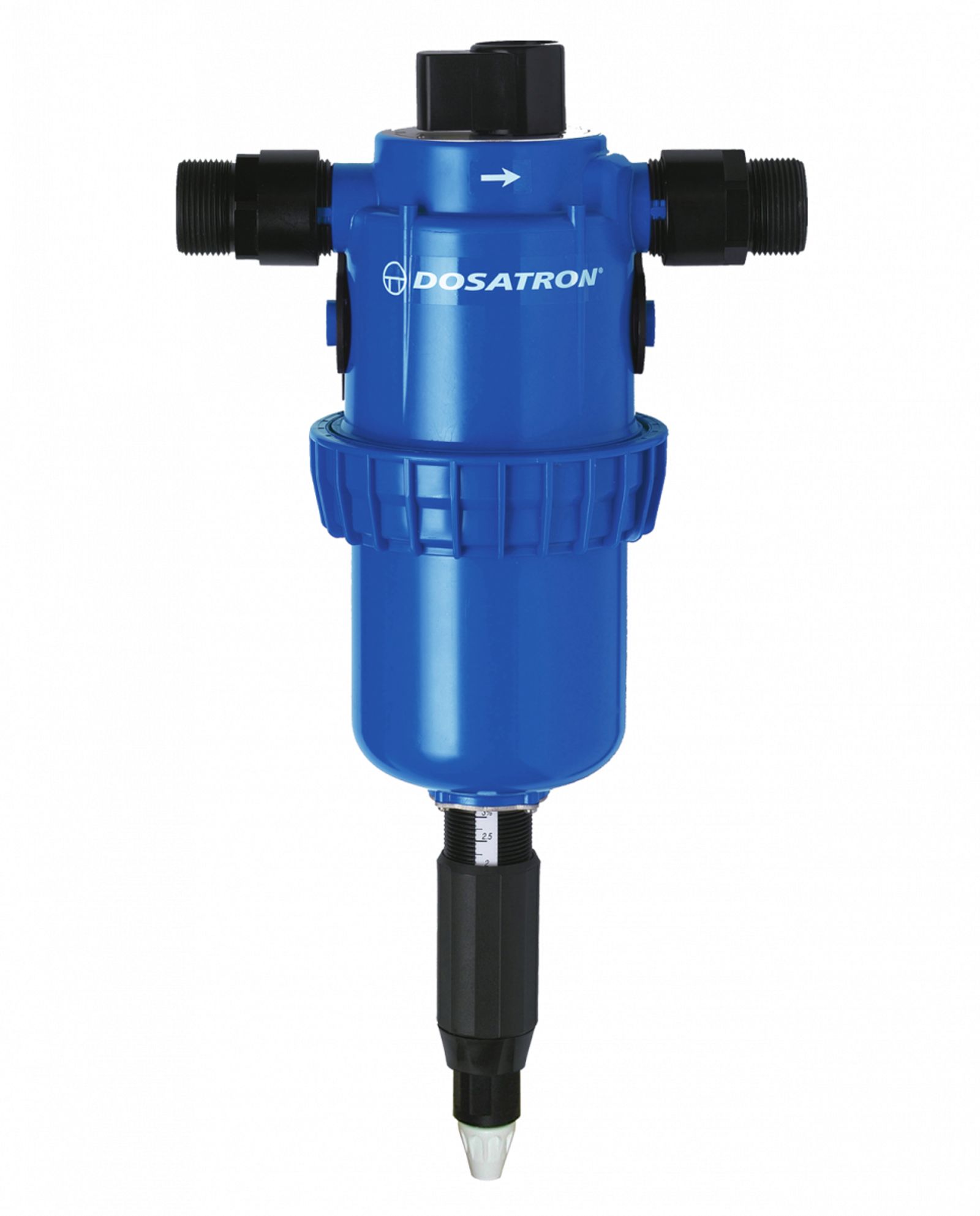

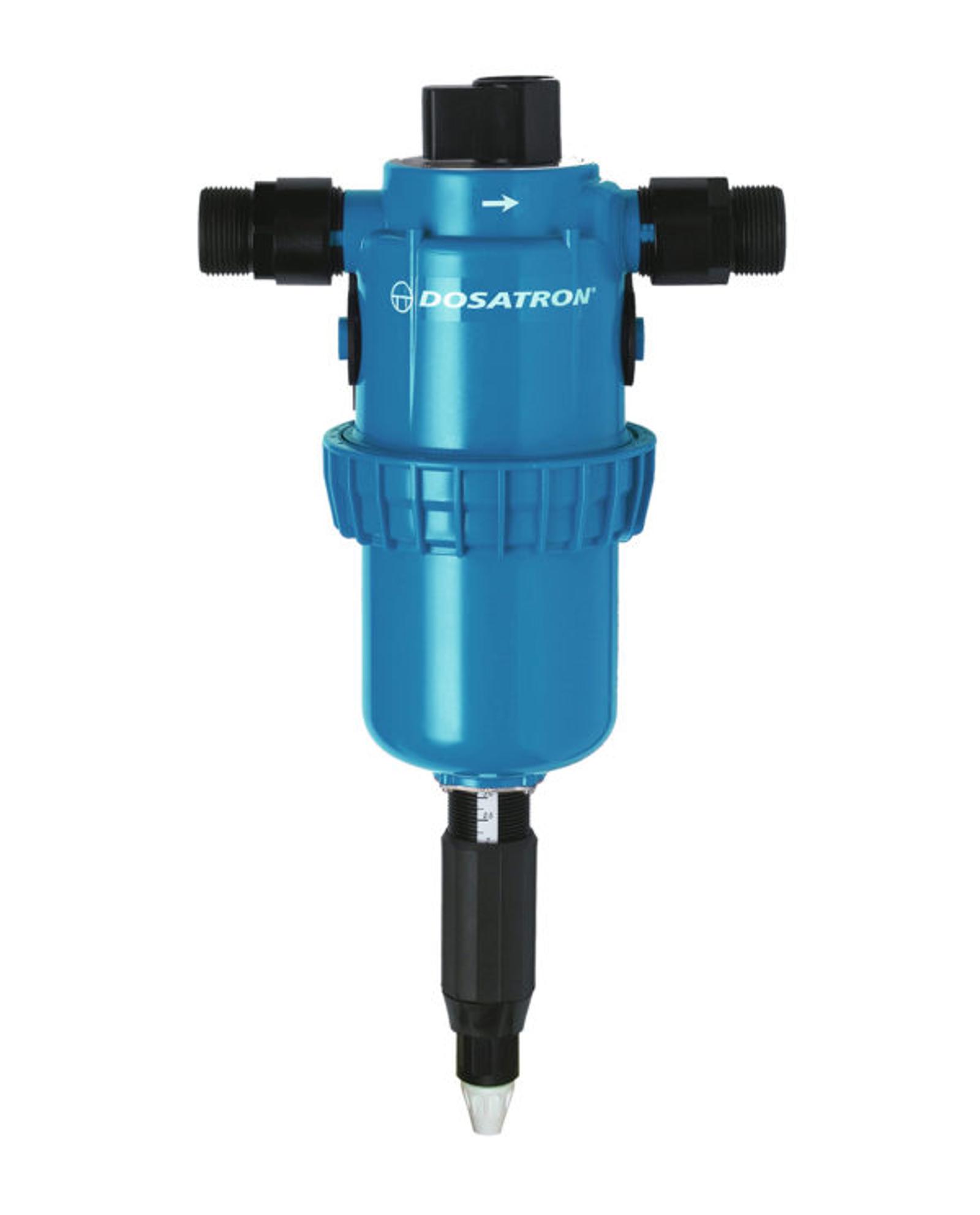

D45RE15 – 20 GPM
Water-Powered Dosatron D45RE15VFII - 20 GPM with dosing seals for horticultural applications with bypass. It has a flow range 0.4 to 20 GPM and a dilution range of 1:500 to 1:66 (0.2% to 1.5%).
Specifications
- Connection Size: 1" NPT
- Unit Weight: 8 lbs
- Dimensions: 24" x 7 1/2"
- Flow: 0.4 to 20 GPM (1.51 to 76 LPM)
- Pressure: 7 to 70 PSI
- Ratio Range: 1:500 to 1:66
- Percentage Range: 0.2 to 1.5%
- Ounces Per Gallon Range: 0.256 to 1.829
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.

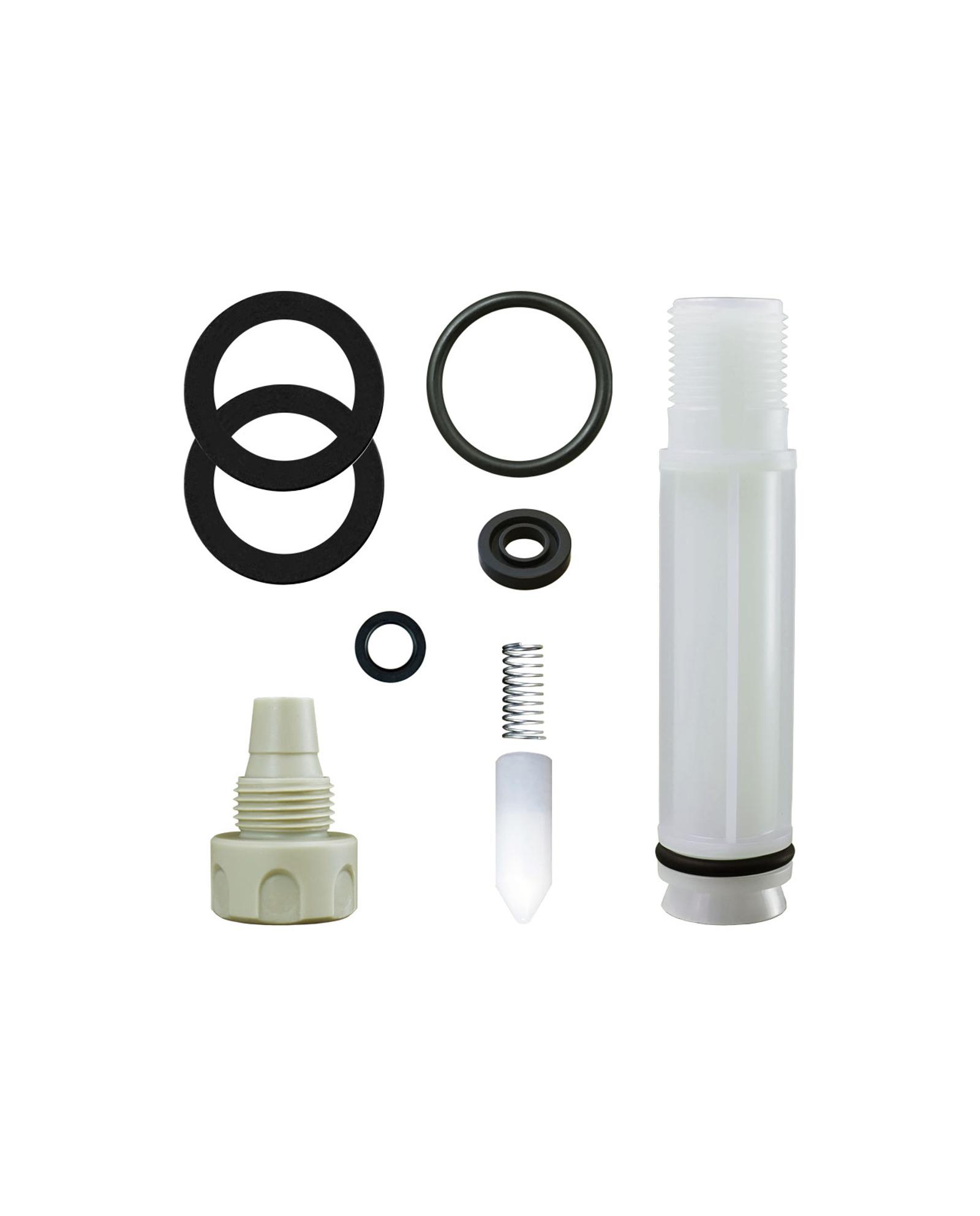

Seal Kit for the D45RE15
Injection seal kit for the D45RE15 - 20 GPM. Part #: PJ096.
Specifications
Kit Includes:
- Injection sleeve o-ring
- Check valve spring
- Injection stem assembly
- Plunger seal
- Check valve seal
- Black adaptor seal
- Check valve cone
- Check valve barb

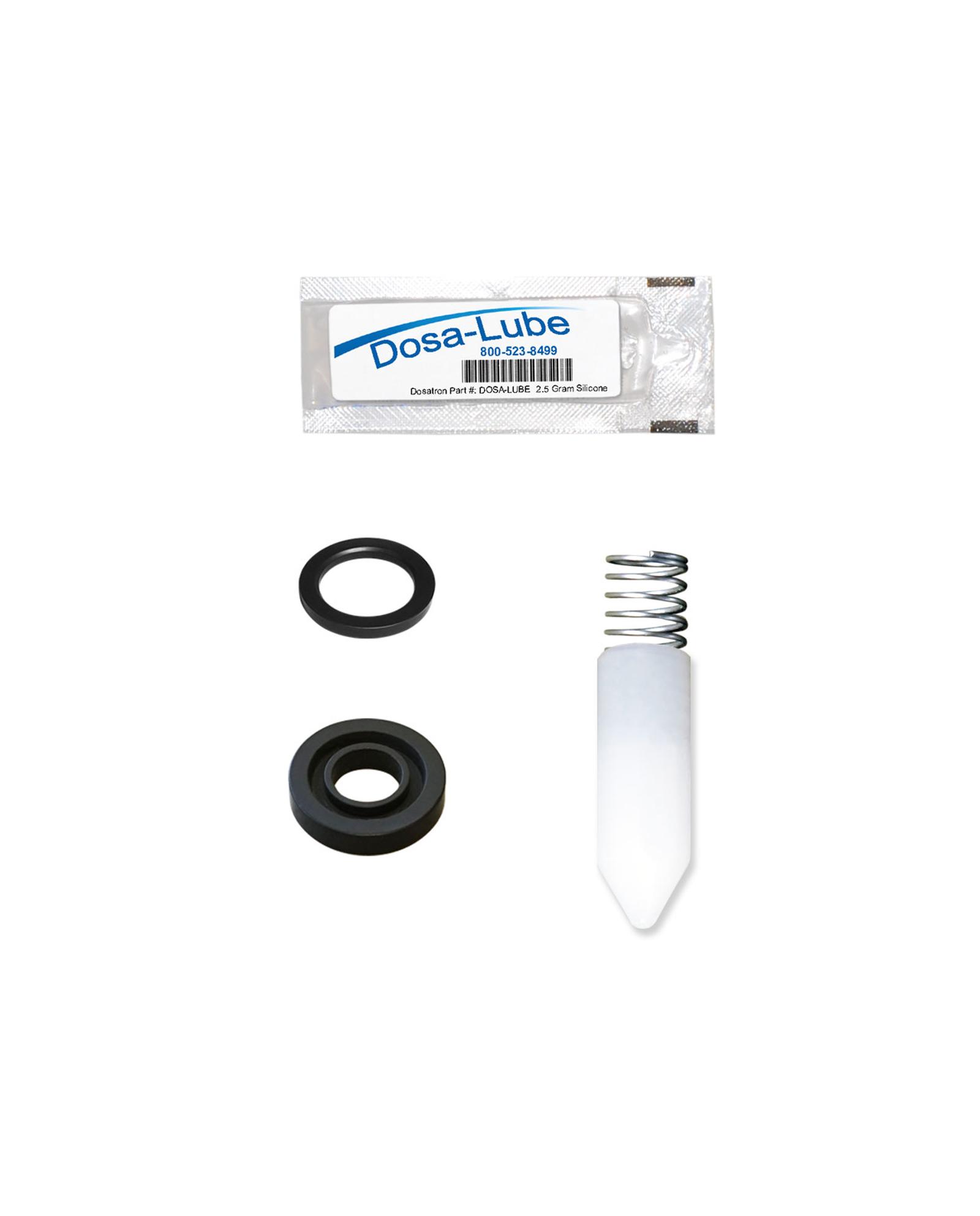

Mini Maintenance Kit for the D45RE15
Mini maintenance kit for the D45RE15 - 20 GPM. Part #: PJ096MINI-H.
Specifications
Kit Includes:
- Plunger seal
- Check valve seal
- Check valve spring and cone
- Dosa-Lube (Silicone)
