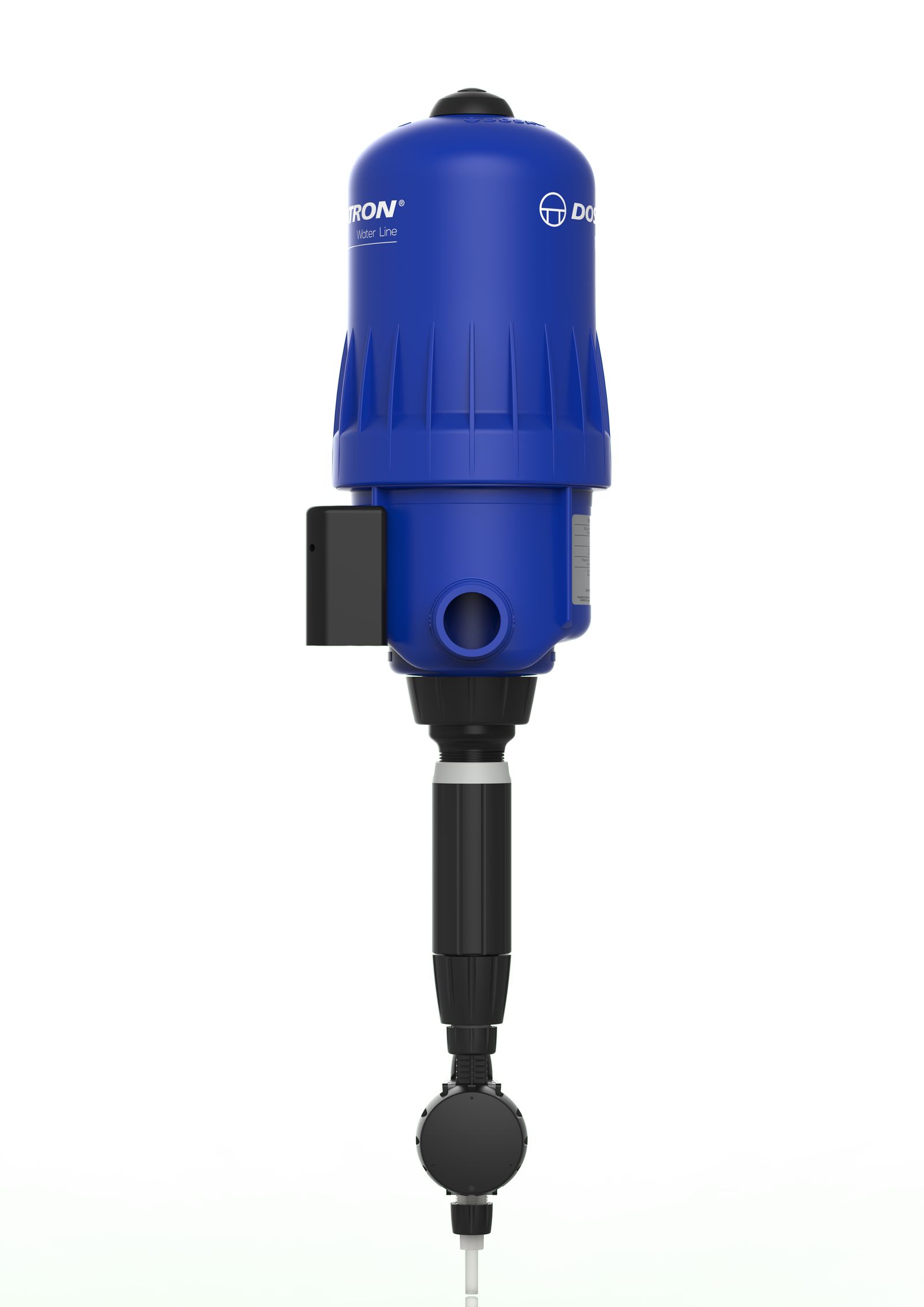

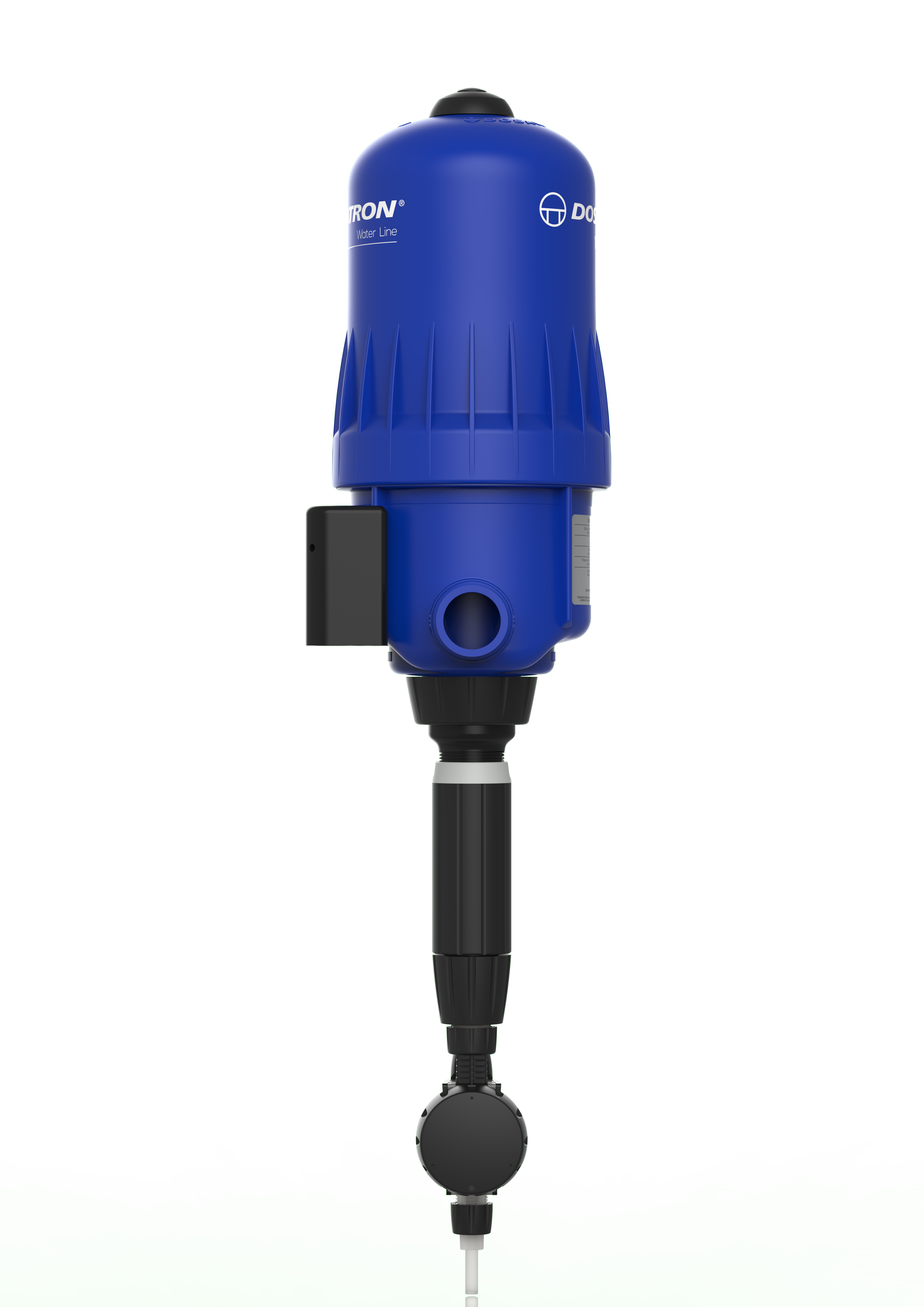

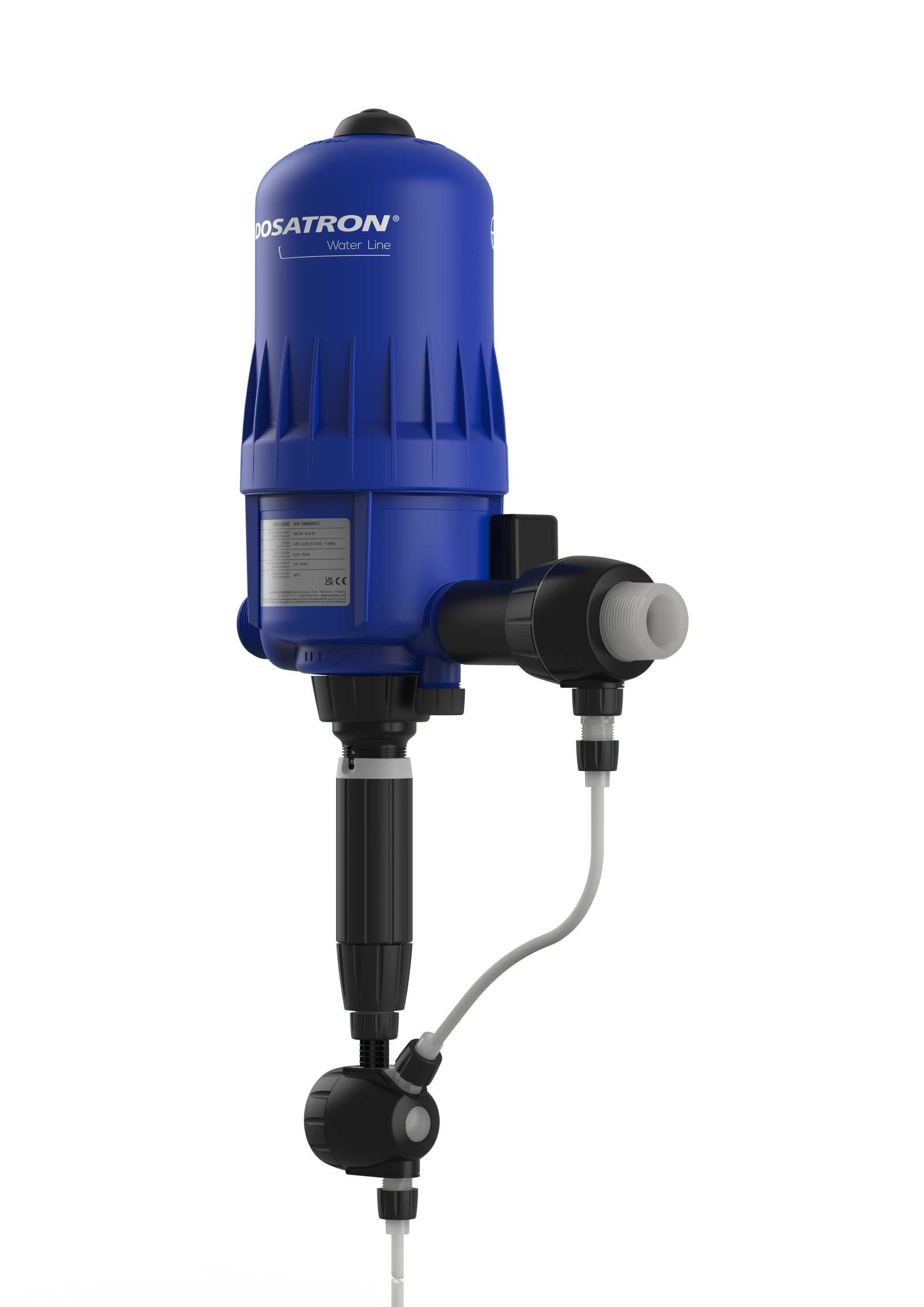

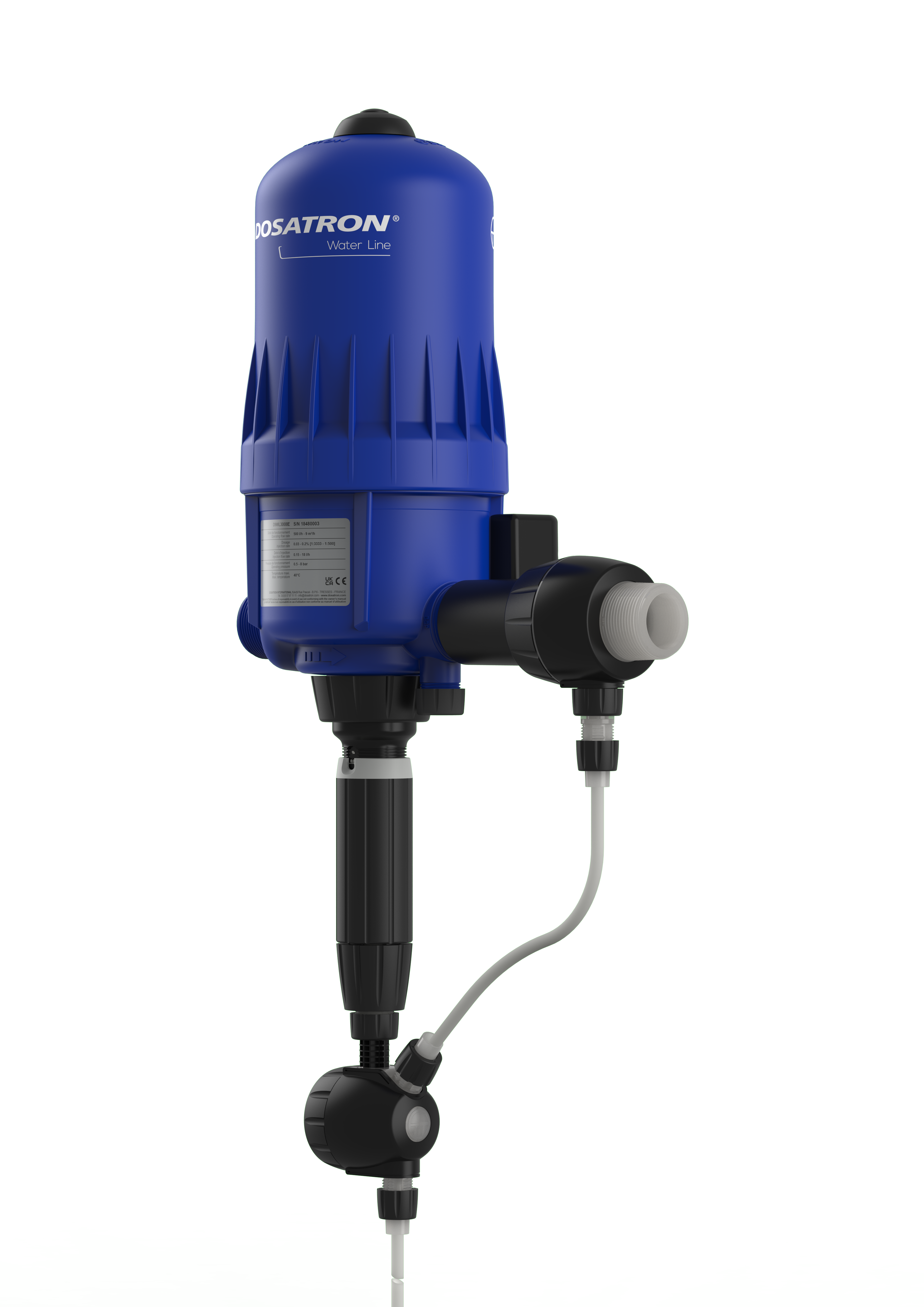

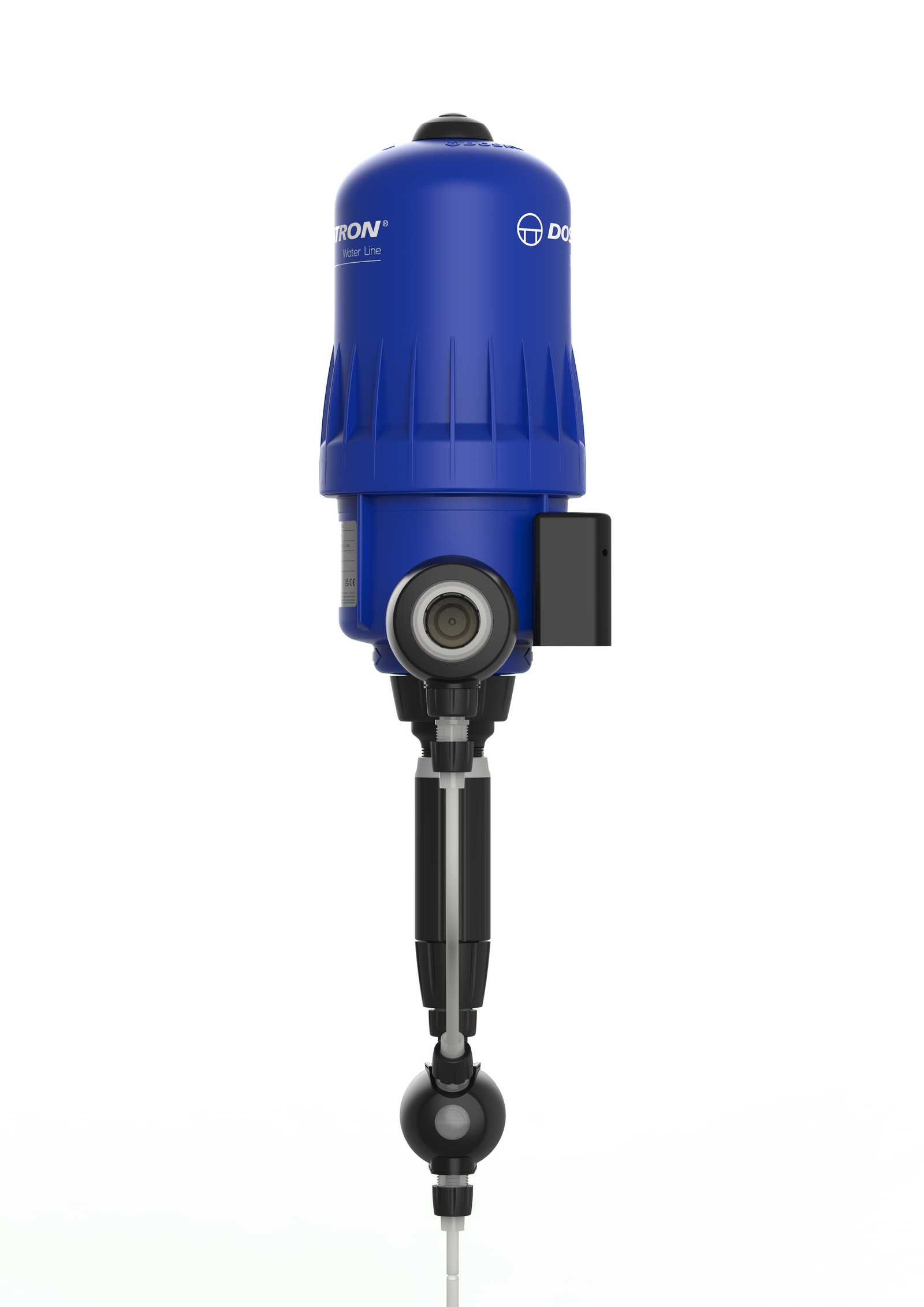

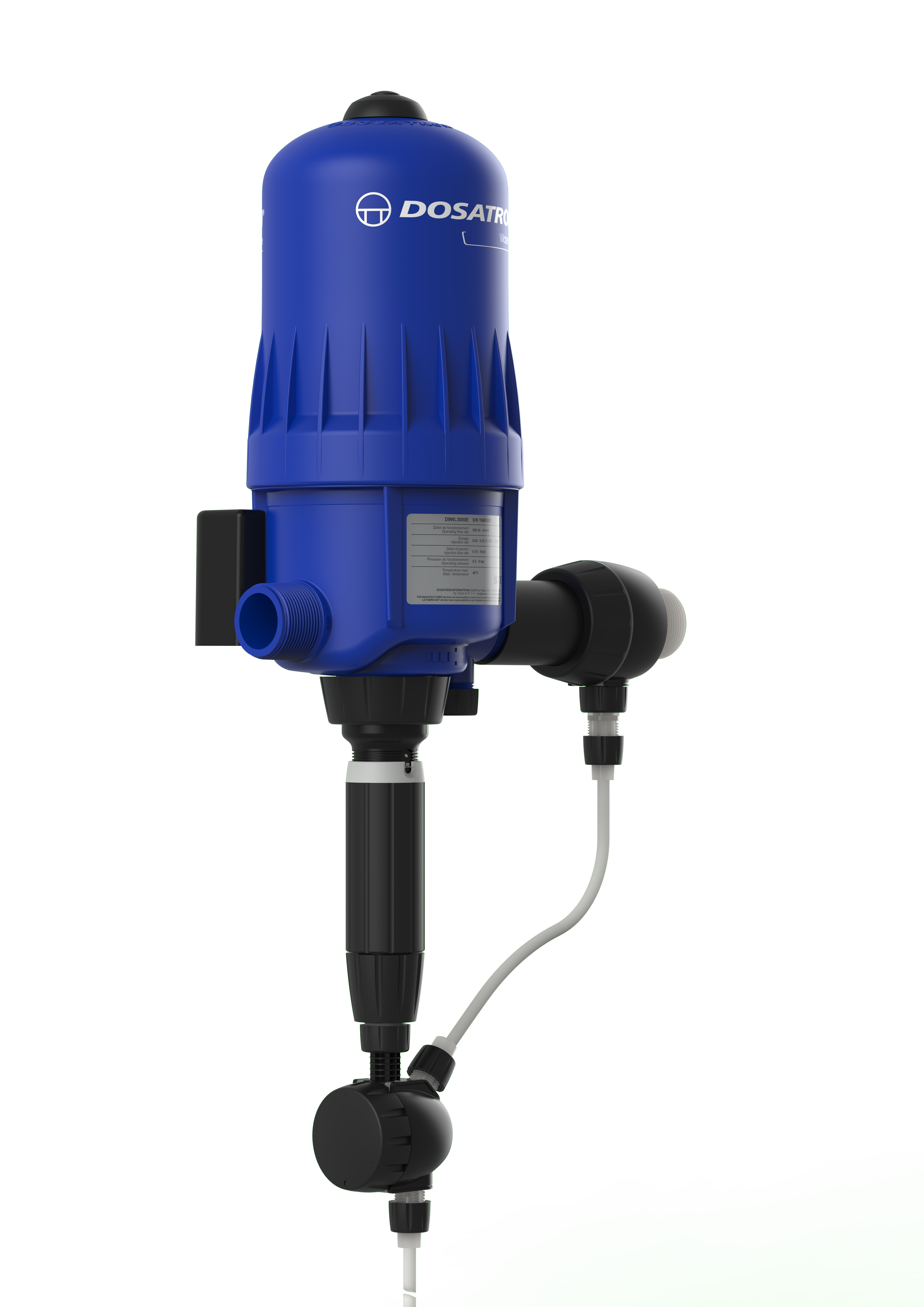

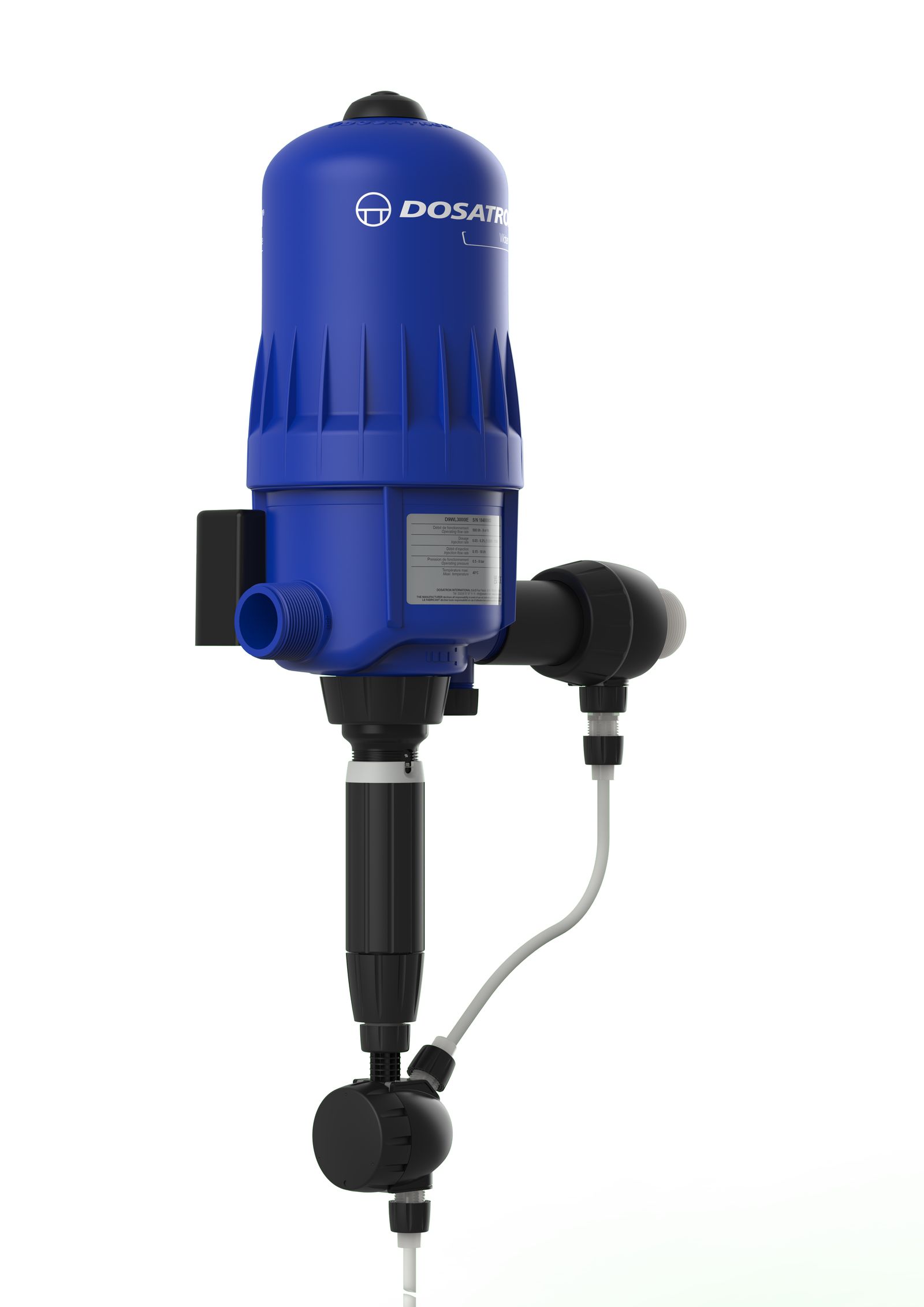

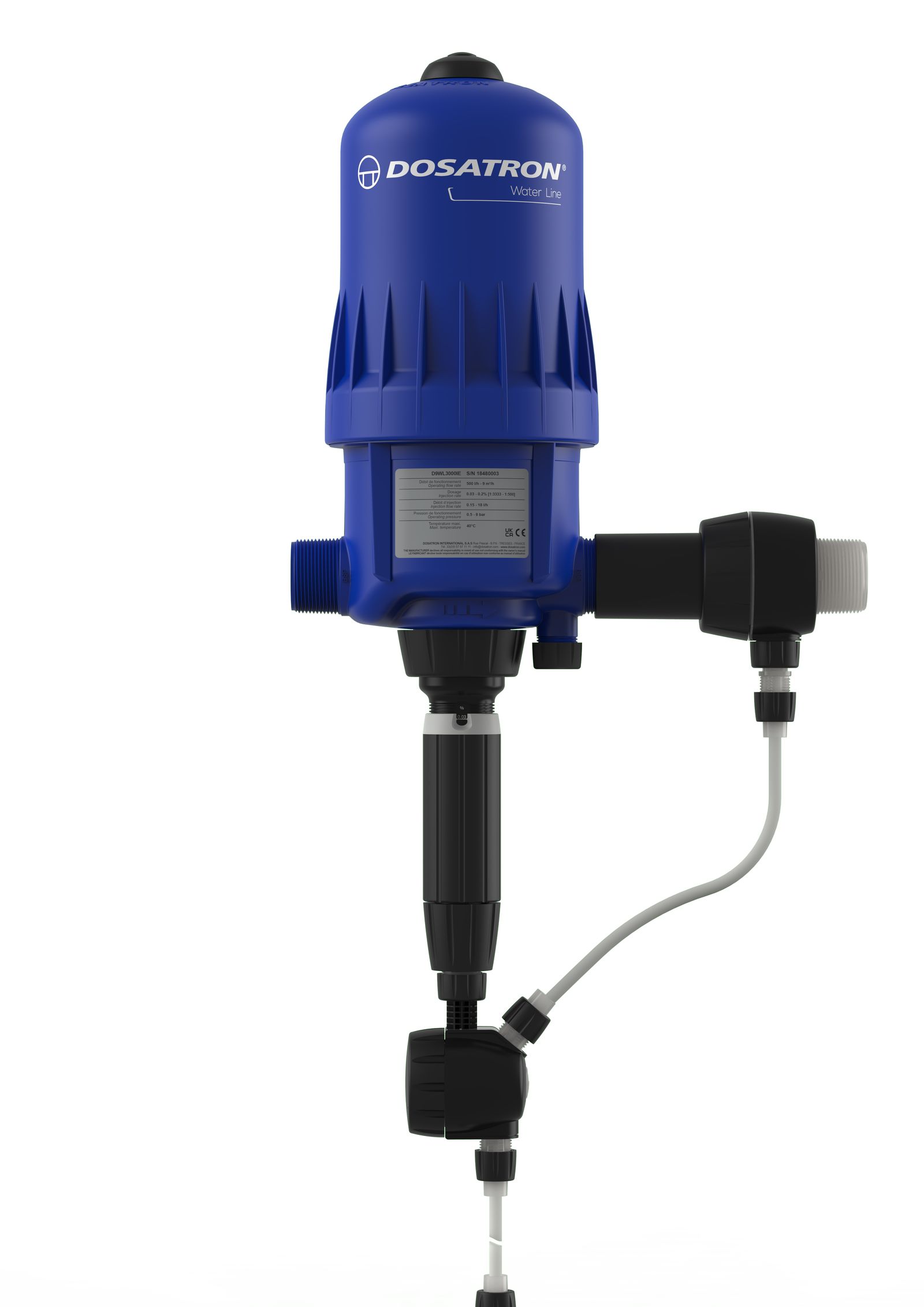

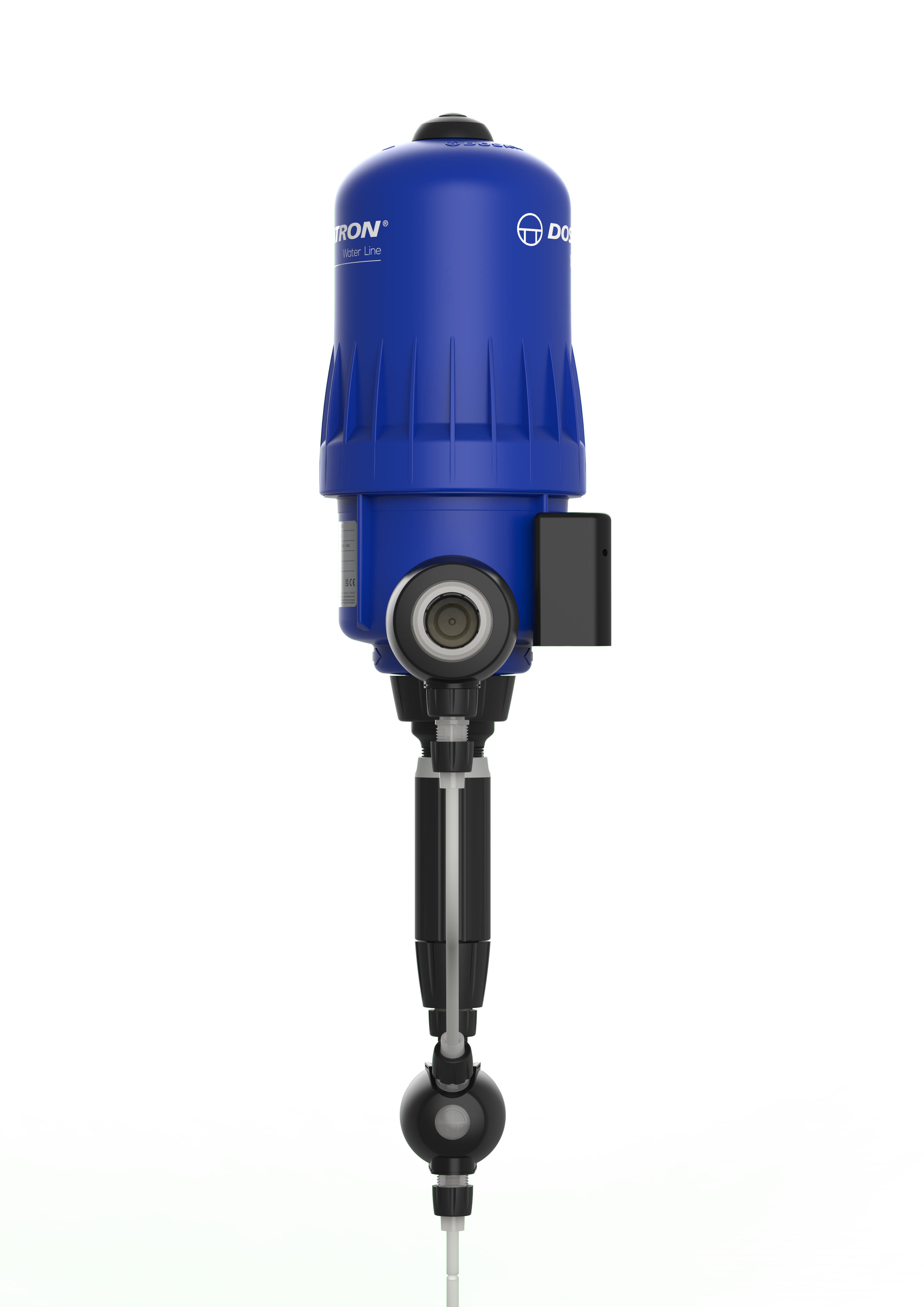

Designed for drinking water applications, treatment and disinfection of water, for networks up to 9 m3/h:

  • Water towers, small reservoirs and water kiosks.
  • Disinfection and maintenance of water networks.
  • Industrial and process water treatment.

Specificities

  • Autonomous operation without electricity.
  • Reliable and constant dosing whatever the variation of flow and pressure.
  • Installation and commissioning simple without electrical expertise.
  • Simple and quick maintenance, in situ.
  • Resistance to water, projections and dust.

Injection range : 0,03 - 0,2% [1:3000 - 1:500]

Water flow range : 500 l/h - 9 m3/h

Operating water pressure : 0,3 - 8 bar

Concentrated additive injection : 0,15 - 18 l/h

Stroke volume : ~1,7 l

Connections : 1"1/2 GAZ Ø 40x49mm

Suction hose : L 1,75 m - Ø6 mm

  • Seals for acidic additives
  • Seals for alkaline additives
  • Seals for highly concentrated acids (>15%)
  • External Injection
  • (Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)
  • Support legs
