D8WL3000 - Chlorine Dosing Precision Pump

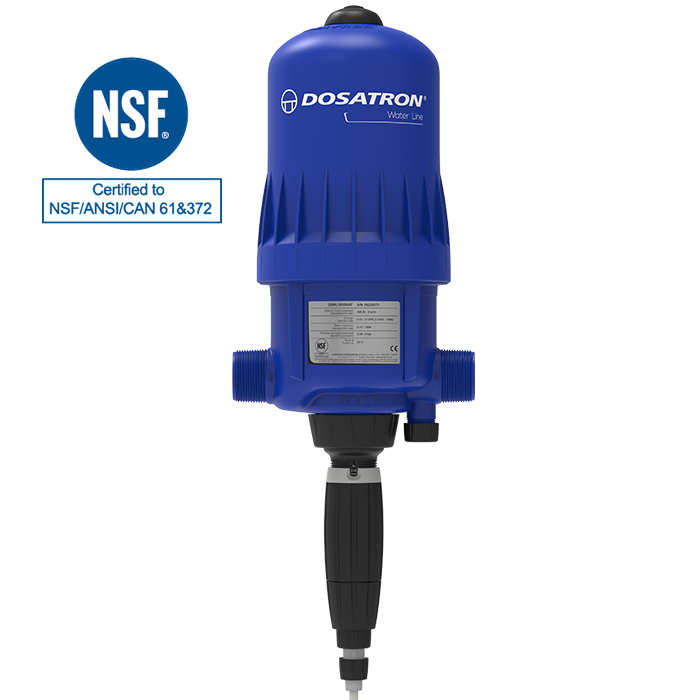

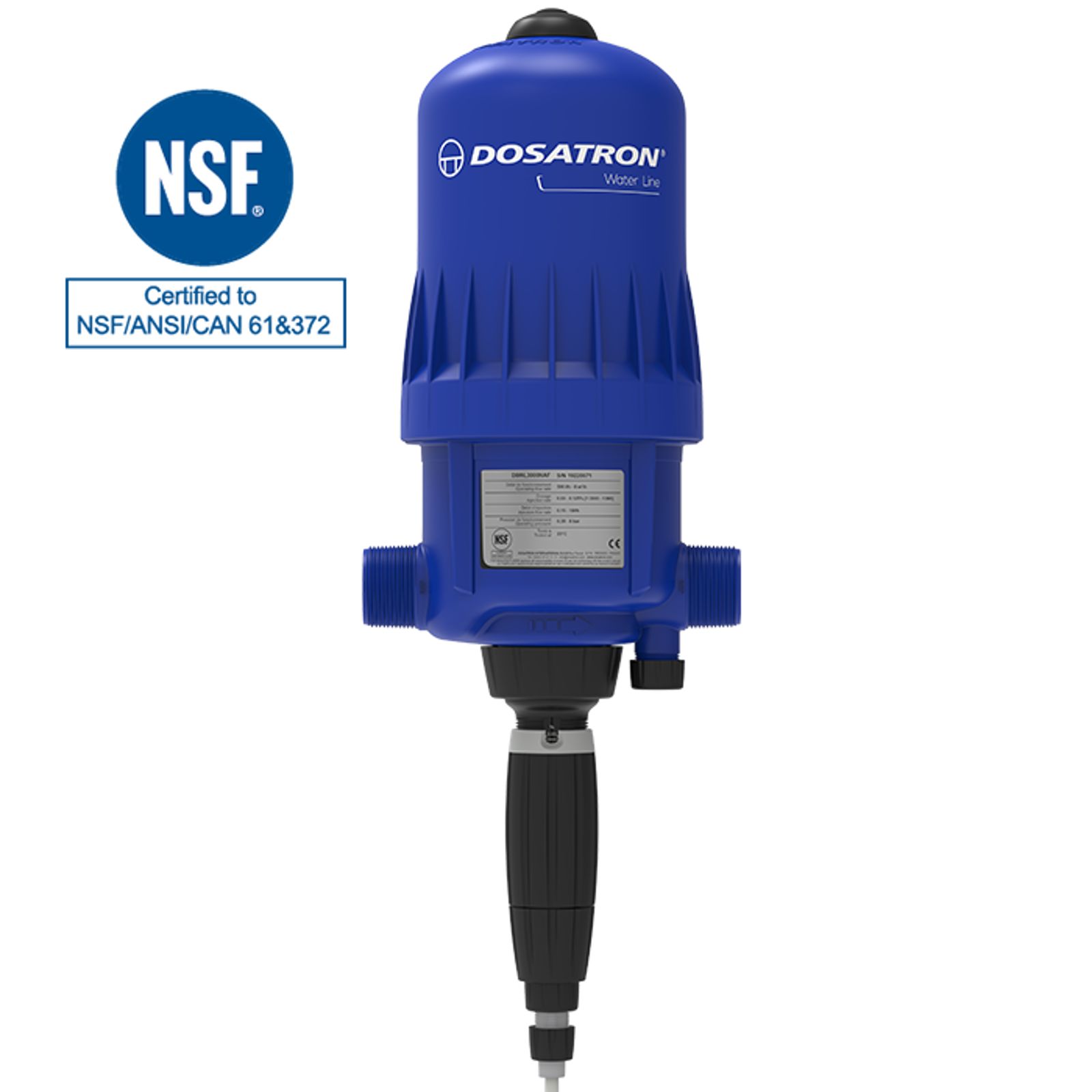

Dosatron NSF certified chlorine dosing pump - D8WL3000 model

The D8WL range of dispensers meets the dosing needs for flow rates from 500 to 8,000 l/h.

Proportional dosing and without electricity
Proportionality dependent on water flow
Outlet injection
A choice of dosage seals according to the use of alkaline or acidic products.

Injection range 0,03 – 0,125 % [1:3000 - 1:800]
Water flow range 500 l/h - 8 m3/h
Operating water pressure 0,15 - 8 bar
Concentrated additive injection 0,15 - 10 l/h
Stroke volume ~ 1,7 l
Connections NPT-BSP 40x49 - 1"1/2 M

Seals for acidic additives
Seals for alkaline additives

(Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)
External Injection
Support legs
ACS Certification - Drinking Water France
NSF Certification

Drinking Water Treatment

Chlorine Dosing Pumps

Wastewater Treatment

Wastewater Treatment Pumps

Process water treatment

Achieve efficient process water treatment with Dosatron's innovative, precise dosing pumps.

Eclate-D8WL3000IE-u

Parts Diagrams - D8WL3000IE

qsu-mes-d8wl.pdf

Quick Startup - D8WL

manual-notice-d8wl-en.pdf
