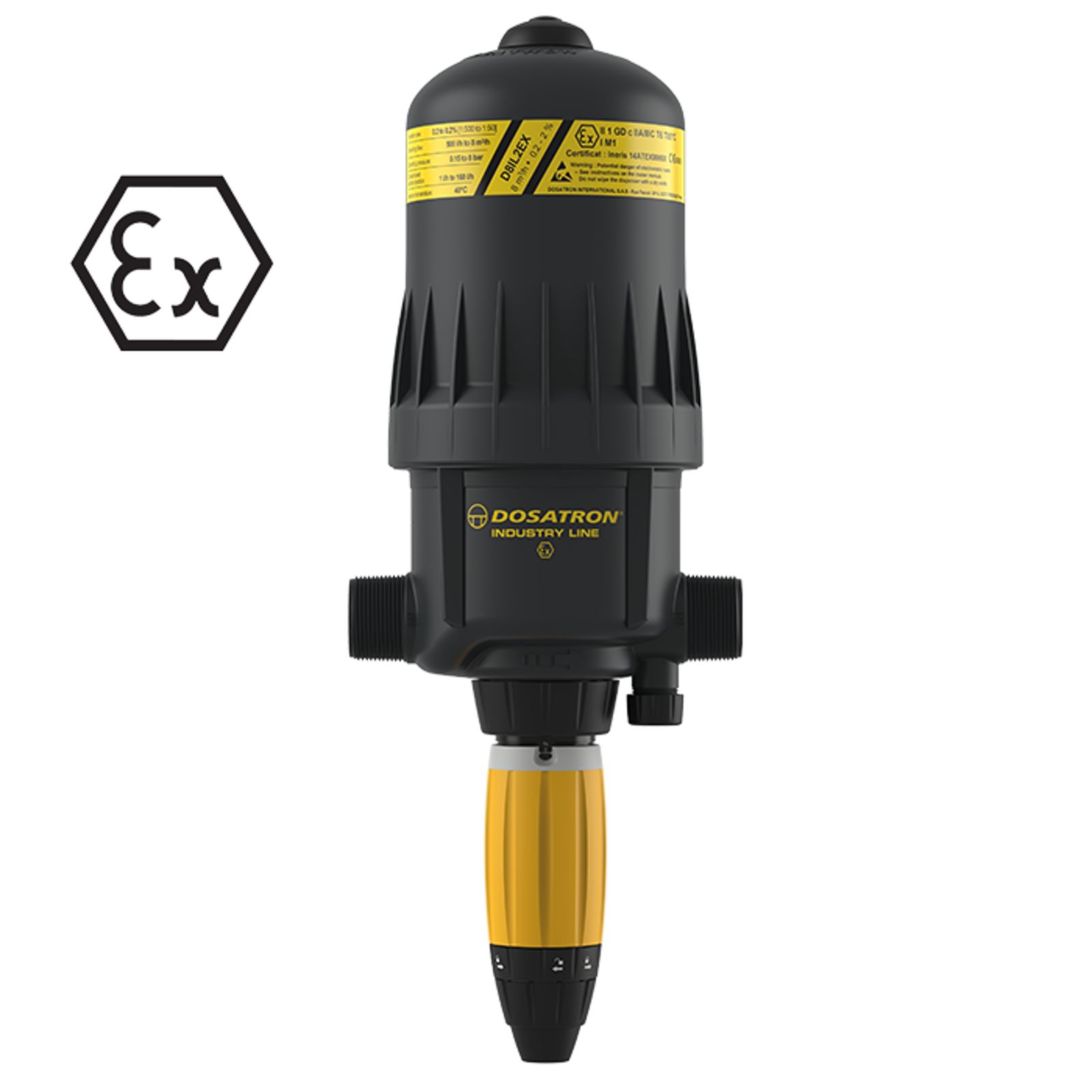

The D8IL ATEX range of dispensers is certified for surface and mining industries, for installation in zone 0, zone 1 and zone 2.
The D8 range meets the dosing needs for flow rates from 500 to 8,000 l/h.
- Proportional dosing and without electricity
- Proportionality dependent on water flow
- Outlet injection
- (Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)
- Injection range 0,2 - 2 % [1:500 - 1:50],
- Water flow range 500 l/h - 8 m3/h
- Operating water pressure 0,15 - 8 bar
- Concentrated additive injection 1 - 160 l/h
- Stroke volume ~ 1,7 l
- Connections NPT-BSP 1''1/2 M Ø 40x49mm
- Hose PVC Ø 16x22mm - Lg 1,75m
- Seals for acidic additives
- Seals for alkaline additives
