- Injection range 0,2 - 2 %
- Water flow range 10 l/h - 2,5 m3/h
- Operating water pressure 0,3 - 6 bar
- Concentrated additive injection 0,02 l/h - 50 l/h
- Stroke volume ~ 0,45 l
- Connections NPT-BSP 3/4'' M Ø 20x27mm

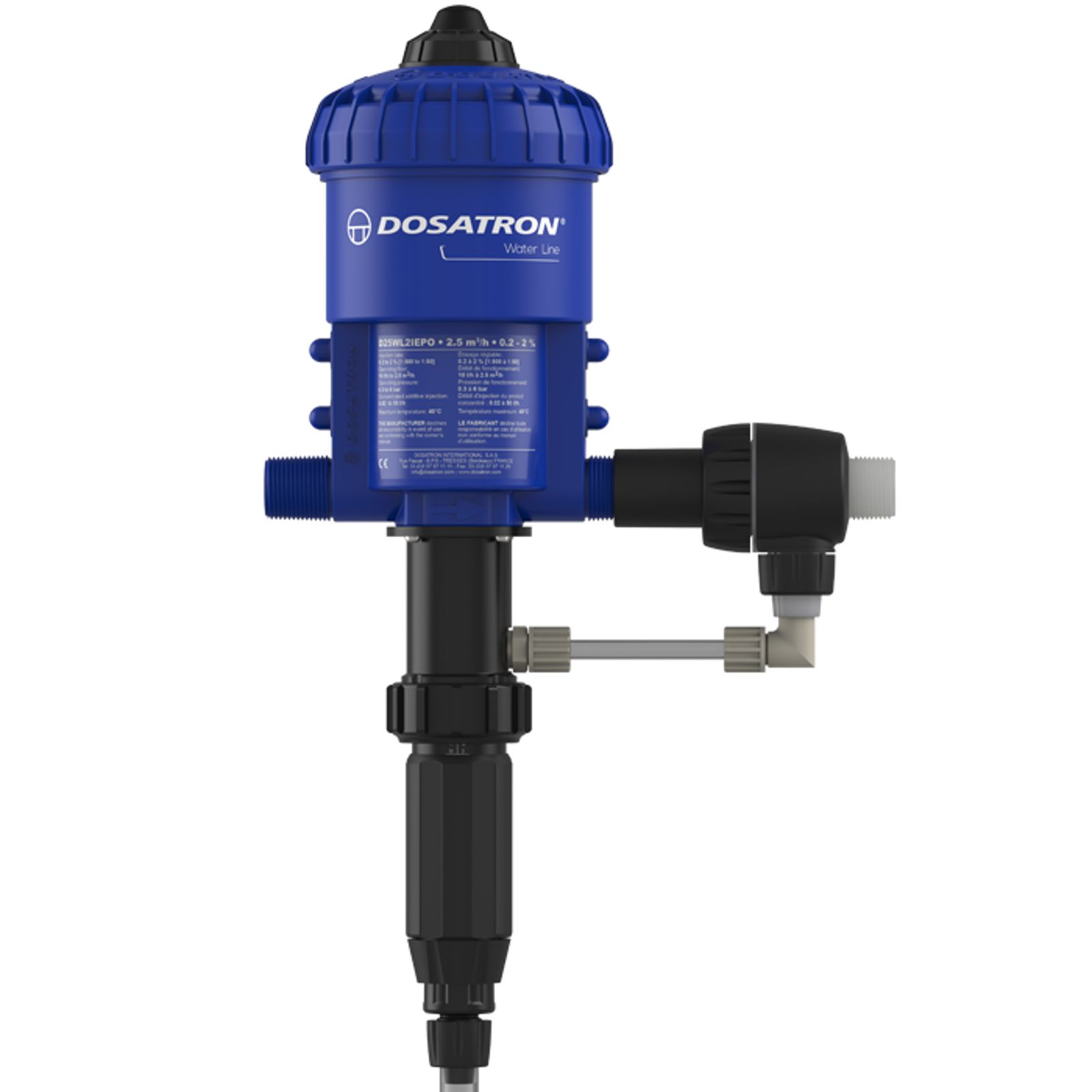

The D25WL2 IE PO is an efficient and attractive solution for in-line polymer dosing, thanks to standard equipment adapted to viscous products, its external injection and its dynamic mixer.
- Proportional dosing and without electricity
- Proportionality dependent on water flow
- Significant homogeneity
- Seals for acidic additives
- Kit for viscous additives recommended for more than 200 or 400 cPs (depending on model)
- External Injection
- Dynamic Mixer
- PVDF housing for highly concentrated acids and other aggressive concentrates
- Seals for highly concentrated acids (>15%)
