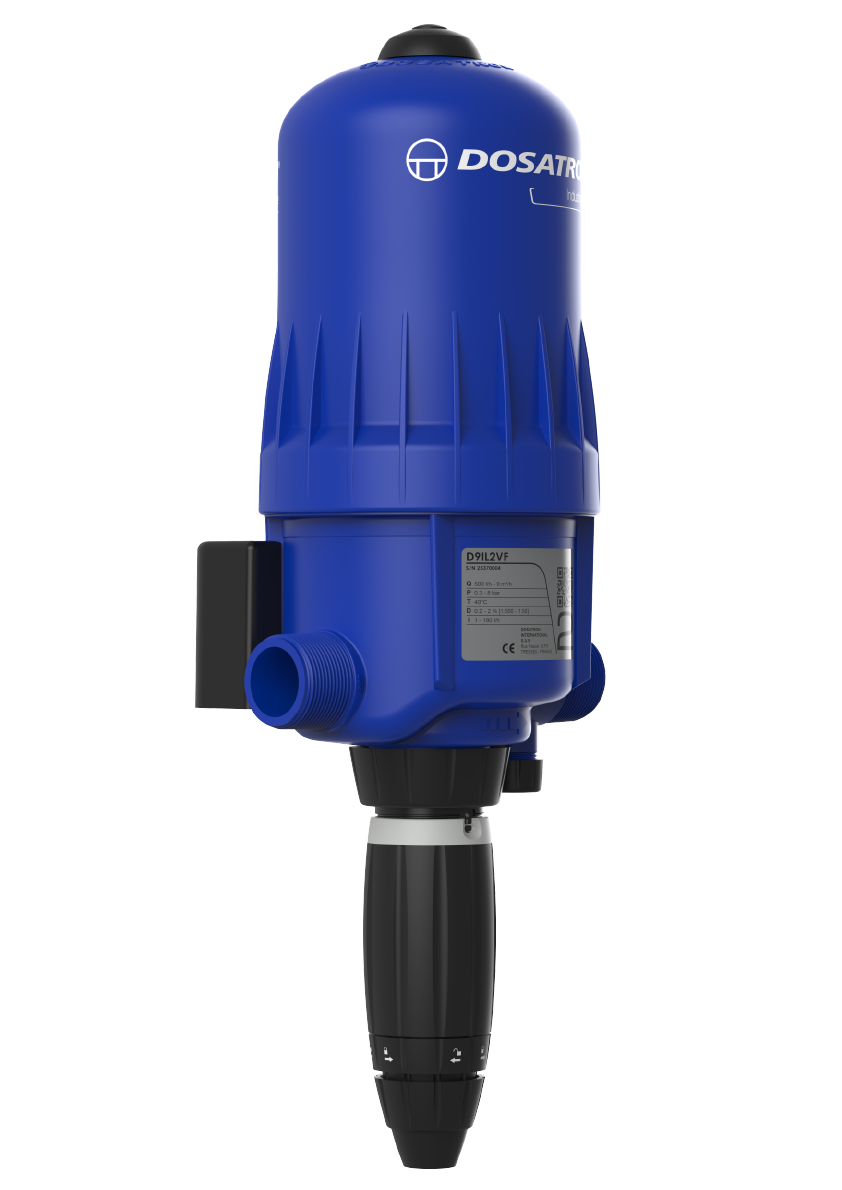

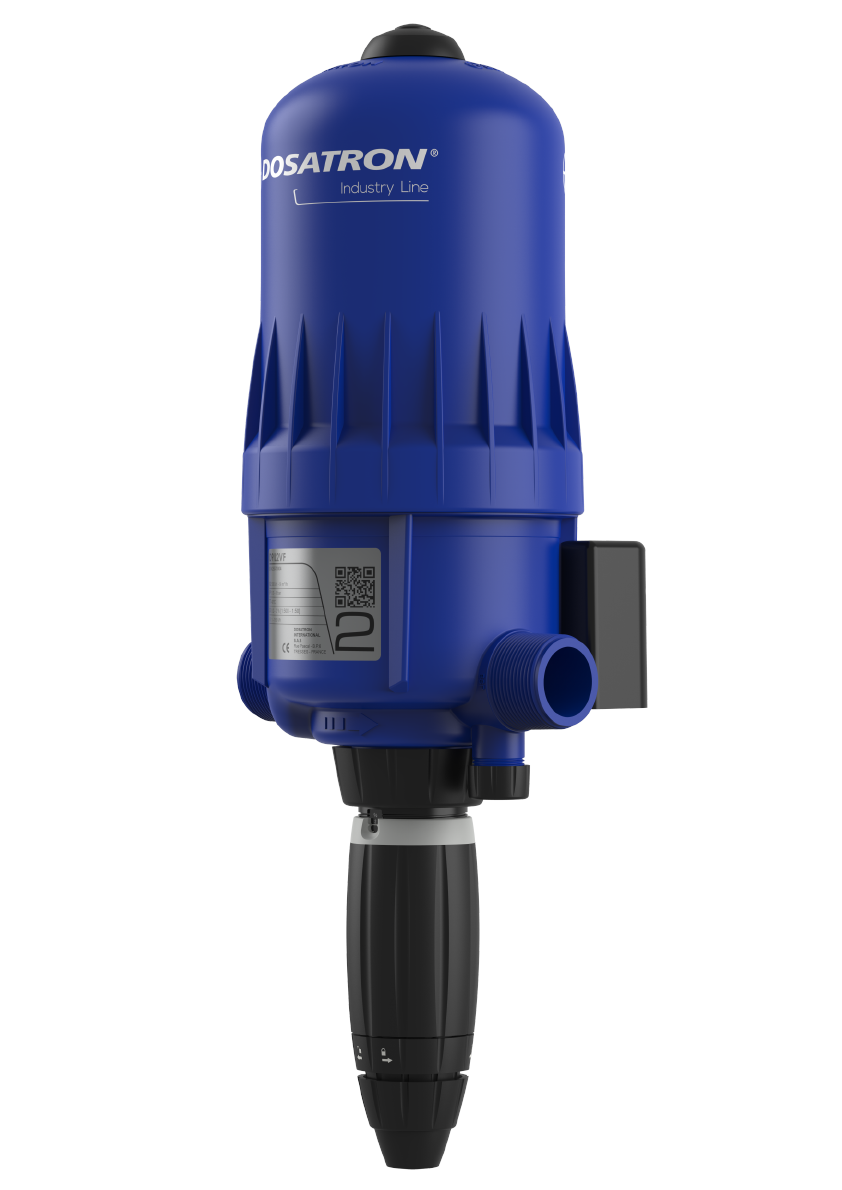

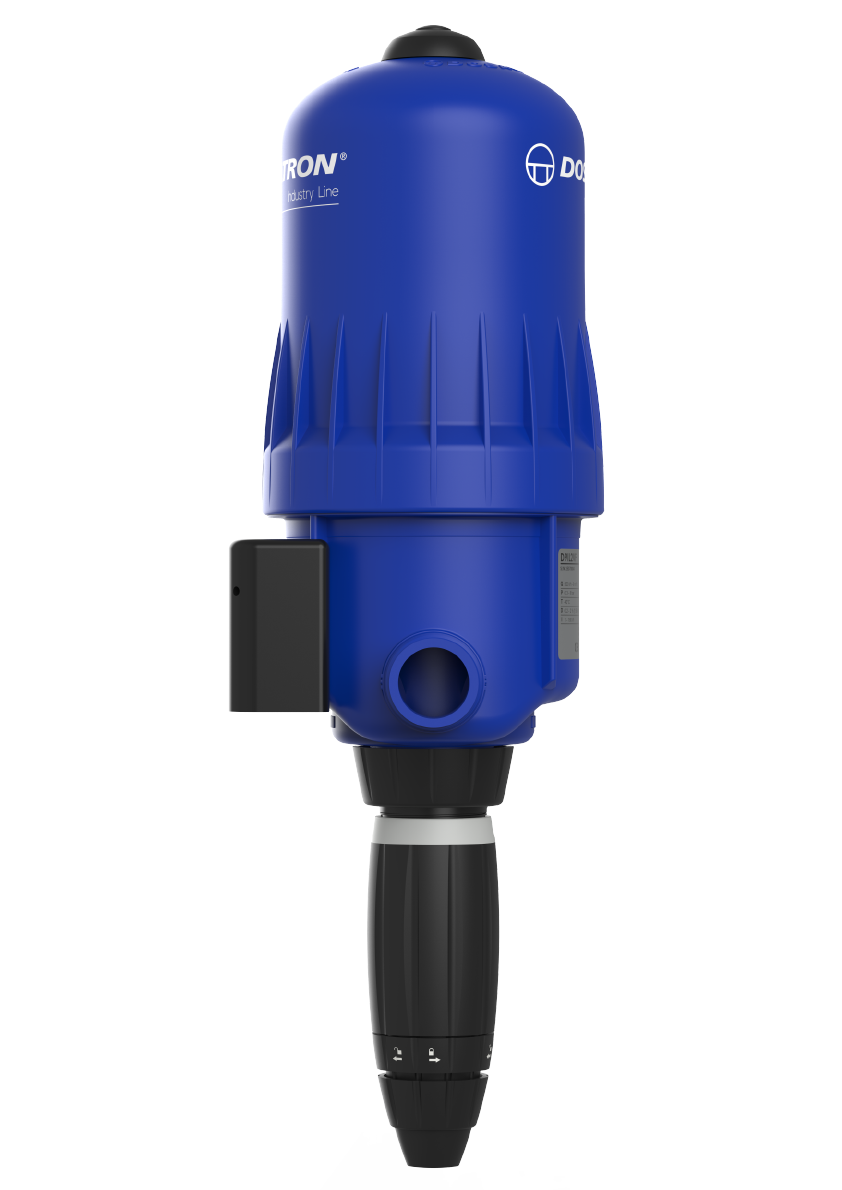

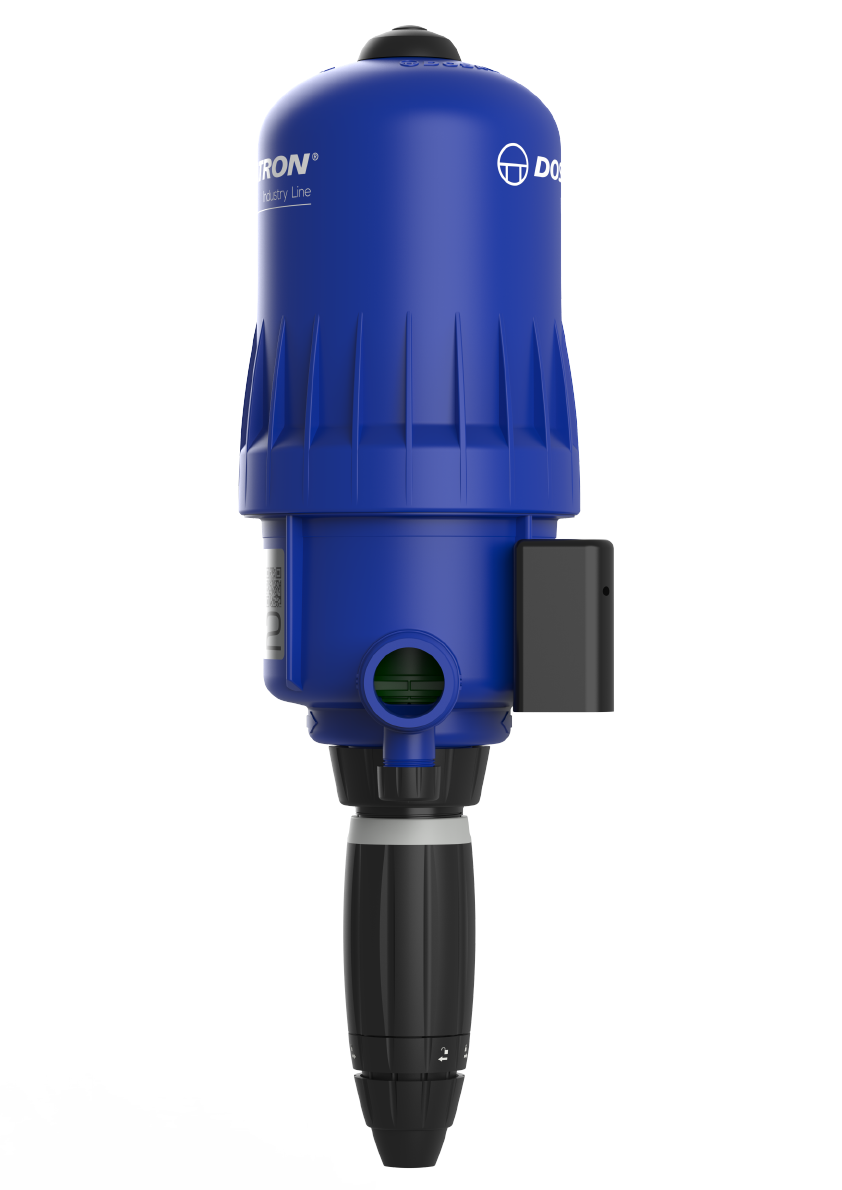

D9IL2

The proportional dosing solution for centralized industrial applications

Specifications :

Injection range 0,2 - 2 % [1:500 - 1:50]

Water flow range 500 l/h- 9 m3/h

Operating water pressure 0,15 - 8 bar

Concentrated additive injection 1 - 180 l/h

Stroke volume ~ 1,7 l

Connections NPT-BSP 1''1/2 M Ø 40x49mm

Hose PTFE Ø 4x6 mm- Lg 1,75m
