Car-Wash Low-Pressure Modular Self-Serve System

The driving force of the Low-Pressure Modular Self-Serve Systemis the Dosatron D14MZ-D series chemical dilution dispenser. Dosatrons work using volumetric proportioning, ensuring that the chemical mixture remains the same regardless of variations in pressure and flow.

For example, your customer enters Bay #1 and turns on the presoak. The #1 solenoid in the manifold served by the presoak Dosatron opens and water flows, driving the Dosatron piston and plunger up and down. The syringe-like action draws and mixes concentrate into the flowing water and dispenses it directly out to Bay #1. A second customer enters Bay #2 and also turns on the presoak. Now the flow demand has doubled, so the Dosatron automatically strokes twice as fast proportionally maintaining the proper mixture of chemical to water. It’s that simple!

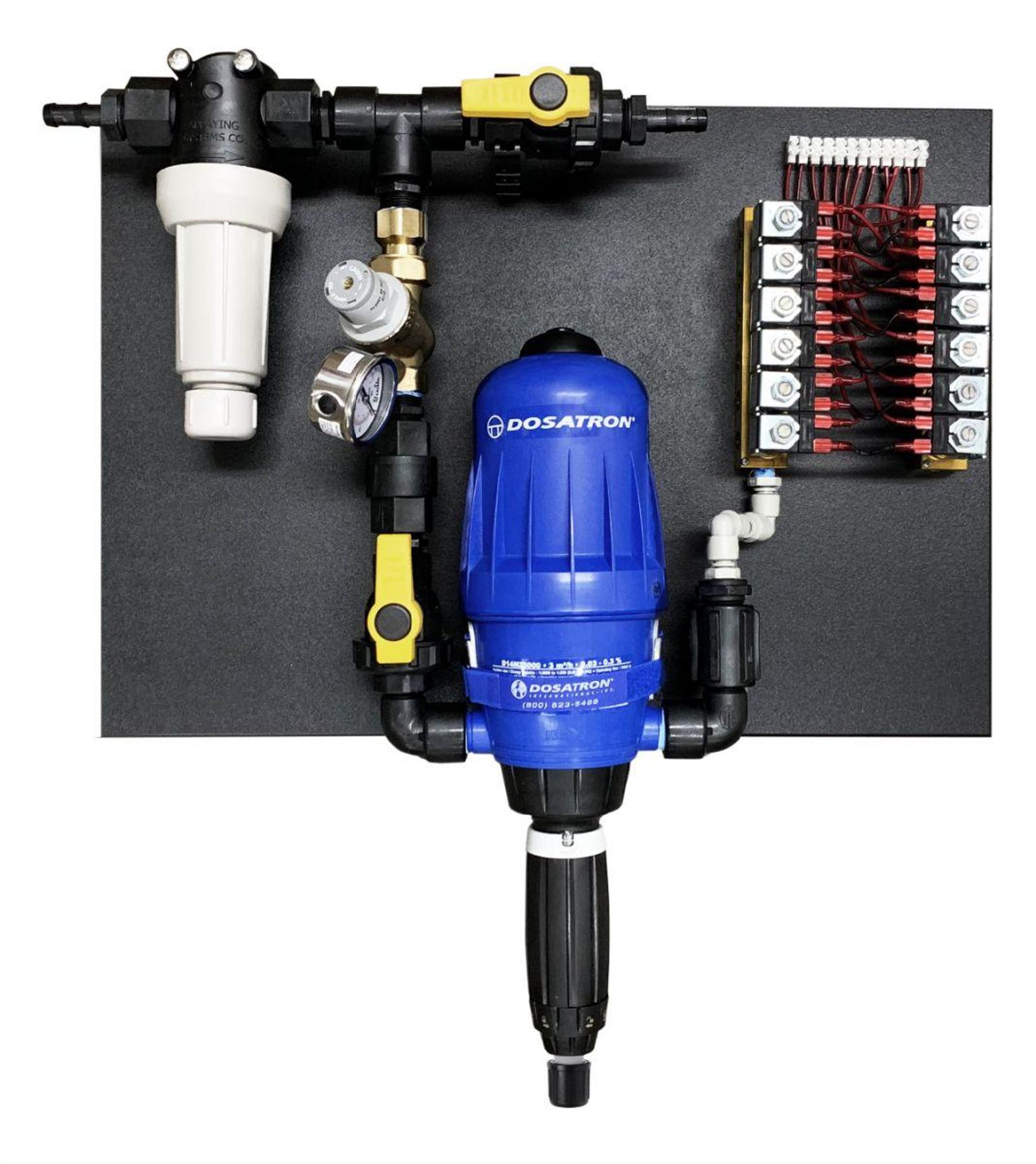

The panels are easy to set up. Securely attach the panel to the wall and bring your water supply to the filter inlet, then move the power wires from the old solenoids to the new ones, move the bay chemical supply lines from the old solenoids to the new, and you are now ready to wash!Each panel can supply from 1 to 6 bays with perfectly mixed chemical, on-demand. It comes complete with one Dosatron proportioner unit, chemical and air-solenoid valve manifolds, water and air pressure regulators with gauges, and a filter.Can I expand the system?Modular is key to this completely assembled and ready-to-mount system, allowing for easy expansion. Each panel includes a hose barb on the discharge end of the water manifold with a ball valve that shuts off. When you are ready to add another panel right next to the first, and continue with another chemical, add a jumper hose to the barb and bring it to the inlet side of the next panel, then open the ball valve; it’s that simple.

To choose the right panel for your carwash, you first select which dilution range best fits your chemical. The D14MZ-D Series offers three models with the dilution ranges of:

• D14MZ2-D – 500:1 to 50:1
• D14MZ10-D – 100:1 to 10:1
• D14MZ3000-D – 3000:1 to 333:1

Next, determine how many solenoids you will need in your manifold and voltage (i.e., 4 bays equals 4 solenoids). And decide if you need an air manifold to foam the chemical.
