- Injection range 0,03 - 0,125 % [1:3000 - 1:800]
- Water flow range 500 l/h - 8 m3/h
- Operating water pressure 0,15 - 8 bar
- Concentrated additive injection 0,15 - 10 l/h
- Stroke volume ~ 1,7 l
- Connections NPT-BSP 40x49 - 1"1/2 M

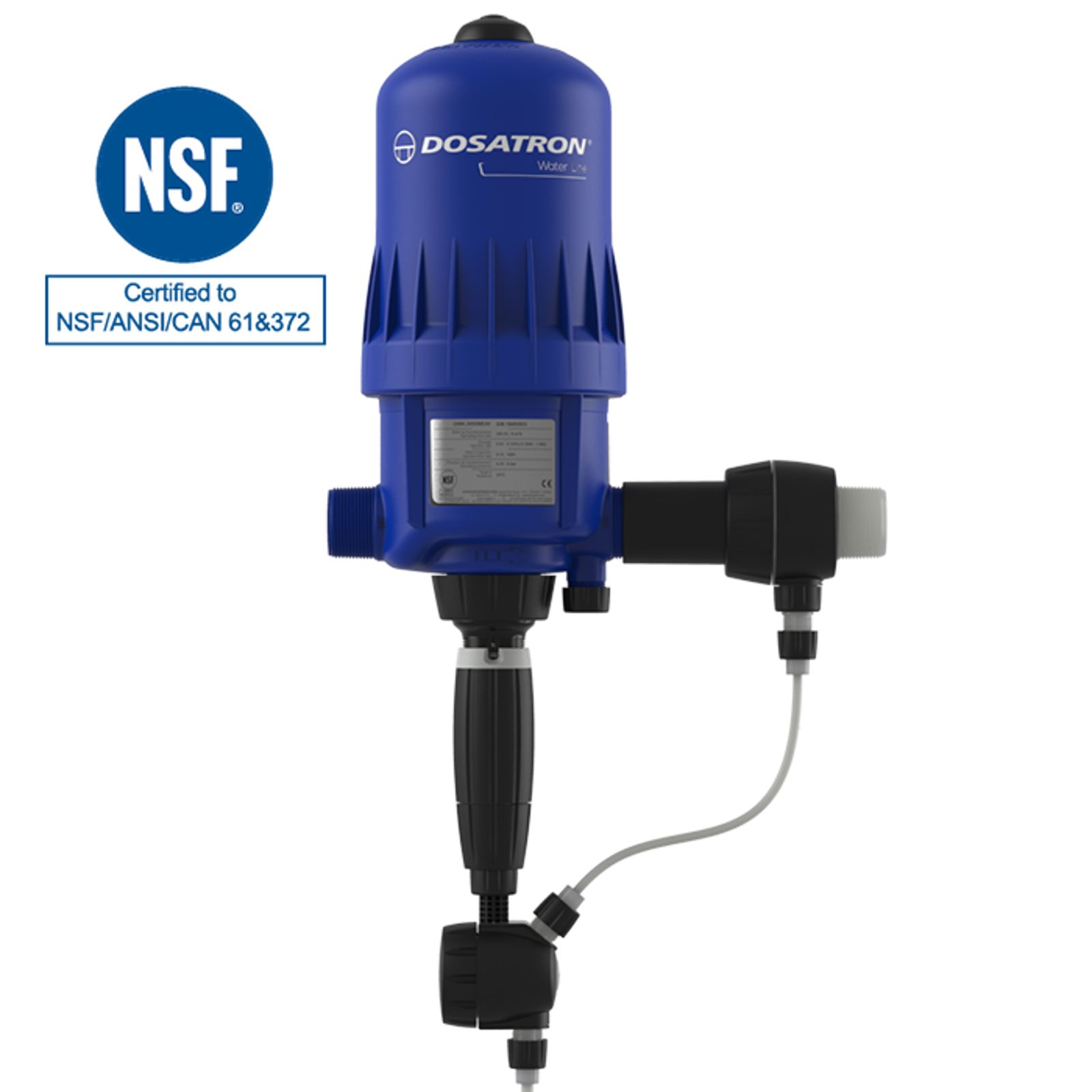

D8WL3000 IE NSF
Certified chlorine dosing pump for drinking water
The D8WL-NSF range of chlorine dosing pumps is certified NSF/ANSI/CAN 61: Drinking Water System Components - Health Effects NSF (American approval for all equipment in contact with water intended for human consumption). See more.
It meets the dosing requirements for flow rates from 500 to 8,000 l/h.
It is characterized by:
- Proportional dosing and without electricity
- Proportionality dependent on water flow
- Outlet injection
- AF seals adapted to alkaline products
