Dosatron’s mini dosing pumps are designed to be robust and efficient. They are non-electric, water-powered, chemical-resistant and designed for easy implementation into new or existing industrial dosing applications.
Our mini dosing pumps are used for applications that require continuous or proportional injection and mixing of a liquid or a soluble concentrate into water which is then dispersed to the target in an exact dose.
The Dosatron D07RE series of mini dosing pumps is easy to install in compact dosing systems that require low water flow conditions.
Watch as our Operational Marketing Director, Patrice Amblard, introduces the D07RE metering pumps range.
Due to their broad range of performance and compact footprint, our D07RE series mini dosing pumps meet the needs of many applications, including:
The D07RE mini dosing pump is the perfect fit for applications of a compact nature that require low and consistent water flow conditions. Its wide range of performance allows it to be used in various applications. The D07RE series can supply a water flow from 5L per hour to 700L per hour. It offers a dosing rate from 0.125% up to 5% and can withstand pressure up to 6 bar.
The D07RE series is manufactured using high-tech plastic giving it high chemical resistance. It is also compatible with most additives used in various industries today. To extend its chemical-resistance, optional PVDF material is available to be used in the pump’s body.
The D07RE series features the Dosatron Compact, which is equipped with a security valve integrated in the Dosatron inlet. The inlet will open and let the water flow through even when the motor stops operating. This security “bypass” uses a differential pressure point of 1.5 bar [21 PSI] below which the valve will not operate.

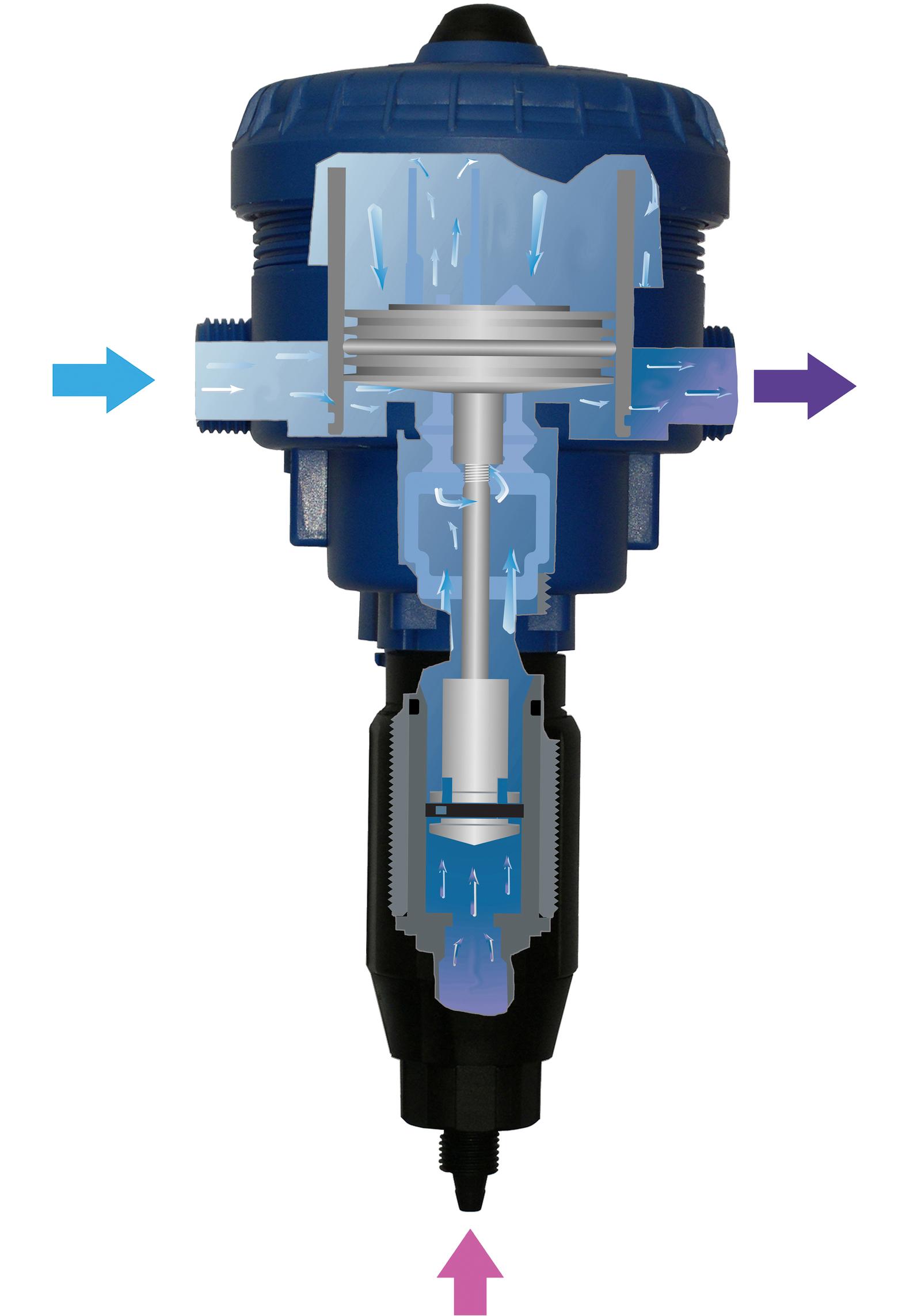

Installed directly in the water supply line, the dosing system operates by using the flow of water as its power source.
The water activates the featured Dosatron, which takes up the required percentage of concentrate directly from the container and injects it into the water.
Inside the Dosatron, the concentrate is mixed with the water, and the water pressure forces the solution downstream.
The dose of concentrate is directly proportional to the volume of water entering the Dosatron, regardless of variations in flow or pressure, which may occur in the main line.
Read more about the Dosatron technology.
Important! Refer to local water regulations, prior to installing your Dosatron.
To optimize your metering pump, it is recommended to:
For all further installation advice, please contact us.
